TOP AND CABINET PARTS

AUTOMATIC
WASHER
For Model: LSQ9030PQ0
(Designer White)
1
05−04 Litho in U.S.A. (drd)
Part No. 8180379
VanceBaldwin Electronics

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSQ9030PQ0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Whirlpool LSQ9030PQ0

  • Page 1: Top And Cabinet Parts

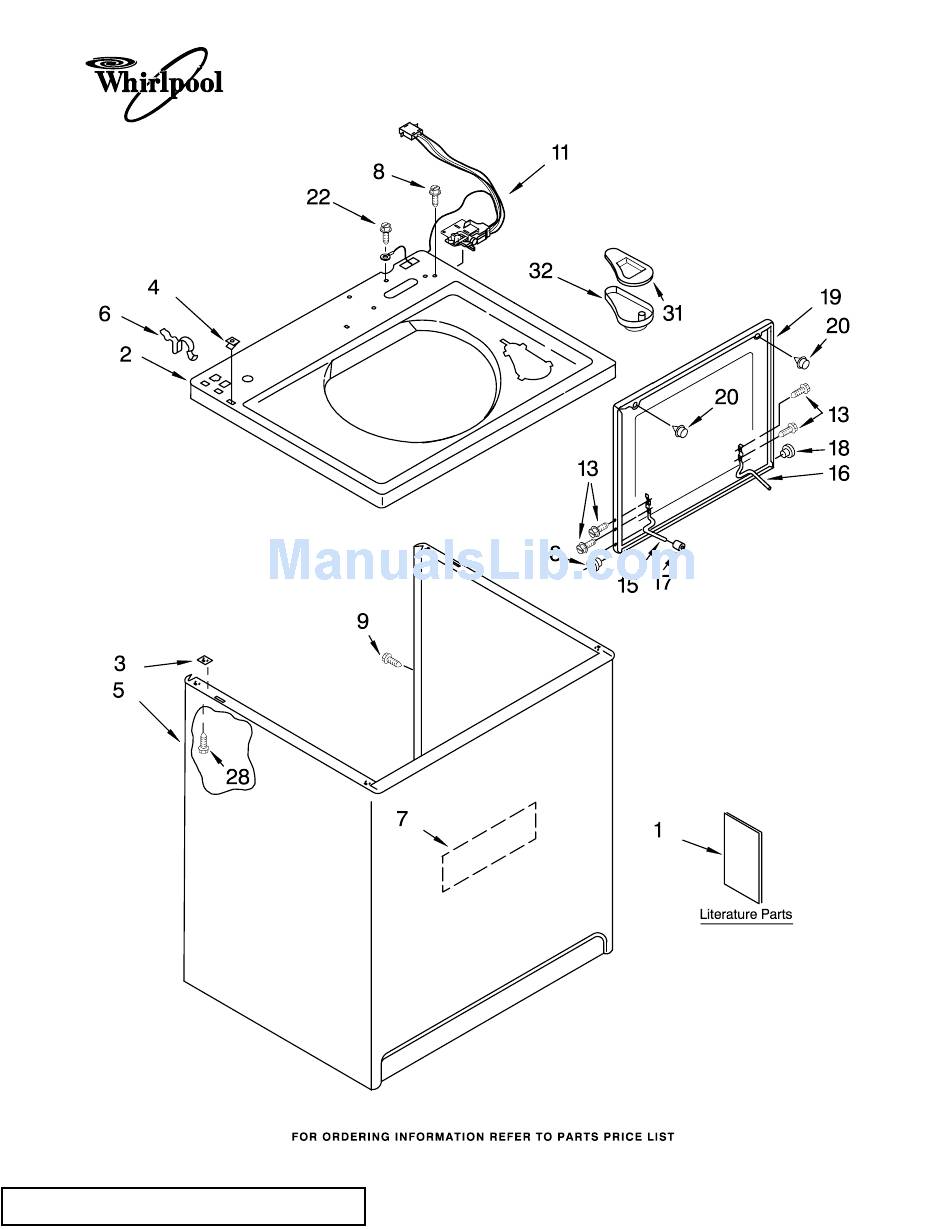

    TOP AND CABINET PARTS AUTOMATIC WASHER For Model: LSQ9030PQ0 (Designer White) 05−04 Litho in U.S.A. (drd) Part No. 8180379 VanceBaldwin Electronics...
  • Page 2 TOP AND CABINET PARTS For Model: LSQ9030PQ0 (Designer White) Illus. Part DESCRIPTION Literature Parts LIT3956025 Installation Instructions LIT3955907 Feature Sheet LIT3955869 Use & Care Guide LIT3956341 Energy Guide LIT8557303 Wiring Diagram Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS LIT4313896 Manual, Do−It−...
  • Page 3: Controls And Rear Panel Parts

    CONTROLS AND REAR PANEL PARTS For Model: LSQ9030PQ0 (Designer White) 8180379 VanceBaldwin Electronics...
  • Page 4 CONTROLS AND REAR PANEL PARTS For Model: LSQ9030PQ0 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3976300 Washer, Water 3351614 Screw, Ground 3951449 Hose, Pump To Tub Inlet Hose (4) 90767 Screw, 8−18 x 3/8 8055003 Clip, Harness (1−1/16 x 5/8)
  • Page 5 AGITATOR, BASKET AND TUB PARTS For Model: LSQ9030PQ0 (Designer White) 8180379 VanceBaldwin Electronics...
  • Page 6 AGITATOR, BASKET AND TUB PARTS For Model: LSQ9030PQ0 (Designer White) Illus. Part DESCRIPTION 63580 Dispenser 358237 Screw & Washer (5/16−24 x 1) 3363003 Clothes Mover 3951632 Agitator 8528150 Tub Ring & Gasket 3976308 Gasket, Tub Ring 3354845 Clip, Agitator 3355921 Washer, Agitator...
  • Page 7: Machine Base Parts

    MACHINE BASE PARTS For Model: LSQ9030PQ0 (Designer White) Illus. Part DESCRIPTION 3400076 Screw, Bracket Mounting (10−32 x 5/8) 64067 Bracket, Spring Outer (2) 63907 Spring Suspension,(3) 3362087 Support & Brake, 64065 Bracket, Spring Outer (L.F.) 63466 Link, Leveling Mechanism (2)
  • Page 8 BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS For Model: LSQ9030PQ0 (Designer White) Illus. Part Illus. Part DESCRIPTION DESCRIPTION 388952 Brake & Drive 3357334 Screw, Gearcase Tube (Complete) To Base (3) (Refer to Page 11 62611 Plate, Motor For Further Mount To...
  • Page 9: Wiring Harness Parts

    WIRING HARNESS PARTS For Model: LSQ9030PQ0 (Designer White) 8180379 VanceBaldwin Electronics...
  • Page 10 WIRING HARNESS PARTS For Model: LSQ9030PQ0 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3349557 Clip, Harness 62889 Receptacle, 3390423 Block, Disconnect 388498 Clip, Harness Terminal (12−Way) 3347812 Clip, Harness (3−Way) (Timer) 3352501 Clip, Harness (Lid Switch) (Use Term.
  • Page 11: Brake And Drive Tube Parts

    BRAKE AND DRIVE TUBE PARTS For Model: LSQ9030PQ0 (Designer White) Illus. Part DESCRIPTION 388952 Brake And Drive Tube (Complete) 62658 Ring, Thrust 91939 Seal, Oil 356427 Seal, Drive Tube 356937 Spacer, Drive Tube 64027 Tube, Basket Drive (Includes Illus. 3, 4, 5 & 9)
  • Page 12: Gearcase Parts

    GEARCASE PARTS For Model: LSQ9030PQ0 (Designer White) Illus. Part DESCRIPTION 1 3360630 Gearcase (Complete) 285202 Cover, Gearcase 3 3349985 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Illus. 25) 356427 Seal, Spin Pinion...
  • Page 13: Water System Parts

    WATER SYSTEM PARTS For Model: LSQ9030PQ0 (Designer White) Illus. Part DESCRIPTION 285442 Connector Kit, Plastic Drain Hose 285321 Sleeve Kit, (Contains 2 Sleeves) 370447 Clamp, Hose 16272 Connector, Straight 285320 Siphon Break (Not Included) 65349 Clamp, Hose 367031 Drain Protector...
  • Page 14: Miscellaneous Parts

    MISCELLANEOUS PARTS For Model: LSQ9030PQ0 (Designer White) Illus. Part DESCRIPTION 3976263 Miscellaneous Parts Bag 3976300 Washer, Inlet Hose (4) (1−1/16 x 5/8) 3366912 Clamp, Hose 3366913 Clamp, Hose 3359452 Nut, Lock (2) (3/8−16) 389102 Foot, Front (2) OPTIONAL PARTS (NOT INCLUDED) Illus.
