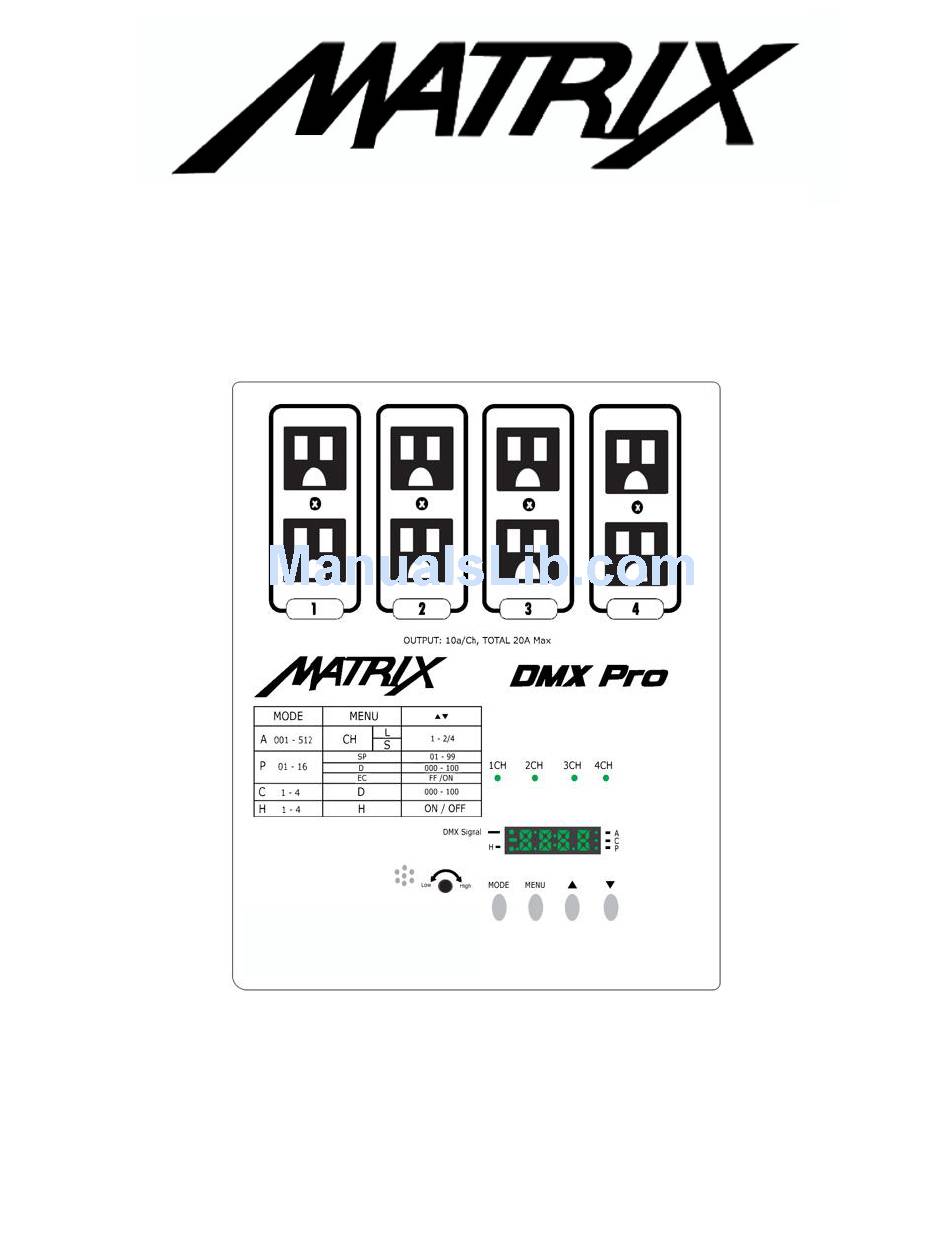

  • Page 1 DMX PRO 4CH DMX DIMMER PACK USER’S MANUAL...

  • Page 2: Product Features

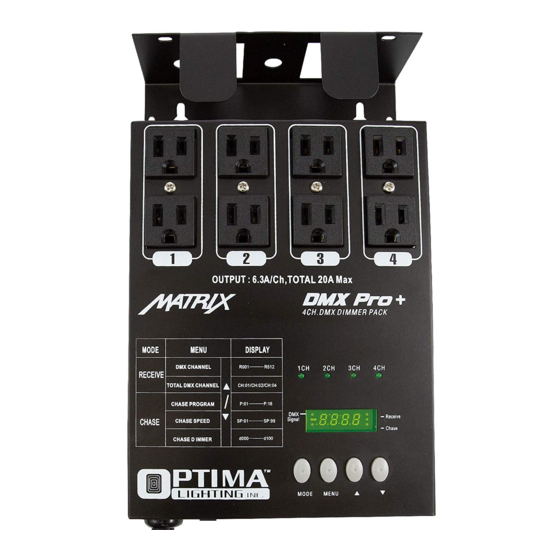

    Thank you for purchasing the Optima Lighting 4 channel DMX dimmer pack. To ensure a durable and consistent performance of this product, please read these operating instructions carefully and familiarize yourself with the basic operations. This unit has been tested at the factory prior to shipping. PRODUCT FEATURES: 3 pin XLR female and male connectors for DMX control One, two or four channel configuration option...

  • Page 3: Functions And Controls

    FUNCTIONS AND CONTROLS...

  • Page 4: Operation

    1. 110v grounded outlets 2. Green LED Indicators: Indicators will illuminate when corresponding channel is activated. 3. LCD Display: This multifunction will display the setting and running mode of the unit. 4. 110V/220V Switch: Make sure the switch is set to the proper voltage setting prior to connecting your unit to the main power and turning it on.

  • Page 5: Dmx Operation

    DMX MODE A 001 -512: (The LED next to the letter “A” on the display will turn ON) In this mode you will be able to use your pack as a DMX dimmer or switching pack. This function will allow you to turn ON / OFF or control the intensity of a non-DMX fixture with the use of a DMX controller.

  • Page 6: Chase Mode P

    CHASE MODE “P” 01 -16 (The LED next to the letter “P” on the display will turn ON) Choose this mode only when you want the device to act as a 4-channel chaser. This device has 16 built- in programs. You can select to run any of these programs and control the chase speed (SP:01-99), the light output (d000-100) dimming or music mode (EC: FF or ON).

  • Page 7: Manual On/Off Mode

    Manual ON / OFF mode H:01-04: (The LED next to the letter “H” on the display will turn ON) In this mode you will be able to turn any of the channels ON and OFF manually. Click the mode button until you get to the “H” mode; select the channel you would like to control by clicking the button.
