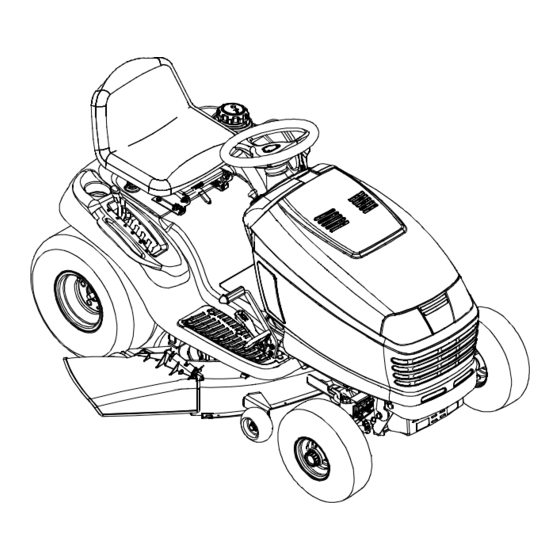

Parts Manual

Series 1500
Hydrostatic Lawn Tractor
Models 1515
1517
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
PRINTED IN U.S.A.
FORM NO. 770-10604A
(01/2002)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1515 and is the answer not in the manual?

Questions and answers

Paul Capalbo
June 29, 2025

Engine won’t start. Turn key nothing happens. Installed new battery. Next step is changing spark plug. Any other thoughts?

0

Related Manuals for Cub Cadet 1515

Summary of Contents for Cub Cadet 1515

  • Page 1: Parts Manual

    Parts Manual Series 1500 Hydrostatic Lawn Tractor Models 1515 1517 CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 PRINTED IN U.S.A. FORM NO. 770-10604A (01/2002)
  • Page 2 - 1- MODELS 1515 & 1517 TABLE OF CONTENTS DESCRIPTION PAGE DESCRIPTION PAGE Axle, Front ............5, 6 Engine Mounting ..........Battery ............. 15, 16 Fender ............. Brake Pedal ............. 11, 12 Frame .............. 7, 8 Bulkhead ............17, 18 Fuel Tank ............
  • Page 3 QTY. 634-0245 Rim/Wheel Assembly, 20 x 9 x 8 (4-Lug) 634-3012A Wheel, Complete, 15 x 6 x 6 734-3189 Tire, Turf, Cub Cadet 20 x 9 x 8 634-0246 Rim Assembly, 8.0 x 6.19 (4-Lug) 712-3050 Lug Nut, 7/16-14 741-3032 Bearing, Ball, .75 ID x 1.75 OD...
  • Page 4 - 3- DRIVE SYSTEM Attach Spring (732-1716) Here...
  • Page 5 - 4- DRIVE SYSTEM REF. PART NUMBER DESCRIPTION QTY. 17840 Bracket, Mounting, Transaxle 618-0365 Hub Assembly, Wheel 618-0667 Transmission, Hydrostatic 629-0949A Harness Assembly, Ground & Reverse 1 683-0251 Bracket Assembly, Idler, Center Dbl 710-0176 Hex Cap Screw, 5/16-18, 2.75, Gr5 710-0227 Screw, #8-18, 0.500 710-0344...
  • Page 6 - 5- STEERING...
  • Page 7 - 6- STEERING REF. PART NUMBER DESCRIPTION QTY. 710-0514 Hex Cap Screw, 3/8-16, 1.00, Gr5, Std 711-1408 Link, Drag, RH 711-1409A Link, Drag, LH 712-0237 Nut, Hex Lock, 5/16-24 712-0240 Nut, Jam, 7/16-20, Gr2 712-0241 Nut, Hex, 3/8-24, Gr5 712-0431 Nut, Flange Lock, 3/8-16 712-0459 Nut, Flange Lock, 7/16-20...
  • Page 8 - 7- FRAME 710-0607 Used At This Location Only...
  • Page 9 - 8- FRAME REF. PART NUMBER DESCRIPTION QTY. 683-0304A Frame Assembly, Lower 683-0612 Bumper Assembly 710-0604A Screw, Self-tapping, 5/16-18, 0.625 710-0607 Screw, Self-tapping, 5/16-18, 0.500 710-0642 Screw, Self-tapping, 1/4-20, 0.750 710-1238 Screw, 5/16-18, .875, Gr5 710-1260A Screw, 5/16-18, 0.750 711-0332 Pin, Clevis, .50 Dia x .78 Lg 712-0431 Nut, Flange Lock, 3/8-16...
  • Page 10 - 9- FENDER & FUEL TANK REF. PART NUMBER DESCRIPTION QTY. 710-0260A Bolt, Carriage, 5/16-18 x .62 Lg 710-0604A Screw, 5/16-18, 0.625 710-0895 Screw, 1/4-15, 0.750 712-3004A Nut, Flange Lock, 5/16-18 731-0511 Strip, Trim 731-2616 Cover, Fender, RH 731-2617 Cover, Fender, LH 736-3078 Washer, Flat, .349 x 1.00 x .063 783-0677...
  • Page 11 - 10- LIFT ASSEMBLY REF. PART NUMBER DESCRIPTION QTY. 683-0197B Shaft Assembly, Lift 711-0332 Pin, Clevis, .50 Dia x .78 Lg 712-0206 Nut, Hex, 1/2-13, Gr5 712-0431 Nut, Flange Lock, 3/8-16 712-3004A Nut, Flange Lock, 5/16-18, Gr5 712-3083 Nut, Hex , 1/2-13, Gr8, Nylon Lock 714-0104...
  • Page 12 - 11- PEDAL ASSEMBLY Hook to Flange In Frame (783-0650)
  • Page 13 - 12- PEDAL ASSEMBLY REF. PART NUMBER DESCRIPTION QTY. 647-0031 Control Assembly, Brake 647-0049 Control Assembly, Hydro 710-0604A Screw, Self-tapping, 5/16-18, 0.625 710-0650 Screw, Self-tapping, 5/16-18, 0.875 710-1260A Screw, 5/16-18, 0.750 711-0736 Adjustment Ferrule 1/4-20 x 1.0 711-1363 Pin, 3/8-16, 3/8 x 2.43 Lg 712-0431 Nut, Flange Lock, 3/8-16 712-3004A...
  • Page 14 - 13- ADJUSTABLE SEAT REF. PART NUMBER DESCRIPTION QTY. 710-1268 Screw, #10-16, 0.375 712-3004A Nut, Flange Lock, 5/16-18, Gr5 712-3027 Nut, Flange Lock, 1/4-20 720-0433 Grip, Seat, Adjustment (Yellow) 726-0201 Nut, Speed, .3125 ID 731-1989 Spacer, Seat, Adjustment 732-0499 Spring, Compression .41 OD x 1.50 732-1184 Spring, Extension, .84 Dia x 4.6 Lg.
  • Page 15 - 14- ENGINE ACCESSORIES For Choke Fits Over Fuel Line Routed Behind The Engine. Secures The Headlight Harness Slack To The Hood Hinge. REF. PART NUMBER DESCRIPTION QTY. 710-0227 Screw, #8-18, 0.500 710-0599 Screw, Self-tapping, 1/4-20, 0.500 710-0604A Screw, 5/16-18, 0.625 710-3206A Screw, M8-1.25, 25.0, Gr8.8 712-3017...
  • Page 16 - 15- DASH PANEL...
  • Page 17 - 16- DASH PANEL REF. PART NUMBER DESCRIPTION QTY. 710-0136 Screw, 1/4-20, 1.75, Gr5 710-0599 Screw, Self-tapping, 1/4-20, 0.500 710-0604A Screw, 5/16-18, 0.625 710-0895 Screw, 1/4-15, 0.750 710-1238 Screw, 5/16-18, .875, Gr5 710-3217 Screw, Machine, #8-32, 0.375, Trus Phillips 712-0142 Nut, 8-32 712-0271 Nut, Hex, 1/4-20, Sems...
  • Page 18 - 17- HOOD & GRILLE...
  • Page 19 - 18- HOOD & GRILLE REF. PART NUMBER DESCRIPTION QTY. 603-0211 Bracket Assembly, Grille LH 603-0212 Bracket Assembly, Grille RH 603-0583A Bracket Assembly, Hood 625-0053 Headlight Assembly, Front 725-0963 Miniature Lamp, 12V Socket-type 725-1649 Socket Lamp, Nylon 1/4-Turn 731-3138A Lens 731-3295 Leflector, Headlight 703-05000...
  • Page 20 - 19- POWER TAKE-OFF (PTO) SYSTEM...
  • Page 21 Pulley, Idler, 3.5 (Model 1517) 756-1208 Pulley, Idler, 4.0 (Model 1517) 783-0891B Deck Stop 717-1773 Clutch, Electric PTO, 6” (Model 1515) 717-1708 Clutch, Electric PTO (Model 1517) 736-0277 Washer, Flat, 1.031 x 1.620 x .095 738-0785 Spacer, Shoulder, 1.38 x .445 x .36...
  • Page 22 - 21- 38-INCH CUTTING DECK...
  • Page 23 - 22- 38-INCH CUTTING DECK REF. PART NUMBER DESCRIPTION QTY. 16606 Bracket, Hook, Retainer 618-0676 Spindle Assembly, 38" 683-0611 Deck Assembly, 38" 703-1890 Wheel, Deck, 5.0 OD w/ Fitting 710-0528 Screw, 5/16-18, 1.25, Gr5 710-0602 Screw, Self-tapping, 5/16-18, 1.000 710-0604A Screw, 5/16-18, 0.625 710-0650 Screw, Self-tapping, 5/16-18, 0.875...
  • Page 24 - 23- 42-INCH CUTTING DECK...
  • Page 25 - 24- 42-INCH CUTTING DECK REF. PART NUMBER DESCRIPTION QTY. 16606 Bracket, Hook, Retainer 618-0677 Spindle Assembly, 42" 683-0254 Bracket Assembly, Deck, Hanger LH 683-0607 Deck Assembly, 42" 703-1890 Wheel, Deck, 5.0 OD w/ Fitting 710-0136 Screw, 1/4-20, 1.75, Gr5 710-0520 Screw, 3/8-16, 1.50, Gr5 710-0528...
  • Page 26 - 25- HYDROSTATIC TRANSMISSION...

  • Page 27: Hydrostatic Transmission

    - 26- HYDROSTATIC TRANSMISSION REF. PART REF. PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. HG-70721 Main Housing, Assembly, Black HG-2003017 Washer HG-70720 Side Housing, Assembly, Black 737-3121 20W-50 Oil (Gal) 78.8 HG-70724 Center Section, Assembly HG-44092 Brake Yoke HG-51048 Swashplate, Trunnion Machined HG-51072 Rotor, Brake HG-70331...
  • Page 28 - 27- ELECTRICAL SYSTEM...

  • Page 29: Electrical System

    - 28- ELECTRICAL SYSTEM REF. PART NUMBER DESCRIPTION QTY. 629-0469A Harness Assembly, Headlight 629-0889 Harness Assembly, Kohler OHV Alternator 629-1105 Harness Assembly, Kohler, 629-1106 Harness Assembly, Safety, Reverse 710-0227 Screw, Ab, #8-18, 0.500 710-0599 Screw, Self-tapping, 1/4-20, 0.500 712-3006 Nut, Hex, 1/4-20, Gr5 725-1303 Switch, Outer Seat Spring 725-1426...
  • Page 30 - 29- ENGINE CRANKSHAFT & CRANKCASE...
  • Page 31 Ring Set (Std. & .08) KH-12 108 08-S Ring Set (.25) KH-12 108 09-S Ring Set (.50) KH-12 067 05-S Connecting Rod (Std.) (Model 1515) KH-12 067 11-S Connecting Rod (Std.) (Model 1517) KH-12 067 06-S Connecting Rod (.25)(Model 1515) KH-12 067 12-S Connecting Rod (Std.) (Model 1517)
  • Page 32 - 31- ENGINE OIL PAN & LUBRICATION...
  • Page 33 - 32- ENGINE OIL PAN & LUBRICATION REF. PART NUMBER DESCRIPTION QTY. KH-12 038 01-S Dipstick (Includes 2, 3) KH-24 755 46-S Kit, Oil Fill Cap (Includes 3) KH-12 153 03-S O-ring KH-12 153 02-S O-ring, Upper Oil Fill Tube KH-12 123 04-S Tube, Oil Fill KH-M-645025-S...
  • Page 34 - 33- ENGINE CYLINDER HEAD & VALVES...
  • Page 35 DESCRIPTION QTY. KH-25 351 01-S Lifter, Valve KH-12 755 81-S Kit, Cylinder Head (Model 1515) (Incl. 3-17, Carburetor Gasket (2), Air Cleaner Base Gasket, Exhaust Manifold Gasket) KH-12 755 94-S Kit, Cylinder Head (Model 1517) (Incl. 3-17, Carburetor Gasket (2), Air Cleaner Base...
  • Page 36 - 35- ENGINE IGNITION & ELECTRIC STARTER...
  • Page 37 - 36- ENGINE IGNITION & ELECTRIC STARTER REF. PART NUMBER DESCRIPTION QTY. KH-12 086 14-S Screw, Hex. Flange M10 x 1.5 x 46 KH-12 468 03-S Washer, Plain 3/8” KH-24 162 03-S Screen, Grass KH-25 086 47-S Bolt, Shoulder M6 x 1.0 x 16 KH-12 157 06-S KH-X-42-15-S KH-12 025 15-S...
  • Page 38 - 37- ENGINE BLOWER HOUSING REF. PART NUMBER DESCRIPTION QTY. KH-M-545010-S Screw, Hex. Flange M5 x 0.8 x 10 KH-24 468 10-S Washer, Plain 1/4” KH-12 146 07-S Plate, Blower Housing KH-M-550010-S Screw, Hex. Flange M5 x 0.8 x 10 KH-24 096 05-S Cover, Pinion KH-12 027 55-S...

  • Page 39: Engine Controls

    - 38- ENGINE CONTROLS REF. PART NUMBER DESCRIPTION QTY. KH-12 079 11-S Linkage, Choke KH-12 237 01-S Clamp, Cable KH-M-545016-S Screw, Hex. Flange M5 x 0.8 x 16 KH-M-664020-S Screw, Lobed Socket M6 x 1.0 x 20 KH-12 536 02-S Control, Speed Assembly (Incl.
  • Page 40 - 39- ENGINE CARBURETOR & FUEL PUMP...
  • Page 41 - 40- ENGINE CARBURETOR & FUEL PUMP REF. PART NUMBER DESCRIPTION QTY. KH-M-641060-S Nut, Hex. Flange M6 x 1.0 KH-M-629116-S Stud M6 x 1.0 x 116 (2) KH-12 853 117-S Kit, Carburetor W/ Gaskets (Includes 4, 5, 6 [Qty. 1], Tie KH-12 454 03-S, & Terminal KH-25 452 20-S) KH-12 041 02-S Gasket, Air Cleaner...
  • Page 42 - 41- ENGINE AIR INTAKE AND EXHAUST REF. PART NUMBER DESCRIPTION QTY. KH-25 341 03-S Knob, Air Cleaner Cover KH-12 281 01-S Duct, Air (Model 1517) KH-12 096 24-S Cover, Air Cleaner KH-12 083 12-S Precleaner KH-12 100 08-S Wing Nut KH-12 083 10-S Element, Air Cleaner (Includes 5, 7, 8) KH-12 743 12-S...
