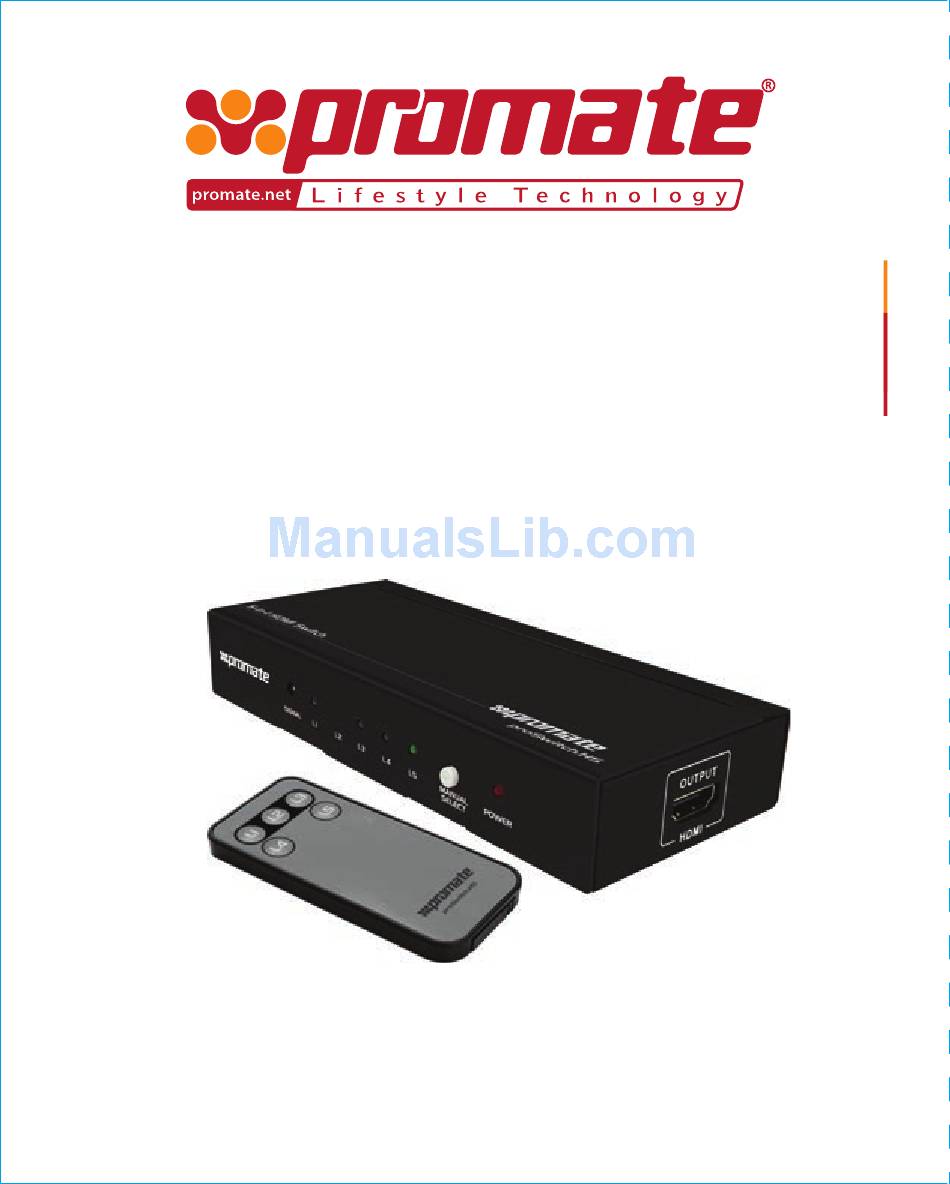

- Page 1 5-in-1 HDMI Switch Plug and Play User Guide...
- Page 2 Introduction proSwitch.H5 is a compact gadget designed to offer 5 HDMI ports in a single device. With proSwitch.H5 you can enjoy a plug-and-play functionality and full HD resolution support. Having a shielded case and five HDMI input ports, with proSwitch.H5, you can connect up to five HDMI devices (such as DVD Player, Satellite Receiver, Set-Top Box, DV Camera and other HDMI enabled devices) to a single port of an HD display.
-
Page 3: Front View
• Auto- switching with remote control • Auto sensing inputs • Extends the range of the HDMI compliant device by equalizing and relocking the HDMI Packing Contents • proSwitch.H5 • Power Adapter-UK • Remote Control • User Guide Appearance & Interface Description... -
Page 4: Remote Control
3. HDMI input ports 4. Manual select button 5. Power LED Indicator 6. HMDI source indicators Operation Instructions proSwitch.H5 Connecting to proSwitch.H5 1. Connect a HD display to HDMI output port, as shown on the picture below: Side View OUTPUT HDMI... - Page 5 2. Once proSwitch.H5 is connected to the HD display, you can start connecting it to a source devices to the input ports, examples are shown on the picture below: INPUT 5 INPUT 4 INPUT 3 INPUT 2 INPUT 1 DC 5V...
- Page 6 SIGNAL MANUAL POWER SELECT 4. Before you start using the proSwitch.H5, it is recommended that you turn on the proSwitch.H5 first and then power in the sources supply. SIGNAL MANUAL POWER...
- Page 7 • Please do not use organic solvent to clean product surface. • Please keep the product away from little children. • Please do not drop, knock or shake the proSwitch.H5. • Rough handling can break internal circuit boards and mechanics.
