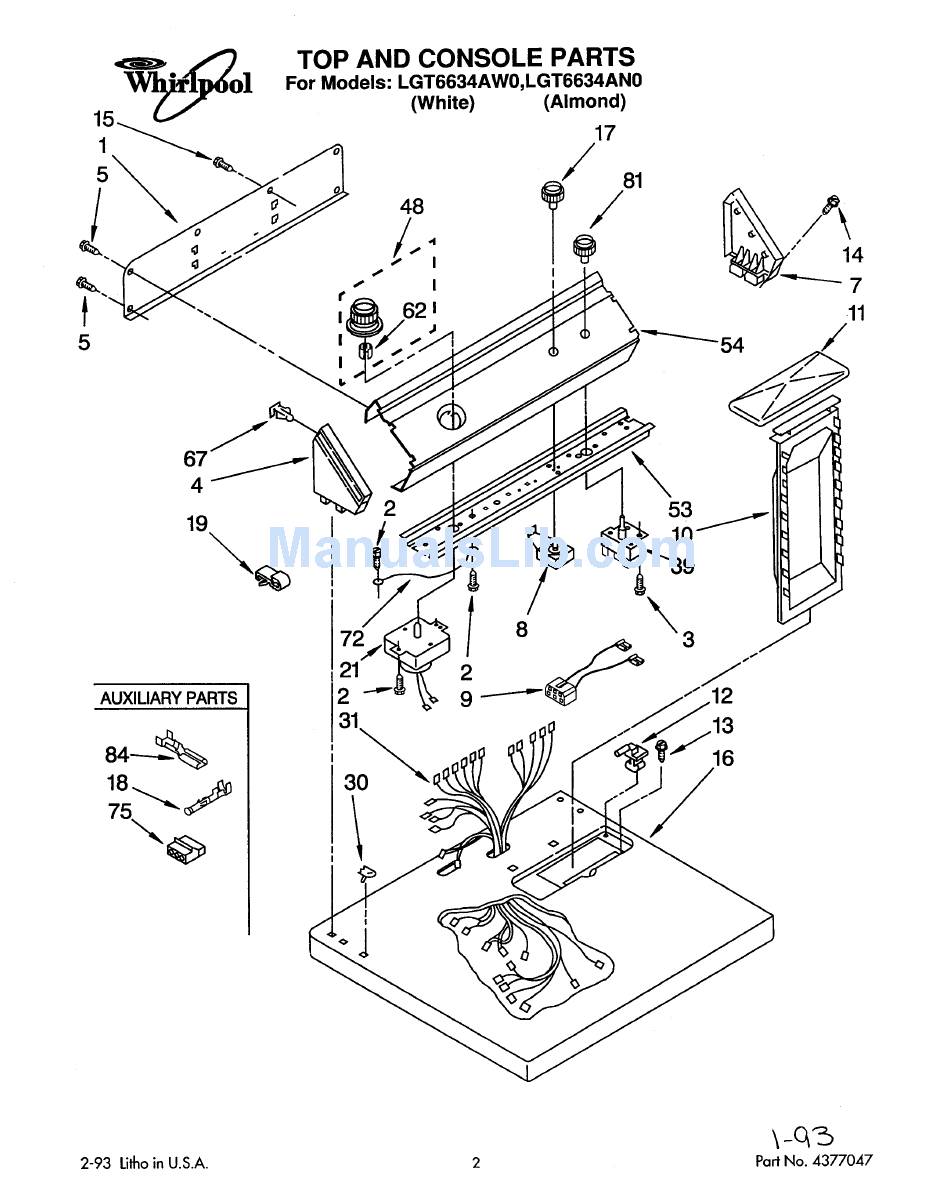

- Page 2 3397545 Panel, Rear Console 3390646 Screw, 8-18 x 5/16 3390647 Screw, 8-18 x 1/2 Cap, End (L.H.) 3358531 White 3358532 Almond 693994 Screw, Hex Washer Head Cap, End (R.H.) 3358516 White 3358517 Almond 3354281 Switch, Temperature 3396028 Wire-Jumper Assembly 339392 Screen, Lint Cover, Lint Screen 688150...
- Page 3 PAINT,TOUCH UP (1/2 oz.) 72017 White 72107 Almond PAINT PRESSURIZED SPRAY (13 oz.) 350930 White 350956 Almond 350938 Primer, Gray 350941 Leveler (Thinner) PAINT,BULK (1 qt.) 799344 White (Uncut) 978883 Almond (Uncut)
- Page 5 343641 Screw, 10-16 x 1/2 697776 Screw, 10-32 x 1/2 238614 Bumper (2) 690893 Cover, Block 342043 Screw, 10-32 x 1/2 347736 Panel, Rear 690236 Wire, Ground (Motor) 693994 Screw, Hex Washer Head (7) 347207 Switch, Door 98129 Screw, 6-20 x 7/8 (2) 693995 Screw, 10-16 x 1/2 3357011...
- Page 6 172455 Bolt, 5/16-18 x 3/4 3389627 Pulley, 60 Hz. 3388235 Switch (Use W/3391888 Motor) 3391888 Motor, 60 Hz. 660658 Clamp, Motor (2) 343481 (Alt.) 685441 (Alt.) 694670 Burner Assembly, 60 Hz. (Refer To Pages For Further Breakdown) 341029 Clamp, Pipe 343641 Screw, 10-16 x 1/2 694421...
- Page 8 694283 Lint Chute Assembly 687128 Screw, 10-16 x 1/2 98460 Nut, Push-In 339554 Screw 90767 Screw, 8A x 3/8 3392519 Fuse, Thermal 686889 Pad, Cabinet 3387134 Thermostat, Internal-Bias 3392247 Pad, Cabinet (Blower Housing) 694089 Wheel, Blower (Includes Illus. No. 20) 695081 Housing, Blower 337272...
- Page 10 694670 Burner Assembly 60 Hz. (Type 1, 2 & 3) (White Rodgers) 688617 Tube, Burner 694298 Bracket, Ignitor 660991 Ignitor 686590 (Alt.) 686953 Screw & Washer (8-32 x 5/8) 343641 Screw, 10-16 x 1/2 693986 Base, Burner 339527 Screw, 8-32 x 3/8 (2) Orifice, Burner 234826 Type 1...
