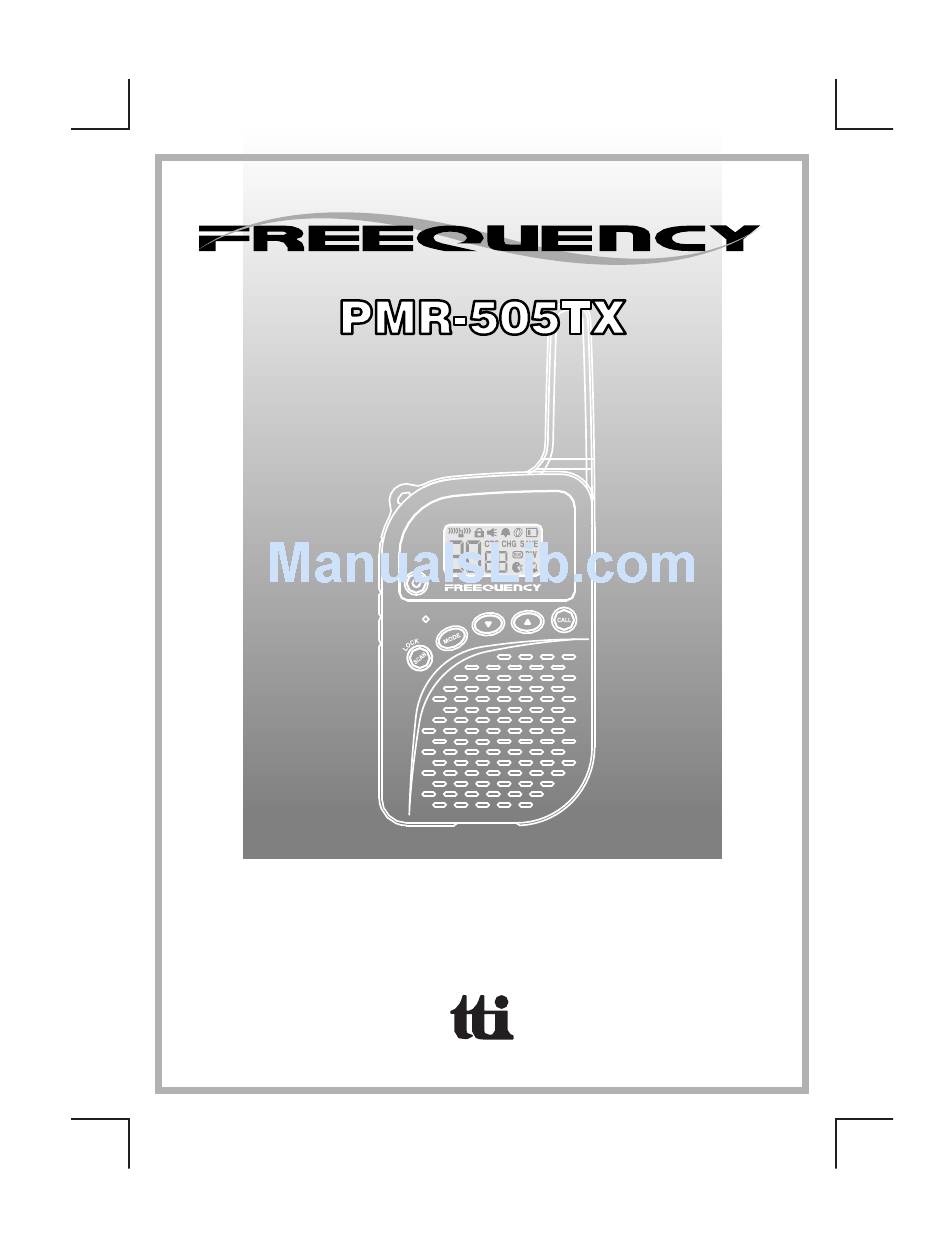

Page 1: Instruction Manual
PMR 446 TRANSCEIVER INSTRUCTION MANUAL www.ttikorea.co.kr... - Page 2 Down Button Lock Button Mode Button Speaker Thank you for purchasing Freequency radio. All our products are built to offer excellent value by combining advanced features, great design and manufacturing quality. To ensure you are familiar with the operation and features of your radio and in order to obtain the best performance, please read this manual carefully before operation.
-
Page 3: Table Of Contents
CONTENTS Caution Equipment and Accessories Supplied Fitting the Batteries Battery Charging Radio Control POWER Button PTT Button UP Button DOWN Button MODE Button LAMP / MONITOR Button CALL Button SCAN / LOCK Button LCD Display Basic Radio Operation Function Mode Radio Features Explained Volume Level Channels... -
Page 4: Caution
1. Caution IMPORTANT - READ ALL INSTRUCTIONS carefully and completely before operating your radio and retain this manual for future reference. NEVER connect the radio to a power source other than the supplied battery. This may damage your product. NEVER operate your radio with the antenna less than 5cm from exposed parts of the body. -
Page 5: Equipment And Accessories Supplied
3) Smart Twin Charger with Adaptor 1 unit 3. Fitting the Batteries The PMR-505TX uses an internal Lithium Ion or Lithium Ion Polymer battery which has been pre-installed. For removal or replacement please contact your local dealer. Unauthorised attempts to remove or replace the battery will void your warranty and may damage your product. -
Page 6: Radio Control
5. Radio Controls 1) POWER Button Press and hold the POWER button for about 2 seconds. You will hear a confirmation tone to indicate the radio is on. To turn the radio off, press and hold the POWER button for about 2 seconds. 2) Push-To-Talk (PTT) Button Press and hold this button to speak (transmit). -
Page 7: Scan / Lock Button
(8) SCAN / LOCK Button Press this button briefly to activate or deactivate the scanning where appropriate. Press and hold this button for 2 seconds to activate or deactivate the keypad lock. 6. LCD Display Receiving/Busy Icon Transmit Icon Lock Icon Monitor Icon Keytone Icon Scan Icon... -
Page 8: Function Mode
mouth and press the PTT. Speak slowly and clearly towards the radio. Release the PTT when you have finished speaking. You will hear messages from other radios within range, with the same channel and privacy code setting. The appropriate icon will appear in the radio display when you receive or transmit a message. -
Page 9: Radio Features Explained
Press the PTT or FUNCTION button or wait for 5 seconds to store your choice. If you do not press any key for 5 seconds your radio will return to standby automatically. 9. Radio Features Explained 1) Volume Level There are 7 volume levels to suit your personal preference. To adjust the volume level, press the Up or Down button. -
Page 10: Hands Free (Vox) Mode
channel the unit will pause for 5 seconds before resuming the dual watch. To activate the dual watch mode, first select a radio channel (see Channels) as the primary channel. To select the dual watch channel press the FUNCTION button until appears. -
Page 11: Key Beep
setting. Press the PTT or FUNCTION button or wait for 5 seconds to store your choice. The Roger Beep icon will appear when Roger Beep is active. 7) Key Beep If the Key Beep is activated, your radio will emit a confirmation tone whenever you use the keypad. -
Page 12: Monitor
10) Monitor The Monitor function is used to check for activity on the current channel regardless of privacy code settings. It also sets the squelch to minimum and will detect weaker signals. To activate or deactivate the Monitor press the MODE/ MONITOR button for about 2 seconds. -
Page 13: Privacy Code Scan/Decode
The Function Menu and Volume up/down are disabled whilst scanning. To increase battery life, use the scan mode sparingly. (14) Privacy Code Scan/Decode This radio has Privacy code scan to determine which Privacy Code (CTCSS) is in use on the current channel. To activate the privacy code scan press the FUNCTION button until the privacy code number flashes, then press the SCAN button briefly. -
Page 14: Troubleshooting
In case of further difficulty please consult your dealer or visit our website at www.ttikorea.co.kr or www.tti.uk.com. 12. CE Declaration CE versions of the PMR-505TX which display the CE symbol on the product label, comply with the essential requirements of the European Radio and Telecommunication Terminal Directive 1999/5/CE. -
Page 15: Safety Requirements
100.0 156.7 250.3 103.5 162.2 Freequency products are manufactured by TTI Tech. Co. Ltd, Korea. Tel: 82-2-5170043, Website: www.ttikorea.co.kr TTI (UK) Limited. Tel: 0845 226 41 81, Website: www.tti.uk.com © Copyright TTI (UK) Ltd, 2005. Doc ID: PMR-505TXIM Rev 0.0... - Page 16 PMR 446 TRANSCEIVER INSTRUCTION MANUAL www.ttikorea.co.kr...
