- Page 1 OPERATION MANUAL TRAVELLER II/TRAVELLER II+ TALKINGCORDLESSRADAR/LASERDETECTOR...
-
Page 2: Table Of Contents
CONTENTS Congratulations!............... 1 Features................1 Package contents............... 2 Identifying parts of the unit ..........3 Pre-operating information ..........5 Battery installation ............5 Battery life................ 6 Low battery life indication..........6 Auto power-off ..............7 Installing the unit ............. 8 Mounting guidelines ............ -
Page 3: Congratulations
CONGRATULATIONS! You have acquired the SENSORO TRAVELLER II/ TRAVELLER II+ from PNI Corporation, the first cordless radar/laser detector speaking in English and Spanish. The SENSORO TRAVELLER II/TRAVELLER II+ incorporates the advanced new antenna technology and extremely low power-consuming circuitry to ensure top-class performance and satisfactory battery power management. -
Page 4: Package Contents
English and Spanish ILINGUAL Your SENSORO TRAVELLER II/TRAVELLER II+ package includes the following components: • The SENSORO TRAVELLER II/TRAVELLER II+ talking cordless radar/laser detector • Two AA batteries • Coiled 12-volt DC power cord • Windshield mounting bracket with suction cups (two each) and bumper •... -
Page 5: Identifying Parts Of The Unit

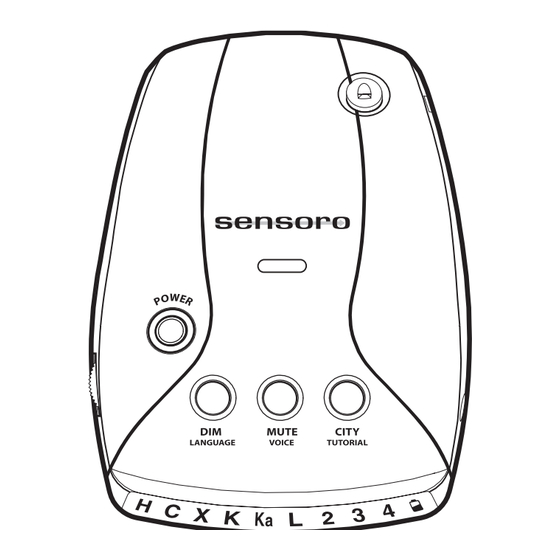

IDENTIFYING PARTS OF THE UNIT Top Laser Receiver Mounting Guide POWER Button CITY/TUTORIAL Button MUTE/VOICE Button DIM/LANGUAGE Button Radar Receiver Front Laser Receiver Back LED Display Front... - Page 6 IDENTIFYING PARTS OF THE UNIT Power Cord Input Jack Mounting Slots Auxiliary Audio Jack Right Side Volume Control Thumb Wheel Mounting Slots Left Side Suction cups Mounting bracket Bumper Fuse Power cord...
-
Page 7: Pre-Operating Information
Please note that we do not provide ear pieces, speakers, or 2.5mm adapters. The SENSORO TRAVELLER II/TRAVELLER II+ is designed to operate on two AA alkaline or lithium batteries. To ensure maximum performance, we advise that you should not use other battery types. -
Page 8: Battery Life
Your specific conditions and the way you use the SENSORO TRAVELLER II/TRAVELLER II+ will result in different battery life. The SENSORO TRAVELLER II/TRAVELLER II+ provides voice announcements when function buttons are used, so that you can know which function was actually activated. -
Page 9: Auto Power-Off
SENSORO TRAVELLER II/ TRAVELLER II+ always on. Auto power-off In the event that you forget to turn off the SENSORO TRAVELLER II/TRAVELLER II+ when you leave your vehicle, the SENSORO TRAVELLER II/TRAVELLER II+ has an automatic power-off feature to conserve battery life. -
Page 10: Installing The Unit
INSTALLING THE UNIT Mounting guidelines The SENSORO TRAVELLER II/TRAVELLER II+ can be mounted on your windshield using the mounting bracket included in the package. • Mount on the windshield in a centered location that will not obstruct the view of the driver and is within reach, so the buttons can be easily accessed. -
Page 11: Windshield Mounting
INSTALLING THE UNIT Windshield mounting 1. Install the suction cups and bumper onto the windshield mounting bracket by sliding them into their holes (if not pre-installed). 2. Press the bracket base firmly against the windshield until the suction cups securely take hold. 3. -
Page 12: Radar Operation
RADAR OPERATION Power on Press the button. The SENSORO TRAVELLER II/ POWER TRAVELLER II+ goes through a self diagnosis sequence and displays the last mode previously set in memory. Functions and modes Volume control Usethevolumethumbwheel,locatedonthesideof theSENSORO TRAVELLER II/TRAVELLER II+, to adjust volume level. - Page 13 They are highway, city 1, city 2, city 3, and city 4. Each mode is indicated by blinking “H” or “C” LED, with or without a numbered LED. For city 2, 3, and 4 modes, the SENSORO TRAVELLER II/TRAVELLER II+ takes turns blinking “C”...
- Page 14 RADAR OPERATION City 4 will have the SENSORO TRAVELLER II/ TRAVELLER II+ not report X-band radar signals at all. For best protection from all radar bands, always drive in highway mode. However, for maximizing your battery life with best protection from K- and Ka-band, drive in city 4 mode.
- Page 15 RADAR OPERATION X-band detected operation: K Ka L 2 3 4 M K Ka L 3 4 M K Ka L 2 K Ka L 2 3 K-band detected operation: H C X Ka L 2 3 4 M H C X Ka L 3 4 M H C X...
-
Page 16: Invisible To Radar Detector Detectors
2. Press any button to exit the all-LEDs-on status, that is the end of tutorial mode. Your SENSORO TRAVELLER II/TRAVELLER II+ uses the same audio alarms and visual displays as for the tutorial mode when it detects signals and reports alerts. -
Page 17: Care And Maintenance
CARE AND MAINTENANCE Here are some tips to help you care for your SENSORO TRAVELLER II/TRAVELLER II+: • To deter theft, remove your SENSORO TRAVELLER II/ TRAVELLER II+ from your windshield when you leave your vehicle. • Avoid extended exposure to direct sunlight. Remove your... -
Page 18: Troubleshooting
TROUBLESHOOTING The SENSORO TRAVELLER II/TRAVELLER II+ does not power up when powered from batteries. • Check and replace batteries. The SENSORO TRAVELLER II/TRAVELLER II+ does not power up when powered from the vehicle. • Check all power cord connections. • Check fuse in lighter socket adapter and replace if necessary. - Page 19 • Set the unit to highway mode. • Make sure the unit is level to the road. • Make sure the radar window and the top laser receiver are not obstructed. Move the SENSORO TRAVELLER II/ TRAVELLER II+ if necessary.
-
Page 20: Specifications
SPECIFICATIONS Radar Receiver type: Dual conversion superheterodyne Antenna type: Linear polarized, self-contained Detector type: Scanning frequency discriminator Frequency operation: X-band; 10.525 GHz ±50 MHz K-band; 24.150 GHz ±100 MHz Ka-band (superwide); 34.700 GHz ±1,300 MHz Safety radar; 24.100 GHz Laser Receiver type: Pulsed laser signal receiver Detector type:... -
Page 21: Service And Replacement
For fastest service, contact or return your SENSORO TRAVELLER II/TRAVELLER II+ to the place of purchase. If you wish to return the unit for replacement or repair to PNI Corporation, please follow the following procedures: 1. Products returned to PNI must be pre-authorized by PNI with an RMA (return material authorization) number marked on the outside of the package. - Page 22 (2) this device must accept any interference received, including interference that may cause undesired operation. In addition, any changes or modifica ions to this product, which are not expressly approved by PNI Corporation in writing, could void the user’s authority to operate this product.
-
Page 23: Warranty Information
If the product is found by PNI to be defective, PNI’s entire liability and your exclusive remedy for breach of warranty shall be that PNI will repair... - Page 24 PNI had advance notice of the possibility of any such damages, including, but not limited to, loss of use, revenue or profit. In no event shall PNI’s total liability for all claims regarding the product exceed the price paid for the product. PNI neither assumes nor authorizes anyone to assume for it any other liabilities.
- Page 25 NOTES...
- Page 26 NOTES...
- Page 28 PNI Corporation PNI Corporation www.pnicorp.com www.pnicorp.com 11467 R01 1000336 R01...
