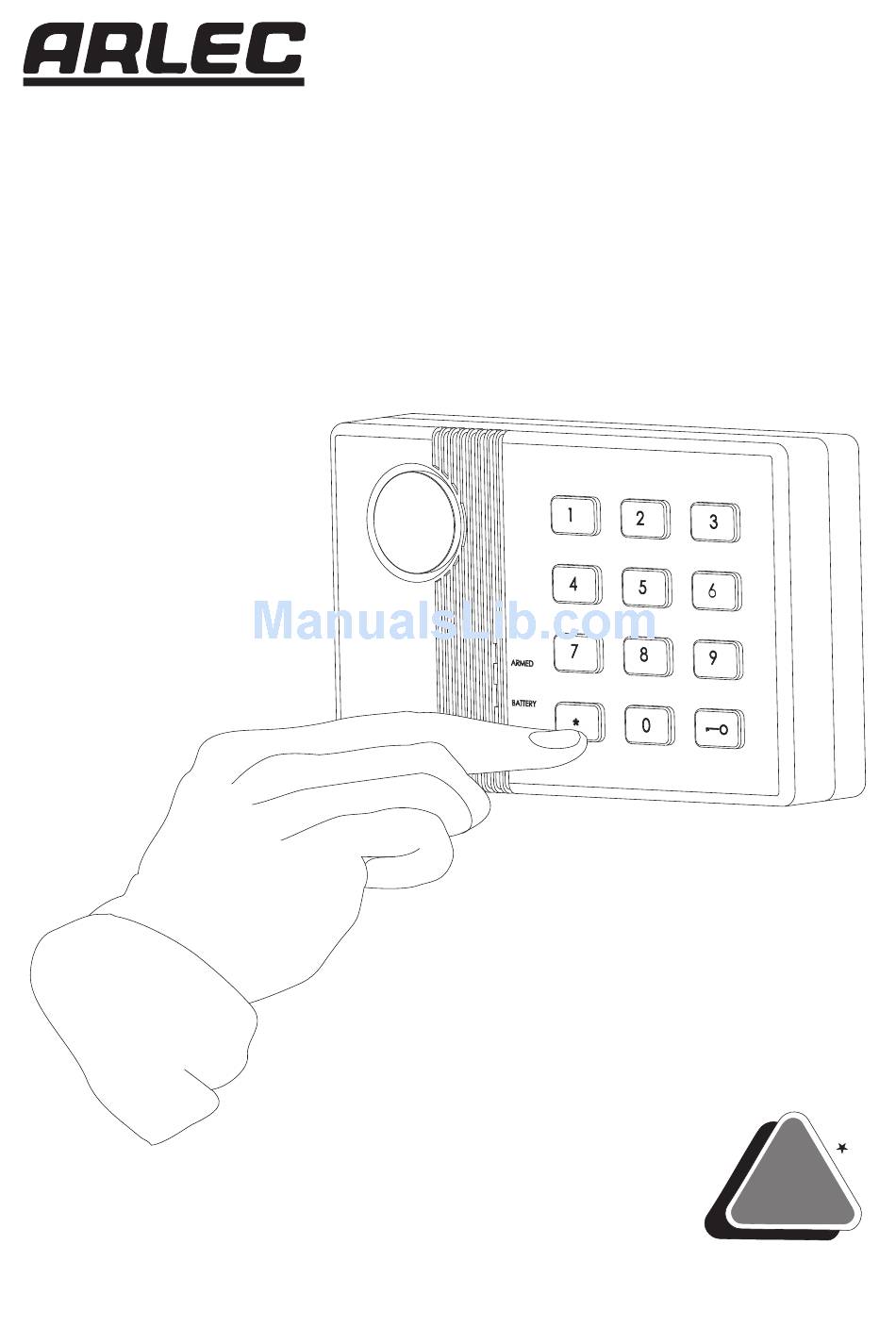

- Page 1 Wireless Home Security Alarm System AM 500 MONTH GUARANTEE Installation & Operating Instructions...
- Page 2 INTRODUCTION The AM500 is a simple self-contained alarm system. It protects the home by sounding a siren whenever an intruder is detected. The system detects intruders by sensing movement in strategic areas of the house and also by sensing the opening of important doors and windows. The system can be armed/disarmed with your own selected security code, which can be changed as and when required for additional safety.
-
Page 3: Layout Guidelines
LAYOUT GUIDELINES The Control Panel is usually located somewhere near the main entrance door and within 1 metre of a power point. The Window/Door Sensor is attached to the front or rear door, or to a window through which an intruder can enter the house. The Movement Sensors are usually mounted high on a wall and directed into a room requiring protection, such as a lounge room or hallway. -
Page 4: Installation
INSTALLATION 1. On the rear side of the Control Panel, open the larger compartment. Insert three AA alkaline batteries into the slots provided. 4. On the front side of the Door Sensor, open the battery compartment and insert the supplied 12V battery in place. 2. - Page 5 6. On the rear side of both the 10. Fix the Wall Brackets at the Movement Sensors, open the selected location with screws. battery compartment. Set the Slide the Movement Sensors house code. on to the brackets and adjust them to face the centre of the Note : All switches by default are room.
-
Page 6: Using The System
13. A security code must first be entered using the Control Panel keypad. This is the code that you will use to arm and disarm the system. The default code is ‘11’. To set the security code enter 11 followed by . The Control Panel will give a single beep and the green LED will start flashing. -
Page 7: Specifications
SPECIFICATIONS Entrance Delay time 8 Seconds Exit Delay time 30 seconds after no movement at Sensor Low Battery indicator Red LED flashes approx. once per second and single beep every 20 seconds Alarm sound reset time 1 minute Intruder indication Green LED will light after resetting of alarm to indicate a burglar was detected... - Page 8 Window/Door Sensor Check that the battery has been installed correctly. Check that the gap between parts is not more than 12mm. Check that the Window/Door Sensor is not more than 20 metres from the Control Panel. If the Window/Door Sensor is mounted near metal objects, if any have to be relocated.
- Page 9 Arlec's recommendations and within such voltage and current limits as are specified by Arlec in relation to the product. Arlec will at its own option make good, replace with the same or similar product, or provide credit...
- Page 10 ©This instruction leaflet is subject to copyright and must not be reproduced, copied or otherwise used in any way or for any purpose without the consent in writing of the owner, Arlec Australia limited (A.C.N 003 118 787). Guarantee excludes batteries.
