Summary of Contents for Whirlpool LLR8233BW0
-

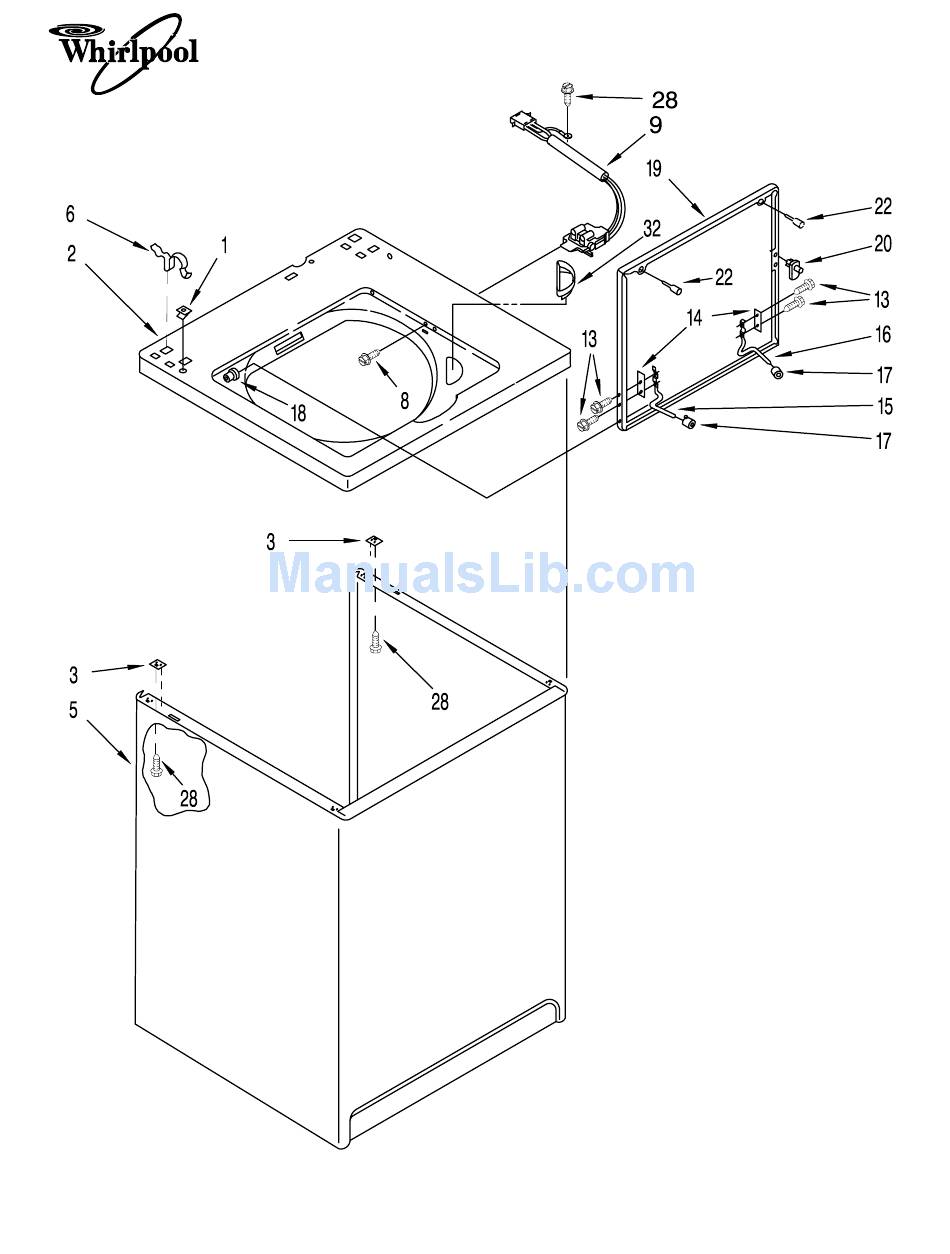

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC WASHER For Models: LLR8233BW0, LLR8233BN0, LLR8233BQ0 (WHITE) (ALMOND) (DESIGNER WHITE) 1−94Litho in U.S.A.(L.T.) Part No. 881070... - Page 2 TOP AND CABINET PARTS For Models: LLR8233BW0, LLR8233BN0, LLR8233BQ0 (WHITE) (ALMOND) (DESIGNER WHITE) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 357213 Nut, Push−In (2) 62780 Clip, Top & Cabinet 3361392 For White And & Rear Panel (2) 3358200...
-
Page 3: Controls And Rear Panel Parts
CONTROLS AND REAR PANEL PARTS For Models: LLR8233BW0, LLR8233BN0, LLR8233BQ0 (WHITE) (ALMOND) (DESIGNER WHITE) 881070... - Page 4 CONTROL AND REAR PANEL PARTS For Models: LLR8233BW0, LLR8233BN0, LLR8233BQ0 (WHITE) (ALMOND) (DESIGNER WHITE) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 16123 Washer, Water Cap, End (L.H.) 62731 Hose, Pump To Tub Inlet Hose (4) 3358531 For White And...
-
Page 5: Agitator, Basket And Tub Parts
AGITATOR, BASKET AND TUB PARTS For Models: LLR8233BW0, LLR8233BN0, LLR8233BQ0 (WHITE) (ALMOND) (DESIGNER WHITE) 881070... -
Page 6: Miscellaneous Parts
AGITATOR, BASKET AND TUB PARTS For Models: LLR8233BW0, LLR8233BN0, LLR8233BQ0 (WHITE) (ALMOND) (DESIGNER WHITE) Illus. Part DESCRIPTION 1 3355758 Cap, Agitator 358237 Screw & Washer (5−16−24 x 1) 3 3349019 Clothes Mover 4 3350830 Agitator 5 3360611 Tub Ring & Gasket... -
Page 7: Brake, Clutch, Gearcase, Motor And Pump Parts
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS For Models: LLR8233BW0, LLR8233BN0, LLR8233BQ0 (WHITE) (ALMOND) (DESIGNER WHITE) Illus. Part Illus. Part DESCRIPTION DESCRIPTION 388951 Brake & Drive 62611 Plate, Motor Tube (Complete) Mount To (Refer to Page 10 Gearcase For Further... -
Page 8: Machine Base Parts
MACHINE BASE PARTS For Models: LLR8233BW0, LLR8233BN0, LLR8233BQ0 (WHITE) (ALMOND) (DESIGNER WHITE) Illus. Part DESCRIPTION 343641 Screw, Bracket Mounting (10−16 x 5/8) (6) 64067 Bracket, Spring Outer (2) 63907 Spring Suspension,(3) 4 3362087 Support & Brake, 64065 Bracket, Spring Outer (L.F.) -
Page 9: Wiring Harness Parts
WIRING HARNESS PARTS For Models: LLR8233BW0, LLR8233BN0, LLR8233BQ0 (WHITE) (ALMOND) (DESIGNER WHITE) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 3349557 Clip, Harness 353424 Plug, Terminal 387566 Plug, Terminal 388498 Clip, Harness (3−Way) (4−Way) 3 3347812 Clip, Harness... -
Page 10: Brake And Drive Tube Parts
BRAKE AND DRIVE TUBE PARTS For Models: LLR8233BW0, LLR8233BN0, LLR8233BQ0 (WHITE) (ALMOND) (DESIGNER WHITE) Illus. Part DESCRIPTION 388951 Brake And Drive Tube (Complete) 62658 Ring, Thrust 91939 Seal, Oil 356427 Seal, Drive Tube 356937 Spacer, Drive Tube 64027 Tube, Basket Drive (Includes Illus. -
Page 11: Gearcase Parts
GEARCASE PARTS For Models: LLR8233BW0, LLR8233BN0, LLR8233BQ0 (WHITE) (ALMOND) (DESIGNER WHITE) Illus. Part DESCRIPTION 1 3360630 Gearcase (Complete) 62685 Cover, Gearcase 62787 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Illus. 25) 356427... -
Page 12: Water System Parts
WATER SYSTEM PARTS For Models: LLR8233BW0, LLR8233BN0, LLR8233BQ0 (WHITE) (ALMOND) (DESIGNER WHITE) Illus. Part DESCRIPTION 285442 Connector Kit, Plastic Drain Hose 285321 Sleeve Kit, (Contains 2 Sleeves) 370447 Clamp, Hose 16272 Connector, Straight 285320 Siphon Break (Not Included) 65349 Clamp, Hose...
