Whirlpool LLV8245BW0 Parts List
Whirlpool LLV8245BW0 Parts List

Whirlpool LLV8245BW0 Parts List

Whirlpool automatic washers top and cabinet parts

Advertisement

Quick Links

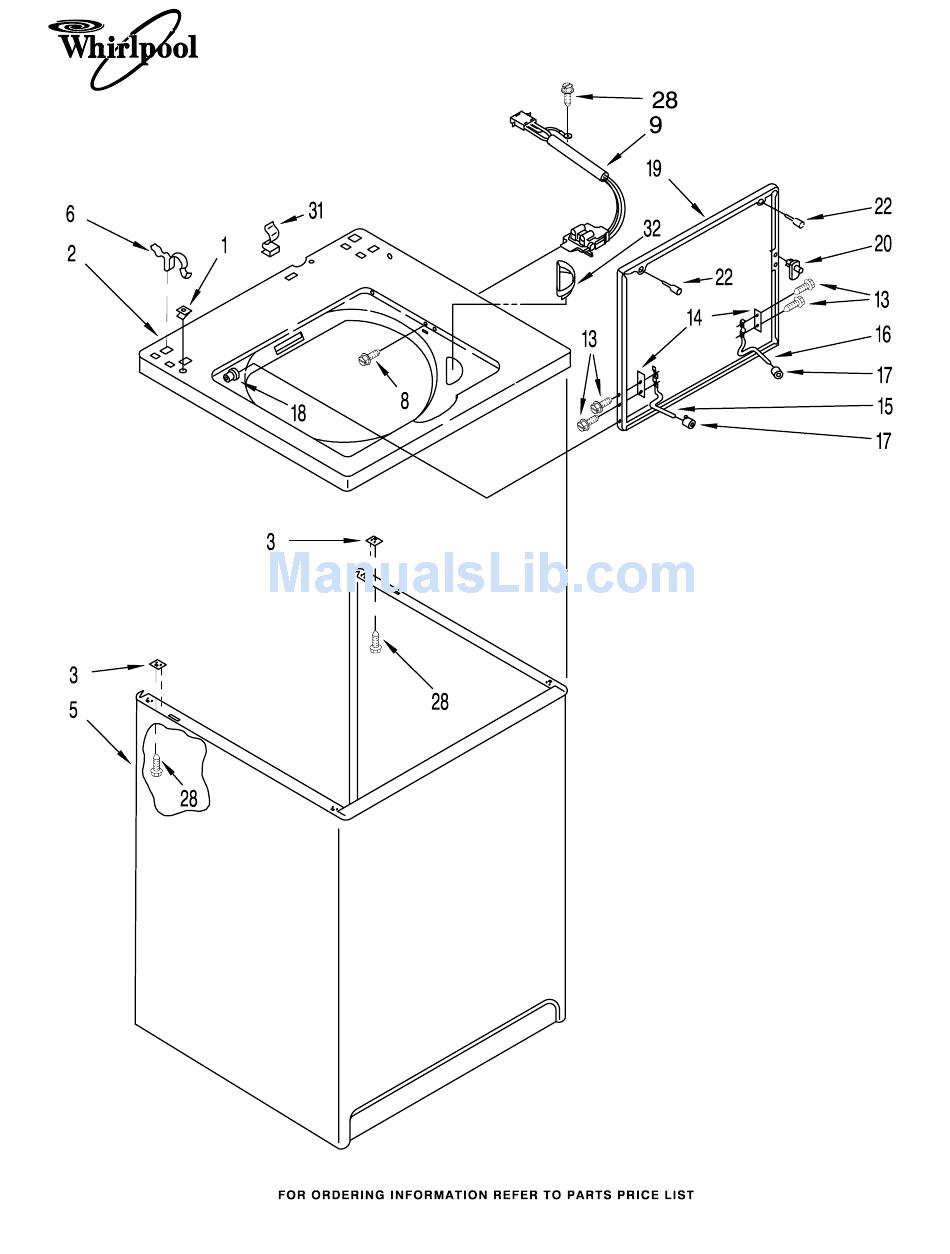

TOP AND CABINET PARTS

AUTOMATIC
For Models: LLV8245BW0, LLV8245BN0
WASHER
(White)
(Almond)
9−93 Litho in U.S.A.
Part No. 881057
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LLV8245BW0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Whirlpool LLV8245BW0

  • Page 1: Top And Cabinet Parts

    TOP AND CABINET PARTS AUTOMATIC For Models: LLV8245BW0, LLV8245BN0 WASHER (White) (Almond) 9−93 Litho in U.S.A. Part No. 881057...
  • Page 2 TOP AND CABINET PARTS For Models: LLV8245BW0, LLV8245BN0 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 357213 Nut, Push−In (2) 3356311 Screw & Washer, Lid Switch (2) 3361392 For White Model 3358200 For White Model 9 3352629...
  • Page 3: Controls And Rear Panel Parts

    CONTROLS AND REAR PANEL PARTS For Models: LLV8245BW0, LLV8245BN0 (White) (Almond) 881057...
  • Page 4 CONTROL AND REAR PANEL PARTS For Models: LLV8245BW0, LLV8245BN0 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 660628 Clamp, Hose 16123 Washer, Water 63848 Strain Relief, 272858 (Alt.) Inlet Hose (4) Power Cord 370447 (Alt.) Cap, End (L.H.) (1−1/16 x 5/8)
  • Page 5: Agitator, Basket And Tub Parts

    AGITATOR, BASKET AND TUB PARTS For Models: LLV8245BW0, LLV8245BN0 (White) (Almond) 881057...
  • Page 6: Miscellaneous Parts

    AGITATOR, BASKET AND TUB PARTS For Models: LLV8245BW0, LLV8245BN0 (White) (Almond) Illus. Part DESCRIPTION 1 3355758 Cap, Agitator 358237 Screw & Washer (5−16−24 x 1) 3 3349019 Clothes Mover 4 3350830 Agitator 387966 Tub Ring & Gasket 6 3359586 Gasket, Tub Ring...
  • Page 7: Brake, Clutch, Gearcase, Motor And Pump Parts

    BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS For Models: LLV8245BW0, LLV8245BN0 (White) (Almond) Illus. Part Illus. Part DESCRIPTION DESCRIPTION 388951 Brake & Drive 62611 Plate, Motor Tube (Complete) Mount To (Refer to Page 10 Gearcase For Further 62691 Grommet, Motor (4)
  • Page 8: Machine Base Parts

    MACHINE BASE PARTS For Models: LLV8245BW0, LLV8245BN0 (White) (Almond) Illus. Part DESCRIPTION 98610 Screw, Bracket Mounting (10−16 x 5/8) (6) 64067 Bracket, Spring Outer (2) 63907 Spring Suspension,(3) 389350 Support & Brake, 64065 Bracket, Spring Outer (L.F.) 6 3348727 Link, Leveling...
  • Page 9: Wiring Harness Parts

    WIRING HARNESS PARTS For Models: LLV8245BW0, LLV8245BN0 (White) (Almond) Illus. Part DESCRIPTION 1 3349557 Clip, Harness 62749 Clip, Harness 3 3347812 Clip, Harness 3352501 Clip, Harness 90016 Clip, Harness 6 3390496 Clip, Harness 3359841 Wiring Harness 352089 Block, Disconnect 10 3354924...
  • Page 10: Brake And Drive Tube Parts

    BRAKE AND DRIVE TUBE PARTS For Models: LLV8245BW0, LLV8245BN0 (White) (Almond) Illus. Part DESCRIPTION 388951 Brake And Drive Tube (Complete) 62658 Ring, Thrust 91939 Seal, Oil 356427 Seal, Drive Tube 356937 Spacer, Drive Tube 64027 Tube, Basket Drive (Includes Illus. 3, 4, 5 & 9)
  • Page 11: Gearcase Parts

    GEARCASE PARTS For Models: LLV8245BW0, LLV8245BN0 (White) (Almond) Illus. Part DESCRIPTION 1 3360630 Gearcase (Complete) 62685 Cover, Gearcase 62787 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Illus. 25) 356427 Seal, Spin Pinion...
  • Page 12: Water System Parts

    WATER SYSTEM PARTS For Models: LLV8245BW0, LLV8245BN0 (White) (Almond) Illus. Part DESCRIPTION 285442 Connector Kit, Plastic Drain Hose 285321 Sleeve Kit, (Contains 2 Sleeves) 370447 Clamp, Hose 16272 Connector, Straight 285320 Siphon Break (Not Included) 65349 Clamp, Hose 367031 Drain Protector...

This manual is also suitable for:

Llv8245bn0
