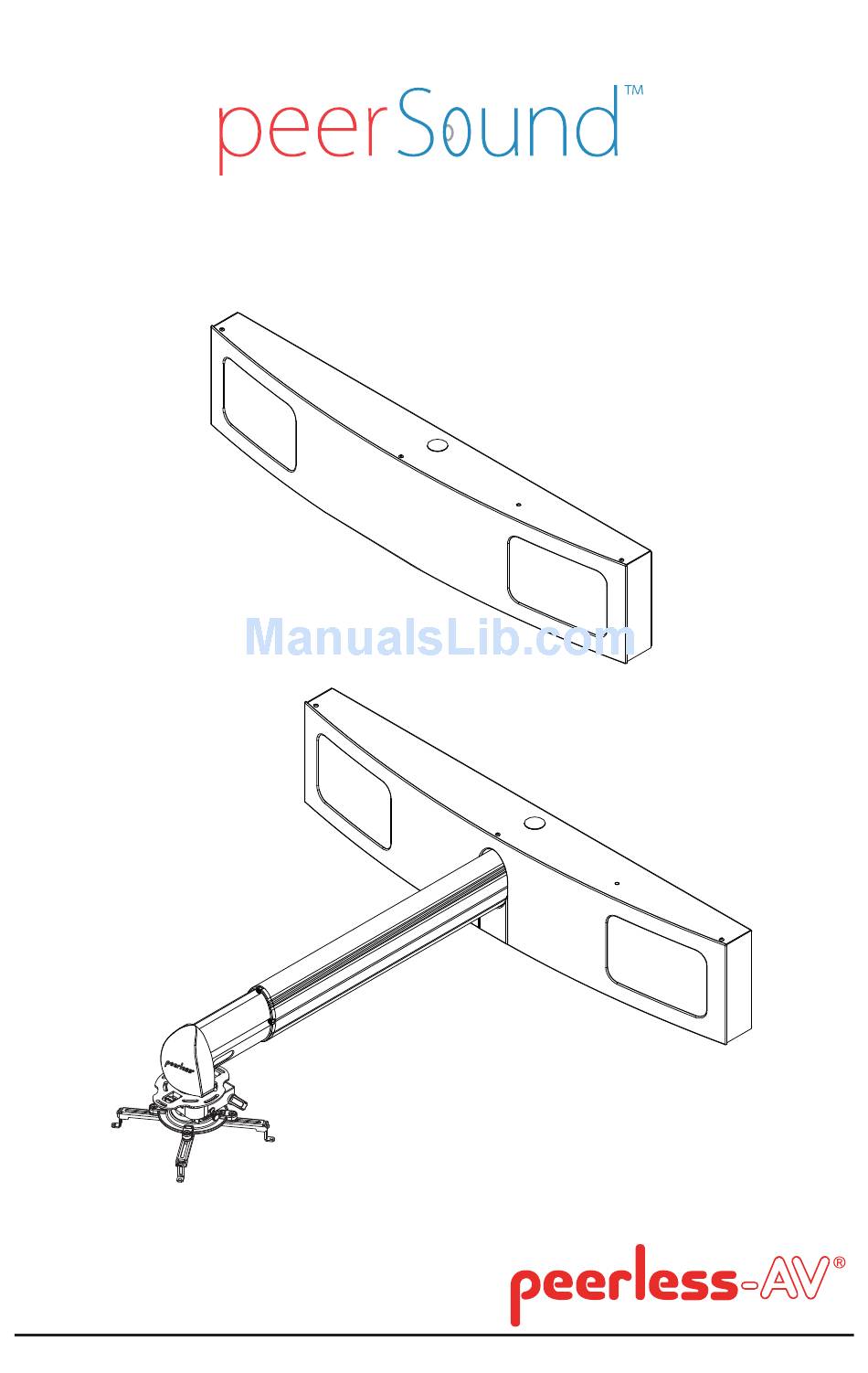

Wireless Audio Wall System
Wireless Short Throw Projector Audio System
WL-AU-AVWSA(-W)
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com
User Manual
WL-AU-PST600A(-W)
WL-AU-PST1200A(-W)
WL-AU-PST1600A(-W)
ISSUED: 06-10-13 SHEET #: 180-9050-2 05-15-14
Advertisement
Related Manuals for peerless-AV peerSound
Summary of Contents for peerless-AV peerSound
- Page 1 User Manual Wireless Audio Wall System Wireless Short Throw Projector Audio System WL-AU-AVWSA(-W) WL-AU-PST600A(-W) WL-AU-PST1200A(-W) WL-AU-PST1600A(-W) 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com ISSUED: 06-10-13 SHEET #: 180-9050-2 05-15-14...
-
Page 2: Table Of Contents
Contents Safety Instructions .......................... 3 Electrical Warnings ......................... 4 Introduction ............................5 Amplifi er ............................6 Troubleshooting ..........................7 Product Specifi cations........................8 Warranty ............................10 Contact Information ........................10 2 of 12... -
Page 3: Safety Instructions
Safety Instructions Read these instructions as well as referenced instruction for each respective electronic component. Keep these instructions as well as referenced instruction for each respective electronic component. Heed all warnings in this instruction as well as referenced instruction for each respective electronic component. -
Page 4: Electrical Warnings
Electrical Warnings Avoid Abuse to the Power Supply To reduce risk of electric shock, unplug the power supply from outlet before attempting any maintenance or cleaning. Turning off controls will not reduce this risk. DO NOT disassemble the power supply. Contact a qualifi... -
Page 5: Introduction
Introduction You have purchased the most multifunctional, easy to use Wireless Audio system. This system provides audio mixing allowing for enhanced voice over AV when paired with a wireless microphone (not included). Enhanced voice allows the speaker to be heard over the AV content all the way in the back of the room, reducing voice strain and engaging the audience. -
Page 6: Amplifi Er
Amplifi er SIGNAL MIXING Your system is set up to allow a microphone (not included) to be heard slightly over the AV content running. Contact your installer, or refer to the installation manual if further adjustment is needed. AMPLIFIER POWER ON/OFF ON -To initially turn the amplifi... -
Page 7: Troubleshooting
Troubleshooting Audio Sound does not come out of the speakers: • Ensure the volume on the source (Computer/PC, Blu-Ray™ Disc Player, Gaming Console, etc.) is turned up at least half way or more. • Ensure the amplifi er indicator light is green, indicating it’s ON. If it is red, use the Audio Remote to turn it ON. -
Page 8: Product Specifi Cations
Product Specifi cations Wireless Short Throw Projector AV System Product Specifications Part Number WL-AU-PST600A(-W) WL-AU-PST1200A(-W) WL-AU-PST1600A(-W) Product Weight WL-AU-PST600A(-W) 43.00lb (19.50kg) WL-AU-PST1200A(-W) 46.50lb (21.09kg) WL-AU-PST1600A(-W) 48.00lb (21.77kg) Dimensions (W x H x D) WL-AU-PST600A(-W) 47.21" x 11.06" x 19.44"-26.33" (1199 x 281 x 494-669mm) WL-AU-PST1200A(-W) 47.21"... - Page 9 Wireless AV Wall System Product Specifications Part Number WL-AU-AVWSA WL-AU-AVWSA-W Product Weight 28.50lb (12.93kg) Dimensions (W x H x D) 47.21" x 9.75" x 5.58" (1199 x 248 x 142mm) Color WL-AU-AVWSA - Black WL-AU-AVWSA-W - White Mounting Surfaces Wood stud, metal stud, concrete and other structures (Other structures require accessory) Amplifier Specifications Power rating...
-
Page 10: Warranty
® from the date of purchase by the original end-user. At its option, Peerless-AV will repair or replace with new or refurbished products or parts, or refund the purchase price of any Peerless-AV ®... - Page 11 Notes:...
- Page 12 Peerless -AV 2300 White Oak Circle Aurora, IL 60502 USA peersound.peerless-av.com ©2013 Peerless-AV. All rights reserved. Peerless-AV is a trademark of Peerless Industries, Inc. Other parties’ marks are the property of their respective owners.
