OPERATING & INSTALLATION INSTRUCTIONS
Saranac Insert
Model
Please read this entire manual before installation and use of this pellet fuel burning room
heater. Failure to follow these instructions could result in property damage, bodily injury or
even death.
Contact your local building officials about restrictions and installation inspection
requirements in your area.
Save these instructions.
PELLET STOVE
1871 Route 9H
Hudson, NY 12534
U.S.A.
Phone: 518-828-6363
Fx:

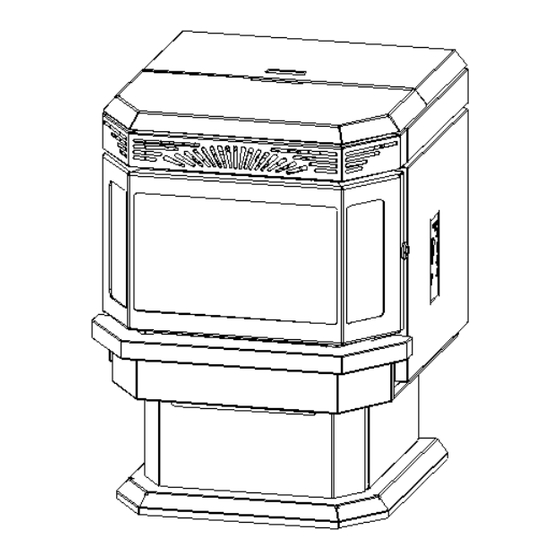

Saranac Free
Standing Model
518-828-5639
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Hudson River Saranac Insert
Summary of Contents for Hudson River Saranac Insert
- Page 1 OPERATING & INSTALLATION INSTRUCTIONS Saranac Free Standing Model Saranac Insert Model Please read this entire manual before installation and use of this pellet fuel burning room heater. Failure to follow these instructions could result in property damage, bodily injury or even death.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ..................... 3 Safety Information ..................4 - 5 Specifications ....................6 Dimensions ....................6 - 7 Operating Instructions ................8 - 11 Thermostat Installation ................. 12 Clearances to Combustibles ..............13 - 14 Installing Your Room Heater ..............15 - 23 Mobile Home Installations ................ -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the Saranac pellet stove. The Saranac is available as an insert or a freestanding stove. The Saranac has been tested and listed for installation in residential, mobile homes and alcove installations. This heater has been certified to ASTM E1509-04 Standard Specification for Room Heaters, Pellet Fuel-Burning Type. -
Page 4: Safety Information
SAFETY INFORMATION Be sure to read the entire owner’s manual prior to installing and operating this pellet fuel burning heater. Failure to follow these instructions could result in property damage, bodily injury or even death. This stove’s exhaust system works with negative combustion chamber pressure and a slight positive chimney pressure, it is extremely important to ensure that the exhaust system be sealed and airtight. -
Page 5: Safety Information
SAFETY INFORMATION (continued) Do not operate your stove if you smell smoke coming from it. Turn it off, monitor it and call your dealer. Repair and servicing of your stove may only be done by a qualified technician. Disconnect the power cord before performing any maintenance or repair. NOTE: Turning the stove to "off"... -
Page 6: Specifications
SPECIFICATIONS Heating Specifications: Burn Rate…………………………………*50,000 btu/hr or 4.8 lbs. of fuel per hour Hopper Capacity………………………….50 lbs. *Depends on quality and heating value of pellet fuel. DIMENSIONS Figure 1... - Page 7 DIMENSIONS The minimum installation dimensions, of the insert opening, are 32” (813 mm) wide x 22-3/4” (578 mm) high x 12-1/4” (311 mm) deep. Figure 2...
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Filling the Hopper This pellet stove is available as a freestanding unit or as an insert, therefore there is a different method of filling the hopper for each type of unit. To open the hopper lid, on the insert, pull slightly forward and up. To open the hopper lid on the freestanding unit simply lift up. - Page 9 OPERATING INSTRUCTIONS To Start up a Hot Stove If the stove is warm at re-start, the On/Off button must be pressed down and held for 2 seconds or more until the Heat Level light is lit. When first starting a new pellet stove, or when you completely empty the hopper of pellets, you can press and hold the AUGER button to get the pellets into the burn pot quicker.
- Page 10 OPERATING INSTRUCTIONS Control Board Functions AUTO/T-STAT/Manual Switch: This switch selects the pellet stove operating mode. Slide the switch to Manual (the far right position) to be able to manually select the heat settings and controls. If you have a remote thermostat attached and wish to have the pellet stove controlled by the thermostat slide the switch to T-STAT (the middle position) to operate the pellet stove in variable heat mode.
- Page 11 OPERATING INSTRUCTIONS Control Board Functions (continued) Auger Trim: This is used to change the feed rate on the minimum heat level for various quality of pellet fuel. This will help to keep the flames from extinguishing on the minimum heat level setting. It is also used to lower heat output on the minimum heat level setting.
-
Page 12: Thermostat Installation
THERMOSTAT INSTALLATION An optional thermostat is available for use with this unit. A thermostat can help you maintain a constant room temperature. A milli-volt thermostat is required. NOTE: Your thermostat should be installed by an authorized dealer or service person. To Install Thermostat: •... -
Page 13: Clearances To Combustibles
CLEARANCES TO COMBUSTIBLES INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT MANUFACTURER. When the unit is being installed on a combustible floor a 1/2" thick non-combustible hearth pad must be installed under the unit. The pad must extend at least the width of the appliance and at least the depth of the appliance plus 6"... -
Page 14: Installing Your Room Heater
INSTALLING YOUR ROOM HEATER Your first step is to decide where to install your pellet stove. In order to get the best use of circulated heat we recommend too install it in a large open room centrally located in the house. Next it is very important to check that clearances to combustibles are maintained, these can be found on page 14 of this manual and on the rating label of the pellet stove. - Page 15 INSTALLING YOUR ROOM HEATER HORIZONTAL EXHAUST VENT INSTALLATION 1. Locate your appliance in a location which meets the requirements of this manual and where it does not interfere with the house framing, wiring, etc.. 2. Install a non-combustible hearth pad underneath the unit. This pad should extend at least 6”...
- Page 16 HORIZONTAL EXHAUST VENT INSTALLATION (continued) Figure 8 Figure 9...
- Page 17 FREESTANDING INTERIOR VERTICAL INSTALLATION 1. Choose the location for your pellet stove, see item 1 of the Horizontal Exhaust Vent Installation (page 16) for help in determining the correct location. 2. Install the non-combustible hearth pad. 3. Place your pellet stove on the hearth pad and locate the unit in manner that will leave the exhaust vent with a minimum of 3”...
- Page 18 FREESTANDING EXTERIOR VERTICAL INSTALLATION 1. Follow steps 1 – 5 from previous page. 2. Locate the center of the exhaust pipe, at the back of the unit. Line up the center with the same spot on the exterior wall a cut a 7” (175 mm) diameter hole through the wall.
- Page 19 SELKIRK DIRECT-TEMP VENT SYSTEM FOR PELLET APPLIANCES Images courtesy of Selkirk...
- Page 20 SELKIRK DIRECT-TEMP VENT SYSTEM FOR PELLET APPLIANCES Images courtesy of Selkirk UP & OUT HORIZONTAL TERMINATION KIT Figure 12...
- Page 21 SELKIRK DIRECT-TEMP VENT SYSTEM FOR PELLET APPLIANCES Images courtesy of Selkirk STRAIGHT OUT HORIZONTAL TERMINATION KIT Figure 13...
- Page 22 SELKIRK DIRECT-TEMP VENT SYSTEM FOR PELLET APPLIANCES Images courtesy of Selkirk THROUGH THE ROOF VERTICAL TERMINATION KIT Figure 14...
-
Page 23: Mobile Home Installations
MOBILE HOME INSTALLATION Mobile home installation should be done in accordance with the Manufactured Home and Safety Standard (HUD), CFR 3280, Part 24. In order for this unit to be installed in a mobile home the following criteria must be met: •... -
Page 24: Insert Pellet Stove
INSERT PELLET STOVE The pellet stove is also available as an insert. There is a small amount of assembly required when installing this model. The steps are as follows: Note: The shroud must be installed before unit is set into its final position. Step 1: Shroud Side Facing the back of the unit take the left shroud side piece (no control panel hole) and fasten, as shown, with 2 screws provided. -
Page 25: Insert Pellet Stove
INSERT PELLET STOVE (continued) Step 3: Shroud Top Facing the back of the unit take the top shroud side piece and fasten, as shown, with 4 screws provided. Figure 18 Step 4: Control Board Take the control board and insert it from the back of the right shroud side (facing front of unit). - Page 26 INSERT PELLET STOVE (continued) Installation into a Masonry Fireplace: 1. Have the masonry chimney inspected by a certified chimney sweep or installer to determine its structural condition. Air Inlet Exhaust Cap 2. Determine the amount of venting required to reach the top of the chimney and then add 14”...
-
Page 27: Vent Termination Locations
Figure 21 VENT TERMINATION LOCATIONS Letter Minimum Clearance Description 24" (60 cm) Above grass, top of plants wood, or any other combustible material. 48" (122 cm) From beside/below any door or window that may be opened. 24" (60 cm) From any door or window that may be opened. 24"... -
Page 28: Maintenance
MAINTENANCE FAILURE TO CLEAN AND MAINTAIN THIS UNIT AS INDICATED MAY RESULT IN POOR PERFORMANCE AND HAZARDOUS SITUATIONS. NEVER CLEAN THE UNIT WHEN HOT. Burn Pot Note: Let the unit cool to room temperature before inspecting the burn pot. Inspect the burn pot regularly to check that the holes have not become plugged. If necessary clean thoroughly. - Page 29 MAINTENANCE - continued Ash Removal - Freestanding Unit If left neglected ashes will eventually fill the ash pan. Remove the ashes periodically to avoid unnecessary ash build up. Ash removal is as follows: 1. Let fire run out and unit cool to room temperature. 2.
- Page 30 MAINTENANCE - continued Cleaning Heat Exchanger Tubes – Your unit is designed with a built in heat exchanger tube cleaner. This should be used every 2 or 3 days to remove ash build up on the heat exchanger tubes, which can reduce heat transfer. The handle, for the heat exchanger tube cleaner, is located inside the firebox.
- Page 31 MAINTENANCE - continued Chimney Cleaning: 1. Creosote Formation – When wood is burned slowly it produces tar and other organic vapors which combine with expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney flue, as a result creosote residue accumulates on the chimney lining.
-
Page 32: Optional Accessories
OPTIONAL ACCESSORIES This pellet stove is available with an optional firebox decorative liner as well as a ceramic log set. Decorative Liner Installation: 1. Install the center panel, be sure to line up the hole with the drop tube. 2. Install the left and right panels. Left Panel Right Panel Figure 27... -
Page 33: Troubleshooting
TROUBLE SHOOTING See figure 26, page 31, for component locations. Condition 1: The unit will not light. • Check that the unit is plugged in and that the wall outlet has power. • Unplug the unit then check all electrical connections against the Wiring Diagram in this manual. -
Page 34: Troubleshooting
TROUBLE SHOOTING Condition 5: Igniter will not light fuel. • Check electrical connections (including fuse) to the igniter. • Check the igniter tube, which touches the burn pot, is not plugged with ash. If it is plugged remove the debris (be sure to wait until everything has cooled to room temperature). - Page 35 TROUBLE SHOOTING Condition 8: The stove will not shut off. • Ensure that the room thermostat (if a thermostat is used) is turned down below the room temperature. • Disconnect one of the wires to the exhaust temperature sensor, the unit should then shut off.
-
Page 36: Wiring Diagram
WIRING DIAGRAM... -
Page 37: Replacement Parts List
REPLACEMENT PARTS Contact an authorized Inca Metal pellet stove dealer to obtain any of these parts. Never use substitute materials. Use of non-approved parts can result in poor performance and possible safety hazards as well as voiding the Warranty. Item Part # control panel circuit board DHC3000/REV-DSVH3001... -
Page 38: Warranty
INCA METAL’S WARRANTY PROTECTION FOR ALL INCA METAL PRODUCTS Inca Metal products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. Once assembled the complete fireplace is thoroughly inspected by a qualified technician, before packaging, to ensure that you, the customer, receives the quality product that you expect from Inca Metal. - Page 39 CONDITIONS AND LIMITATIONS (continued) In the first year only, this warranty extends to the repair or replacement of warranted parts, which are defective in material or workmanship provided that the product has been operated in accordance with the operation instructions and under normal conditions. After the first year, Inca Metal may, at its discretion, fully discharge all obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).
