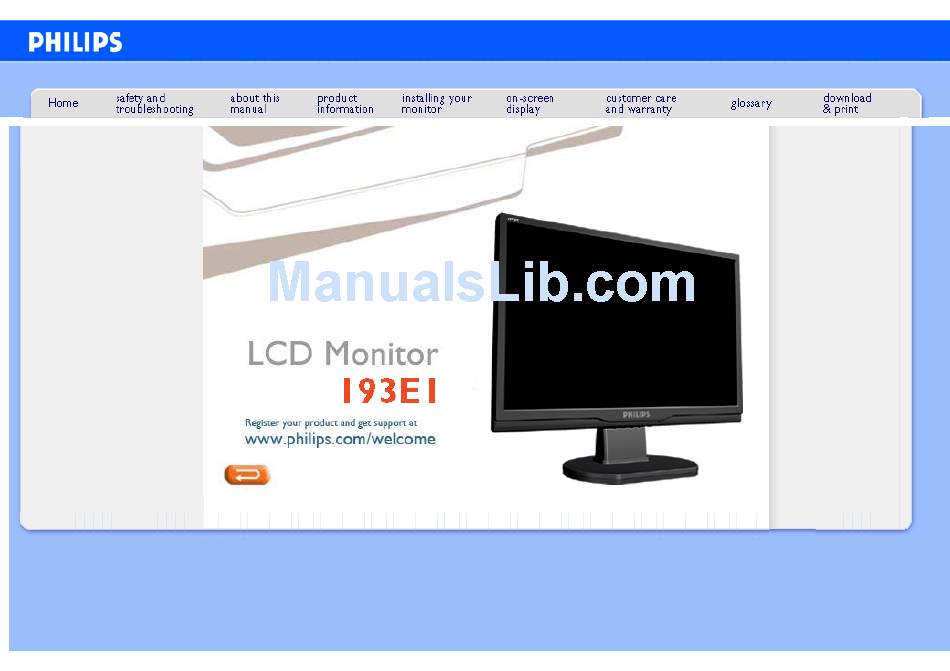

  • Page 1 Philips LCD Monitor Electronic User’s Manual file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/INDEX.HTM2009/7/6 NSH 03:16:15...

  • Page 2: Safety And Troubleshooting Information

    DC power cord for normal operation. Please use approved power cord provided by Philips all the time. If your power cord is missing, please contact with your local service center. (Please refer to Customer Care...
  • Page 3 Safety and Troubleshooting Information If your monitor gets wet, wipe it with dry cloth as soon as possible. If foreign substance or water gets in your monitor, please turn the power off immediately and disconnect the power cord. Then, remove the foreign substance or water, and send it to the maintenance center.

  • Page 4: Faqs (Frequently Asked Questions)

    When I install my monitor what should I do if the screen shows 'Cannot display this video • LCD Panel Technology mode'? • Ergonomics, Ecology and Recommended video mode for Philips 19"W: 1440 x 900 @60Hz. Safety Standards • Troubleshooting Unplug all cables, then connect your PC to the monitor that you used •...
  • Page 5 FAQs (Frequently Asked Questions) icm files) or a driver disk when you first install your monitor. Follow the instructions to insert the ( companion CD-ROM) included in this package. Monitor drivers (.inf and . icm files) will be installed automatically. How do I adjust the resolution? Your video card/graphic driver and monitor together determine the available resolutions.
  • Page 6 FAQs (Frequently Asked Questions) scanning lines at the same time, thus distorting the picture. What does the Refresh Rate mean for LCD? Unlike CRT display technology, in which the speed of the electron beam is swept from the top to the bottom of the screen determines flicker, an active matrix display uses an active element (TFT) to control each individual pixel and the refresh rate is therefore not really applicable to LCD technology.

  • Page 7: Screen Adjustments

    Yes. Philips LCD monitors have this optional feature. For standard VESA mount holes on the rear cover allows the user to mount the Philips monitor on most of the VESA standard arms or accessories. We recommend to contact your Philips sales representative for more information.

  • Page 8: Lcd Panel Technology

    FAQs (Frequently Asked Questions) and Vista. RETURN TO TOP OF THE PAGE LCD Panel Technology What is a Liquid Crystal Display? A Liquid Crystal Display (LCD) is an optical device that is commonly used to display ASCII characters and images on digital items such as watches, calculators, portable game consoles, etc.
  • Page 9 FAQs (Frequently Asked Questions) lighting to display images. A TFT LCD has several advantages over a CRT, since it can be very thin and no flickering occurs because it does not use the scanning method. What kind of wide-angle technology is available? How does it work? The TFT LCD panel is an element that controls/displays the inlet of a backlight using the dual-refraction of a liquid crystal.

  • Page 10: Ergonomics, Ecology And Safety Standards

    FAQs (Frequently Asked Questions) Ergonomics, Ecology and Safety Standards What is the CE mark? The CE (Conformité Européenne) mark is required to be displayed on all regulated products offered for sale on the European market. This 'CE' mark means that a product complies with the relevant European Directive.

  • Page 11: Troubleshooting

    • FAQs This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these • Common Problems solutions, contact Philips customer service representative. • Imaging Problems Common Problems • Regulatory Information •...
  • Page 12 Troubleshooting Check that the VGA cable is properly connected to the graphics board or PC. Image vibrates on the screen Vertical flicker appears Press the Auto button. Eliminate the vertical bars using the Phase/Clock of More Settings in OSD Main Controls. Horizontal flicker appears Press the Auto button.
  • Page 13 Troubleshooting For further assistance, refer to the Consumer Information Centers list and contact Philips customer service representative. RETURN TO TOP OF THE PAGE file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/safety/saf_troub.htm (3 of 3)2009/7/6 NSH 03:17:02...

  • Page 14: Regulatory Information

    • BSMI Notice (Taiwan Only) Ergonomie Hinweis (nur • Deutschland) RETURN TO TOP OF THE PAGE • Philips End-of-Life Disposal • Information for UK only Waste Electrical and Electronic Equipment-WEEE • China RoHS • Troubleshooting Attention users in European Union private households •...
  • Page 15 Regulatory Information This product is in conformity with the following standards - EN60950-1:2001 (Safety requirement of Information Technology Equipment) - EN55022:2006 (Radio Disturbance requirement of Information Technology Equipment) - EN55024:1998 (Immunity requirement of Information Technology Equipment) - EN61000-3-2:2006 (Limits for Harmonic Current Emission) - EN61000-3-3:1995 (Limitation of Voltage Fluctuation and Flicker) following provisions of directives applicable - 2006/95/EC (Low Voltage Directive)
  • Page 16 Regulatory Information RETURN TO TOP OF THE PAGE Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 17 Regulatory Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 18 Regulatory Information RETURN TO TOP OF THE PAGE Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, monitor, printer, and so on) should have the same power supply source.
  • Page 19 Regulatory Information North Europe (Nordic Countries) Information Placering/Ventilation VARNING: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ...
  • Page 20 Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
  • Page 21 Regulatory Information Information for UK only WARNING - THIS APPLIANCE MUST BE GROUNDING. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows: 1. Remove fuse cover and fuse. 2.
  • Page 22 Regulatory Information is marked with the letter "N" or coloured BLACK. 3. The BROWN wire must be connected to the terminal which marked with the letter "L" or coloured RED. Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the three wires.
  • Page 23 Regulatory Information RETURN TO TOP OF THE PAGE file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/safety/regs/regulat.htm (10 of 10)2009/7/6 NSH 03:17:09...

  • Page 24: Other Related Information

    Other Related Information Other Related Information • Safety and Troubleshooting • FAQs • Troubleshooting Information for Users in the U. S. • Regulatory Information • Information For units set at 115 V : for Users in the U.S • Information Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15-feet long and a parallel blade, grounding type attachment plug rated 15 A, 125 V.

  • Page 25: About This Manual

    • Notational Descriptions About This Guide This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD monitor's features, setup, operation and other important information. Its contents are identical to the information in our printed version.
  • Page 26 About This Manual The following subsections describe notational conventions used in this document. Notes, Cautions and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. They are used as follows: NOTE: This icon indicates important information and tips that help you make better use of your computer system.

  • Page 27: Product Information

    European community’s stringent RoHs directive mandating restrictions on • Physical Specification hazardous substances in electrical and electronic equipment have been adhered to in order to • Pin Assignment make Philips monitors safe to use throughout its life cycle. • Product Views • Physical Function Technical Specifications* LCD PANEL •...
  • Page 28 Product Information • Horizontal Frequency 30 kHz - 83 kHz VIDEO • Video dot rate 165 MHz • Input impedance - Video 75 ohm - Sync 2.2K ohm • Input signal levels 0.7 Vpp Separate sync • Sync input signal Composite sync Sync on green •...
  • Page 29 Product Information B. Recommended Resolution For 193E1 1440 x 900 at 60Hz (analog input) 13 factory preset modes: H. freq (kHz) Resolution V. freq (Hz) 31.47 720*400 70.09 31.47 640*480 59.94 35.00 640*480 67.00 37.50 640*480 75.00 31.16 800*600 56.25 37.88 800*600 60.32...
  • Page 30 Product Information Active < 23 W (typ.) Green Sleep < 1 W Yellow Switch Off < 0.5W ® ® we have This monitor is NERGY compliant. s an NERGY artner, ® determined to that this product meets the NERGY guidelines for energy efficiency. RETURN TO TOP OF THE PAGE Physical Specifications •...
  • Page 31 Product Information TMDS data 2- TMDS data 1- TMDS data 0- TMDS data 2+ TMDS data 1+ TMDS data 0+ TMDS data 2/4 Shield TMDS data 1/3 Shield TMDS data 0/5 Shield DDC Clock +5V Power TMDS Clock Shield DDC Data DVI Cable Detect TMDS Clock+ Hot Plug Detect...
  • Page 32 Product Information Green video ground Data clock line (SCL) Blue video ground RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function Tilt file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/product/product.htm (6 of 7)2009/7/6 NSH 03:17:31...
  • Page 33 Product Information RETURN TO TOP OF THE PAGE file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/product/product.htm (7 of 7)2009/7/6 NSH 03:17:31...

  • Page 34: Philips Pixel Defect Policy

    However, pixel or sub pixel defects on the TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable • Pin Assignment number of defects will be repaired or replaced under warranty.
  • Page 35 In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.
  • Page 36 Philips Pixel Defect Policy BRIGHT DOT DEFECTS ACCEPTABLE LEVEL MODEL 193E1 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS...

  • Page 37: Installing Your Lcd Monitor

    Installing Your LCD Monitor Installing Your LCD Monitor • Front View Produt Description • Connecting to Your PC Front View Product Description • The Base • Getting Started • Optimizing Performance To switch monitor's power On and Off To access OSD menu To adjust brightness of the display file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/install/install.htm (1 of 3)2009/7/6 NSH 03:17:46...
  • Page 38 Installing Your LCD Monitor Change to 4:3 display Automatically adjust the horizontal position, vertical position, phase and clock settings. Return to previous OSD level. RETURN TO TOP OF THE PAGE Rear View Kensington anti-thief lock AC power input VGA input DVI-D input RETURN TO TOP OF THE PAGE file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/install/install.htm (2 of 3)2009/7/6 NSH 03:17:46...
  • Page 39 Installing Your LCD Monitor Optimizing Performance For best performance, ensure that your display settings are set at 1440 x 900, 60Hz. Note: You can check the current display settings by pressing the 'MENU' button once. The current display mode is shown in OSD main controls called RESOLUTION. RETURN TO TOP OF THE PAGE file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/install/install.htm (3 of 3)2009/7/6 NSH 03:17:46...

  • Page 40: Connecting To Your Pc

    Connecting to Your PC Connecting to Your PC • Front View Product Description Accessory Pack • Accessory Pack Unpack all the parts. • Connecting to Your PC • Getting Started • Optimizing Performance • The base Power cord VGA cable EDFU pack file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/install/connect.htm (1 of 3)2009/7/6 NSH 03:17:52...
  • Page 41 Connecting to Your PC RETURN TO TOP OF THE PAGE Connecting to Your PC Connect the power cord to the back of the monitor firmly. file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/install/connect.htm (2 of 3)2009/7/6 NSH 03:17:52...
  • Page 42 Connecting to Your PC Connect to PC Turn off your computer and unplug its power cable. Connect the monitor signal cable to the video connector on the back of your computer. Plug the power cord of your computer and your monitor into a nearby outlet. Turn on your computer and monitor.

  • Page 43: Remove The Base

    The Base The Base • Front View Product Description Remove the Base • Accessory Pack Condition: • Connecting to your PC for VESA standard mounting applications • Getting Started • Optimizing Performance Press the release-button ,then disassemble the base from the LCD Monitor. •...
  • Page 44 The Base Note: This monitor accepts a 100mmx100mm VESA-Compliant mounting interface. RETURN TO TOP OF THE PAGE file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/install/base.htm (2 of 2)2009/7/6 NSH 03:17:56...

  • Page 45: Getting Started

    Use the information file ( .inf) for Windows® 95/98/2000/Me/XP/Vista or later • Optimizing Performance The built-in VESA DDC2B feature in Philips Monitors supports Plug & Play requirements for Windows® 95/98/2000/Me/XP/Vista. This information file ( .inf) should be installed in order that your Philips monitor can be enabled from the 'Monitor' dialog box in Windows®...
  • Page 46 Getting Started For Windows® 2000 Start Windows® 2000 Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. Double click on the 'Display' Icon. Select the 'Settings' tab then click on 'Advanced...'. Select 'Monitor' - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
  • Page 47 Getting Started stop installation. - If the 'Properties' button is active, click on 'Properties' button. Please follow the steps below. Click on the 'Driver' tab and then click on 'Update Driver...' button. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

  • Page 48: Description Of The On Screen Display

    Description of the On Screen Display What is the On-Screen Display? This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of the monitors directly through an on-screen instruction window. The user interface provides user- friendliness and ease-of-use when operating the monitor.
  • Page 49 On-Screen Display RETURN TO TOP OF THE PAGE The OSD Tree Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/osd/osddesc.htm (2 of 4)2009/7/6 NSH 03:18:12...
  • Page 50 On-Screen Display file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/osd/osddesc.htm (3 of 4)2009/7/6 NSH 03:18:12...
  • Page 51 On-Screen Display RETURN TO TOP OF THE PAGE file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/osd/osddesc.htm (4 of 4)2009/7/6 NSH 03:18:12...
  • Page 52 Customer Care & Warranty Customer Care & Warranty PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR WARRANTY COVERAGE WESTERN EUROPE: Austria Belgium Denmark France Germany Greece Finland Ireland Italy Luxembourg the Netherlands Norway Portugal Sweden Switzerland Spain United Kingdom Poland EASTERN EUROPE: Czech Republic Hungary Russia Slovakia Slovenia Turkey...
  • Page 53 What is excluded? The Philips Warranty applies provided the product is handled properly for its intended use, in accordance with its operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase, dealer's name and model and production number of the product.
  • Page 54 Note that products that are not originally designed, manufactured, approved and/or authorized for usage within the Philips Warranty countries, do not apply to the Philips Warranty. In these cases the Philips global warranty terms are valid.
  • Page 55 Your Philips F1rst Choice Warranty Philips' customer help desks are located worldwide. Click here to access the Philips Warranty Contact Information. Or you can reach us via: Website: http://www.philips.com/support file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/WARRANTY/WAR_1ST.HTM (3 of 3)2009/7/6 NSH 03:20:10...

  • Page 56: F1Rst Choice Contact Information

    F1rst Choice Contact Information F1rst Choice Contact Information Country Code Telephone number Tariff Austria 0810 000206 0.07 Belgium 078 250851 0.06 Denmark 3525 8761 Local call tariff Finland +358 09 2290 1908 Local call tariff France 082161 1658 0.09 Germany 01803 386 853 0.09 Greece...

  • Page 57: Your Guarantee In Central And Eastern Europe

    Your Guarantee in Central and Eastern Europe Dear Customer, Thank you for purchasing this Philips product, which has been designed and manufactured to the highest quality standards. If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement parts during a period of 36 months from date of purchase.
  • Page 58 In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting our dealers or Information Centers In case your Philips product is not working correctly or is defective, please contact your Philips dealer or directly the...

  • Page 59: Consumer Information Centers

    Consumer Information Centers Consumer Information Centers Argentina Australia Brasil Canada New Zealand Belarus Bulgaria Croatia Czech Republic Estonia United Arab Emirates Hong Kong Hungary India Indonesia Israel Latvia Lithuania Malaysia Middle East + North Africa New Zealand Pakistan Romania Russia Serbia &...
  • Page 60 Consumer Information Centers CZECH REPUBLIC General Consumer Information Center 800 142100 Xpectrum Lu.ná 591/4 CZ - 160 00 Praha 6 Tel: 800 100 697 or 220 121 435 Email:info@xpectrum.cz www.xpectrum.cz CROATIA Renoprom d.o.o. Ljubljanska 4, Sv. Nedjelja,10431 Croatia Tel: +385 1 333 0974 ESTONIA FUJITSU SERVICES OU Akadeemia tee 21G...
  • Page 61 Consumer Information Centers LATVIA ServiceNet LV Jelgavas iela 36 LV - 1055 Riga, Tel: +371 7460399 Email: serviss@servicenet.lv LITHUANIA ServiceNet LT Gaiziunu G. 3 LT - 3009 KAUNAS Tel: +370 7400088 Email: servisas@servicenet.lt www.servicenet.lt ROMANIA Blue Ridge Int'l Computers SRL 115, Mihai Eminescu St., Sector 2 RO - 020074 Bucharest Tel: +40 21 2101969...
  • Page 62 123290 Moscow Russia Tel. +7(495)797 3434 Profservice: 14A -3, 2Karacharovskaya str, 109202, Moscow , Russia Tel. +7(095)170-5401 TURKEY Türk Philips Ticaret A.S. Yukari Dudullu Org.San.Bolgesi 2.Cadde No:22 34776-Umraniye/Istanbul Tel: (0800)-261 33 02 UKRAINE Comel Shevchenko street 32 UA - 49030 Dnepropetrovsk Tel: +380 562320045 www.csp-comel.com...
  • Page 63 Tel: +38 044 245 73 31 Latin America ARGENTINA Azopardo 1480. (C1107ADZ) Cdad. de Buenos Aires Tel: 0800-3330856 Email: CIC.monitores@Philips.com BRASIL Alameda Raja Gabaglia, 188 - 10°Andar - V. Olímpia - S. Paulo/SP - CEP 04551-090 - Brasil Tel: 0800-7254101 Email: CIC.monitores@Philips.com...
  • Page 64 Fax: 021-7510982 E-mail: gepta@cbn.net.id Service hours: Mon.~Fri. 8:30am~4:30pm; Sat. 8:30am~2:00pm Additional service points: 1. Philips Building Jl. Buncit Raya Kav 99. Jakarta Selatan. Phone: 021-7940040, ext 1722/1724, 98249295, 70980942 2. Jl. Tanah Abang 1 no 12S. Jakarta Pusat. Phone: 021-3455150, 34835453 3.
  • Page 65 Fax: (9221) 2721167 E-mail: care@philips.com Website: www.philips.com.p Singapore Company: Philips Electronics Singapore Pte Ltd (Philips Consumer Care Center) Address: 620A Lorong 1 Toa Payoh, TP4 Building Level 1, Singapore 319762 Tel: (65) 6882 3999 Fax: (65) 62508037 E-mail: consumer.care.sg@philips.com Service hours: Mon.~Fri. 9:00am~6:00pm; Sat. 9:00am~1:00pm Taiwan Company: FETEC.CO...
  • Page 66 Consumer Information Centers Thailand Company: Axis Computer System Co., Ltd. Address: 1421 Soi Lardprao 94, Srivara Town In Town Soi 3 Road, Wangthonglang, Bangkok 10310 Thailand Tel: (662) 934-5498 Fax: (662) 934-5499 E-mail: axis5@axiscomputer.co.th Service Hours: Mon.~Fri. 08:30am~05:30pm Vietnam Company: Digiworld Corp Address: 211-213 Vo Van Tan St, Ward 5, Dist.3 , Ho Chi Minh city, Vietnam Tel: 848-38266065 Fax: 848-38267307...
  • Page 67 Consumer Information Centers CDO Office: 1445 Corrales Ext.,CDO City 088-856-8540/856-8541 Sun # 0922-8210080 Iloilo Office: C. Lim Comp., Gomez St., Iloilo City # 033 338-4159/ 033 508-3741 Sun # 0922-8808850 Africa SOUTH AFRICA Company name: Sylvara Technologies Pty Ltd Address: Ho Address Palm Springs Centre Christoffel Road Van Riebeeck Park Kempton Park, South Africa Tel: +27878084456 Fax: +2711 391 1060 E-mail: customercare@philipssupport.co.za...
  • Page 68 Consumer Information Centers file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/WARRANTY/WARCIC.HTM (10 of 10)2009/7/6 NSH 03:20:11...

  • Page 69: Your International Guarantee

    In the event you require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can be found in the relevant part of this booklet.
  • Page 70 International Guarantee Website: http://www.philips.com file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/WARRANTY/WAR_INTL.HTM (2 of 2)2009/7/6 NSH 03:20:19...
  • Page 71 Should you encounter any difficulties while installing or using this product, please contact Philips directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site within 48 hours of your call being received within the first year of purchase.
  • Page 72 Where IS SERVICE AVAILABLE? Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).
  • Page 73 Please contact Philips at: (800) 479-6696 Three years free parts and three years free labor will be provided at Philips Canada depot or any one of its authorized service centers. (In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose.
  • Page 74 SERIAL # ________________________________________________ This warranty gives you specific legal rights. You may have other rights which vary from state/ province to state/province. Before contacting Philips, please prepare the following details so we can solve your problem quickly. Philips type number...
  • Page 75 United States Guarantee Philips’ customer help desks are located worldwide. Within the U.S. you can contact Philips customer care Monday-Friday from 8:00 AM-9:00 PM Eastern Time (ET) and on Saturdays from 10:00 AM-5:00 PM ET hrs by using one of the contact phone numbers.
  • Page 76 Glossary Glossary A B C D E G H I R S T U V W X Y Z Active matrix This is a kind of liquid crystal display structure in which switching transistors are attached to each pixel to control the on/off voltage. It produces a brighter and sharper display with a broader viewing angle than a passive matrix display.
  • Page 77 (degrees Kelvin). Lower Kelvin temperatures such as 2400° K are red; higher temperatures such as 9300° K are blue. Neutral temperature is white, at 6504° K. Philips monitors generally offers 9300° K, 6500° K, and user define. file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/glossary/glossary.htm (2 of 10)2009/7/6 NSH 03:20:29...
  • Page 78 Glossary Contrast The luminance variation between light and dark areas in an image. Contrast ratio The ratio of luminance between the brightest white pattern and the darkest black pattern. RETURN TO TOP OF THE PAGE D-SUB A VGA Analog input connector. Your monitor comes with a D-Sub cable. Digital Visual Interface (DVI) The Digital Visual Interface (DVI) specification provides a high-speed digital connection for visual data types that is display technology independent.
  • Page 79 Glossary Energy Star Computers Program An energy conservation program launched by the US Environmental Protection Agency (EPA), promotes the manufacture and marketing of energy-efficient office automation equipment. Companies joining this program, must be willing to commit themselves to manufacture one or more products capable of going into a low -power state (<...
  • Page 80 Glossary The main attribute of a color that distinguishes it from other colors. For example, a color may have a green, yellow, or purple hue. Color defined as having hue are know as chromatic colors. White, black, and grays possess no hue. IPS (In Plane Switching) A technique of improving the viewing angle of an LCD where the liquid crystal molecules are switched in the plane of the LCD layer rather than vertical to it.
  • Page 81 Glossary RETURN TO TOP OF THE PAGE A unit of luminance equal to 1 cd/m2 or 0.292 ftL. Pixel PICture Element; the smallest element on a computerized CRT or LCD image, and hence a display. Polarizer A light filter which only allows light waves of a certain rotation through. Polarized material with perpendicular filtering is used in LCDs to enclose the liquid crystal.
  • Page 82 Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen.
  • Page 83 Glossary USB eliminates "case anxiety" -- the fear of removing the computer case to install add-on peripherals. USB also eliminates adjustment of complicated IRQ settings when installing new peripherals. USB does away with "port gridlock." Without USB, PCs are normally limited to one printer, two Com port devices (usually a mouse and modem), one Enhanced Parallel Port add-on (scanner or video camera, for example) and a joystick.
  • Page 84 Glossary level, device may refer to the function performed by an entity attached to the Universal Serial Bus; for example, a data/FAX modem device. Devices may be physical, electrical, addressable, and logical. Downstream The direction of data flow from the host or away from the host. A downstream port is the port on a hub electrically farthest from the host that generates downstream data traffic from the hub.
  • Page 85 Glossary Vertical refresh rate Expressed in Hz, it is the number of frames (complete pictures) written to the screen every second. RETURN TO TOP OF THE PAGE file:///D|/songaiyu/193E1-1A1D%20EDFU/193E1-1A1D%20EDFU/lcd/manual/ENGLISH/193E1/glossary/glossary.htm (10 of 10)2009/7/6 NSH 03:20:29...

  • Page 86: Download And Print

    Download and Print Download and Print • Installing your LCD monitor driver • Download and Printing Installing Your LCD monitor driver Instructions System requirements: PC running Windows 95, Windows® 98, Windows® 2000 , Windows® Me, Windows® XP, Windows® Vista or later Find your driver ".inf/.icm/.cat"...
  • Page 87 Download and Print 2. From the menu that appears, choose 'Save Link As...', 'Save Target As...' or 'Download Link to Disk'. 3. Choose where you would like to save the file; click 'Save' (if prompted to save as either 'text' or 'source', choose 'source').
