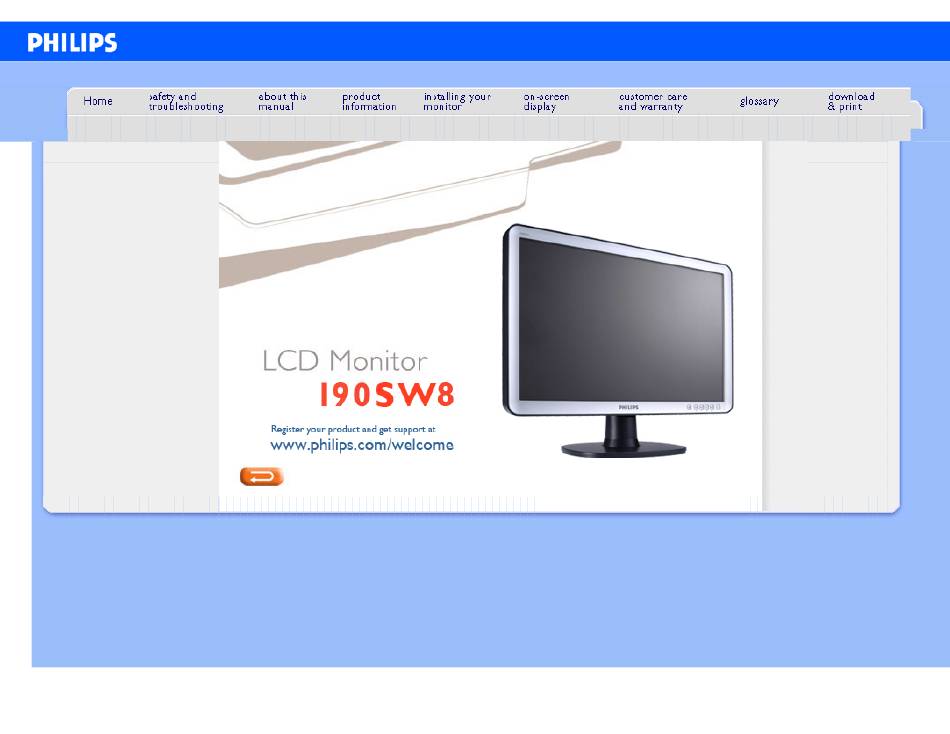

  • Page 1 Philips LCD Monitor Electronic User’s Manual file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/INDEX.HTM [2007/7/17 上午 10:28:39]...

  • Page 2: Safety And Troubleshooting Information

    ● seconds before attaching the power cable or DC power cord for normal operation. Please use approved power cord provided by Philips all the time. If your power cord is ● missing, please contact with your local service center. (Please refer to Customer Care...
  • Page 3 Consult a service technician if the monitor does not operate normally, or you are not sure what procedure to take when the operating instructions given in this manual have been followed. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/safety.htm 第 2 頁 / 共 2 [2007/7/17 上午 10:35:12]...

  • Page 4: Faqs (Frequently Asked Questions)

    Follow the instructions to insert the ( companion CD-ROM) included in this package. Monitor drivers (.inf and . icm files) will be installed automatically. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 1 頁 / 共 9 [2007/7/17 上午 10:35:21]...
  • Page 5 What does the Refresh Rate mean for LCD? Unlike CRT display technology, in which the speed of the electron beam is swept file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 2 頁 / 共 9 [2007/7/17 上午 10:35:21]...
  • Page 6 *A measurement of the color of light radiated by an object while it is being heated. This measurement is expressed in terms of absolute scale, (degrees Kelvin). Lower file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 3 頁 / 共 9 [2007/7/17 上午 10:35:21]...
  • Page 7 Yes. Philips LCD monitors have this optional feature. For standard VESA mount holes on the rear cover allows the user to mount the Philips monitor on most of the VESA standard arms or accessories. We recommend to contact your Philips sales representative for more information.
  • Page 8 USB keyboard, camera or printer. RETURN TO TOP OF THE PAGE LCD Panel Technology file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 5 頁 / 共 9 [2007/7/17 上午 10:35:21]...
  • Page 9 65MHz dot clock, one of the standards for XGA displays. Since the vertical/horizontal frequency for this dot clock is 60Hz/48kHz, the optimum frequency for this monitor is 60Hz. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 6 頁 / 共 9 [2007/7/17 上午 10:35:21]...
  • Page 10 The CE (Conformité Européenne) mark is required to be displayed on all regulated products offered for sale on the European market. This 'CE' mark means that a file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 7 頁 / 共 9 [2007/7/17 上午 10:35:21]...
  • Page 11 3. You can unlock the theft deterrence mode with mechanical override way by press 10 sec. Menu and then 10 sec. Power key. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 8 頁 / 共 9 [2007/7/17 上午 10:35:21]...
  • Page 12 FAQs (Frequently Asked Questions) file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_faq.htm 第 9 頁 / 共 9 [2007/7/17 上午 10:35:21]...

  • Page 13: Troubleshooting

    Imaging Problems Press the Auto button. ● Adjust the image position using the Phase/Clock of More ● Display position is incorrect Settings in OSD Main Controls. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_troub.htm 第 1 頁 / 共 3 [2007/7/17 上午 10:35:25]...
  • Page 14 The remaining dots are normal characteristic of the liquid ● Green, red, blue, dark, and white dots crystal used in todays technology. remains file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_troub.htm 第 2 頁 / 共 3 [2007/7/17 上午 10:35:25]...
  • Page 15 Troubleshooting For further assistance, refer to the Consumer Information Centers list and contact Philips customer service representative. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_troub.htm 第 3 頁 / 共 3 [2007/7/17 上午 10:35:25]...

  • Page 16: Regulatory Information

    IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. For more information, please visit www.tcodevelopment.com file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 1 頁 / 共 11 [2007/7/17 上午 10:36:15]...
  • Page 17 Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities. From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors.
  • Page 18 RETURN TO TOP OF THE PAGE CE Declaration of Conformity Philips Consumer Electronics declare under our responsibility that the product is in conformity with the following standards - EN60950-1:2001 (Safety requirement of Information Technology Equipment)
  • Page 19 To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE- CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 4 頁 / 共 11 [2007/7/17 上午 10:36:15]...
  • Page 20 N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 5 頁 / 共 11 [2007/7/17 上午 10:36:15]...
  • Page 21 A protection mark "B" confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/E-06251. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 6 頁 / 共 11 [2007/7/17 上午 10:36:15]...
  • Page 22 ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 7 頁 / 共 11 [2007/7/17 上午 10:36:15]...
  • Page 23 Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 beträgt 70dB (A) oder weniger. ACHTUNG: BEIM AUFSTELLEN DIESES GERÄTES DARAUF ACHTEN, DAß NETZSTECKER UND NETZKABELANSCHLUß LEICHT ZUGÄNGLICH SIND. RETURN TO TOP OF THE PAGE End-of-Life Disposal file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 8 頁 / 共 11 [2007/7/17 上午 10:36:15]...
  • Page 24 Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
  • Page 25 Electronic Information Products" or commonly referred to as China RoHS. All products including CRT and LCD monitor which are produced and sold for China market have to meet China RoHS request. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/regs/regulat.htm 第 10 頁 / 共 11 [2007/7/17 上午 10:36:15]...
  • Page 26 Philips is committed to develop, produce and market products that cause no adverse health effects. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.

  • Page 27: Other Related Information

    15 A, 250 V. The Cord Set should have the appropriate safety approvals for the country in which the equipment will be installed and / or be marked HAR. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/safety/saf_other.htm [2007/7/17 上午 10:36:18]...

  • Page 28: About This Manual

    Notational Descriptions About This Guide This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD monitor's features, setup, operation and other important information. Its contents are identical to the information in our printed version.
  • Page 29 All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/about/about.htm 第 2 頁 / 共 2 [2007/7/17 上午 10:36:34]...
  • Page 30 Your LCD Monitor Product Information Product Features Smartimage Your LCD monitor SmartContrast SmartSaturte Congratulations on your purchase and welcome to Philips. To fully benefit from the support that Philips offers, register your product at. www.philips.com/welcome SmartSharpness Lead-free Product Product Features Technical Specifications 190SW8 Resolution &...
  • Page 31 Product Information How does it work? SmartImage – software based on Philips award-winning LightFrame™ technology – analyzes the content displayed on your screen. Based on a scenario you select, SmartImage dynamically enhances the contrast, color saturation and sharpness of images and video for ultimate display performance – all in real time with the press on a single button.
  • Page 32 When you active SmartContrast which will analysis the content you are displaying in real time to adjust colors and control backlight intensity. This function can obviously enhance contrast in dynamic for more entertainment fun when file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 3 頁 / 共 10 [2007/7/17 上午 10:36:42]...
  • Page 33 Entertainment mode and is turned off for top quality display of office applications and in the Economy mode to reduce power consumptions. RETURN TO TOP OF THE PAGE Lead-free Product file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 4 頁 / 共 10 [2007/7/17 上午 10:36:42]...
  • Page 34 Product Information Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment.Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment.
  • Page 35 Resolution & Preset Modes A. Maximum Resolution For 190SW8 1440x900 at 75 Hz B. Recommended Resolution For 190SW8 1440x900 at 60 Hz 13 factory preset modes: file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 6 頁 / 共 10 [2007/7/17 上午 10:36:42]...
  • Page 36 This monitor is NERGY compliant. s an NERGY artner, ® determined that this product meets the NERGY guidelines for energy efficiency. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 7 頁 / 共 10 [2007/7/17 上午 10:36:42]...
  • Page 37 No connect No connect DDC Clock +5V Power T.M.D.S. Clock Shield DDC Data Ground (for +5V) T.M.D.S. Clock+ No connect Hot Plug Detect T.M.D.S. Clock- file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 8 頁 / 共 10 [2007/7/17 上午 10:36:42]...
  • Page 38 Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 9 頁 / 共 10 [2007/7/17 上午 10:36:42]...
  • Page 39 Product Information Physical Function Tilt RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/product.htm 第 10 頁 / 共 10 [2007/7/17 上午 10:36:42]...

  • Page 40: Philips Pixel Defect Policy

    TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can Pin Assignment guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains Product Views the different types of pixel defects and defines acceptable defect levels for each type.
  • Page 41 Because pixel and sub pixels defects of the same type that are near to one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/pixel.htm 第 2 頁 / 共 4 [2007/7/17 上午 10:36:46]...
  • Page 42 In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.
  • Page 43 Note: * 1 or 2 adjacent sub pixel defects = 1 dot defect Your Philips monitor is ISO13406-2 Compliant RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/pixel.htm 第 4 頁 / 共 4 [2007/7/17 上午 10:36:46]...
  • Page 44 Thus, Philips provide you a compact version of SmartManage, SmartManage Lite. You can use SmartManage Lite to manage your Philips Monitors via LAN. Please. refer to below comparison chart and determine if which one suit for your environment best.
  • Page 45 SmartManage SmartManage Features and Benefits The Philips SmartManage is a working console for IT management to gather monitors assets information, run asset report, control assets security, monitor assets security, and issue instant messages to monitor users. Philips SmartManage includes the following major features: Provides an additional security measure that helps corporate users safeguard their investment.
  • Page 46 SmartManage 2. Installer – Install Shield Legal Choose "I accept" for installation process. ● Cancel prompts user if you want to cancel installation. ● file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 3 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 47 Check the box if you wants to install SmartManage Lite Asset Management services. ● Personal user usually not need to active this function.Read SmartManage section in this manual before you choose SmartManage Lite function file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 4 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 48 ● You can launch after installation complete. ● If you want to launch later, you can either click the shortcut on desktop or toolbar. ● file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 5 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 49 SmartManage file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 6 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 50 SmartManage file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 7 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 51 ● Wizard Analog Seguence Wizard Degital Seguence Resolution Resolution Focus Contrast Brightness Brightness Contrast White Point (Color Temp) Position File White Point (Color Temp) File file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 8 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 52 ● Tab Heading Sub Menu Display in Analog Display in Digital Adjust Brightness Adjust Contrast Adjust Focus (Clock & Clock Phase) Adjust Position Adjust Resolution file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 9 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 53 Example for Color Calibration Tab Heading Sub Menu Display in Analog Display in Digital Color Color Black Level Color White Point Color Color Calibration Color Viewing Mode file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 10 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 54 Auto Pivot Options Preferences Options Input Options Audio AutoPivot, Input and Audio function will only available and shown if the product supports those features. Help Menu file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 11 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 55 Tab Heading Sub Menu Display in Analog Display in Digital Help User Manual Help Update Help Display ID Help System ID Help Version Plug Ins Menu file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 12 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 56 “Theft Deterrence enabled” host computer. To get started, you will need to register a personal identification number (PIN). Example for Theft Deterrence file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 13 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 57 SmartManage Example for on line register Theft Deterrence PIN file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/product/SMART.HTM 第 14 頁 / 共 16 [2007/7/17 上午 10:36:54]...
  • Page 58 Install the driver. Remove SmartControl, and re-install it once more. If it is still not working, we are sorry that the graphic adaptor is not supported. Please pay attention to Philips web site for any updated SmartControl driver available.
  • Page 59 I forgot my PIN for Theft Deterrence Function. How can I do? You can use the universal PIN “PHILIPS” to enter it, or you can unlock the theft deterrence mode with mechnical override way by press 10 sec. Menu and then 10 sec. Power key.

  • Page 60: Installing Your Lcd Monitor

    Return to previous OSD level. SmartImage: There are five modes to be selected: Office Work, Image Viewing, Entertainment, Economy, and Off. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/install.htm 第 1 頁 / 共 3 [2007/7/17 上午 10:37:05]...
  • Page 61 Kensington anti-thief lock RETURN TO TOP OF THE PAGE Optimizing Performance For best performance, ensure that your display settings are set at 1440x900, 60Hz. ● file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/install.htm 第 2 頁 / 共 3 [2007/7/17 上午 10:37:05]...
  • Page 62 You can check the current display settings by pressing the 'OK' button once. The current display mode is shown in OSD main controls called RESOLUTION. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/install.htm 第 3 頁 / 共 3 [2007/7/17 上午 10:37:05]...

  • Page 63: Connecting To Your Pc

    Getting Started Optimizing Performance The base DVI cable (Optional) Power cord EDFU pack VGA cable RETURN TO TOP OF THE PAGE Connecting to Your PC file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/connect.htm 第 1 頁 / 共 3 [2007/7/17 上午 10:37:12]...
  • Page 64 Connecting to Your PC Connect the power cord to the back of the monitor firmly. (Philips has pre-connected VGA cable for the first installation. *available for selective models file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/connect.htm 第 2 頁 / 共 3 [2007/7/17 上午 10:37:12]...
  • Page 65 Plug the power cord of your computer and your monitor into a nearby outlet. Turn on your computer and monitor. If the monitor displays an image, installation is complete. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/connect.htm 第 3 頁 / 共 3 [2007/7/17 上午 10:37:12]...
  • Page 66 Getting Started Place the base on flat surface, slide the monitor body onto the base. Optimizing Performance Attach the Base Detach the Base Remove the Base file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/base.htm 第 1 頁 / 共 6 [2007/7/17 上午 10:37:17]...
  • Page 67 The Base Install cable cover as illustrated below. Detach the Base Detach Remove the cable cover as illustrated below. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/base.htm 第 2 頁 / 共 6 [2007/7/17 上午 10:37:17]...
  • Page 68 The Base Place the monitor face on a safe surface, push down on the release button and pull the base away from the monitor body. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/base.htm 第 3 頁 / 共 6 [2007/7/17 上午 10:37:17]...
  • Page 69 The Base Remove the Base Condition: for VESA standard mounting applications ● Remove the top cover. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/base.htm 第 4 頁 / 共 6 [2007/7/17 上午 10:37:17]...
  • Page 70 Remove the 4 screws and then remove the base from the LCD monitor. Note: This monitor accepts a 100mmx100mm VESA-Compliant mounting interface. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/base.htm 第 5 頁 / 共 6 [2007/7/17 上午 10:37:17]...
  • Page 71 The Base file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/base.htm 第 6 頁 / 共 6 [2007/7/17 上午 10:37:17]...

  • Page 72: Getting Started

    Click on the 'OK' button then select your monitor model and click on the 'Next' button. Click on the 'Finish' button then the 'Close' button. For Windows® 2000 Start Windows® 2000 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/gt_start.htm 第 1 頁 / 共 3 [2007/7/17 上午 10:37:23]...
  • Page 73 Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/gt_start.htm 第 2 頁 / 共 3 [2007/7/17 上午 10:37:23]...
  • Page 74 If your Windows® 95/98/2000/Me/XP/Vista version is different or you need more detailed installation information, please refer to your Windows® 95/98/2000/Me/XP/Vista user's manual. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/install/gt_start.htm 第 3 頁 / 共 3 [2007/7/17 上午 10:37:23]...

  • Page 75: On-Screen Display

    Description of the On Screen Display What is the On-Screen Display? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
  • Page 76 Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/osd/osddesc.htm 第 2 頁 / 共 3 [2007/7/17 上午 10:37:42]...
  • Page 77 Display of the native resolution alert can be switched off from Setup in the OSD (On Screen Display) menu. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/osd/osddesc.htm 第 3 頁 / 共 3 [2007/7/17 上午 10:37:42]...
  • Page 78 NORTH AMERICA: Canada USA PACIFIC: Australia New Zealand ASIA: Bangladesh China Hong Kong India Indonesia Japan Korea Malaysia Pakistan Philippines Singapore Taiwan Thailand AFRICA: Morocco South Africa MIDDLE EAST: Dubai Egypt file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warranty.htm [2007/7/17 上午 10:38:00]...

  • Page 79: Your Philips F1Rst Choice Warranty

    Philips helpdesk directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site if your monitor turns out to be faulty or defective. Philips aims at a swap within 48 hours of your call being received.
  • Page 80 Note that products that are not originally designed, manufactured, approved and/or ● authorized for usage within the Philips F1rst Choice countries, do not apply to the Philips F1rst Choice Warranty. In these cases the Philips global warranty terms are valid.
  • Page 81 Your Philips F1rst Choice Warranty file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/war_1st.htm 第 3 頁 / 共 3 [2007/7/17 上午 10:38:04]...

  • Page 82: F1Rst Choice Contact Information

    Local call tariff € 0.10 Spain 902 888 785 Sweden 08 632 0016 Local call tariff Switzerland 02 2310 2116 Local call tariff United Kingdom 0207 949 0069 Local call tariff file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warfirst.htm [2007/7/17 上午 10:38:12]...

  • Page 83: Your Guarantee In Central And Eastern Europe

    Your Guarantee in Central and Eastern Europe Dear Customer, Thank you for purchasing this Philips product, which has been designed and manufactured to the highest quality standards. If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement parts during a period of 36 months from date of purchase.
  • Page 84 In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting our dealers or Information Centers In case your Philips product is not working correctly or is defective, please contact your Philips dealer or directly the...

  • Page 85: Consumer Information Centers

    CZ - 160 00 Praha 6 Tel: 800 100 697 Email:info@xpectrum.cz www.xpectrum.cz CROATIA Renoprom d.o.o. Mlinska 5, Strmec HR - 41430 Samobor Tel: +385 1 333 0974 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 1 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 86 RO - 020074 Bucharest Tel: +40 21 2101969 SERBIA & MONTENEGRO Tehnicom Service d.o.o. Bulevar Vojvode Misica 37B YU - 11000 Belgrade Tel: +381 11 3060 886 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 2 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 87 RUSSIA Tel: +7 095 961-1111 Tel: 8-800-200-0880 Website: www.philips.ru TURKEY Türk Philips Ticaret A.S. Yukari Dudullu Org.San.Bolgesi 2.Cadde No:22 34776-Umraniye/Istanbul Tel: (0800)-261 33 02 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 3 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 88 Phones: 11 21210203 -São Paulo & 0800-701-0203-Other Regions without São Paulo City CHILE Philips Chilena S.A. Avenida Santa Maria 0760 P.O. box 2687Santiago de Chile Phone: (02)-730 2000 Fax : (02)-777 6730 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 4 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 89 Customer Desk: Phone: 009 800 54 1 0004 PERU Philips Peruana S.A. Customer Desk Comandante Espinar 719 Casilla 1841 Limab18 Phone: (01)-2136200 Fax : (01)-2136276 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 5 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 90 Philips Consumer Electronics Consumer Care Center Level 1, 65 Epping Rd North Ryde NSW 2113 Phone: 1300 363 391 Fax : +61 2 9947 0063 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 6 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 91 Philips Electronics Hong Kong Limited Consumer Service Unit A, 10/F. Park Sun Building 103-107 Wo Yi Hop Road Kwai Chung, N.T. Hong Kong Phone: (852)26199663 Fax: (852)24815847 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 7 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 92 Philips Group of Companies in Indonesia Consumer Information Centre Jl.Buncit Raya Kav. 99-100 12510 Jakarta Phone: (021)-7940040 ext: 2100 Fax : (021)-794 7511 / 794 7539 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 8 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 93 6795 Ayala Avenue cor VA Rufino St. Salcedo Village 1227 Makati City, PHILS Phone: (02)-888 0572, Domestic Toll Free: 1-800-10-PHILIPS or 1-800-10-744 5477 Fax: (02)-888 0571 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 9 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 94 Khwaeng Bangkapi, Khet Huaykhwang Bangkok10320 Thailand Tel: (66)2-6528652 E-mail: cic Thai@philips.com Africa MOROCCO Philips Electronique Maroc 304,BD Mohamed V Casablanca Phone: (02)-302992 Fax : (02)-303446 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 10 頁 / 共 11 [2007/7/17 上午 10:38:29]...
  • Page 95 Fax: +27 (0) 11 471 5123 E-mail: customercare.za@philips.com Middle East DUBAI Philips Middle East B.V. Consumer Information Centre P.O.Box 7785 DUBAI Phone: (04)-335 3666 Fax : (04)-335 3999 file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/warcic.htm 第 11 頁 / 共 11 [2007/7/17 上午 10:38:29]...

  • Page 96: Your International Guarantee

    In the event you require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can be found in the relevant part of this booklet.
  • Page 97 International Guarantee file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/war_intl.htm 第 2 頁 / 共 2 [2007/7/17 上午 10:38:38]...
  • Page 98 All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the original product expires, the warranty on all replaced and repaired products and parts also expires. WHAT IS EXCLUDED? file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/war_usa.htm 第 1 頁 / 共 4 [2007/7/17 上午 10:38:42]...
  • Page 99 Where IS SERVICE AVAILABLE? Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).
  • Page 100 Please contact Philips at: (800) 479-6696 Three years free parts and three years free labor will be provided at Philips Canada depot or any one of its authorized service centers. (In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose.
  • Page 101 10:00 AM-5:00 PM ET hrs by using one of the contact phone numbers. For more information on this and more great Philips products visit our website at: Website: http://www.philips.com file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/warranty/war_usa.htm 第 4 頁 / 共 4 [2007/7/17 上午 10:38:42]...
  • Page 102 The width-to-height ratio of the active area of a display. In general, most monitors have an aspect ratio of 4:3. Wide monitors or TVs have an aspect ratio of 16:9 or 16:10. Backlight file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 1 頁 / 共 10 [2007/7/17 上午 10:38:49]...
  • Page 103 (degrees Kelvin). Lower Kelvin temperatures such as 2400° K are red; higher temperatures such as 9300° K are blue. Neutral temperature is white, at 6504° K. Philips monitors generally offers 9300° K, 6500° K, and user define. Contrast The luminance variation between light and dark areas in an image.
  • Page 104 Digital and Analog support in a single connector (DVI-I only). RETURN TO TOP OF THE PAGE Energy Star Computers Program An energy conservation program launched by the US Environmental Protection Agency (EPA), file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 3 頁 / 共 10 [2007/7/17 上午 10:38:49]...
  • Page 105 Color defined as having hue are know as chromatic colors. White, black, and grays possess no hue. IPS (In Plane Switching) file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 4 頁 / 共 10 [2007/7/17 上午 10:38:49]...
  • Page 106 (cd/m2) or foot Lamberts. 1 fL=3.426 cd/m2. RETURN TO TOP OF THE PAGE A unit of luminance equal to 1 cd/m2 or 0.292 ftL. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 5 頁 / 共 10 [2007/7/17 上午 10:38:49]...
  • Page 107 Microsoft’s already high Vista requirements from each and every monitor that leaves the factory–not just a few review samples. Only Philips goes to these lengths to deliver this exacting level of color accuracy and display quality in every new monitor.
  • Page 108 Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen.
  • Page 109 Hubs are a key element in the plug-and-play architecture of USB. The Figure shows a typical hub. Hubs serve to simplify USB connectivity from the user's perspective providing low cost and complexity. file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 8 頁 / 共 10 [2007/7/17 上午 10:38:49]...
  • Page 110 Universal Serial Bus; for example, a data/FAX modem device. Devices may be physical, electrical, addressable, and logical. Downstream file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 9 頁 / 共 10 [2007/7/17 上午 10:38:49]...
  • Page 111 Vertical refresh rate Expressed in Hz, it is the number of frames (complete pictures) written to the screen every second. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/190SW8/glossary/glossary.htm 第 10 頁 / 共 10 [2007/7/17 上午 10:38:49]...

  • Page 112: Download And Print

    2. From the menu that appears, choose 'Save Link As...', 'Save Target As...' or 'Download Link to Disk'. 3. Choose where you would like to save the file; click 'Save' (if prompted to save as either 'text' or 'source', choose 'source'). file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/download/download.htm 第 1 頁 / 共 2 [2007/7/17 上午 10:38:53]...
  • Page 113 To print the manual: With the manual file open, follow your printer's instructions and print the pages you need. RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2007/CD Manual/19/190SW8/190SW8 EDFU 0713-2007/lcd/manual/English/download/download.htm 第 2 頁 / 共 2 [2007/7/17 上午 10:38:53]...
