INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Please read carefully before proceeding with installation. Your failure to follow any attached instructions
or operating parameters may lead to the products failure and possible damage to property.
System Tested and certified by NSF International against ANSI/NSF
Standard 58 for the reduction of claims specified on the performance
data sheet.
Refer to enclosed warranty for operating parameters to ensure proper use with your water supply.
Watts Premier, Inc.
Phone: 800-752-5582
P/N: 199214
Save manual for future reference

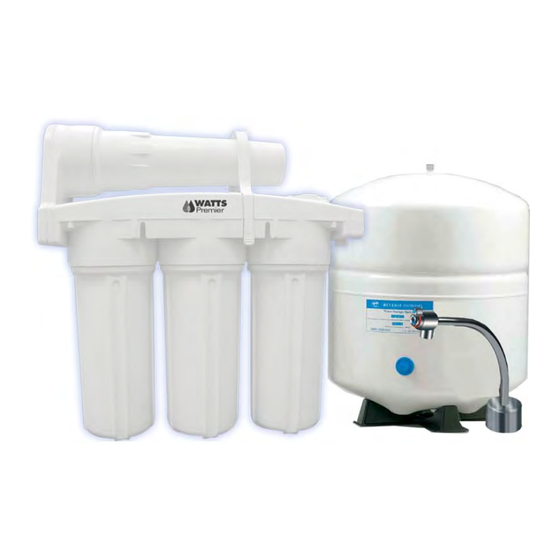

MODEL
WP-4 WP4-50 KP-4 RO-4M
8716 W Ludlow Drive Suite #1
www.wattspremier.com
Warning
Page 1
Peoria, AZ 85381
Fax: 623-866-5666
Manual Edition: 10/26/11
Advertisement
Table of Contents
Related Manuals for Watts Premier WP-4
Summary of Contents for Watts Premier WP-4
- Page 1 Save manual for future reference MODEL WP-4 WP4-50 KP-4 RO-4M System Tested and certified by NSF International against ANSI/NSF Standard 58 for the reduction of claims specified on the performance data sheet.
- Page 2 Giardia. There may also be some local water issues in your area such as high levels of lead and copper. This Watts Premier water treatment system has been designed and tested to provide you with high quality water for years to come.
-
Page 3: Table Of Contents
With proper installation and maintenance, this system will provide you with high quality water for years to come. All of Watts Premier’s water enhancement products are rigorously tested by independent laboratories for safety and reliability. If you have any questions or concerns, please contact our cus- tomer service department at 1-800-752-5582 (outside USA 480-675-7995) or refer to our on-line trouble shooting at www.wattspremier.com. -
Page 4: Operational Parameters
Watts Premier supplies speciality filters (part number 107008) that can be used if copper tubing follows the Reverse Osmosis unit. Be sure to follow any state or local regulations during installation. -
Page 5: Drill A Hole For The Faucet In A Porcelain Sink
RO faucet. (If you are already using it for a sprayer or soap dispenser, see step 1) Porcelain sinks are extremely hard and can crack or chip easily. Use extreme caution when drilling. Watts Premier accepts no responsibility for damage resulting from the installation of faucet. -
Page 6: Faucet Installation
Standard Faucet Installation Remove nut (item 11) and blue tubing (item 12) from faucet (Leave the nut and plastic delrin Step 6 sleeve (item 10) on the blue tube). Feed both the red and black tubing through the pre drilled hole in the sink/counter until faucet Step 7 is seated. -
Page 7: Adapt-A-Valve Installation
Adapt-a-Valve Installation Caution: Water supply line to the system must be from the cold water supply line only. Hot water will severely damage your system. * Washer Configuration for 3/8” Configuration for 1/2” Cold (With Brass Fittings) (Without Brass Fittings) Supply Supply * Insert White Washer... -
Page 8: Drill Hole And Connect 3/8" Black Tube From Faucet To The Drain Saddle
Drill hole and Connect 3/8” Black Tube from Faucet to the Drain Saddle IMPORTANT: The black 3/8” drain tube must be as SHORT and STRAIGHT as possible to the drain saddle, making a downward slope from faucet to drain saddle to allow for proper drainage. -
Page 9: Connect Blue Tube From "Tank" Port On Ro Module To The Tank
Connect Blue Tube from “TANK” Port on RO Module to the Tank Step 22 Position tank in desired location. Stand it upright or lay it on its side (using the black plastic stand). Measure the blue tube from the RO module port marked “TANK” over to the tank and cut it to desired length. -
Page 10: Connect The Red Tube From Faucet To Ro Module
Make sure the tube is pushed in all the way to the tube stop. Note: A connection to a refrigerator / ice maker may be tee’d into this blue tube. Watts Premier offers an ice maker install kit part # 500102 (See Page 22). Page 10... -
Page 11: Start Up Instructions
Don’t Forget To Register! Register by mail, phone, fax or internet. Watts Premier uses this information only to provide a filter change reminder notice. Pre-filters should be changed every 6 months and Final Polishing filter annually. You may register your system via our website at www.wattspremier.com or call 1-800-752-5582 (within USA only) / FAX#: 623-866-5666. -
Page 12: Month System Maintenance
Note: The KP-4 R.O. unit is equipped with annual filters, therefore require only one annual change. √ Stage 1 - Sediment Filter (part #: 104017) √ Stage 2 - Carbon Filter √ Stage 4 - Carbon Filter • Part#:101009: WP-4, WP4-50 Part#:101009 • Part#:100037: KP-4 Step 1 Turn off the incoming water supply to the RO at the adapt-a-valve. -
Page 13: Annual Maintenance
Annual Maintenance *Order filters by calling 1-800-752-5582 or buy online at www.wattspremier.com. √ Stage 1 - Sediment Filter (part #: 104017) √ Stage 2 & 4 - Carbon Block Filter (part #: 101009-White end caps) √ 1/2 Cup of hydrogen peroxide or common household bleach. Sanitizing of unit is recommended. -
Page 14: Membrane Replacement
Watts Premier recommends replacing the membrane when TDS reduction falls below 75%. Note: A water sample may be sent to Watts Premier for a free diagnosis of your membranes performace. To send a water sample, use two (2) clean containers and fill ½ cup of tap water in one container and ½... -
Page 15: Checking Air Pressure In The Tank
Check Air Pressure in the Tank Important: Check air pressure only when tank is empty of water! Check air pressure in the storage tank when you notice a decrease in available water from the RO system. Air can be added with a bicycle pump using the schrader valve that is located on the lower side of the tank behind a blue plastic cap. -
Page 16: Trouble Shooting
TROUBLE SHOOTING Problem Cause Solution 1. Low/Slow Production Low Water Pressure Assure a minimum of 40 psi incoming water pressure. Premier sells a booster pump if home water pressure is low. Maker sure water supply is turned on and Adapta Valve is all the way open Crimps in tubing Check tubing and straighten or replace as necessary. -
Page 17: Arsenic Fact Sheet
This Watts Premier reverse osmosis system is designed to remove up to 98% of pentavalent arsenic. It will not convert trivalent arsenic to pentavalent arsenic. Under laboratory standard testing conditions, this system reduced 0.30 mg/L (ppm) pentavalent arsenic to under 0.010... -
Page 18: California Certification
Department of Public Health Water Treatment Device Certificate Number 00 - 1452 Date Issued: October 17, 2005 Trademark/Model Designation Watts Premier Deluxe Plus Watts Premier Ultra 5 Watts Premier PUR-TEK Watts Premier Watts 25 Watts Premier RO-TFM-5SV Watts Premier RO-TFM-4SV Watts RO-4... -
Page 19: Performance Data Sheet
Efficiency - 9.58% Depending on water chemistry, water temperature, and water pressure Watts Premier’s R.O. Systems production and performance will vary. Efficiency rating means the percentage of the influent water to the system that is available to the user as reverse osmosis treated water under operating conditions that approximate typical daily usage. - Page 20 2. This system is acceptable for treatment of influent concentrations of no more than 27 mg/L nitrate and 3 mg/L nitrite in combination measured as N and is certified for nitrite/nitrate reduction only for water supplies with a pressure of 280 kPa (40 psig) or greater. If your water supply is under 40 psi Watts Premier recomends the use of a RO booster pump for proper operation.
-
Page 21: One Piece Manifold Drawing / Parts List
Item Part # Description Carbon Block-10 Inch-5M 101009 Sediment Filter-10 Inch-5M 104017 110016 RO Membrane 35GPD RO Membrane 50GPD 110019 Filter Bowl 113018 113035 Membrane Vessel O-Ring Filter Bowl 113041 113045 O-Ring Membrane Vessel 116001 Faucet-AG-Chrome Tank-Pressure 3GAL White 119007 125032 Elbow Fitting 3/8”... -
Page 22: Other Products From Watts Premier
Other Products from Watts Premier Watts Premier has other fine water filtration products and accessories to enhance your water and to compliment your existing RO System. Listed on the next several pages are only a few of the items we offer. -
Page 23: Parts List
*$69.95/ea *All prices subject to change without notice. Watts Premier Ice Maker Filter Kit - High efficiency replaceable filter that can last up to 5 years or 20,000 gallons. Perfect for residential and commercial ice makers as well as refrigerators, drinking fountains, coffee & tea brewers, motor homes and campers. -
Page 24: Removing Chlorine From Your Shower
Removing chlorine from your shower Special Chlorgon & KDF media – More effective then carbon medias with hot water applications in the removal of the following. √ Iron oxide (rust water) √ Free Chlorine (CL-) √ Dirt, sediment √ Combined Chlorine (Sodium Hypochlorite) √... -
Page 25: Warranty Registration
Watts Premier collects personal information when you register with Watts Premier. This information is stored in our data base and we do not rent, sell, or share personal information with other people or nonaffiliated companies. - Page 26 Iowa Department of Public Health - Sales in Iowa require this to be completed, signed and returned. These signatures will be retained on file for two years. Insert into envelope and return to Watts Premier Watts Premier 8716 W Ludlow Drive Suite #1...
-
Page 27: Service Record
Service Record Serial No. _____________________ Date of Purchase:__________ Date of Install:___________ Installed by:__________________ 2nd Stage 4th Stage 1st Stage Date Carbon Carbon Membrane Sediment (6 months) (1 year) (2-5 years) (6 months) NOTES: Page 27... -
Page 28: Limited Warranty
Limited Warranty What your Warranty Covers: If any part of your WATTS PREMIER Reverse Osmosis System is defective in workmanship (excluding replaceable filters and membranes), return unit after obtaining a return authorization (see below), less tank, within 3 years of original retail purchase, WATTS PREMIER will repair or, at WATTS PREMIER’S option, replace the system at no charge.
