06E Series Model
1.
The range hood must be installed just above the cooktop.
The minimum distance from the cooking surface to the bottom of the range hood must be 24".
2.
3.
The total weight of the 06E range hood unit is 15 lbs. (6 kg)
CAUTION:
Check that the hood is correctly installed, since incorrect installation could result in the detachment of
the range and that unit could fall.
To protect hands from injury, wear working gloved when installing the range hood.
Installation Instructions, Revised 05/13/13

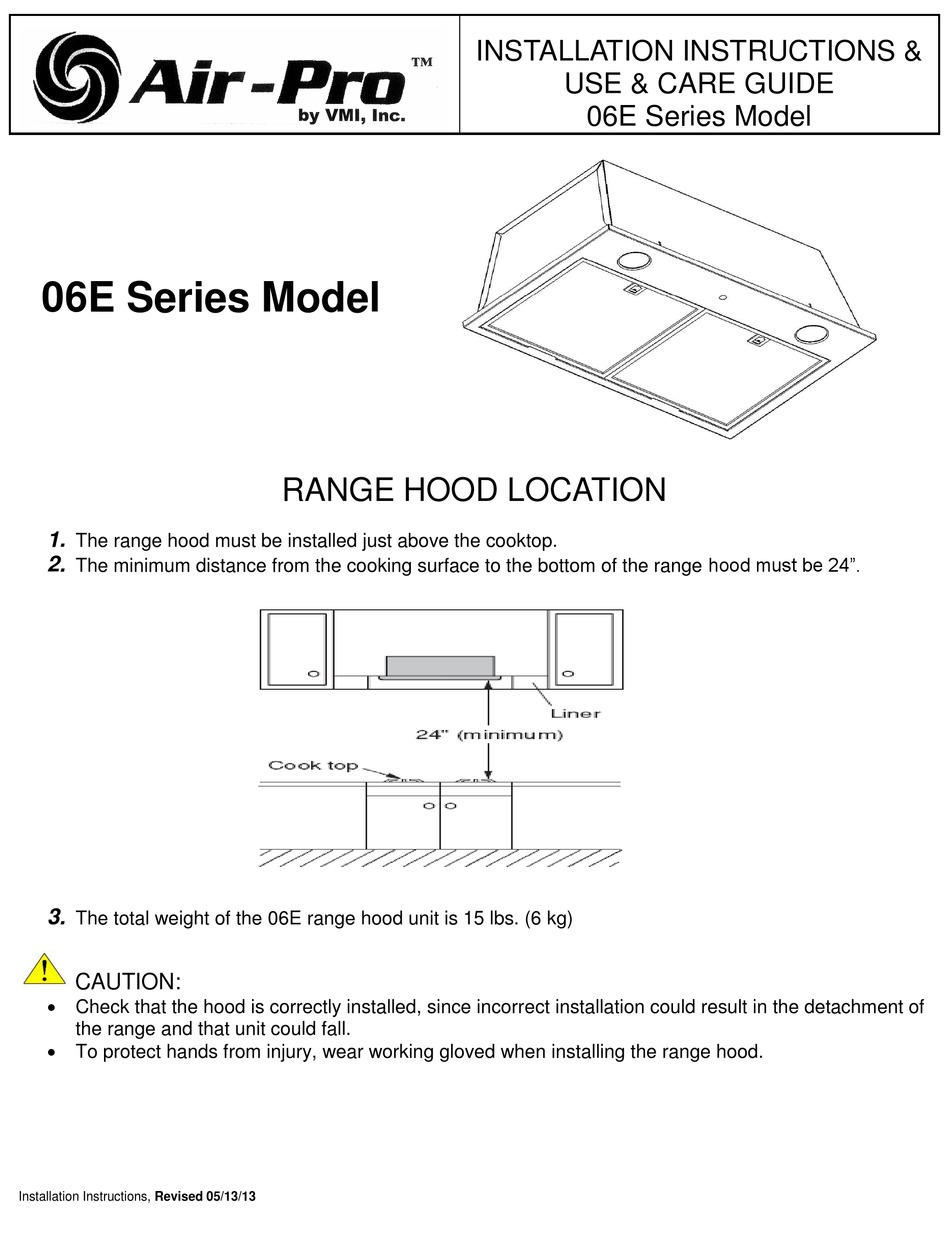

RANGE HOOD LOCATION
INSTALLATION INSTRUCTIONS &
USE & CARE GUIDE
06E Series Model
Advertisement
Table of Contents
Related Manuals for Air-Pro 06E Series
Summary of Contents for Air-Pro 06E Series
-
Page 1: Range Hood Location
INSTALLATION INSTRUCTIONS & USE & CARE GUIDE 06E Series Model 06E Series Model RANGE HOOD LOCATION The range hood must be installed just above the cooktop. The minimum distance from the cooking surface to the bottom of the range hood must be 24”. - Page 2 10” Round Damper Installation Instructions, Revised 05/13/13...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Before installation and operation, read these instructions Installation work and electrical wiring must carefully and use this product only in the manner described be done by a qualified person(s) in by the manufacturer in the operation manual. accordance with all applicable codes and The instructions shown below are used to alert you to standards, including fire-rated construction. - Page 4 CONNECTING TO THE VENT PIPE The 06E series ventilation modules come with a metal start collar. Attach the Start Collar to the duct with at least three equally spaced screws. Also apply duct tape, preferably the metal type. Some installations, (where the outside of this position of the duct is not accessible) will require the metal tape be applied on the inside of the duct.
- Page 5 Installation Instructions, Revised 05/13/13...
-
Page 6: Use And Care
A 15 to 20 amp electrical service is recommended for proper electrical supply. Before determining, calculate amp ratings based on the product label found on the 06E series module. Always observe local building codes. Always use a dedicated circuit. Line load is calculated by adding the amperage of the halogen lights to the rated amperage of the ventilator. -
Page 7: Wiring Diagram
Black 120 volt AC from electrical panel (usually black) White Neutral from electrical panel (white) Green Ground from electrical panel (usually green) Wiring Diagram 06E Series Models House Electrical Panel Green White (N) 120V Black (L) Liner Installation Instructions, Revised 05/13/13... -
Page 8: Warranty
Brand Ventilation Products What is Covered ™ VMI Inc. warrants its Air-Pro brand products to the original user, to be free of defects in materials and workmanship for three (3) years from the date of purchase. VMI Inc., at its option, will repair or replace the complete unit or any defective component without charge providing that, if requested, the product or defective component is promptly returned, prepaid to the address below. - Page 9 Instructions d'Installation et Utilisation de Soins Guide 06E Série Modèles 06E Série Modèles GAMME EMPLACEMENT CAPOT La plage du capot doit être installé juste au-dessus de la cuisinière. La distance minimale de la surface de cuisson et le bas de la gamme du capot doit être de 24 ". Le poids total du 06E de la hotte est de 15 lbs.
- Page 10 10” Round Damper Installation Instructions, Revised 05/13/13...
-
Page 11: Consignes De Sécurité
CONSIGNES DE SÉCURITÉ Avant l'installation et le fonctionnement, lire attentivement les codes et les normes applicables, y ces instructions et utiliser ce produit uniquement de la compris au feu de la construction manière décrite par le fabricant dans le manuel d'utilisation. Suffisamment d'air est nécessaire pour Les instructions ci-dessous sont utilisés pour vous avertir une bonne combustion et épuisant des gaz... - Page 12 PRÉPARATION D'AVERTISSEMENT: Si la plage capot n'est pas installé correctement, il pourrait se détacher et tomber. S'assurer que le conduit métallique ne touche pas d'autres logements métalliques matériaux, sinon un incendie ou un choc électrique pourrait entraîner. 1. Selon les conditions où la plage du capot est installé, déterminer si elle se décharge verticalement ou horizontalement (10"...
- Page 13 Installation Instructions, Revised 05/13/13...
-
Page 14: Utilisation Et Entretien
UTILISATION ET ENTRETIEN D'AVERTISSEMENT! NE PAS faire fonctionner le ventilateur/le ventilateur système sans les filtres en place, ou avec sale, graisse laden filtres. CONTRÔLES DE FONCTIONNEMENT: Toujours activer le ventilateur ou lorsque vous utilisez les appareils. Pour des performances optimales, mettez le ventilateur quelques minutes avant de commencer à... -
Page 15: Schéma De Câblage
120 Volts AC de panneau électrique (généralement le noir) Blanc Position neutre du panneau électrique (blanc) Vert La masse de panneau électrique (généralement en vert) Schéma de Câblage 06E Series Models House Electrical Panel Green White (N) 120V Black (L) - Page 16 Brand Ventilation Products What is Covered ™ VMI Inc. warrants its Air-Pro brand products to the original user, to be free of defects in materials and workmanship for three (3) years from the date of purchase. VMI Inc., at its option, will repair or replace the complete unit or any defective component without charge providing that, if requested, the product or defective component is promptly returned, prepaid to the address below.
