Sony DSC-H7 Service Manual
Digital still camera
Hide thumbs
Also See for DSC-H7:
- Instruction manual (76 pages) ,
- Service manual (73 pages) ,
- Handbook (137 pages)
Table of Contents
Advertisement
Quick Links

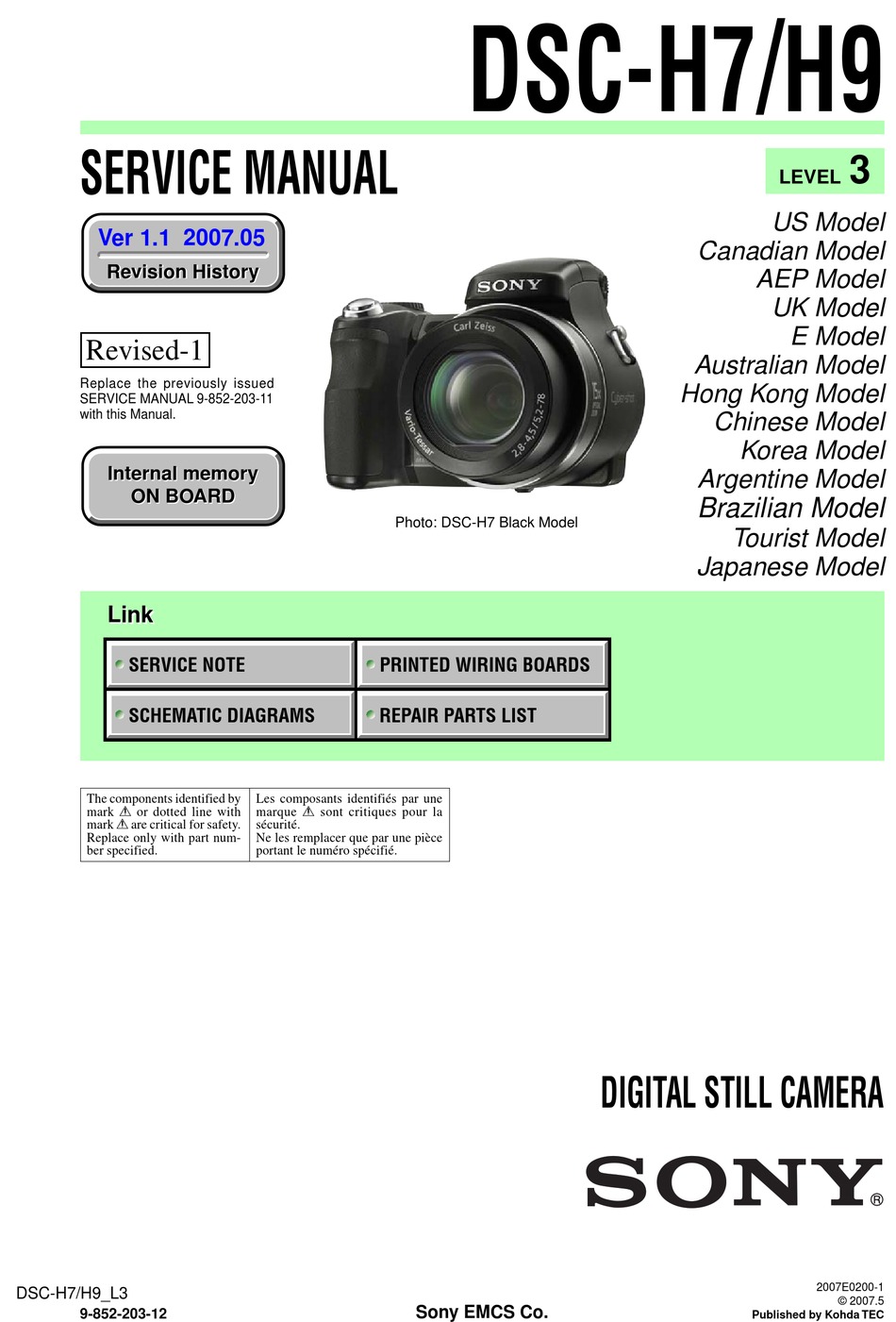

SERVICE MANUAL
Ver 1.1 2007.05
Revision History
Revision History
Revised-1
Replace the previously issued
SERVICE MANUAL 9-852-203-11
with this Manual.
Internal memory
Internal memory
ON BOARD
ON BOARD
Link
Link
SERVICE NOTE
SCHEMATIC DIAGRAMS
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
DSC-H7/H9_L3
9-852-203-12
Photo: DSC-H7 Black Model
PRINTED WIRING BOARDS
REPAIR PARTS LIST
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Sony EMCS Co.
DSC-H7 / H9
DIGITAL STILL CAMERA
3
LEVEL
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Argentine Model
Brazilian Model
Tourist Model
Japanese Model
2007E0200-1
© 2007.5
Published by Kohda TEC
Advertisement
Table of Contents
Related Manuals for Sony DSC-H7
Summary of Contents for Sony DSC-H7
- Page 1 Manual. Chinese Model Korea Model Internal memory Internal memory Argentine Model ON BOARD ON BOARD Brazilian Model Photo: DSC-H7 Black Model Tourist Model Japanese Model Link Link SERVICE NOTE PRINTED WIRING BOARDS SCHEMATIC DIAGRAMS REPAIR PARTS LIST The components identified by Les composants identifiés par une...
- Page 2 CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU PUBLISHED BY SONY.
-
Page 3: Table Of Contents
1-4. Method for Copying or Erasing the Data in Internal Memory ··········································································· 1-2 PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-2. Schematic Diagrams ························································ 4-2 4-3. Printed Wiring Boards ··················································· 4-22 4-4. Mounted Parts Location ················································ 4-30 REPAIR PARTS LIST 5-2. Electrical Parts List ······················································· 5-11 DSC-H7/H9_L3 — 3 —... -
Page 4: Service Note
1 Select [Format] with v/V/b/B on the control button, then press z. The message “All data in internal memory will be erased” appears. 2 Select [OK] with v, then press z. The format is completed. To cancel the formatting Select [Cancel] in step 2, then press z. DSC-H7/H9_L3... -
Page 5: Schematic Diagrams
SY-177 BOARD (4/7) DD-272 BOARD (2/3) ( CAMERA DSP/SYSTEM CONTROL ( 2 )) ( DC-DC CONVERTER, SYSTEM CONTROL ) DD-272 BOARD (3/3) SY-177 BOARD (5/7) ( CAMERA DSP/SYSTEM CONTROL ( 3 )) ( FLASH/CHARGE CONTROL ) COMMON NOTE FOR SCHEMATIC DIAGRAMS DSC-H7/H9_L3... -
Page 6: Printed Wiring Boards And Schematic Diagrams
In addition, ensure that the receiver is not covered with Les composants identifiés par une marque 0 sont dusts nor exposed to strong light. critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifie. DSC-H7/H9_L3... - Page 7 PITCH_HALLBAIS+ 0.1u 0.1u 0.1u PITCH_HALLBAIS+ PITCH_HALL+ PITCH_HALL+ PITCH_HALLBAIS- R414 (7/7) PITCH_HALLBAIS- 100k PITCH+ PITCH+ PITCH- PITCH- Q402 MTM231230LSO YAW+ YAW+ R415 YAW- YAW- TZ_HALL_TEMP TZ_HALL_TEMP R:-7.4/P:3.1 Q402,403 LENS_TEMP LENS_TEMP SWITCH (4/7) R:-7.4 Q403 CAM_–7.5V P:3.1 EMD12T2R R:-7.5/P:0 DSC-H7/H9_L3 SY-177 (1/7)
- Page 8 +13V REG. R:13.7/P:0 REG_GND IC303 R328 C324 NJM2831F13(TE1) CAM-7.5V CAM_-7.5V CAM_–7.5V FB301 REG_GND D301 CAM_12V R321 1SS387CT(TL3SONY) R301 C304 C306 R:-7.5 C326 R303 0.1u Q303 R302 150k C301 R304 SSM3J15FV(TL3SONYZ) 100k 0.0022u SWITCH R325 100k Q301 DTC144EMT2L SWITCH DSC-H7/H9_L3 SY-177 (2/7)
- Page 9 (4/7) CN704 C201 IC_211_1_UI (2/5) 0.1u IC_211_1_UI IC_211_1_UO CAMERA DSP/ KEY_AD2 IC_211_1_UO GNDS Note: It is connected to CN201 of PL-046 (DSC-H7) USB_DP (6/7) USB_DP SYSTEM CONTROL MODE_DIAL1 USB_DM or PL-047 (DSC-H9) (Page 4-16 of LEVEL2) MODE_DIAL2 USB_DM (4/7) AVDD1 C3 D3 E3 A4 B4 C4 through the flexible flat cable (PL-002).
-
Page 10: Refer To Page 4-2 For Mark
(3/7) D_1.8V KEY_AD2 KEY_AD2 AC17 CCD2_IOVDD CAMV_OUT REG_GND CLK_IC_503 AB17 CCD3_IOVDD CLK_IC_503 ADCK_OUT KEY_AD1 XDD_SYS_RST KEY_AD1 C805 IC211 XDD_SYS_RST CA_FD DSC-H7 0.1u AF17 CLKGEN_DIV2 AUCK_OUT KEY_ZOOM KEY_ZOOM LCD_CK (3/7) IC211 SCLK_OUT (4/5) R732 PRX515101B REG_GND LENS_TEMP CA_AD13 LENS_TEMP CCDIN_A_13 AE18... - Page 11 D_1.2V D_1.8V (2/7)(4/7)(7/7) D_1.8V D_1.8V DDR_1.8V DDR_1.8V REG_GND (2/7) CAM_12V CAM_12V (1/7)(2/7) CAM_-7.5V CAM_-7.5V REG_GND REG_GND (1/7)(3/7)(4/7)(6/7)(7/7) A_3.0V A_3.0V A_3.0V ACV_UNREG2 ACV_UNREG2 (6/7) ACV_UNREG2 ACV_UNREG2 ACV_UNREG2 MS_VCC MS_VCC (3/7) MS_VCC (4/7) PANEL_6.4V PANEL_6.4V LND001 (6/7) STATIC_GND STATIC_GND DSC-H7/H9_L3 SY-177 (5/7)
- Page 12 IC_211_1_UO IC_211_1_UO(UART_Tx) R608 (3/7) IC_211_1_UO C608 C615 IC_211_1_UO IC_211_1_UI IC_211_1_UI(UART_Rx) IC_211_1_UI C613 IC_211_1_UI BATT/XEXT BATT/XEXT R606 D602 ACV_UNREG2 D_3.0V MA2S111-(K8).SO C711 BATT/XEXT BATT/XEXT ACV_UNREG2 (5/7) C712 ACV_UNREG2 ACV_UNREG2 D703 MAZS068008SO D702 D701 MAZW068H0LS0 MAZW068H0LS0 (5/7) STATIC_GND REG_GND DSC-H7/H9_L3 SY-177 (6/7)
-
Page 13: Sy-177 Board
YAW+ YAW+ YAW- C507 YAW- 0.1u PITCH_HALL+ R506 PITCH_HALL+ 2200 PITCH_HALL- PITCH_HALL- PITCH_HALLBAIS+ PITCH_HALLBAIS+ (1/7) PITCH_HALLBAIS- PITCH_HALLBAIS- YAW_HALL+ YAW_HALL+ YAW_HALL- YAW_HALL- YAW_HALLBAIS+ YAW_HALLBAIS+ C516 YAW_HALLBAIS- 0.01u YAW_HALLBAIS- C514 R515 0.0022u C510 0.0022u C509 C513 0.01u 0.01u DSC-H7/H9_L3 SY-177 (7/7) 4-10... - Page 14 D003 R074 XSTRB_FULL Q014 XSTRB_FULL MA2SD32008S0 4700 SSM6E01TU DDCPV_EN STRB_ON STRB_ON SWITCH R:13.7/P:0 1.2V_INT STRB_CHG_CONT R083 R016 @104 STRB_CHG_CONT DDC2P9_EN DSC-H7 DSC-H7 DDC2P9_EN USB_VBUS C013 D007 R042 USB_VBUS DSC-H9 L004 DDC1P8_EN DSC-H9 MA2SD32008S0 680k (2/3) DDC1P8_EN XMS_IN 4.7uH XMS_IN R030...
- Page 15 XRESET_REQ DDCPV_EN 1.2V_INT XCS_FR CL124 Q101 EMH3T2R INVERTER B2 B1 C2 C1 D3 D1 D2 E1 E2 H3 J3 J2 G4 A9 B9 C8 CL123 CL122 R105 REG_GND C103 C104 0.1u 0.01u CL101 CL118 CL119 CL120 DSC-H7/H9_L3 DD-272 (2/3) 4-19...
- Page 16 LEVEL2 R204 R209 IC201 R213 PGND Q203 GPS_13 DTC144EMT2L PGND LND202 TI_5.0V FLASH/CHARGE SWITCH REG_GND CONTROL R205 F_ON XFULL XDD_SYS_RST IC201 D203 MA2SD32008S0 TPS65552RGTR C206 C203 STRB_ON R206 @102 (1/3) CL201 STRB_CHG_CONT XSTRB_FULL STRB_CHG C204 REG_GND DSC-H7/H9_L3 DD-272 (3/3) 4-20...
-
Page 17: Printed Wiring Boards
4-3. PRINTED WIRING BOARDS Link Link SY-177 BOARD DD-272 BOARD COMMON NOTE FOR PRINTED WIRING BOARDS MOUNTED PARTS LOCATION DSC-H7/H9_L3... - Page 18 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS • : Uses unleaded solder. • Chip parts. • : Circuit board Transistor Diode : Flexible board Pattern from the side which enables seeing. : pattern of the rear side (The other layers’...
- Page 19 FB306 IC306 IC305 R752 C711 C712 R732 D701 CAM_12V FB303 R320 A_3.0V C703 D_1.8V C318 CAM_12V D703 IC701 C302 C325 R318 CN707 L301 C305 R312 R325 R311 R337 C707 D_3.0V L302 R321 C705 1-871-925- Q303 CN301 1-871-925- DSC-H7/H9_L3 SY-177 4-23...
- Page 20 ‚ è ‚ Ü ‚ · • B “ d ’ r ‚ ð Œ ð Š · ‚ · ‚ é • ê • ‡ ‚ É ‚ Í • K ‚ ¸ “ ¯ ‚ ¶ Œ ^ – ¼ ‚ Ì “ d ’ r – ” ‚ Í “ ¯ “ ™ • i ‚ Æ Œ ð Š · ‚ µ ‚ Ä ‚ - ‚ ¾ ‚ ³ ‚ ¢ • B DSC-H7/H9_L3 DD-272...
-
Page 21: Mounted Parts Location
4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS 4-4. MOUNTED PARTS LOCATION no mark : side A * mark : side B DD-272 BOARD SY-177 BOARD BH001 A-1 F001 R114 * C201 C505 FB212 BH101 A-2 F002 R116 * C202 * C506 FB213 BT001... -
Page 22: Dsc-H7/H9_L3
* R604 * R605 * R606 * R607 * R608 * R609 * R707 * R709 * R710 * R711 * R712 * R713 R718 R719 * R720 R732 * R750 R752 R753 R757 * R758 R802 R804 DSC-H7/H9_L3 SY-177 4-31E... - Page 23 5. REPAIR PARTS LIST NOTE: • -XX, -X mean standardized parts, so they may have some differences from When indicating parts by reference number, the original one. please include the board name. • Items marked “*” are not stocked since they are seldom required for routine The components identified by mark 0 or service.
- Page 24 • ” • i Ž æ • t ‚ ¯ ‚ Ì • Û ‚ Í • A • æ ‚ É ƒ o ƒ b ƒ e ƒ Š ƒ z ƒ ‹ ƒ _ ‚ ð Ž æ • t ‚ ¯ ‚ Ä ‚ © ‚ ç ƒ Š ƒ ` ƒ E ƒ € “ d ’ r ‚ ð ‘ • ’ … ‚ µ ‚ Ä ‰ º ‚ ³ ‚ ¢ • B • Refer to page 5-1 for mark 0. DSC-H7/H9_L3 5-11...
- Page 25 1-208-927-11 METAL CHIP 0.5% 1/16W < VIBRATOR > R012 1-208-939-11 METAL CHIP 150K 1/16W R013 1-208-715-11 METAL CHIP 1/16W X101 1-781-525-21 VIBRATOR, CRYSTAL (32.768kHz) R014 1-208-935-11 METAL CHIP 100K 0.5% 1/16W • Refer to page 5-1 for mark 0. DSC-H7/H9_L3 5-12...
- Page 26 1-125-777-11 CERAMIC CHIP 0.1UF 10% 10V C315 1-112-716-11 CERAMIC CHIP 0.1UF 10% 6.3V C555 1-165-908-11 CERAMIC CHIP 10% 10V C316 1-112-716-11 CERAMIC CHIP 0.1UF 10% 6.3V C556 1-165-908-11 CERAMIC CHIP 10% 10V • Refer to page 5-1 for mark 0. DSC-H7/H9_L3 5-16...
- Page 27 6-500-776-01 DIODE MAZW068H0LS0 Q302 8-729-054-47 TRANSISTOR UP04213008S0 D702 6-500-776-01 DIODE MAZW068H0LS0 Q303 6-550-791-01 TRANSISTOR SSM3J15FV (TL3SONYZ) Q401 8-729-054-51 TRANSISTOR UP04116008S0 D703 8-719-056-54 DIODE MAZS068008SO Q402 6-551-304-01 TRANSISTOR MTM231230LSO Q403 6-550-025-01 TRANSISTOR EMD12T2R < TERMINAL > Q702 8-729-053-52 TRANSISTOR HN1C01FE-Y/GR (TPLR3) DSC-H7/H9_L3 5-17...
- Page 28 100K 1/16W R318 1-218-990-81 SHORT CHIP R713 1-218-952-11 RES-CHIP 1/16W R718 1-211-982-11 METAL CHIP 0.5% 1/10W R319 1-218-990-81 SHORT CHIP R719 1-211-982-11 METAL CHIP 0.5% 1/10W R320 1-218-990-81 SHORT CHIP R720 1-218-953-11 RES-CHIP 1/16W R321 1-218-941-81 RES-CHIP 1/16W DSC-H7/H9_L3 5-18...
- Page 29 1-234-375-21 RES, NETWORK 1K (1005X4) < SENSOR > SE501 1-479-022-51 SENSOR, ANGULAR VELOCITY (30.8KHZ) (PITCH) SE502 1-479-022-61 SENSOR, ANGULAR VELOCITY (32.2KHZ) (YAW) < TERMINAL > TB001 1-780-112-11 TERMINAL, CONTACT < VIBRATOR > * X201 1-813-860-21 OSCILLATOR, CRYSTAL (36MHz) DSC-H7/H9_L3 5-19...
-
Page 30: Revision History
Reverse 985220312.pdf Revision History S.M. Rev. Ver. Date History Contents issued 2007.04 Official Release — — • Correction of SCHEMATIC DIAGRAMS 2007.05 Revised-1 • Correction of PRINTED WIRING BOARDS DSC-H7/H9_L3...
