Connecting the Audio Ports

There is an Intel standard 10-pin connector (with 7 individual wires with
connectors) coming out from the front panel speaker and microphone connection.
If your motherboard supports Intel's standard onboard audio connector, you can
plug in the 10-pin connector directly onto the board. For non-Intel standard audio
connection, you need to plug the 7 individual connectors to the motherboard.
See instructions below:
Locate the internal audio connectors from your motherboard or sound card.
Consult your motherboard or sound card manual for the pin-out positions.
1. Microphone Signal Pin: Connect the MIC connector to this pin.
2. Microphone Power: Connect the MIC-BIAS connector to this pin.
3. Ground Pin: Connect the AUD GND connector to this pin.
4. Front Right Speaker Out Pin: Connect the FPOUT-R connector to this pin.
5. Front Left Speaker Out Pin: Connect the FPOUT-L connector to this pin.
6. Rear Right Speaker Out Pin: Connect the RET-R connector to this pin.
7. Rear Left Speaker Out Pin: Connect RET-L connector to this pin.

The VFD Display/Volume Control

Fusion comes with a Vacuum Fluorescent Display (VFD) and a volume control to
work with your media center application.
1. Make sure the power supply is off and unplugged before installing any
hardware.
2. Connect the 4 pin power cable from the VFD to the power supply 4 pin
(Floppy) connector

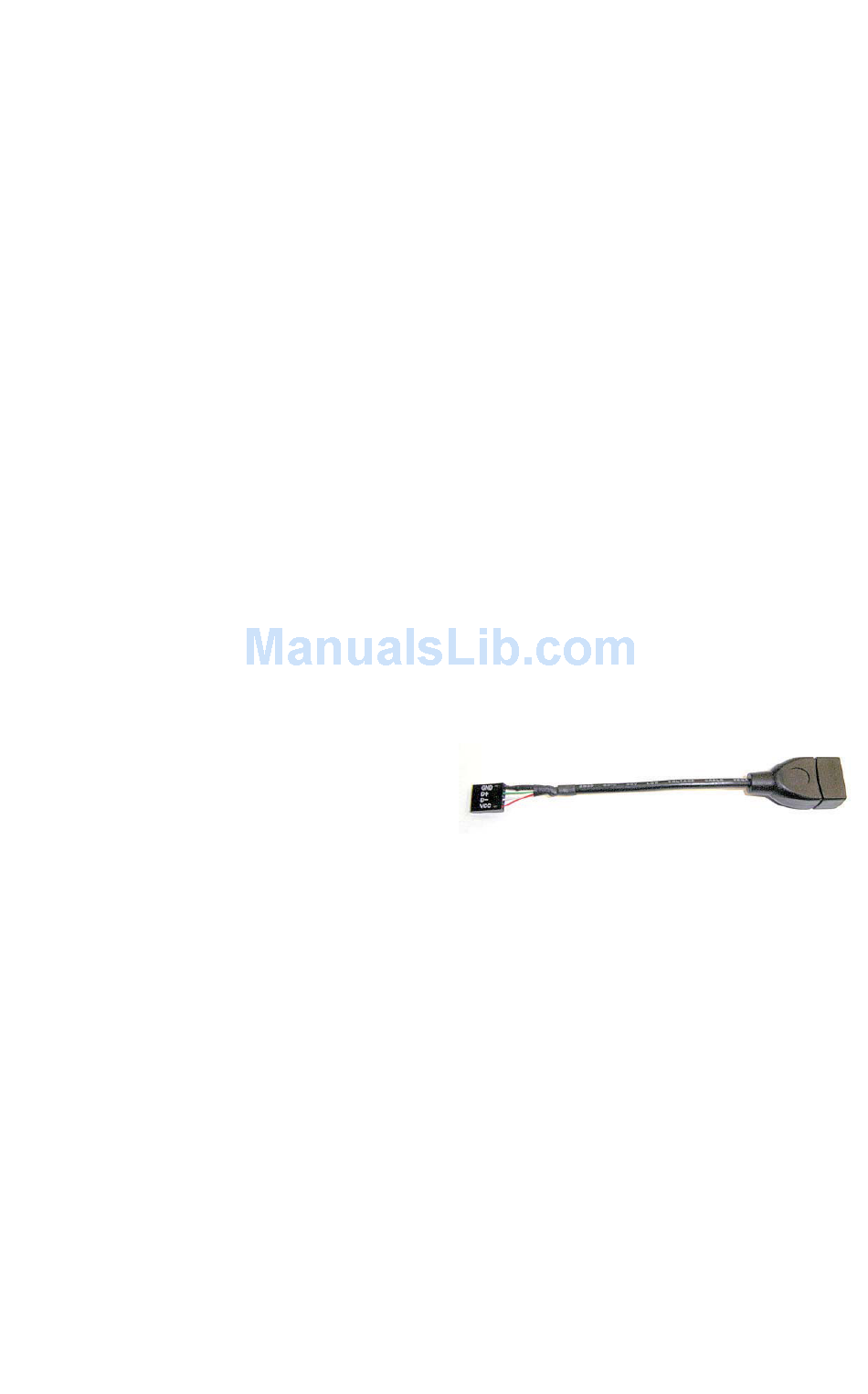

3. Your VFD comes with a 4 pin internal USB adapter (see picture 3) and standard
external USB connector (Default).
a) To use the external connector to connect to a standard USB port or:
b) Check your motherboard USB header pin layout. Match the internal adapter
to your motherboard header. Plug the internal adapter into the external
connector and plug it in to your motherboard's USB header.
4. Plug in your power supply, and turn it on.
5. Boot up your computer.
6. Insert the provided driver CD into your optical drive.
7. Restart again after the driver has been installed.
Note: This VFD is intended to be compatible with Microsoft MCE. The basic
features include: System Information, Media Information, E-mail check, Daily
news, City information (weather report), and graphic equalizer.

Hard disk Drive Installation

There is a hard disk drive bracket with soft silicone grommets inside the HDD
chamber. It can hold two hard drives.
1. Remove the HDD bracket from the chamber by removing the two screws on
top of it.
4
Picture 3
