Operating Instructions
Handheld Computer
JT-H320HT-E1
Model No.
JT-H320HT-E2
Contents
Read Me First ...................................2
Getting Started
Laser ................................................3
Warranty Policy ................................3
Safety Precautions ...........................4
Precautions for Use ..........................6
Confirmation of Accessories .............8
Replace a Battery Pack ..................12
Charge the Unit ..............................14
Scan a Barcode ..............................15
Scan a 2D code ..............................16
Appendix
How to Care ...................................18
Troubleshooting ..............................19
Optional Accessories ......................20
Specifications .................................21
Advertisement
Table of Contents
Related Manuals for Panasonic JT-H320HT-E1
Summary of Contents for Panasonic JT-H320HT-E1
-
Page 1: Table Of Contents

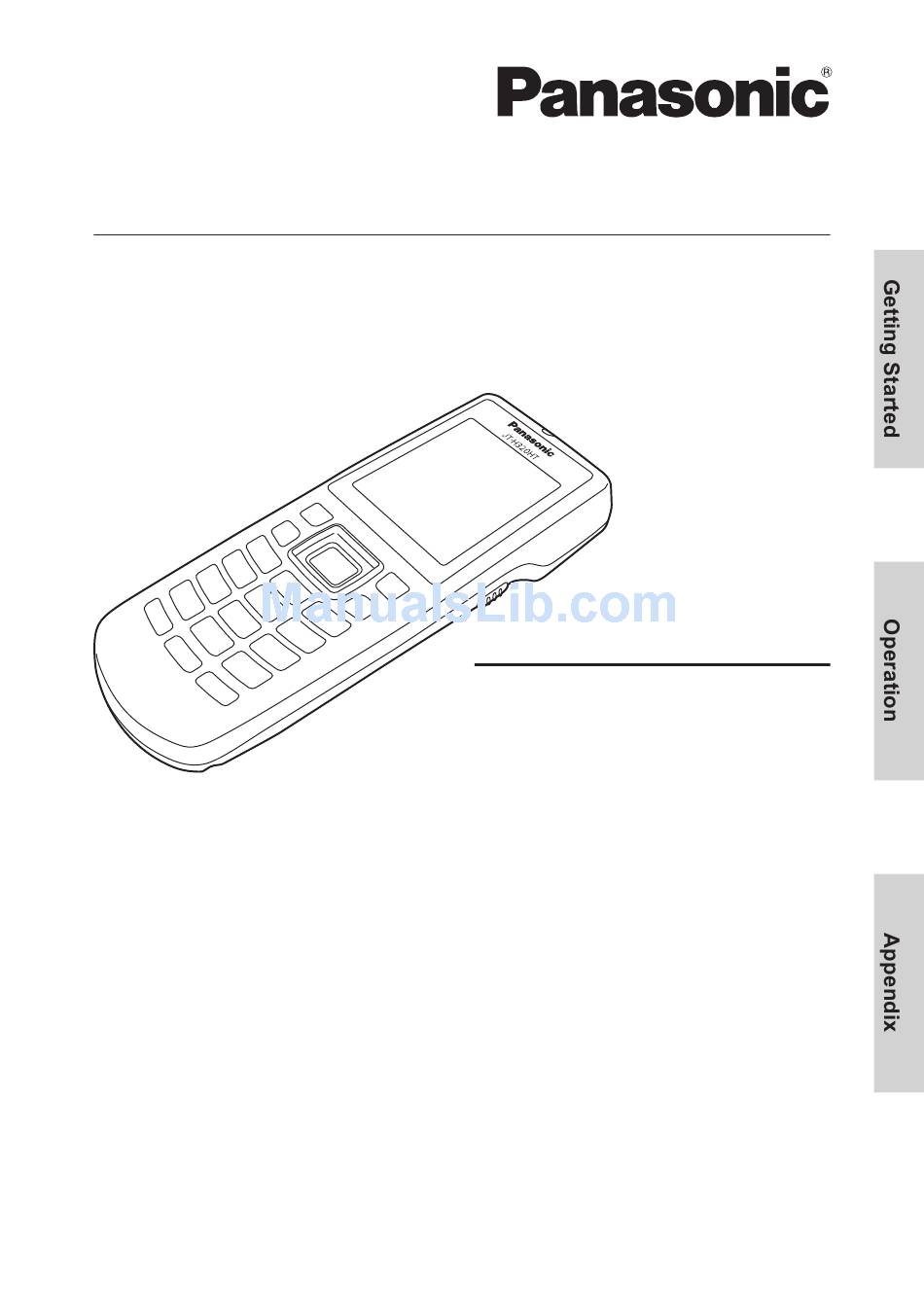

Operating Instructions Handheld Computer JT-H320HT-E1 Model No. JT-H320HT-E2 Contents Read Me First ........2 Getting Started Laser ..........3 Warranty Policy ........3 Safety Precautions ......4 Precautions for Use ......6 Confirmation of Accessories .....8 Names of Parts and Their Functions ..9 Operation Replace a Battery Pack ....12 Charge the Unit ......14... -
Page 2: Read Me First
Read Me First Thank you for purchasing the Panasonic Handheld Computer. These operating instructions describe the instructions for the Handheld Computer. Before connecting, operating or adjusting this product, please read these instructions completely, and save this manual for future use. -
Page 3: Laser
Laser CAUTION: Use of controls adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure. Class 2 Laser scanners use a low power, visible light diode. As with any very bright light source, such as the sun, the user should avoid staring into the beam directly. Momentary exposure to a Class 2 laser is not known to be harmful. -
Page 4: Safety Precautions
Denotes hazards that could result in minor injury or CAUTION damage to the unit. Handheld computer : JT-H320HT-E1, JT-H320HT-E2 WARNING Do not stare into the beam directly. There is the risk of damage to the eyes when prolonged directly viewing. - Page 5 Battery pack : JT-H320BT-E1 WARNING This battery pack is designed for the specified handheld computers. Do not use the battery pack with any other device. Use the specified device to charge the battery pack. There is the risk of heat generation, fire, or explosion. Do not throw the battery pack into fire or heat the battery pack.
-
Page 6: Precautions For Use
Precautions for Use Observe the following to use this product correctly. Handheld computer p p Do not open or modify the main unit case. Battery pack p p The battery pack is a consumable. The battery life, which varies with using conditions, is approximately a year as a guideline, and after a year or approximately over 300 times of recharging, the recharging capability becomes weak. - Page 7 Drop impact/damage p p Handle this product with care because this product is precision equipment. Do not apply impact on this product, drop this product, or put a heavy object on this product. p p Do not damage the scanner reading portion. System operation p p Be sure to turn off the power before battery pack replacement.
-
Page 8: Confirmation Of Accessories
Confirmation of Accessories Before using, check the following accessories. p p In case some items are missing, contact your dealer. ■ Main unit ■ Strap ■ Battery Pack (JT-H320BT-E1) ■ Stylus ■ Operating Instructions (this document) -
Page 9: Names Of Parts And Their Functions
Names of Parts and Their Functions ■ Main unit (front side) Name Details Used for displaying information such as operation methods. p p The information to be displayed can be set using LCD (Touch panel) application software. This LCD can be used also as a touch panel for input operation. -
Page 10: Operation
Names of Parts and Their Functions ■ Main unit (back side) Name Details Battery pack cover Cover of the battery pack compartment. Battery pack cover Used for opening and closing the battery pack cover. lock Charging terminal Used for supplying power to this unit and charging it. - Page 11 ■ Key layout The following illustration shows the layout of keys. Refer to page 9) Refer to page 9) Refer to page 9) Name Details Function keys Used for executing functions assigned by application software. ...
-
Page 12: Replace A Battery Pack
Replace a Battery Pack ■ How to replace Battery Pack JT-H320BT-E1 Charge a new battery pack before use for the first time. Finish the operation and power off the unit. p Data may be erased or troubles may happen when the battery pack is removed while the power is on. - Page 13 Replace the battery pack with a new one. When inserting the battery pack into the unit, make sure that the terminals are correctly directed. p Wipe the dust or dripping away from the battery pack case. New battery pack Close the battery pack cover, and lock the cover surely. p Be sure to lock the battery pack cover to protect the battery pack case from dripping or splashing.
-
Page 14: Charge The Unit
Charge the Unit Insert the unit into the Cradle. p p The figure below is an example of a USB Cradle (JT-H320CU-E1). The handheld computer can be placed on the Cradle (JT-H320CG-E1) and charged with the Cradle in a similar way. The USB Cradle and Cradle must be purchased separately. -
Page 15: Scan A Barcode
Scan a Barcode ■ How to use the laser scanner (Applicable model : JT-H320HT-E1) Press the side or center trigger. A laser will be radiated. p Depending on operations to be performed, another key may be used to scan a code instead of the trigger. -
Page 16: Scan A 2D Code
Scan a 2D code ■ How to use the 2D scanner (Applicable model : JT-H320HT-E2) Press the side or center trigger. A laser marker will be radiated. p Depending on operations to be performed, another key may be used to scan a code instead of the trigger. -
Page 17: About Connection With Another Device
About Connection with Another Device When you are not certain how to establish communication with another device, please contact your place of purchase of this device. ■ Notes on radio communication (Bluetooth ® , wireless LAN) p p Communication may not be established around other wireless machines, business machines, or power lines because their radio frequencies may cause interferences. -
Page 18: How To Care
How to Care Be sure to power off main unit before cleaning. ■ Main unit (Excluding the charging terminal) p p When this product gets dirty, clean with a dry soft cloth. p p When the dirt is hard to remove, wipe the product gently with a twisted wet cloth, and then with a dry soft cloth. -
Page 19: Troubleshooting
Troubleshooting Symptom Check items and solutions Nothing is displayed p p The battery pack may not be fully charged. → Charge the battery pack. on the LCD even after power-on. p p The battery life may be near its end. Replace the battery pack with a new one. -
Page 20: Optional Accessories
Optional Accessories To purchase these items, contact your dealer. Product name Model No. USB Cradle JT-H320CU-E1 Cradle JT-H320CG-E1 Battery Charger JT-H320CG-E4... -
Page 21: Specifications
NW7, PDF417, QR code (model 2), Maxicode Buzzer Volume 6 steps (Mute, 1 to 5) Vibrator Specification: V2.0 + EDR (Class 2) ® Bluetooth Effective range: Approx. 10 m (Line of sight) Communication Wireless LAN IEEE802.11b/g USB2.0 Full Speed mode (12 Mbps max) Panasonic original terminal... - Page 22 Beam Divergence perpendicular to the junction: 22 deg to 38 deg. *2 Based on the testing program by Panasonic, scanning twice per 10 seconds, sending and receiving 1 KB data once per 10 seconds, minimum level of LCD, backlight on, minimum clock speed of CPU, new battery pack fully charged, at 25 °C.
- Page 23 Information for Users on Collection and Disposal of Old Equipment and used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
- Page 24 The operating instructions can be downloaded from following URL. http://panasonic.net/pss/ht/jt-h320ht.html Specifications and manuals are subject to change without notice. PGQX1034ZA/J1 © Panasonic System Networks Co., Ltd. 2011 F0811-0...
