Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
E LE CTR I C

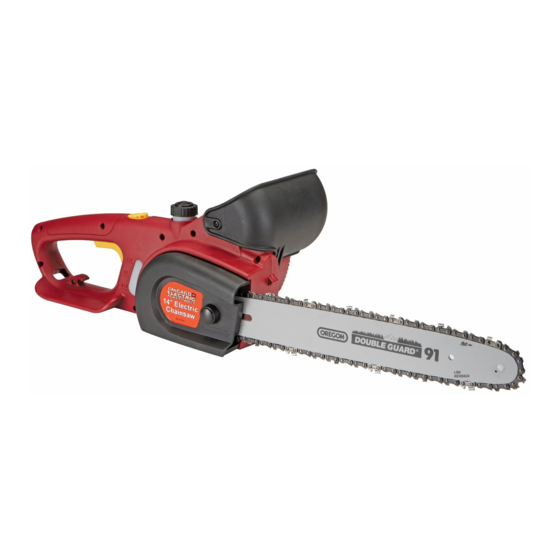

14 " CHAIN SAW
Email our technical support at: productsupport@harborfreight.com
REV 14e
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2009 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
ITEM 67255
Advertisement
Table of Contents
Related Manuals for Portland 67255
Summary of Contents for Portland 67255
- Page 1 (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. E LE CTR I C 14 " CHAIN SAW ITEM 67255 Visit our website at: http://www.harborfreight.com Email our technical support at: productsupport@harborfreight.com REV 14e When unpacking, make sure that the product is intact and undamaged.
-
Page 2: Table Of Contents
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Page 2 For technical questions, please call 1-888-866-5797. Item 67255... -
Page 3: Electrical Safety
Such preventive safety measures reduce the risk of starting the power tool accidentally. Item 67255 For technical questions, please call 1-888-866-5797. Page 3... - Page 4 When the tension bar rapidly back towards the operator. in the wood fibres is released the spring loaded limb may strike the operator and/ or throw the chain saw out of control. Page 4 For technical questions, please call 1-888-866-5797. Item 67255...
- Page 5 Follow the manufacturer’s sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback. SAVE THESE INSTRUcTIONS. Item 67255 For technical questions, please call 1-888-866-5797. Page 5...
- Page 6 Association, and the National Electrical Code. 2. Double insulated tools may be used in either of the 120 volt outlets shown in the preceding illustration. (See Outlets for 2-prong plug.) Outlets for 2-prong plug Page 6 For technical questions, please call 1-888-866-5797. Item 67255...
-
Page 7: Extension Cords
Eye Injury. Wear ANSI-approved WARNING marking concerning safety goggles with side shields. Risk of Loss of Control. Always use two hands when operating the chain saw. Read the manual before set-up and/or use. Item 67255 For technical questions, please call 1-888-866-5797. Page 7... -
Page 8: Specifications
# of links: 52 Note: This electric chain saw is for cutting small logs and for lighter weight trimming jobs. A more powerful chain saw may be needed for heavy duty use. Page 8 For technical questions, please call 1-888-866-5797. Item 67255... -
Page 9: Parts List
ANSI B175.1-1991 when tested on a 2. Switch Lockout – A movable stop that representative sample of chain saws. prevents the unintentional operation of the Trigger until manually activated. Item 67255 For technical questions, please call 1-888-866-5797. Page 9... - Page 10 Hex Key Tension above. If needed, repeat the adjusting steps to achieve the correct tension. 6. When adjustment is complete replace the Nut Cover. Figure c: Adjusting Saw chain Tension Page 10 For technical questions, please call 1-888-866-5797. Item 67255...
- Page 11 Saw Chain Tension on page 10. 6. Flip the Chain Guide Bar over before mounting the new Saw Chain. This will ensure that the Chain Guide Bar wears evenly over time. Item 67255 For technical questions, please call 1-888-866-5797. Page 11...
-
Page 12: Setup
Figure E: Escape Routes Remove dirt, stones, loose bark, nails, staples and wire from the tree. Page 12 For technical questions, please call 1-888-866-5797. Item 67255... - Page 13 Limb cut Keep work off ground leave support limbs until log is cut Figure G: Tree Limbing Item 67255 For technical questions, please call 1-888-866-5797. Page 13...
- Page 14 Then make the finished cut by overbucking to meet the first cut. cut overbuck (2/3 diameter) to meet 1 cut (to avoid pinching) cut underbuck (1/3 diameter) to avoid splintering Figure I: Log Supported One End Page 14 For technical questions, please call 1-888-866-5797. Item 67255...
- Page 15 Always stop the motor before moving from tree to tree. Stand on uphill side when cutting because log may roll Figure K: Bucking a Log Item 67255 For technical questions, please call 1-888-866-5797. Page 15...
-
Page 16: General Operating Instructions
Chain Guide Bar with the Chain Guide Bar Sheath. Store Figure L: Holding the chain Saw the tool indoors out of children’s reach. Note: Front Handle Guard not shown. Page 16 For technical questions, please call 1-888-866-5797. Item 67255... - Page 17 Ruler Figure M: cleaning and Lubricating Guide Bar Worn Guide Bar 4. Reverse the Guide Bar when replacing the Saw Chain to prevent uneven wear. Figure O: Worn Guide Bar Item 67255 For technical questions, please call 1-888-866-5797. Page 17...
- Page 18 The sawdust becomes powder-like. b. You can’t make the cut without extra force. c. The Chain Saw does not cut straight. d. Vibration increases. Page 18 For technical questions, please call 1-888-866-5797. Item 67255...
-
Page 19: Maintenance
Deburr Guide Bar as needed. Monthly Maintenance: Clean Chain Oil Tank. If Worn or Damaged: a. Replace Chain Guide Bar if it becomes b. Sharpen or replace Saw Chain. worn, bent or damaged. Item 67255 For technical questions, please call 1-888-866-5797. Page 19... -
Page 20: Parts List And Diagram
Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Page 20 For technical questions, please call 1-888-866-5797. Item 67255... -
Page 21: Parts List
Oil Outlet Connection Nut M4 Screw M4 x 10 Stator Housing Bearing Chain Guide Bar Micro Switch Saw Chain Bolt M8 Chain Guide Bar Sheath Circlip Ø 16 Wrench Output Shaft Item 67255 For technical questions, please call 1-888-866-5797. Page 21... -
Page 22: Assembly Diagram
Assembly Diagram Page 22 For technical questions, please call 1-888-866-5797. Item 67255... - Page 23 Item 67255 For technical questions, please call 1-888-866-5797. Page 23...
-
Page 24: Warranty
Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
