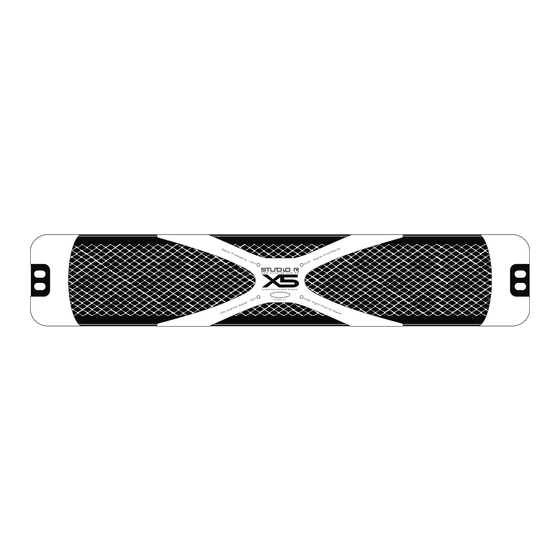

- Page 1 OWNER’S MANUAL X SERIES w w w . s t u d i o r . c o m . b r 5 . 6 0 0 W AT T S R M S S T E R E O...
- Page 2 Studio R exclusive Burn-in: Every Studio R amplifier is in-factory tested for three 3-hour cycles at full power in a high-temperature oven. It is cooled and tested again at every interval. This...
- Page 3 DANGER: THE OUTPUTS OF THIS AMPLIFIER CAN PRODUCE LETHAL VOLTAGE LEVELS. NEVER MAKE CONNECTIONS WHILE THE DEVICE IS ON. Wait for at least 1 minute after shutoff in order to carry out modifications in your connections. WARNING: THIS EQUIPMENT IS CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS WHEN CONNECTED TO SPEAKERS AND PEAKER SETS.
- Page 4 Open the transportation packing carefully and check for any apparent damage. Prior to leaving the plant all Studio R amplifiers are fully tested and inspected and ought to reach you in perfect conditions. Should any damage be found on them, please notify the carrier immediately.
-
Page 5: Connecting The Inputs
+ positive and the speaker negative to the amplifier - negative connection. VERY IMPORTANT: You can connect up to four 8 Ohm speakers per channel of an X Series amplifier! Always connect the speaker positive (+) to speakon’s pin 1+ or 2+ and the negative to pin 1- or 2-... -
Page 6: Connecting The Outputs
2.5 Connecting the outputs: The speakers should be connected to the amplifiers by wires which, in the first place, are capable of the minimum current necessary for the work. Wire minimum gauge in mm X3 e XD One wire for each speaker 1,5mm 2,5mm 3 or 4mm... - Page 7 XCLUSIVE SYSTEM The Studio R amplifiers allows 4 speakers to be used on each channel, causing the amplifier to supply its maximum power on such conditions. Actually, with 4 speakers per channel we have around 1.5 Ohm of actual load, not the theoretical 2 Ohm.
- Page 8 2.6 Turning your X Series power on: Your Studio R power cable has 3 wires and no connector. The user should check the consumption table and, according to the intended use of his/her equipment, purchase the male and female connector of your preference, with the appropriate capacity for the length, power consumption and use.
- Page 9 2.7 Stereo Operation: For stereo operation, place an audio signal on channel 1 input, with an amplitude consistent with the amplifier sensitivity, (selectable according to the SDS table), in order to produce a signal output on channel 1 output lugs, while a signal on the 2 will produce a signal output on 2.
- Page 10 3 - CONTROLS 3.1 Power Switch: The ON/OFF switch of the Studio R X Series amplifiers are located on the rear panel. In normal use, when the switch is turned to right, the amplifier is on and one blue LEDs will light on the front panel.
-
Page 11: Protection Features
4 – INDICATORS: The Studio R X Series amplifiers are equipped with LED-type light indicators, individual for each channel, which report the user on the operational condition. If the power is on, the big blue LED “POWER” light up. -
Page 12: Short Circuit
Dual Opto-limiter. With the X Series limiter, you will always be able to use your PA under full power, avoiding any distortion. Even when the line power is quite altered, your Studio R... -
Page 13: Maintenance
Studio R amplifiers contain energy enough to damage most of the speakers existing in the market without much effort, if misused. Make sure that the frequency range used is appropriate for the speaker, particularly the subsonic frequencies which are not reproduced by the speaker. -
Page 14: User Responsibility
MANUAL AND THE RELEVANT STANDARDS RELATED TO YOUR INDUSTRY. 9 – WARRANTY:: Studio R provides the purchaser of any X Series amplifier with a warranty against defects on the components and assembly for a 3-year*** time as of the purchasing date (***Valid for Brazil. -
Page 15: General Specifications
General Specifications: 230V 60 Hz or 127V 60 Hz power line CLASSIFICATION X1: Class AB XD: Class AB X3-X5: Class AB X8-X12: Class H High-polarization High-polarization variable MOSFET HARMONIC DISTORTION X1: 0,015%, 2 Ohm XD: 0,02%, 2 Ohm X3-X5: 0,09%, 2 Ohm X8-X12: 0,1%, 2 Ohm 1KHz @ 1/2 of rated power 0,008%, 4 Ohm...
