Laser Range Finder
User's Manual
Model # A500X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A500X and is the answer not in the manual?

Questions and answers

Summary of Contents for Halo A500X

  • Page 1 Laser Range Finder User’s Manual Model # A500X...
  • Page 2: Included Items

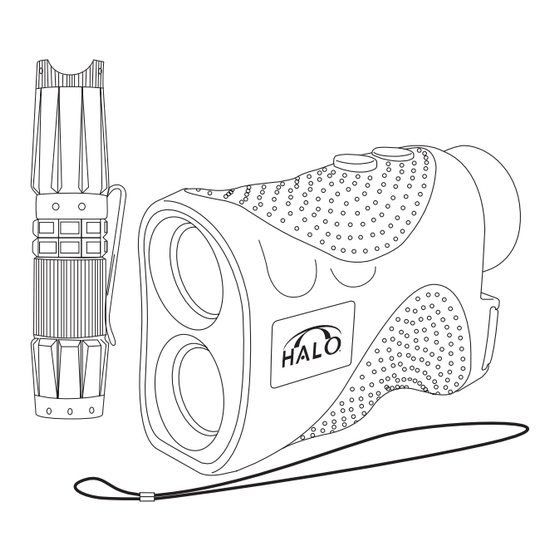

    INCLUDED ITEMS 1) Laser Range Finder Unit 2) Flashlight 3) Lanyard 4) Lens Cloth 5) Product Information Guide Laser Range Finder User’s Manual Model # A500X page 2...
  • Page 3: Getting Started

    GETTING STARTED Slide open battery compartment Turn unit over to lanyard through the small cover on back of unit and install loop and pull taught. the lanyard thru the battery. hole. Push “long” end of the bottom side and insert one end of Install lanyard strap. page 3...
  • Page 4 Locate and press the start button briefly The LCD will show one of 4 images, de- to turn the unit on. pending on what setting was on when last powered off. Displays shown are in NormalDistance Mode page 4...
  • Page 5: Switching Between Modes

    SWITCHING BETWEEN MODES Focusing the Unit. Locate the adjustable Pressing the “Mode” button will toggle eye piece, turn left or right until images between the following modes: are in focus. 1. Normal Distance in Yards 2. Normal Distance in Meters Mode Button page 5...
  • Page 6 Normal Distance in Yards - When in Normal Distance in Meters - When in this mode, the Line of Sight distance this mode, the Line of Sight in meters in yards is the only information displayed is displayed on the screen. on the screen.
  • Page 7 RANGING Press the Start button one time and re- Note: If target is out of range or a mea- lease to start ranging. While measuring surement was not obtained the unit will the distance to target being ranged, the display “- - - -” on the screen. transmitting symbol will blink.
  • Page 8: Scan Mode

    SCAN MODE LOW BATTERY To use in “Scan Mode” press and hold If low battery indicator icon appears the “Start” button and, “Scan” will then on the screen, the battery has a low appear on the screen. As you change charge and should be changed as this targets the measurements on the could cause a ranging error.
  • Page 9: Power Saver

    POWER SAVER CLEANING MODE Unit will automatically power off after To clean the lenses use the cleaning 20 seconds of button inactivity. cloth provided with the laser range finder. Use a circular motion when cleaning the lenses with the cleaning cloth.
  • Page 10: Specifications

    SPECIFICATIONS Max Range: up to 500 yards Scan mode: Power: Eye lens: 15.5mm – anti-fog Object lens: 24mm View angle: 7 degrees Precision: +/- 1 yard Water Resistant: Weight: 8 oz. Size: 4.2” x 3” x 1.7” Battery: CR2 (Not Included) LCD: Gray color text/icons Power Saver:...
  • Page 11: Warranty

    WARRANTY DISCLAIMERS WGI Innovations, LTD is not responsible for damage, expense or injury caused by the un- authorized use of, alterations to, improper connection of and abuse or neglect of the WGI Innovations™ products. WARRANTY You must register your product warranty online at www.wildgameinnovations.com. Follow the on screen directions to complete the process.
  • Page 12 When possible, pack product carefully in original carton. Customers are responsible for any shipping cost to WGI Innovations™. WGI Innovations™ will pay shipping cost of replacement product to the customer. We are not responsible for damage incurred in returning items for repair.
  • Page 13 REGULATORY DISCLOSURES Caution – use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Class 1 Laser Product 60825-1 2007 page 13...
  • Page 14 MMDDYY A500X SOFTWARE VER. page 14...
  • Page 15 page 15...
  • Page 16 602 Fountain Parkway Grand Prairie, TX 75050 800.847.8269 “Wildgame Innovations” and the “Button Logo” are TM trademarks of Wildgame Innovations, LLC. “Sport Responsible” and “Halo” are TM trademarks of WGI Innovations, LTD.
