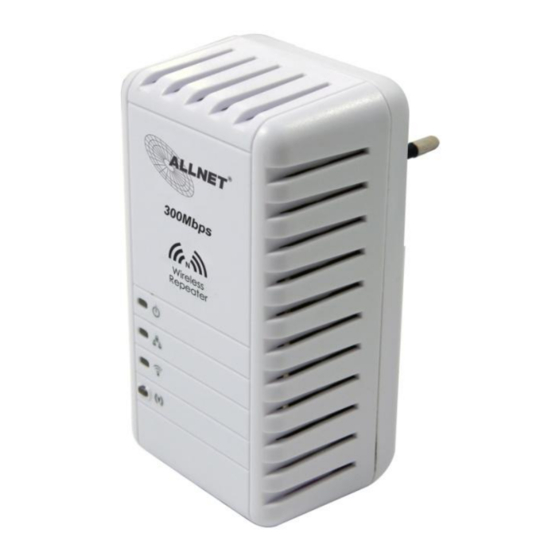

Allnet ALL0236R User Manual

Portable 300mbps wireless-n extender
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

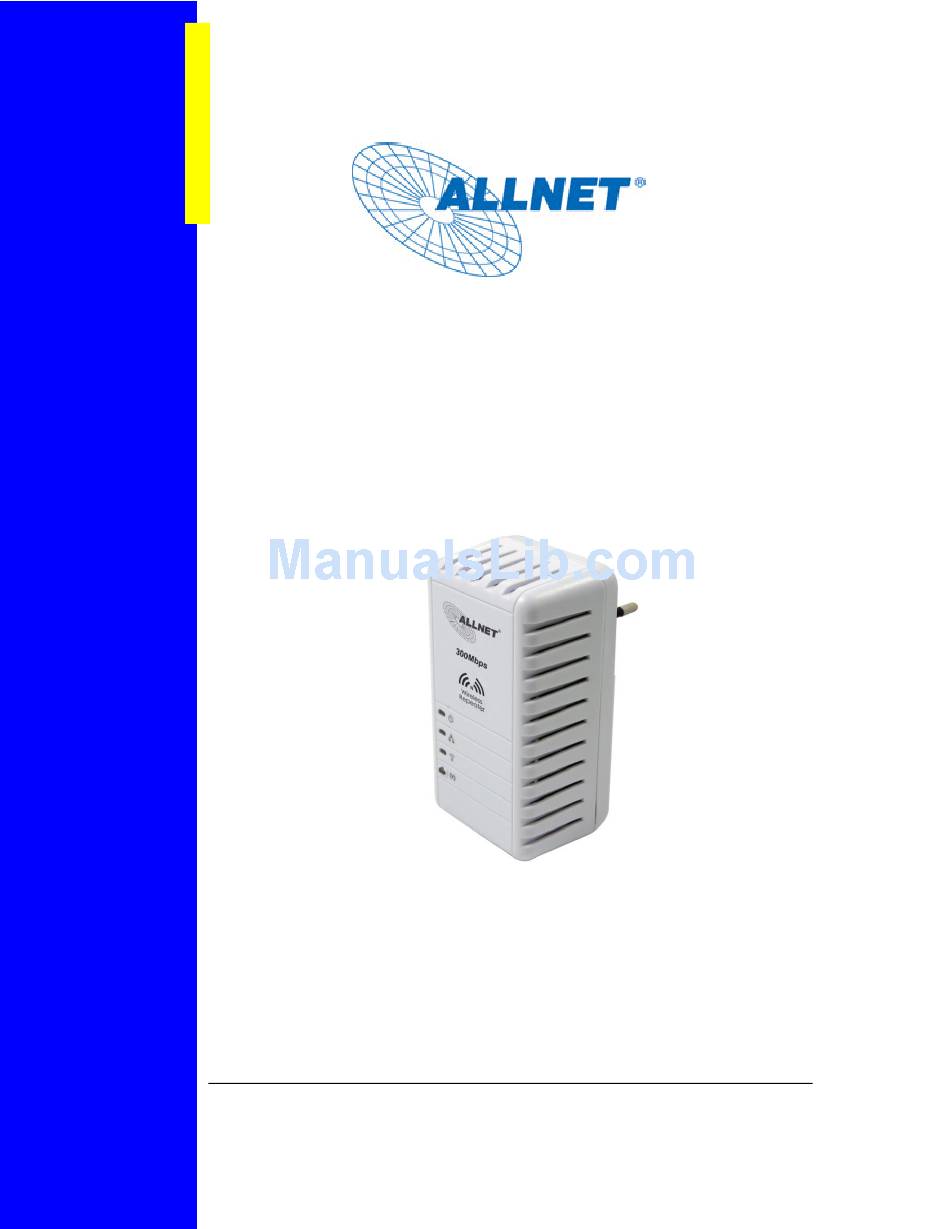

ALL0236R
Wireless N Extender
User's Manual
V1.0
Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALL0236R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Allnet ALL0236R

Summary of Contents for Allnet ALL0236R

  • Page 1 ALL0236R Wireless N Extender User’s Manual V1.0 Table of Contents...

  • Page 2: Table Of Contents

    Wireless N Extender Version 1.0 Table of Contents ABOUT THE DEVICE ..........................3 ......................4 INIMUM YSTEM EQUIREMENTS ..........................4 ACKAGE ONTENTS ............................. 4 EVICE VERVIEW Front Panel ............................4 Bottom Panel ............................5 CONFIGURING THE DEVICE ......................... 5 ..........................6 ETUP EVICE ....................

  • Page 3: About The Device

    ALLNET ALL0236R Portable 300Mbps Wireless-N Extender supports wireless 802.11b/g/n standards with one 10/100Base-T Ethernet port. ALL0236R is designed with MIMO technology to extend the reach of any existing wireless router/AP to maximize the coverage in your home or office. It basically receives the signal from your wireless router/AP and repeats it to extend the range to farther locations that are previously unreachable.

  • Page 4: Minimum System Requirements

     Or Wireless network adapter Package Contents Package contents are listed below. For any missing items, please contact your dealer immediately. Product contents may vary for different models.  ALL0236R  Ethernet cable  Easy Start Guide  Resource CD...

  • Page 5: Bottom Panel

    Wireless N Extender Version 1.0 LABEL STATE DESCRIPTION On – Solid Green Device is powered ON POWER LED Device is powered OFF Ethernet device is On – Solid Green connected On – Blinking Green ETHERNET LED Indicates LAN activity No Ethernet device connected On –...

  • Page 6: Setup Your Device

    Wireless N Extender Version 1.0 NOTE: Placement of the Wireless Extender is crucial to get the best possible results for extending your existing wireless signal. It is ideal for the wireless extender to be placed in a location where it can receive good wireless signal from the wireless router/AP so as to avoid disconnection and packet loss.
  • Page 7 Wireless N Extender Version 1.0 To Setup your device via the Web GUI: 1. Connect the ALL0236R to a power outlet. 2. Connect a PC/laptop to the Wireless Extender. For WIRED Connection Plug an Ethernet cable to the Ethernet port at the base portion of the device.
  • Page 8 Wireless N Extender Version 1.0 NOTE: If you are connecting to a hidden wireless network, you need to key-in the information from your existing wireless router/AP manually. 8. Choose the Operation mode from the drop-down box 9. Click the Site Survey button to show the list of available wireless networks 10.

  • Page 9: Use The Device As A Wireless Repeater

    ALL0236R, press the Reset button beside the Ethernet port for 5 seconds to restore the device to its factory default configuration. 2. You may refer to the sticker pasted at the back of the ALL0236R for the default SSID and password to connect your wireless devices.

  • Page 10: Changing The Wireless Settings

    Wireless N Extender Version 1.0 Changing the Wireless Settings Modify the default Wireless Settings to suit your own preference. To change the Wireless settings via the Web GUI: 1. Open your browser 2. Type 192.168.1.1 on the address bar 3. Input admin for both username and password fields and click on OK 4.

  • Page 11: Changing The Wireless Security Settings

    Wireless N Extender Version 1.0 Changing the Wireless Security Settings Modify the default Wireless Security Settings to suit your own preference. To change the Wireless security settings via the Web GUI: 1. Open your browser 2. Type 192.168.1.1 on the address bar 3.

  • Page 12: Wps

    Wireless N Extender Version 1.0 WPS or Wifi Protected Setup makes it easy for wireless clients to connect to the wireless repeater. Simply press the WPS button on the repeater and press the WPS button on the wireless client within 2 minutes, and the wireless security authentication will be done automatically.

  • Page 13: Viewing The Home Page

    Wireless N Extender Version 1.0 Viewing the Home Page The Home Page will tell you information about your device. To view the Home Page via the Web GUI: 1. Open your browser 2. Type 192.168.1.1 on the address bar 3. Input admin for both username and password fields and click on OK 4.

  • Page 14: What's On System Management

    Wireless N Extender Version 1.0 What’s on System Management System Management includes the following options:  Information  Firmware  Reboot  Password Information This page shows the device information. Below is the list of information shown in this menu. ...

  • Page 15: Firmware

    Once you have associated it with your Wireless Router/AP, you will no longer have access to the device’s web GUI. If you wish to change any settings on the ALL0236R, you need to set a Static IP address on your PC. Just remember to set it back to “Obtain and IP address automatically”...
  • Page 16 Wireless N Extender Version 1.0 3. Click on Network Connections 4. Right-Click on the Network Adapter you will use to configure the wireless repeater and click Properties 5. Click to select Internet Protocol (TCP/IP) and click Properties...
  • Page 17 Wireless N Extender Version 1.0 6. Select “Use the following IP address:” and key in 192.168.1.2 as the IP address and 255.255.255.0 for the Subnet mask. Leave the other fields blank. Click OK to commit the settings.

  • Page 18: Set A Static Ip Address On Your Pc Using Windows Vista

    Wireless N Extender Version 1.0 Set a static IP address on your PC using Windows Vista 1. Click Start > Control Panel 2. Double-Click Network and Sharing Center 3. Click Manage network connections 4. Right-Click on the Network Adapter you will use to configure the wireless repeater and click Properties...
  • Page 19 Wireless N Extender Version 1.0 5. Click to select Internet Protocol Version 4 (TCP/Ipv4) and click Properties 6. Select “Use the following IP address:” and key in 192.168.1.2 as the IP address and 255.255.255.0 for the Subnet mask. Leave the other fields blank. 7.

  • Page 20: Set A Static Ip Address On Your Pc Using Windows 7

    Wireless N Extender Version 1.0 Set a static IP address on your PC using Windows 7 1. Click Start > Control Panel 2. Click View network status and tasks 3. Click Change adapter settings 4. Right-Click on the Network Adapter you will use to configure the wireless repeater and click Properties...
  • Page 21 Wireless N Extender Version 1.0 5. Click to select Internet Protocol Version 4 (TCP/Ipv4) and click Properties 6. Select “Use the following IP address:” and key in 192.168.1.2 as the IP address and 255.255.255.0 for the Subnet mask. Leave the other fields blank. 7.

  • Page 22: Safety Precautions

    Wireless N Extender Version 1.0 Safety Precautions  Do not open, service, or change any component.  Only qualified technical specialists are allowed to service the equipment.  Observe safety precautions to avoid electric shock  Check voltage before connecting to the power supply. Connecting to the wrong voltage will damage the equipment.
  • Page 23 Wireless N Extender Version 1.0 No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express written permission. We reserve the right to revise this document at any time without the obligation to notify any person and/or entity.

  • Page 24: Copyright

    All other company or product names mentioned are used for identification purposes only and may be trademarks of their respective owners. Manufacturer: ALLNET GmbH ALLNET Deutschland GmbH Maistrasse 2 82110 Germering Tel. +49 89 894 222 22 Fax +49 89 894 222 33 email: info@allnet.de...

  • Page 25: Declaration Of Conformity

    Wireless N Extender Version 1.0 Konformitätserklärung Declaration of Conformity Hersteller / Manufacturer: ALLNET GmbH Produkt / Product: ALL0236R Typ / Type: Wireless N Extender Compliance to those standards are required for the following Directives; Directive 1999/5/EC R&TTE Application of the CE Mark is permitted only after all applicable requirements are met in accordance with the European Union Rules, including the manufacturer’s issuance of a „Declaration of Conformity“.
