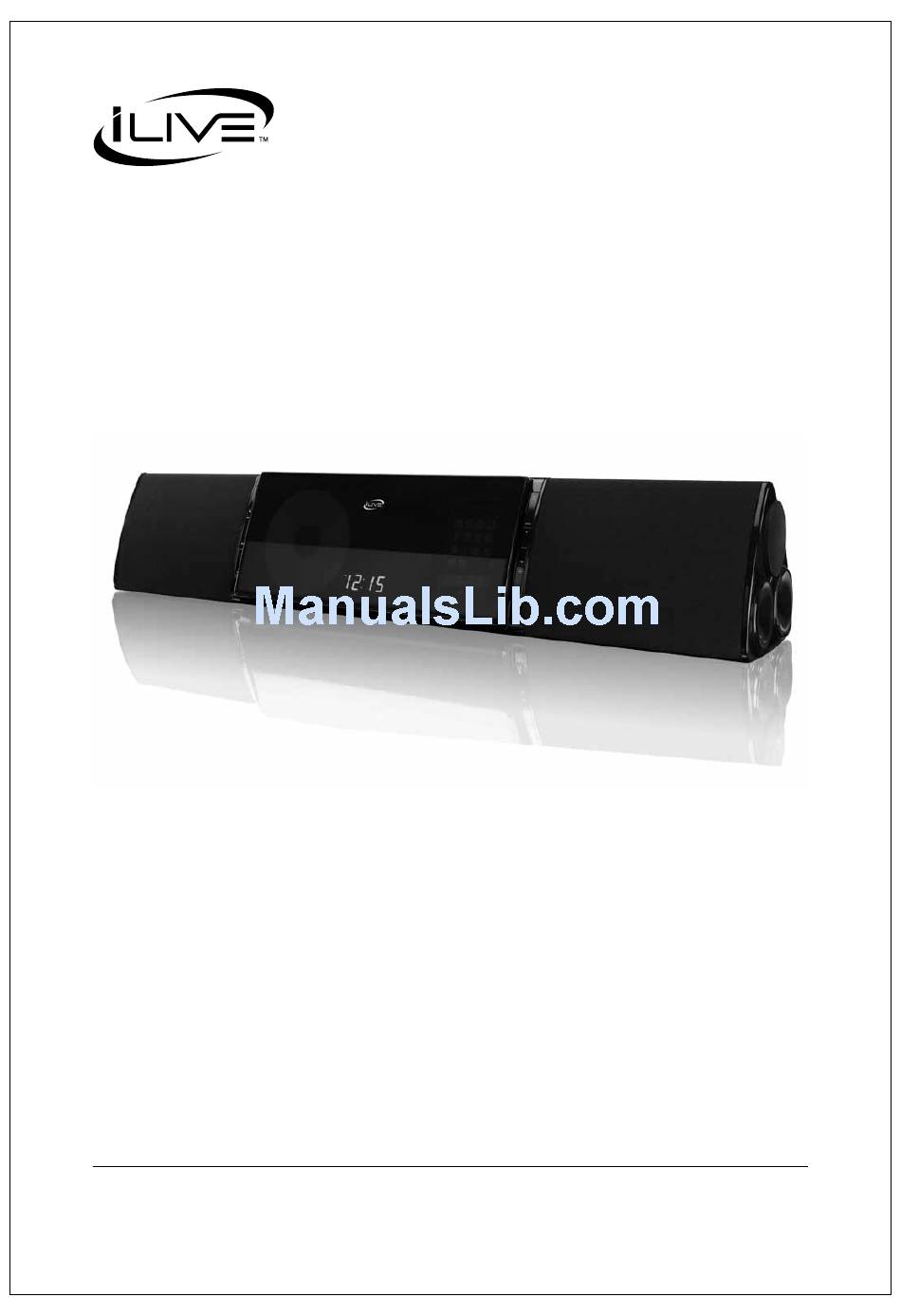

Page 1: Dvd Bar Speaker For Iphone And Ipod
USER’S GUIDE V:1016-0701-10 ITDP310B DVD Bar Speaker for iPhone and iPod For the most up-to-date version of this User’s Guide, go to www.ilive.net... -
Page 2: Warnings And Precautions
CD Player’s lid is open and the system’s interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches. iLive... -
Page 3: Important Safety Instructions
U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited. Customer Support: 1-888-999-4215 iLive... -
Page 4: Dvd Bar Speaker For Iphone And Ipod
AV1 and AV2 input • 3.5mm audio input • RCA audio input • HDMI output • Composite video output • Subwoofer output • Remote control: requires 2, AAA size, batteries (included) • AC power: Built in AC power cable iLive... -
Page 5: Table Of Contents
Mounting the Bar Speaker to a Wall • Important Notes • Required Tools • Included Hardware Mounting the Bar Speaker to a Wall • Mounting - Getting Started Company Information • Green Initiative • International Support • Contact Information Customer Support: 1-888-999-4215 iLive... -
Page 6: Introduction
ReseT HDMI oUTPUT Press using a paperclip or like object to reset AC PoWeR CAble the bar speaker to it’s original settings. FM WIRe AnTennA Adjust to improve the FM radio reception. sUbWooFeR oUTPUT VIDeo oUTPUT 3.5mm AUDIo InPUT iLive... - Page 7 Press to watch the loaded DVD in slow Press to adjust the audio options on the motion. loaded DVD. TITle AnGle Press to return to the loaded DVDs title On supported DVDs, press to view menu. alternate angles. Customer Support: 1-888-999-4215 iLive...
-
Page 8: Setup
Setup Power Plug the attached AC power cable into a standard AC power outlet to power the bar speaker. Remote Requires 2, AAA size, batteries (included) iLive... -
Page 9: Clock And Alarm
When the display shows the FM radio, press the MeMoRY +/- buttons on the remote to select an FM radio preset, then press the seleCT button on the remote to wake to the selected FM radio station. Customer Support: 1-888-999-4215 iLive... -
Page 10: Ipod/Iphone
6. Press the iPod oPen/Close button to close the iPhone/iPod compartment. Playing an iPod and iPhone 1. Follow the instructions for Docking an iPod or iPhone. 2. Press the PlAY button to begin playing music from the docked iPhone or iPod. iLive... -
Page 11: Radio
1. Follow the instructions for Playing the FM Radio. 2. Follow the instructions for Saving an FM station as a Preset. 3. Press the M +/- buttons on the remote control to cycle through saved FM radio presets. Customer Support: 1-888-999-4215 iLive... -
Page 12: Loading A Dvd Or Cd
4. Use the DIReCTIonAl buttons to select the on-screen START button. Press the seleCT button to begin playing the programmed DVD or CD. 5. To cancel the program play, press the sToP button twice. iLive... -
Page 13: Dvd Setup Menu
• Use to adjust the subtitle language for the loaded DVD. Disc Menu • Use to adjust the disc menu language for the loaded DVD. Default • Use to reset the DVD player settings back to their original configuration. Customer Support: 1-888-999-4215 iLive... -
Page 14: Basic Connectivity
Below, you’ll see a basic flow chart of how you can connect your home entertainment devices to the bar speaker, and in turn how the bar speaker connects to them. MP3 PLAYER AUDIO AUDIO HDMI VIDEO AUDIO AND/OR VIDEO AUDIO AND/OR VIDEO AUDIO DVD PLAYER DIGITAL CABLE or SATELLITE TUNER GAMING CONSOLE SUBWOOFER iLive... -
Page 15: Audio/Video 1 And 2
3. Use the connected audio and video source’s native controls to play and control audio and video played through the connected bar speaker. 4. Use the CoMPosITe VIDeo oUTPUT or HDMI oUTPUT to output video incoming to the bar speaker to a television. Customer Support: 1-888-999-4215 iLive... -
Page 16: Connecting A Television
AUDIo InPUT on the back of the bar speaker and an audio output on an audio source. 2. Press the soURCe button to switch to AUX mode. 3. Use the connected audio source’s native controls to play and control audio played through the connected bar speaker. iLive... -
Page 17: Audio
Requires an RCA audio cable (not included) 1. Connect an RCA audio cable to the sUbWooFeR oUTPUT on the back of the bar speaker and an external subwoofer. 2. The bar speaker will automatically use the connected subwoofer when playing audio. Customer Support: 1-888-999-4215 iLive... -
Page 18: Mounting The Bar Speaker To A Wall
Mounting the Bar Speaker to a Wall Important notes We recommend having this bar speaker professionally mounted. Required Tools • Manual or Power Screwdriver • Stud Finder • Pencil • Tape Measure • Level Included Hardware • One Wall Mount Bracket • (4) Screws iLive... -
Page 19: Mounting The Bar Speaker To A Wall
7. Slide the bar speaker onto the mounting bracket, and make certain there is a firm and stable connection before letting go of the bar speaker. 8. Finally, use the leVel to confirm that the bar speaker is level. Customer Support: 1-888-999-4215 iLive... -
Page 20: Company Information
Pour télécharger ce guide de l’utilisateur en and Sustain for Tomorrow’ anglais, espagnol, ou français, visitez la section de soutien chez www.ilive.net. 2009 marked the official launch of DPI, Inc. ’ s corporate campaign for a greener and cleaner Contact Information world.
