Model Technology Mini Mach Racer Assembly Instructions Manual

High speed electric-powered delta wing

Advertisement

Quick Links

(Return Address Here)
Fold along dotted line
Post Office
will not deliver
without proper
postage
Global Hobby Distributors
Attn: Global Services
18480 Bandilier Circle
Fountain Valley CA 92728-8610
Page 20

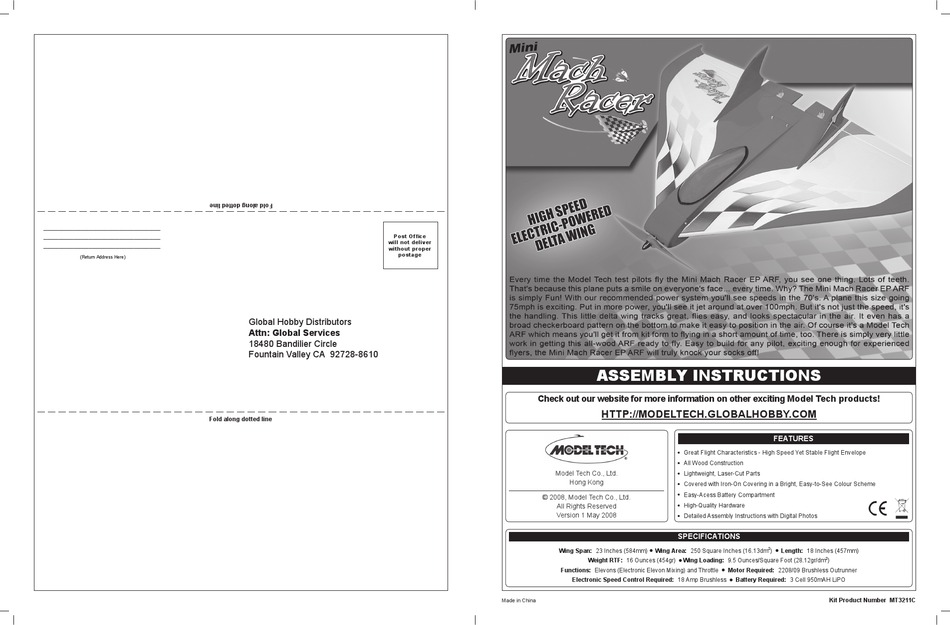

ASSEMBLY INSTRUCTIONS
Check out our website for more information on other exciting Model Tech products!
hTTP://ModelTeCh.GlobAlhobby.CoM
l
l
Model Tech Co., Ltd.
l
Hong Kong
l
© 2008, Model Tech Co., Ltd.
l
All Rights Reserved
l
Version 1 May 2008
l
SPeCiFiCATioNS
Wing Span: 23 Inches (584mm)
Wing Area: 250 Square Inches (16.13dm
l
Weight rTF: 16 Ounces (454gr)
l
Functions: Elevons (Electronic Elevon Mixing) and Throttle
electronic Speed Control required: 18 Amp Brushless
Made in China
FeATureS
Great Flight Characteristics - High Speed Yet Stable Flight Envelope
All Wood Construction
Lightweight, Laser-Cut Parts
Covered with Iron-On Covering in a Bright, Easy-to-See Colour Scheme
Easy-Acess Battery Compartment
High-Quality Hardware
Detailed Assembly Instructions with Digital Photos
2
)
length: 18 Inches (457mm)
l
2
Wing loading: 9.5 Ounces/Square Foot (28.12gr/dm
)
Motor required: 2208/09 Brushless Outrunner
l
battery required: 3 Cell 950mAH LiPO
l
Kit Product Number MT3211C
