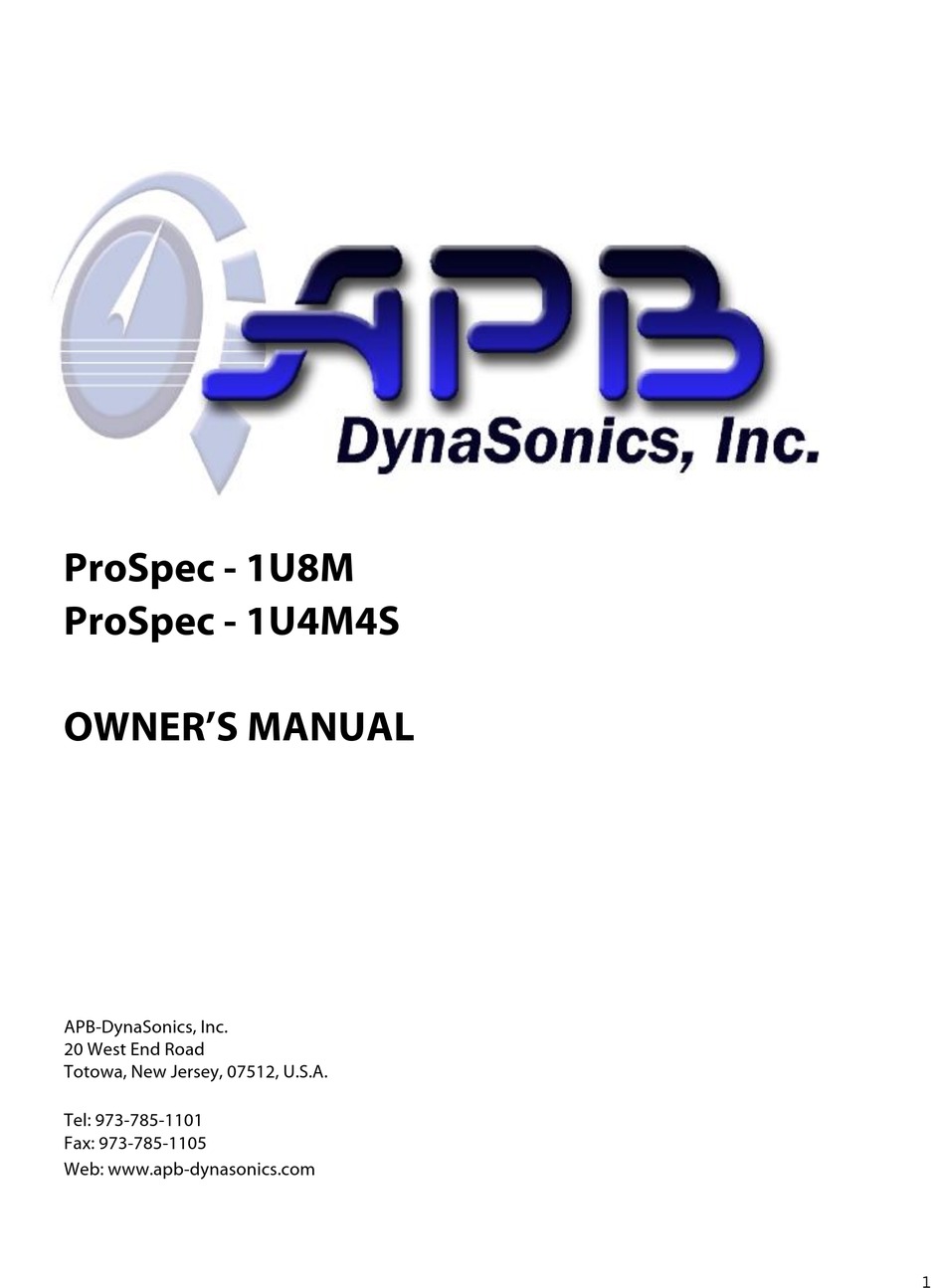

- Page 1 ProSpec - 1U8M ProSpec - 1U4M4S OWNER’S MANUAL APB-DynaSonics, Inc. 20 West End Road Totowa, New Jersey, 07512, U.S.A. Tel: 973-785-1101 Fax: 973-785-1105 Web: www.apb-dynasonics.com...
- Page 2 • This unit contains no user serviceable parts. All servicing must be performed by a qualified service engineer or through APB-DynaSonics or its qualified dealer. • Operate in accordance with U.S. Governments’ Occupational and Health Administration (OSHA) requirements, specifications, suggestions and regulations or those of any other local governing...
- Page 3 This manual will appear within our web site www.apb-dynasonics.com with the latest updates as well as new supplemental information. We suggest that you occasionally check our web site for additional information about your mixer as well as for new product releases and news from APB-DynaSonics.
-
Page 4: Front Panel Overview
Front Panel Overview ProSpec-1U8M ProSpec-1U4M4S... - Page 5 Rear Panel Overview ProSpec-1U8M ProSpec-1U4M4S...
- Page 6 PROSPEC 1U- MONO INPUT CHANNEL (ProSpec-1U8M includes 8 Mono Input Channels) (ProSpec-1U4M4S includes 4 Mono Input Channels) - Volt Phantom Power Switch (Illuminated when active) When depressed, activates 48-Volt phantom power to the XLR connector. Phantom power is required for operation of most condenser microphones.
- Page 7 PROSPEC 1U - Mono Input Channel Connectors (Rear Panel) (ProSpec-1U8M includes 8 Mono Input Channels) (ProSpec-1U4M4S includes 4 Mono Input Channels) XLR portion Combo Microphone Input Connector This connectors XLR portion is designed to accept typical microphone input signals, and has an input impedance of >3000 ohms.
- Page 8 PROSPEC 1U –STEREO INPUT CHANNELS (ProSpec-1U8S includes 8 Stereo Line Input Channels) (ProSpec-1U4M4S includes 4 Stereo Line Input Channels) Channel Preamps Channel Mute Switch (Internally Illuminated when Muted) When pressed, this latching switch will mute the outputs of the channel. The Mute does not affect the channel’s PFL feed or channel metering.
- Page 9 Channel Stereo Level This high quality rotary control adjusts the left-Right channel levels that are feeding to the master output of the mixer. Solo Switch (Internally Illuminated when activated) When pressed, this latching switch will route the channel stereo signal to the Solo system (located in the Master section).
- Page 10 PROSPEC 1U – MASTER SECTION LED Power On Indicator Illuminates when AC power is applied to the unit and its DC Power supplies are operating properly. This unit is to be powered from a switched AC source of 100 to 240 Volts at 50/60Hz with no manual voltage selection required for different operating voltages.
-
Page 11: Specifications
SPECIFICATIONS Mono Input Channel Balanced Mic Input (XLR Input of Combo Connector) Mic Gain (Max): 60 dB Mic Input Z: 2k Ω Mic EIN: -127 dBu @ 60dB gain, 150 Ω source THD + Noise (Mic input to Main Output) <0.005% @ 15dBu Output and with 40dB Gain >200kHz (ref to 1kHz) Bandwidth Microphone Input to Main Output @ 60dB Gain approx 160 kHz (ref 1kHz)
