Installation - Getting Connected
3 Get ting Connected
UnitiServe carries a variety of connection sockets on its rear panel. These are illustrated
and described in the following diagrams and paragraphs. The numeric legends on the
rear panel diagram refer to the numbered paragraphs in Section 3.2.

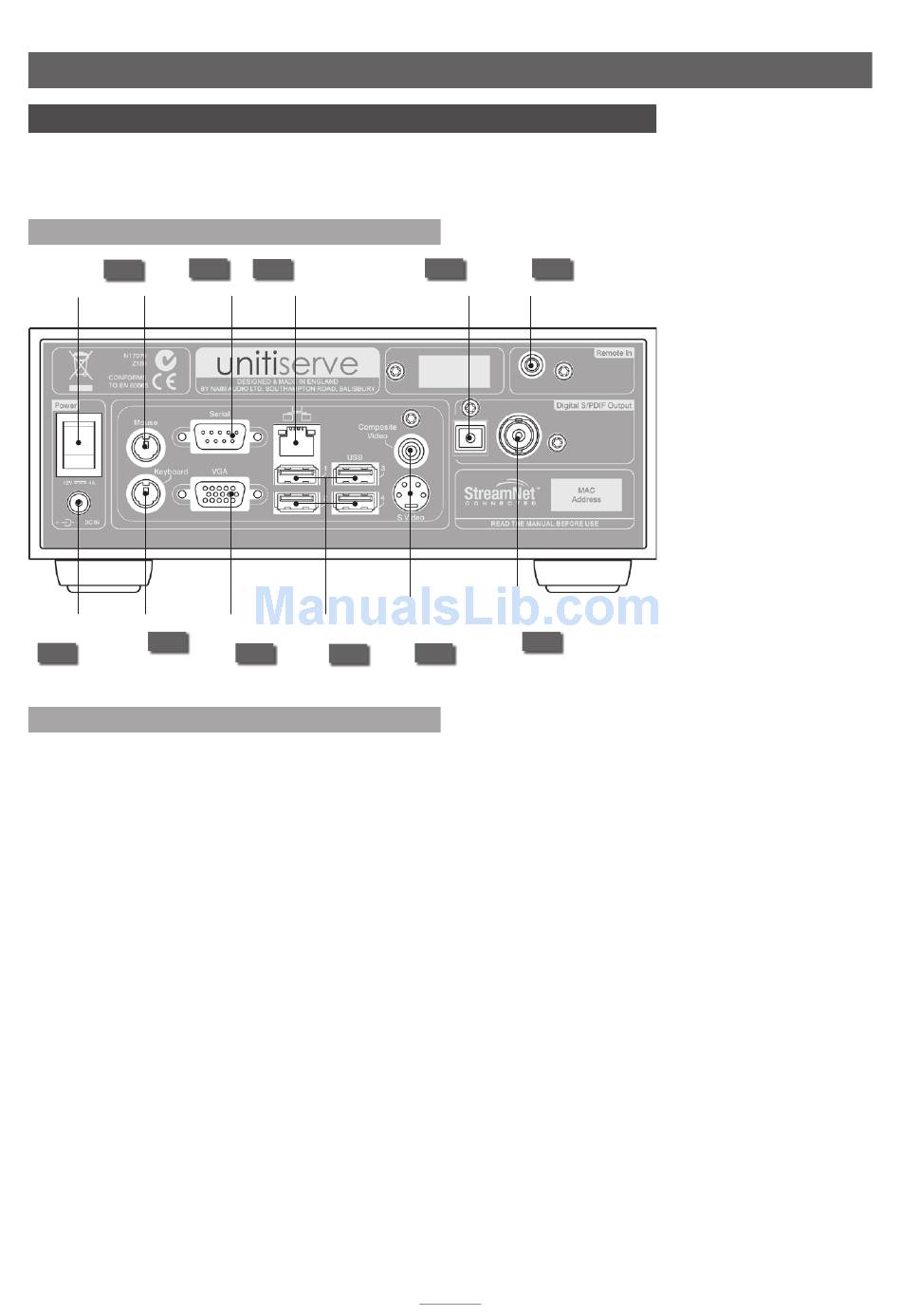

3. 1 UnitiServ e Re ar P ane l
3.2.2
3.2.1
power mouse
switch socket interface
power
keyboard
input
socket
socket
3.2.10
3.2.11
3. 2 UnitiServ e C o nne c tio ns
3.2.1 Mouse Socket
Optionally connect a PS2 format mouse here to control
UnitiServe in combination with an external display.
3.2.2 Serial Interface
For use if UnitiServe is to be integrated into an RS232
controlled environment.
3.2.3 Network Socket
Connect to your network router here. UnitiServe requires a
working internet connection.
3.2.4 Optical Digital Audio Output
TosLink optical S/PDIF digital audio for connection to an
audio system digital input.
3.2.5 Remote Input
Optionally connect an RC5 control signal here for local
control of the UnitiServe from an IR control repeater.
3.2.3
serial network
output socket (optical)
socket
VGA USB
display interface
interface sockets
3.2.9 3.2.8
3.2.4 3.2.5
remote
digital audio
input socket
S-video and digital audio
composite video
output socket (coaxial)
sockets
3.2.6
3.2.7
3.2.6 Coax Digital Audio Outputs
Coaxial BNC S/PDIF digital audio for connection to an audio
system digital input.
3.2.7 S-video and Composite Video Sockets
Connect an S-video or composite video screen (television)
here for display of the UnitiServe External Display Interface.
3.2.8 USB Interface Sockets
USB control devices, such as a keyboard, mouse or touch
screen, or audio source devices such as memory sticks
may be connected here. USB source devices can be
made available across a network.
3.2.9 VGA Interface
Optionally connect a VGA format screen here to display
the UnitiServe External Display Interface.
3.2.10 Keyboard Socket
Optionally connect a PS2 format keyboard here to control
UnitiServe in combination with an external display.
3.2.11 Power Input Socket
Connect the supplied
Input socket and to a mains power outlet.
6
External Power Supply to the Power
