No.ma377<Rev.004>)1 - JVC KD-G351E Service Manual

Cd receiver

Advertisement

3.2
CD mechanism assembly

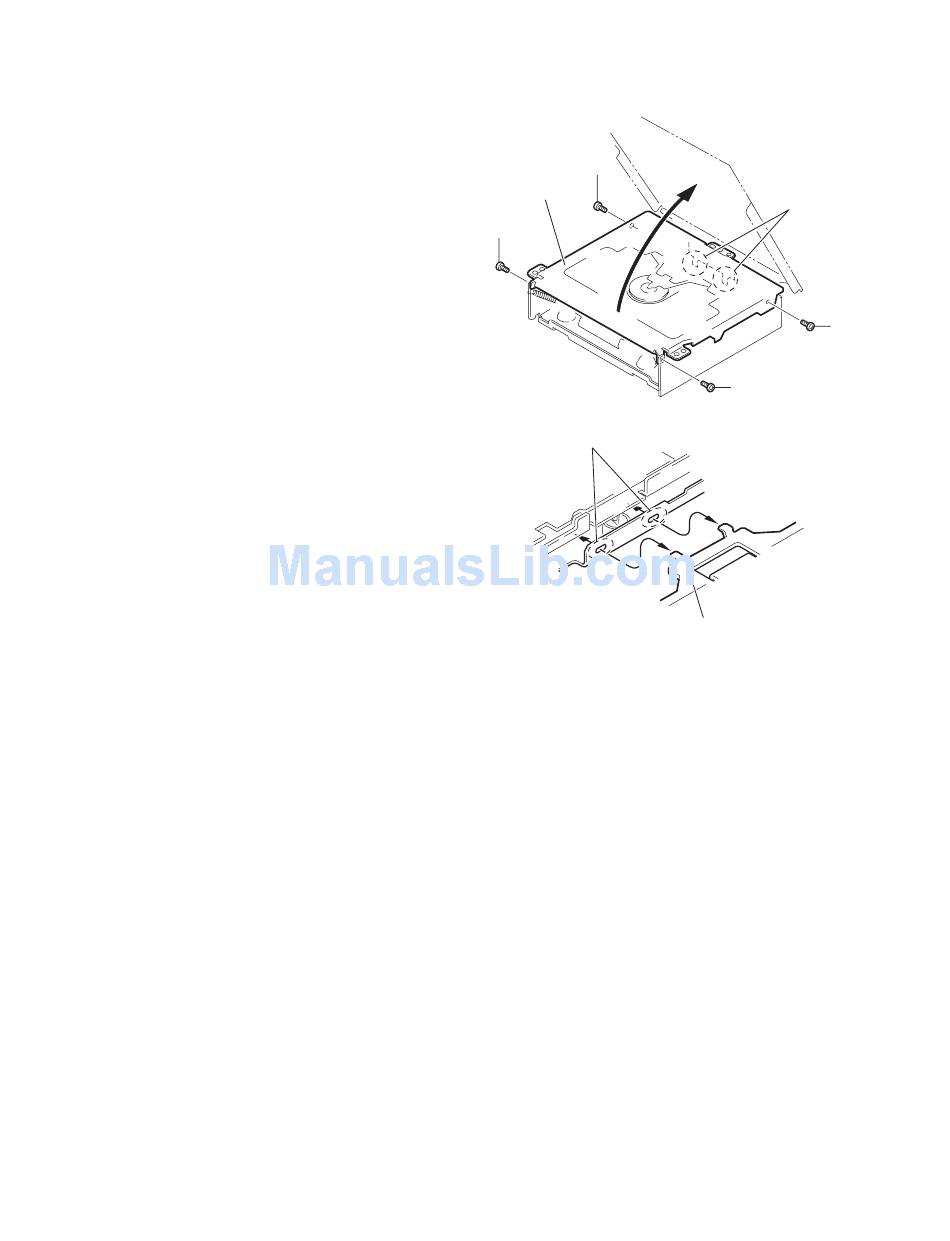

3.2.1 Removing the top cover
(See Figs.1 and 2)
(1) From the both side of the CD mechanism assembly, remove
the four screws A attaching the top cover. (See Fig.1.)
(2) Lift the front side of the top cover and move the top cover
backward to release the two joints a. (See Figs.1 and 2.)
1-16 (No.MA377<Rev.004>)
A
Top cover
A
Fig.1
a
Fig.2
a
A
A
Top cover
