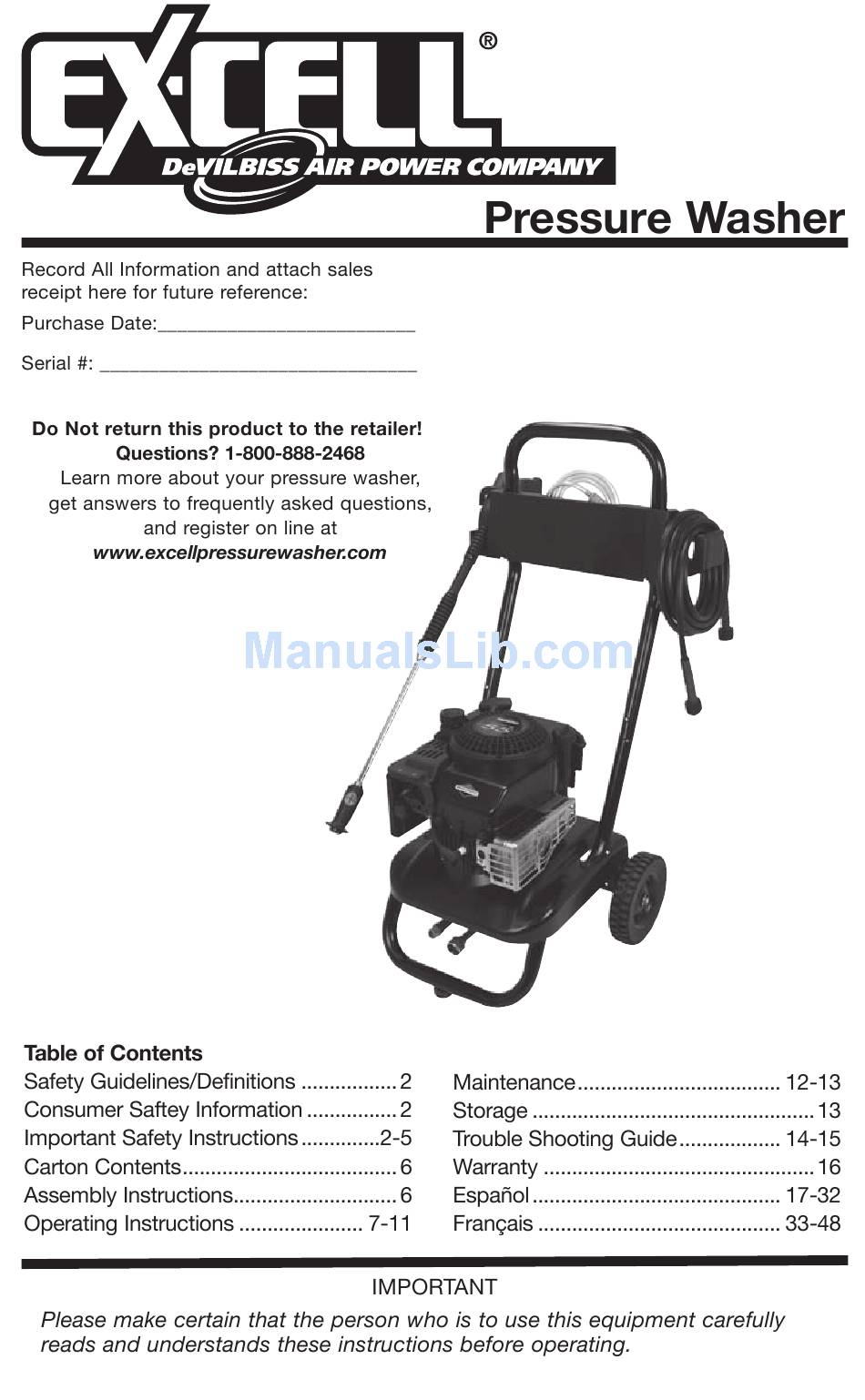

- Page 1 Operation Manual for model VR2320 A11756 Part No. Rev. 0 5/11/05...
-
Page 2: Safety Guidelines - Definitions
SAFETY GUIDELINES - DEFINITIONS This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols below. Please read the manual and pay attention to these symbols. - Page 3 HAZARD RISK OF EXPLOSION OR FIRE (continued) WHAT CAN HAPPEN HOW TO PREVENT IT • Materials placed against or near the • Never operate pressure washer in an area pressure washer can interfere with its proper containing dry brush or weeds. ventilation features causing overheating and possible ignition of the materials.
- Page 4 HAZARD RISK OF CHEMICAL BURN HOW TO PREVENT IT WHAT CAN HAPPEN • Use of acids, toxic or corrosive chemicals, • Do not use acids, gasoline, kerosene, poisons, insecticides, or any kind of or any other flammable materials in this flammable solvent with this product could product.
- Page 5 HAZARD RISK OF UNSAFE OPERATION WHAT CAN HAPPEN HOW TO PREVENT IT • Unsafe operation of your pressure washer • Do not use chlorine bleach or any other could lead to serious injury or death to corrosive compound. you or others. •...
-
Page 6: Carton Contents
CARTON CONTENTS Operation Nozzle Manual Cleaning Tool Chemical Hose Engine Frame and Handle Wheel Assembly High Pressure Engine Registration Hose Manual card Bagged Parts Spray Gun Multi-Adjustable Spray Wand Accessories Panel ASSEMBLY INSTRUCTIONS Place handle assembly onto frame, depress the snap buttons, and slide the handle assembly onto the frame until snap buttons snap into place. -
Page 7: Basic Elements Of Apressure Washer
OPERATING INSTRUCTIONS Compare the illustrations with your unit to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. BASIC ELEMENTS OF A PRESSURE WASHER High Pressure Pump : Increases the pressure of the water supply. Engine: Drives the high pressure pump. -
Page 8: Pressure Washer Operating Features
Bypass Mode: Allows water to HOW TO USE SPRAY WAND re-circulate within pump when the gun Your pressure washer is equipped trigger is not pulled. with a multi-adjustable spray wand Allowing the unit to with both high and low pressure run for more than settings. - Page 9 Before spraying, check the item to be The powerful cleaned to assure yourself that it is spray from your strong enough to resist damage from pressure washer is capable of the force of the spray. causing damage to surfaces such as wood, glass, automobile paint, auto striping and trim, and delicate objects such as flowers and shrubs.
- Page 10 STARTING HOW TO APPLY CHEMICALS AND CLEANING SOLVENTS Prior to starting, refer to your engine manual for proper starting procedure. Applying chemicals or cleaning In a well ventilated outdoor solvents is a low pressure operation. area add fresh, high quality, NOTE: Use only soaps and chemicals unleaded gasoline with a pump designed for pressure washer use.
-
Page 11: Shutting Down
Start engine. See Engine SHUTTING DOWN Owners Manual for correct After each use, if you have procedure. NOTE: When engine applied chemicals, place chemical rope is pulled, pressure starts hose into container of clean water building in the gun. If the engine and draw clean water through does not start after two pulls, chemical injection system to rinse... -
Page 12: Nozzle Cleaning
MAINTENANCE Pull trigger on gun handle to When performing relieve any water pressure. maintenance, you may be exposed to hot surfaces, Disconnect the wand from the water pressure, or moving parts that gun. can cause serious injury or death! Before performing any maintenance or repair, disconnect spark plug wire, let engine cool and release all water pressure. -
Page 13: Pressure Washer
HOW TO CLEAN THE WATER Clean filter by flushing it with water on both sides. INLET FILTER Re-insert filter into water inlet of This screen filter should be checked pump. NOTE: Cone side faces out. periodically and cleaned if necessary. NOTE: Do not operate pressure Remove washer without filter properly installed. -
Page 14: Troubleshooting Guide
TROUBLE SHOOTING GUIDE CAUSE CORRECTION PROBLEM Add Fuel. No fuel. Engine will not start (see Pressure builds up after two pulls Squeeze gun trigger to relieve Engine Manual pressure. on the recoil starter or after initial for further use. engine Move choke to the "Choke"... - Page 15 CAUSE CORRECTION PROBLEM See How to Use Spray Wand Spray wand not in low pressure. Will not draw paragraph in the Operation chemicals Section. Chemical filter clogged. Clean filter. Make sure end of chemical hose Chemical screen not in cleaning is fully submerged into cleaning solution.
-
Page 16: Limited Warranty
LIMITED WARRANTY DeVilbiss Air Power Company warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage) that all products covered under this warranty are free from defects in material and workmanship for one year from the date of purchase. All products covered by this limited warranty which are used in commercial applications (i.e., income producing) are warranted to be free of defects in material and workmanship for 90 days from the date of original purchase.
