SONOMA

FINAL ASSEMBLY

OWNER'S MANUAL

STEP #1 The Sonoma should be in your

INSTALLATION INSTRUCTIONS

desired location.

STEP #2 Slide the Firebox back into the unit.

The unit is correctly installed when the back of

the rock is flush with the stucco finish

STEP #3 Have a qualified licensed profes-

sional make all the gas connections at this time.

This should be done in accordance to all local

and national codes.

STEP #4 Slide the Hearth Pad into place

evenly.

STEP #5 Install the gas burner. Directions are

included in the gas log box.

STEP #6 Install the logs and accessories as

detailed in the provided instructions

Fire Stone Home Products

12400 Portland Avenue South

Burnsville, MN 55337

phone (952) 358-7438 | fax (952) 358-7414

www.firetonehp.com

Do you have a question about the Sonoma and is the answer not in the manual?

Page 1: Final Assembly

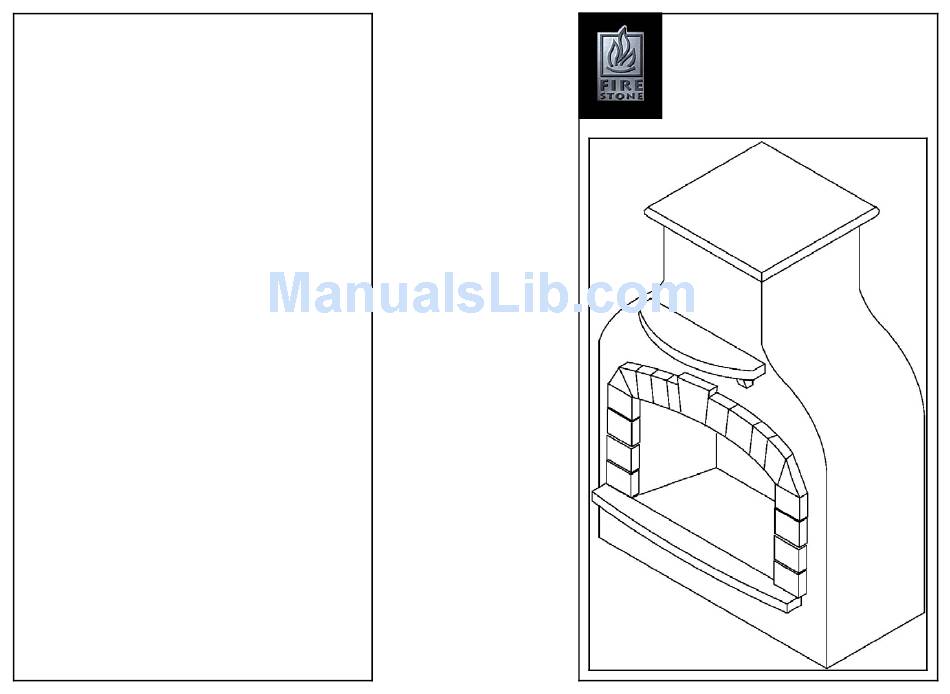

SONOMA FINAL ASSEMBLY OWNER’S MANUAL STEP #1 The Sonoma should be in your INSTALLATION INSTRUCTIONS desired location. STEP #2 Slide the Firebox back into the unit. The unit is correctly installed when the back of the rock is flush with the stucco finish STEP #3 Have a qualified licensed profes- sional make all the gas connections at this time.
Page 2 1. Remove the 3/8” x 1-1/2” bolts from the back of the shelf. 2. One person holding the shelf in place and the other person inside the Sonoma thread the bolts back into the inserts. DO NOT OVER TIGHTEN OR LIFT FROM THIS...
Page 3 2. With a minimum of two people slide the firebox out completely and set aside 3. This is a good time to move the Sonoma into it’s final place. WARNING FIREBOX WEIGHT IS 150-175 LBS.
Page 4 UNWRAPPING PROCEDURE REMOVAL OF THE HEARTH PAD WARNING THE CAST TOP OF THE SONOMA IS Hearth Pad NOT ATTACHED. DO NOT SLIDE OR MOVE THE UNIT UNTIL THIS HAS BEEN REMOVED. 1. Carefully dissect the outside wrapping to expose the unit. Maintain control of the blade the product behind could be damaged.
