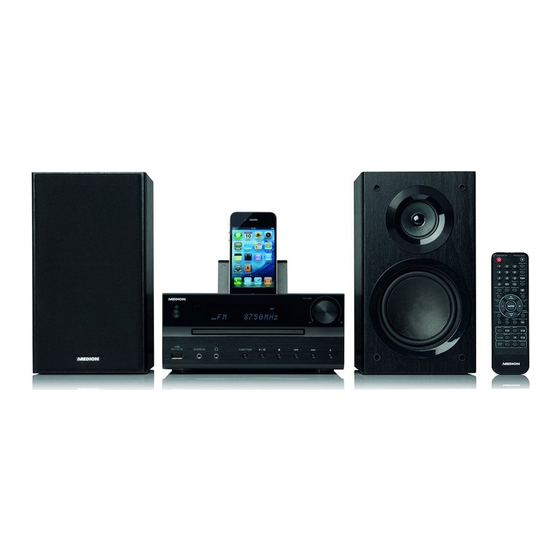

- Page 1 Premium Micro System for iPad/iPhone/iPod Model Number: MD 83615 INSTRUCTION MANUAL After Sales Support N26968 Telephone: 1300 884 987 Email: australia@medion.com...
- Page 2 audio Premium Micro System for iPad/iPhone/iPod Repair and Refurbished Goods or Parts Notice Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Sup- plier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost.
-
Page 3: Table Of Contents
Table of contents Welcome General safety instructions Overview of the equipment Front Rear Display Remote control Parts List Getting started Insert batteries into the remote control Setting up the device Connections Connecting the loudspeakers Connecting headphones Aerial connection Image transmit Connecting external device to the LINE IN connection Connecting external device to the AUDIO IN connection Mains connection... - Page 4 Track selection, fast rewind/forward Direct track selection Folder selection Program the playing order of tracks Repeat function/random playback Display track information Cleaning Disposal Technical data Copyright © 2012. All rights reserved. The company Medion® owns the copyright. "Made for iPod", "Made for iPhone", and "Made for iPad" means that an electronic accessory has been designed to connect specifically to iPod, iPhone.
-
Page 5: Welcome
Welcome Congratulations on choosing to buy a BAUHN® product. By doing so you now have the assurance and peace of mind that comes with purchasing a product made by one of the leading manufacturers. All products brought to you by BAUHN® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty. -
Page 6: General Safety Instructions
General safety instructions Please be sure to read these operating instructions carefully and follow all instructions given. The instructions will help you to operate the device reliably and help increase its service life. Always store these instructions near the device. Keep these operating instructions so that you can pass them on with the device if you sell it. -
Page 7: Never Carry Out Repairs Yourself
Setting up the device in a safe place This device is intended for private use only. Only use the device in residential rooms or similar rooms. Set up and operate all components on a stable, level and vibration-free surface to prevent the device from falling down. Make sure that: •... - Page 8 Safe handling of batteries The remote control is battery-operated. Please observe the following instructions: • Keep batteries out of the reach of children. Seek medical attention immediately if a battery is swallowed. • Before inserting the batteries, check that the contacts in the device and on the batteries are clean and, if necessary, clean them. •...
-
Page 9: Overview Of The Equipment
Overview of the equipment Front : switch device on/off IR sensor for remote control Timer display Disk tray iPod/iPhone cradle: “Docking station” for an iPod/iPhone device Volume selector : open/close disk compartment : iPod/iPhone/iPad/CD/USB: next track, radio: forward station search ... -
Page 10: Rear
Rear X K F G Q " Q W V : cinch video output U R G C M G T " T : connections for the right-hand speaker U R G C M G T " N : connections for the left-hand speaker N K P G "... -
Page 11: Display
Display 15 14 24 23 W U D : USB/iPad operating mode K R Q F : iPod/iPhone operating mode : CD operating mode O R 5 : MP3 operating mode T F O : random playback enabled O G O : memory playback enabled : repeat all tracks;... -
Page 12: Remote Control
Remote control IR transmitter Q R G P 1 E N Q U G < " open and close disc compartment O G O Q T [ : memory button E N G C T : clear key E N Q E M 1 V K O G T : set the clock/timer U N G G R : set the sleep timer... -
Page 13: Parts List
Parts List CAUTION! Keep the packaging out of reach of children. There is a risk of suffocation. When unpacking the product, ensure that the following parts are included: • Micro audio system • Remote control incl. battery (R6/LR06/AA/Mignon 1.5V) • FM aerial: wire aerial •... -
Page 14: Connections
Connections The sound will be transmitted via the loudspeaker supplied. You can transmit videos from an iPod/iPhone to an external device, e.g. to a television. Connecting the loudspeakers U R G C M G T U Connect the bare ends of the speaker cables to the corresponding colour-coded sockets R (right) is for the cable pair of the right loudspeaker, L (left) is for the cable pair of the left loudspeaker. -
Page 15: Image Transmit
Image transmit Videos stored on an iPod/iPhone can be transmitted to an external device (e.g. a television). X K F G Q " Q W V To do so, connect the supplied cinch cable with the yellow plug to the device's connection and a corresponding input plug to the external device. -
Page 16: Mains Connection
Mains connection Once all other components are connected, connect the mains cable. C E " K P R W V To do so, place the flat end in the connection and the other end of the cable into a properly installed 230V ~ 50 Hz safety plug which is accessible at all times. -
Page 17: General Operating Functions
General operating functions Audio functions NOTE! The description applies to audio output on the connected speakers. Where devices with separate speakers are connected, you can of course adjust the sound on those devices. Volume X Q N - Press the button on the remote control or turn the volume adjuster on the device clockwise to increase the volume. -
Page 18: Using The Sleep Timer
Setting the timer E N Q E M 1 V K O G T Hold down the button for 2 seconds while the device is switched on. Press the button within 10 seconds to choose whether you wish to set a daily (DAILY) or a one-off (ONCE) timer. G P V G T Confirm with ... -
Page 19: Radio
Radio button on the remote control until FM and the current H W P E V K Q P V W P G T " Press the button once or multiple times or press the frequency are shown on the display. ... -
Page 20: Usb Operation
USB operation W U D " 7 X " " 4 0 3 C USB memory sticks can be connected to the USB slot. Note the following: • Due to the numerous different file systems and file formats, the operation of connected memories cannot be guaranteed. •... -
Page 21: Ipod/Iphone/Ipad Playback Control
iPod/iPhone/iPad playback control You can control playback on the iPod, iPhone or iPad using the micro audio system. Alternatively you can operate your iPod/iPhone/iPad as usual. With the iPod and iPhone you can also play back videos on an external device. K R Q F By pressing the following buttons on the device and on the remote control in the section, you can now operate the iPod/iPhone/... -
Page 22: Playing Audio Or Mp3 Cds
Playing audio or MP3 CDs Inserting a disc Make sure that there is about 15 cm of space in front of the disc compartment so that it can open without hindrance. Q R G P " 1 E N Q U G " With the device switched on, press the button on the remote control. - Page 23 Repeat function/random playback T G R G CV Press the button to enable/disable the repeat function. T C P F Q O Press the button to enable/disable random playback. Display track information F K U R N C[ E F 1 W U D button in the section of the remote control allows you to have track information displayed for each track.
- Page 24 Disposal Packaging Your device has been packaged to protect it against transportation damage. Packaging materials are raw materials and can therefore be reused or recycled. Device At the end of its service life, the device should not be disposed of with the household rubbish. Ask your local authority about proper environmentally friendly disposal facilities.
-
Page 25: Technical Data
Technical data Voltage: AC 220 - 240 V ~ 50/60 Hz Power consumption during operation: 45 W Standby power consumption: 0.4 W Power output: 2 x 15 watts RMS Batteries for remote control: 1 x 1.5 V Micro (R6/LR06/AA/Mignon) Radio Station memory: FM waveband: 87.5 –... - Page 26 After Sales Support Telephone: 1300 884 987 Email: australia@medion.com...
-
Page 27: Email: Australia@Medion.com
MEDION Australia Pty Ltd St Leonards, NSW 2065 Australia helpline: 1300 884 987 e-mail: australia@medion.com www.medion.com.au... - Page 28 audio Premium Micro System for iPad/iPhone/iPod Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion.
