ASBW-0716

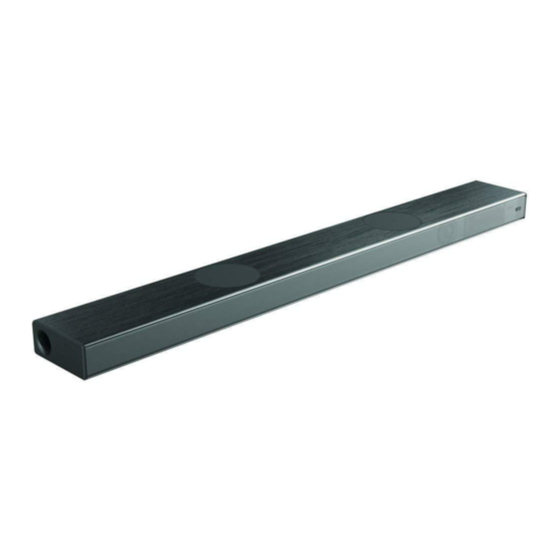

2.1 Channel Soundbar and Wireless Subwoofer
®
with Bluetooth
Wireless Technology
GETTING STARTED GUIDE
PARTS LIST
1
In the box you will find:
1 x 2.1 Channel Soundbar
1 x Subwoofer
1 x Remote Control
2 x Wall Brackets
2 x AC Adapter
2
INSTALLATION
This soundbar can be installed either as a single soundbar or as 2-piece tube speakers.
Option A:
Two tube speakers
installed on stands
Stand mounting (Option A)
Attach a stand each to the two separate pieces and twist to secure.
Horizontal mounting (Option B)
Align the two separate pieces and twist to secure.
To extend the height of the unit, turn the unit upside down and attach the supplied rubber feet to the bottom
of the unit.
Wall mounting (Option C)
• Wall-mounted installation must be carried out by qualified personnel only. Incorrect assembly can
result in severe personal injury and property damage!
must check for installations such as electrical wiring and plumbing, which may be hidden inside or behind
the wall.)
• It is the installer's responsibility to verify and confirm that the wall will safely support the total load
of the unit and wall brackets.
• See the instruction manual for advice on wall mounting the soundbar.
This Getting Start Guide only gives basic installation and usage instructions.
3 x Rubber Feet
2 x Stands
1 x 3.5mm to 3.5mm Audio Cable
1 x RCA to 3.5mm Audio Cable
Option B:
Single soundbar mounted
horizontally with rubber feet
Read the full instruction manual before use.
Option C:
Single soundbar
wall-mounted
(If you intend to install this product yourself, you
