25R-M100
Ref. No. Part No.
PWB-H: DUNTK9310WEW6
FRONT A/V UNIT

MISCELLANEOUS PARTS

J1001 QJAKE0053GEZZ
J1003 QJAKE0055GEZZ
P1001 QPLGN0541CEZZ J Plug, 5-pin(HA)
MISCELLANEOUS PARTS
ACC701 QACCD3096CESA X AC Cord
å
or
QACCD3064CESA
or
QACCD3090CESA
SP1 VSP0080PBL4YS
QCNW-0133MEZZ X Connecting Cord
QCNW-0135MEZZ X Connecting Cord
QCNW-0166MEZZ X Connecting Cord
QCNW-0167MEZZ J Connecting Cord

SUPPLIED ACCESSORIES

RRMCG1324CESA J Infrared R/C Unit
TGAN-0001GJZZ
TiNS-7286GJZZ

PACKING PARTS

(NOT REPLACEMENT ITEM)
SPAKC0147GJZZ
SPAKP0108GJZZ
SPAKX0120GJZZ
SSAKA0101GJZZ
Description Code
J Jack, Video-In AD
J Jack, Audio-In AD
AB
AK
X Speaker, 32 ohm AH
AE
AF
AE
AE
AT
X Guarantee Card AB
X Operation Manual AH
– Packing Case —
– Wrapping Paper —
– Buffer Material —
– Polyethylene Bag —
Ref. No. Part No.

CABINET PARTS

1 CCABA0116WEH2 X Front Cabinet Ass'y
1-1 Not Available
1-2 GCOVA0108GJKA X R/C Cover
1-3 HBDGB0103GJSB X "SHARP" Badge
1-4 JBTN-0107GJKA
1-5 JBTN-0108GJKA
2 GCABB0108GJKA X Rear Cabinet

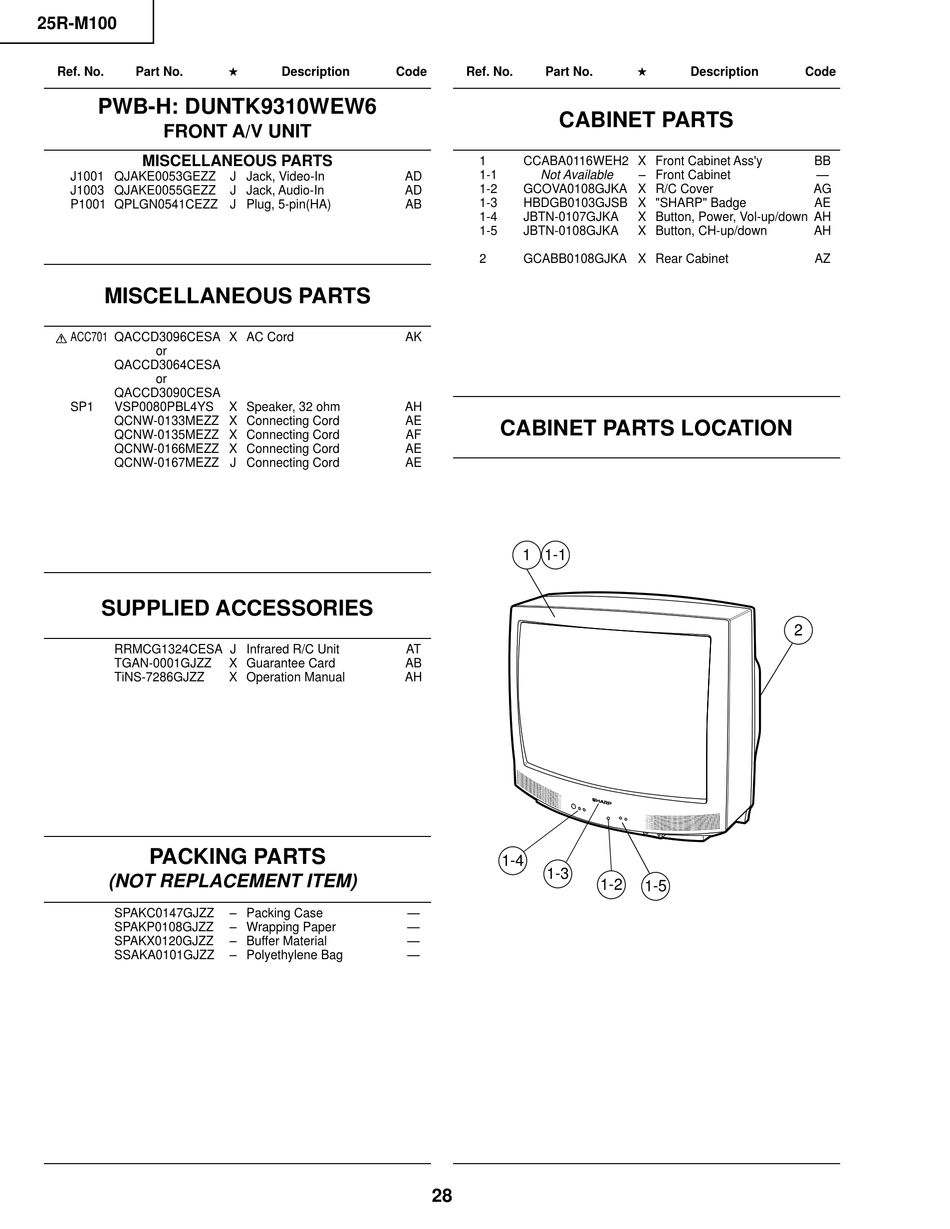

CABINET PARTS LOCATION
1 1-1
1-4
1-3
1-2
28
Description Code
BB
– Front Cabinet —
AG
AE
X Button, Power, Vol-up/down AH
X Button, CH-up/down AH
AZ
2
1-5
