Page 1: Instruction Manual
19 Colour LCD Television " Instruction Manual MODEL: TC-1901LCD Please read these instructions carefully and retain for future reference. -
Page 2: Introduction
Help line INTRODUCTION Help line For assistance during normal working hours (9am-5pm,Mon-Fri, New Zealand local time) call Oriental Pacific International Ltd NZ call:0800 89 85 80 Email:service@orientalpacific.com IMPORTANT SAFEGUARDS The graphic symbol is used in this manual or on the back cover of the set mean the following: Read this manual in full before use. - Page 3 IMPORTANT SAFEGUARDS WARNING! Do not remove any cover. WARNING! No objects filled with liquid, such as vases, shall be placed on this equipment or in any position where liquid may fall into this equipment or any other electrical apparatus. WARNING! Do not insert any objects into any openings of this equipment or any other electrical apparatus. WARNING! Do not use this apparatus near water.
- Page 4 Warning Warning CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated”dangerous voltage”within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
-
Page 5: Warning
Safety instructions Safety instructions WARNING : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. -
Page 6: Safety Instructions
Safety instructions Safety instructions continued 12. Use only cart, stand, tripod, bracket, or table specified 14. Refer all servicing to qualified service personnel. by the manufacturer or sold with the apparatus. Servicing is required when the apparatus has been damaged in any way. 13. -
Page 7: Table Of Contents
Contents Help line & Important safeguards Warning INTRODUCTION Safety instructions Contents PACKING LIST FRONT AND BACK CONNECTIONS OF LCD Power Cord Connection Antennas Connection AV Connection BASIC YPbPr Connection INSTALL TION S-Video Connection VGA Connection HDMI Connection Remote control instructions in TV mode Remote control instructions in TELETEXT mode REMOTE CONTROL Remote control setup... -
Page 8: Packing List
LCD TV SET Remote Control 1.5V Power Cord AAA Batteries 19 Colour LCD Television " Instruction Manual MODEL: TC-1901LCD Please read these instructions carefully and retain for future reference. Audio Cable 3 5mm plug 2 X RCA plug User Manual... -
Page 9: Front And Back
FRONT BACK CONNECTIONS OF LCD FRONT BACK CONNECTIONS OF LCD Front View “ ” 1.Press POWER button to turn standby mode on or off. “ ” “ ” SOURCE MENU POWER 2.Press P+ or P- to scan through channels. “ ”... -
Page 10: Connections
BASIC INSTALL TION 4. BASIC INSTALL TION Power Cord Connection - Connect the power cord correctly as shown. - Press the POWER switch of your LCD V to switch the unit on . The power indicator on the front panel lights up in Green. -
Page 11: Av Connection
BASIC INSTALL TION AV Connection Connect the VIDEO and AUDIO output jack of the DVD or VCR to the AV IN jacks on the set using the RCA cable (Yellow [video], White [left & Right audio]). Select the AV input source using the SOURCE button on the remote control. -
Page 12: S-Video Connection
BASIC INSTALL TION S-Video Connection Connect the S-VIDEO output of the DVD or VCR to the S-VIDEO input on the set. The picture quality is improved compared to connecting a regular VCR to the video input. Connect the Audio output of the DVD or VCR to the Audio input jacks on the set using the RCA cable. Select S-VIDEO input source, using the SOURCE button on the remote control. -
Page 13: Hdmi Connection
BASIC INSTALL TION HDMI Connection HDMI connection allows the user to transfer all audio/video/control signals through one cable only. These signals are transferred in digital. HDMI cable is not supplied. -
Page 14: Remote Control

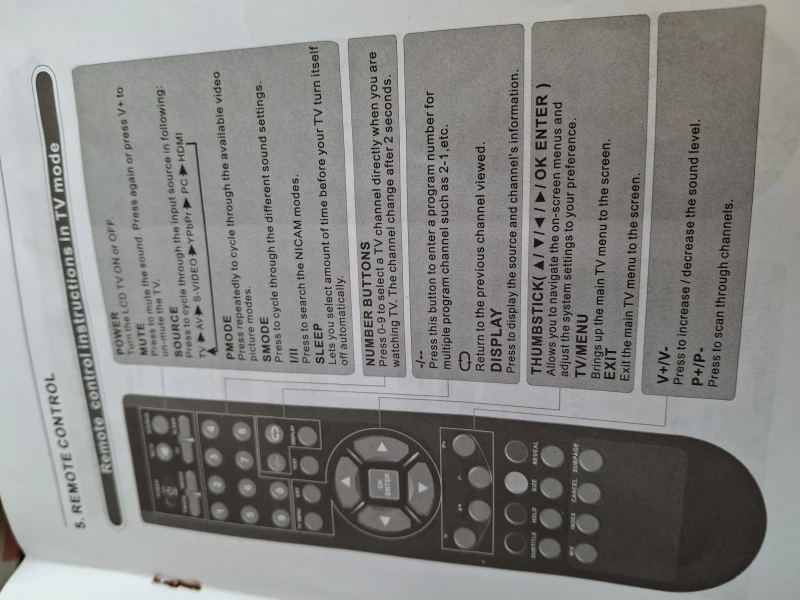

REMOTE CONTROL 5. REMOTE CONTROL Remote control instructions in TV mode POWER Turn the LCD TV ON or OFF. POWER MUTE SOURCE MUTE Press to mute the sound. Press again or press V+ to un-mute the TV. PMODE SMODE I/II SLEEP SOURCE Press to cycle through the input source in following:... -
Page 15: Remote Control Instructions In Teletext Mode
REMOTE CONTROL Remote control instructions in TELETEXT mode POWER MUTE SOURCE PMODE SMODE I/II SLEEP NUMBER BUTTONS Press 0-9 to select a teletext page. -/-- TV MENU EXIT TEXT DISPLAY TEXT Press to switch between TV and Teletext mode. ENTER P+/P- Page up and Page down. -
Page 16: Remote Control Setup
REMOTE CONTROL Remote control setup Battery Installation ) Open the cover. ) Your remote requires 2X AAA Batteries. When inserting the batteries, make sure correct polarity marks"+"and "-" on the batteries match the diagram as shown within the battery compartment. ) Replace the battery cover. -
Page 17: Configuration Of The Lcd
CONFIGURATION OF THE LCD CONFIGURATION OF THE LCD Channel Setting menu Notice: This menu is only available in TV mode. Use SOURCE button to select TV mode. 1. Press TV MENU key to open the main menu. 2. Press ◄ ► to select: 3. -
Page 18: Sound Menu
CONFIGURATION OF THE LCD Sound menu 1. Press TV MENU on the remote to open the main menu 2. Press ◄ / ► to select: 3. Press ▼ enter the setting sound menu, the outline border turns red. 4. Press ▲/ ▼ to select option in the sound menu. 5. - Page 19 CONFIGURATION OF THE LCD Options: Brightness 1. Brightness Contrast Press ◄ to darken the picture. Colour Press ► to brighten the picture. Sharpness 2. Contrast Tint Press ◄ to decrease contrast Noise Reduction Press ► to increase contrast 3. Colour Press ◄...
-
Page 20: Overview Menu
CONFIGURATION OF THE LCD Overview menu 1. Press TV MENU on the remote to open the main menu. 2. Press ◄ ► to select: 3. Press ▼ to enter the overview menu, the outline border turns yellow. 4. Then press ▲/ ▼ to select options in the overview menu. 5. - Page 21 CONFIGURATION OF THE LCD 4. Timers Press ► to enter the Timers submenu. Then press ▲/ ▼ to select function. Sleep timer Reminder timer Off timer Switch timer Switch program -Sleep timer Each time you press ◄/►, the period of time changes as follows: 15 …...
-
Page 22: Teletext Operation
CONFIGURATION OF THE LCD TELETEXT OPERATION Display Teletext: 1. Select a TV channel with Teletext signal. 2. Press the TEXT button to enter Teletext mode. 3. Press the TEXT button again or CANCEL button to return or exit to normal TV mode. Page selection: 1. -
Page 23: Troubleshooting And Advice
TROUBLESHOOTING AND ADVICE 7. TROUBLESHOOTING AND ADVICE Should your unit develop a problem, please refer to the below troubleshooting table before requesting assistance. Troubleshooting Control No signal Please check that all cables are correctly plugged in. Adjust the contrast, the color and the brightness No color shades Maybe result from a lighting signal from car, motor, neon light and Stain show on the... -
Page 24: Specifications
SPECIFICATIONS 8 Product Specification 19" screen WXGA ( 1440x900 ) Resolution FEATURE Wide Viewing Angle (160°H / 160°V ) Specification Items Screen Size 19” TFT -LCD Panel Aspect Ratio 16 10 1440X900 Resolution 0 2835X0 2835 Pixel Pitch Display colors 16 7M 160°... -
Page 25: Guarantee Card
Guarantee Card Warranty Card This product is guaranteed against faulty materials and workmanship for a period of one year from the date of purchase with proof of purchase. The obligation to the purchaser under this warranty is limited to servicing the unit and replacing defective parts or refund when the product is returned freight prepaid to the retailer with proof of purchase.
