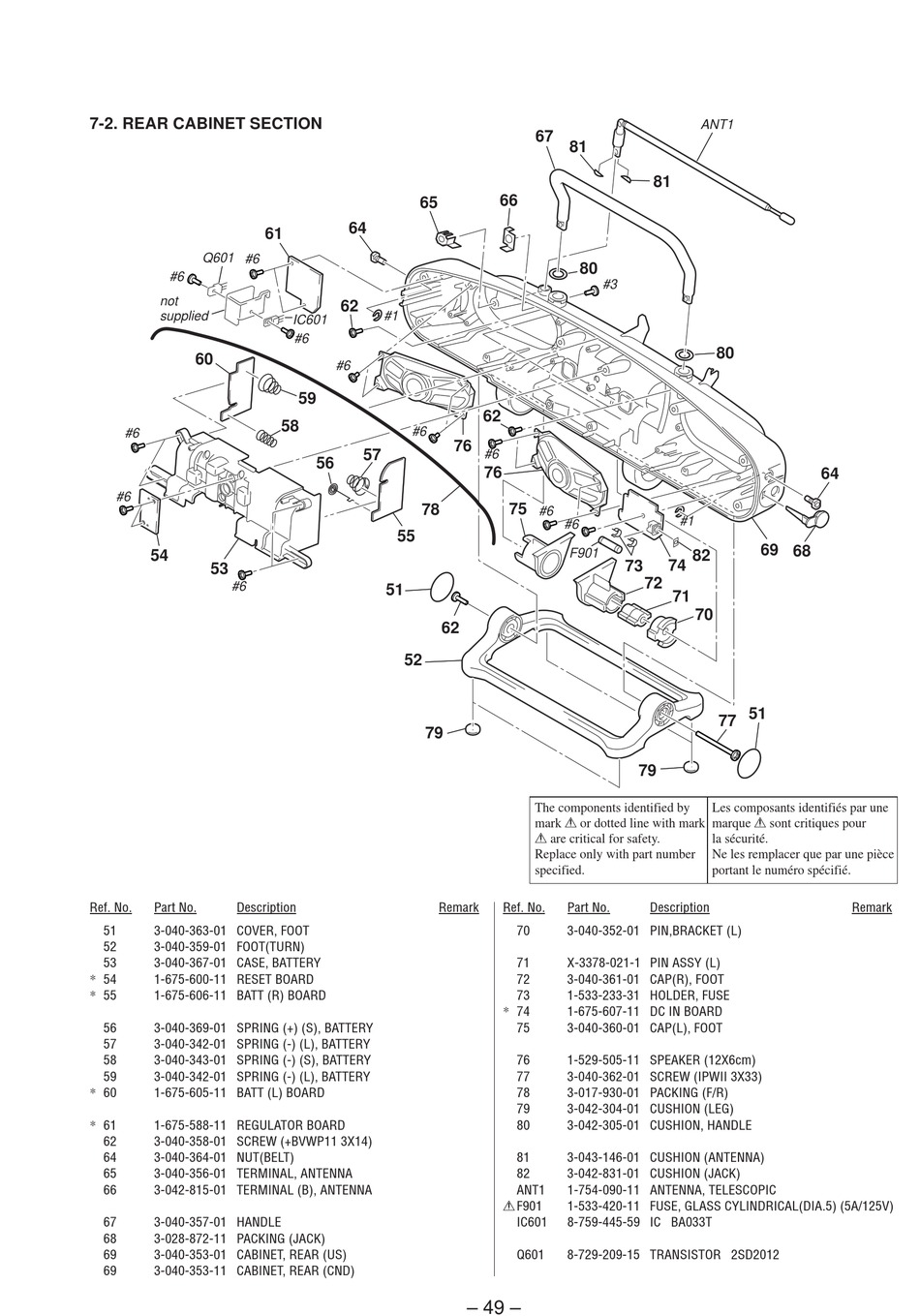

7-2. REAR CABINET SECTION

Q601
#6
#6
not
supplied
60
#6
#6
54
53
#6
Ref. No. Part No. Description
51 3-040-363-01 COVER, FOOT
52 3-040-359-01 FOOT(TURN)
53 3-040-367-01 CASE, BATTERY
* 54 1-675-600-11 RESET BOARD
* 55 1-675-606-11 BATT (R) BOARD
56 3-040-369-01 SPRING (+) (S), BATTERY
57 3-040-342-01 SPRING (-) (L), BATTERY
58 3-040-343-01 SPRING (-) (S), BATTERY
59 3-040-342-01 SPRING (-) (L), BATTERY
* 60 1-675-605-11 BATT (L) BOARD
* 61 1-675-588-11 REGULATOR BOARD
62 3-040-358-01 SCREW (+BVWP11 3X14)
64 3-040-364-01 NUT(BELT)
65 3-040-356-01 TERMINAL, ANTENNA
66 3-042-815-01 TERMINAL (B), ANTENNA
67 3-040-357-01 HANDLE
68 3-028-872-11 PACKING (JACK)
69 3-040-353-01 CABINET, REAR (US)
69 3-040-353-11 CABINET, REAR (CND)
65
64
61
62
#1
IC601
#6
#6
59
58
#6
57
56
78
55
51
52
79
Remark
67
81
66
80
#3
62
76
#6
76
75
#6
#6
F901
62
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Ref. No. Part No.
70 3-040-352-01 PIN,BRACKET (L)
71 X-3378-021-1 PIN ASSY (L)
72 3-040-361-01 CAP(R), FOOT
73 1-533-233-31 HOLDER, FUSE
* 74 1-675-607-11 DC IN BOARD
75 3-040-360-01 CAP(L), FOOT
76 1-529-505-11 SPEAKER (12X6cm)
77 3-040-362-01 SCREW (IPWII 3X33)
78 3-017-930-01 PACKING (F/R)
79 3-042-304-01 CUSHION (LEG)
80 3-042-305-01 CUSHION, HANDLE
81 3-043-146-01 CUSHION (ANTENNA)
82 3-042-831-01 CUSHION (JACK)
ANT1 1-754-090-11 ANTENNA, TELESCOPIC
0 F901 1-533-420-11 FUSE, GLASS CYLINDRICAL(DIA.5) (5A/125V)
IC601 8-759-445-59 IC BA033T
Q601 8-729-209-15 TRANSISTOR 2SD2012
– 49 –
ANT1
81
80
#1
69 68
82
74
73
72
71
70
51
77
79
Les composants identifiés par une
marque ! sont critiques pour
la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Description
64
Remark
