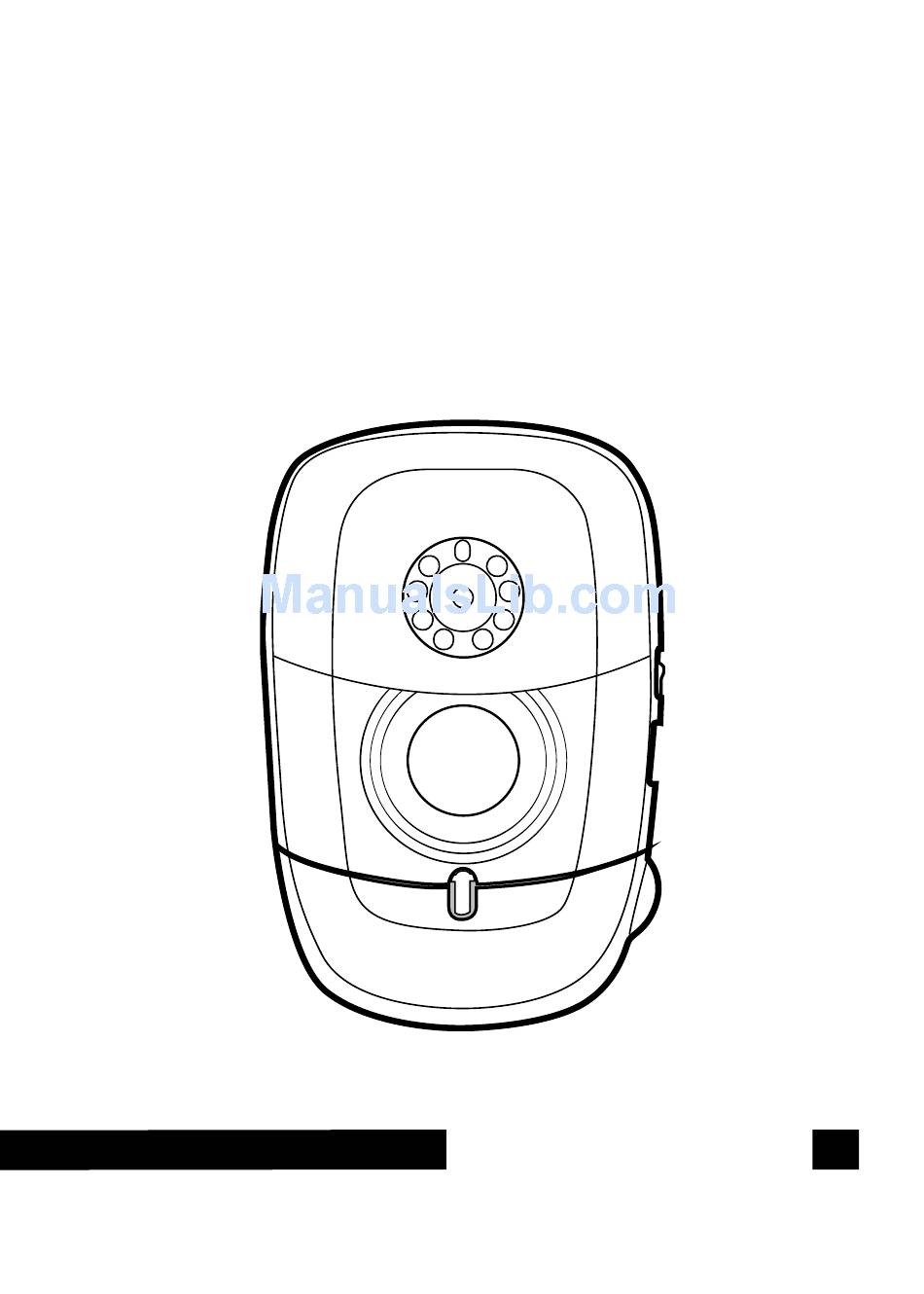

Page 1: User Manual
TUTA B12 GSM REMOTE CAMERA User Manual Manual version 3.0... - Page 2 You can control and change the camera settings via SMS command. The MMS sent by the TUTA camera can be viewed by using your mobile phone. You also can opt to view a slide of consecutive photos taken by the GSM Remote camera.
-
Page 3: Table Of Contents
TUTA-B12 GSM REMOTE CAMERA USER MANUAL CONTENTS For your safety ......................5 Exception clause ......................6 Chapter 1 Structure Instruction ..................7 1.1 Package contents ....................7 1.2 Products features ....................8 1.3 Remote control instruction .................. 9 Chapter 2 Installation and power on/off ................10 2.1 Installing the SIM card .................. - Page 4 TUTA-B12 GSM REMOTE CAMERA USER MANUAL 3.9 Wireless sensor(s) ................... 18 3.9.1 Loading sensor to camera ................18 3.9.2 Removing a sensor from camera ..............19 3.10 Resetting the camera ..................19 Chapter 4 Advanced settings ..................200 4.1 Remote control ....................200 4.1.1 Pairing a remote control ................
-
Page 5: For Your Safety
1. Purchase a GSM SIM card (mobile phone card) from a GSM network service provider and install it in the camera. This SIM card number is referred as TUTA camera number on this brochure. 2. The user needs to activate the MMS function and Caller ID Presentation function of SIM card, and deactivate PIN code of the SIM. -
Page 6: Exception Clause
TUTA-B12 GSM REMOTE CAMERA USER MANUAL Exception clause Do not throw this product in a fire, as this may cause the battery to explode. 1. We operate on a policy of continuous development. We reserve the right to make changes and improvements to any of the products described in this document without prior notice. -
Page 7: Chapter 1 Structure Instruction
TUTA-B12 GSM REMOTE CAMERA USER MANUAL Chapter 1 Structure Instruction 1.1 Package contents Camera host 1 pc Remote control 2 pcs Power adapter 1 pc User manual 1 pc... -
Page 8: Products Features
TUTA-B12 GSM REMOTE CAMERA USER MANUAL 1.2 Products features Figure 1: TUTA camera instructions Tip: Keep the camera lens clean to insure best image quality. -
Page 9: Remote Control Instruction
Figure 2: Remote control instruction Note: There is battery holder on the rear of the remote control. When this battery is running out of power, the TUTA camera will emit BEEP warning tone and then send a SMS notification message to Master user. -
Page 10: Chapter 2 Installation And Power On/Off
TUTA-B12 GSM REMOTE CAMERA USER MANUAL Chapter 2 Installation and power on/off 2.1 Installing the SIM card Remove the rubber cover from the left side of the camera. Open the SIM/USIM card slot by pressing the small dot beside the card slot with the tip of a pencil, and pop open the slot. -
Page 11: Connecting To Power Adapter
External power cut. The device is operating on battery. If the TUTA camera is again connected to the external power or the AC power is restored, a notification will be sent to the user stating: The device is now resuming the use of external power source. -
Page 12: Power On/ Off
TUTA-B12 GSM REMOTE CAMERA USER MANUAL 2.5 Power on/off Power on: Operation Indicator light Status Red light is on for 3-5 seconds. Red light flashing slowly for Turn the power about 35 seconds. switch to ON A BEEP tone will be heard. -
Page 13: Chapter 3 Define The User And Basic Operation
Camera language setting Set infrared body detect function Note: Any MMS enabled mobile phone can receive the images captured by the TUTA camera by sending SMS command with password. Any SMS enabled mobile phone can control the TUTA camera with the password ... -
Page 14: Setup Master Number
TUTA-B12 GSM REMOTE CAMERA USER MANUAL The maximum digits that are allows for the phone number is sixteen. The TUTA camera will reply to the user after it receives the SMS command. Note: The # symbol must be included when typing an SMS command. -
Page 15: Define Family User
Any selected person can operate in the Guest category if they know the password and the unit’s phone number. The Guest user(s) can then use their mobile phones to send a SMS command including password to the TUTA camera in order to obtain an MMS image. 3.5 MMS parameter settings Normally the camera will preset local operator MMS settings in the firmware when it first starts up, so that the user does not need to setup the MMS parameters. -
Page 16: Capturing Images
A Master or family user calls the camera and hangs up upon hearing the ringing tone (within 10 seconds). The TUTA camera will reply SMS notification: Request received, TUTA camera is sending an MMS image. The user will then receive the MMS message in a few moments. -
Page 17: Arming Or Disarming The Camera
Press on the remote control, while pointing it in the direction of the TUTA camera. The TUTA camera will emit a BEEP tone, to indicate that arming the TUTA camera is successful. (Refer remote control instruction instructions in the manual elsewhere.) -
Page 18: Emergency Alarms
SMS & MMS of this sensor alarm, add an * in front of sensor description, such as #05#*door#. 3. When the TUTA camera receives the SMS command, it will emit a BEEP tone and the indicator will flash red and green alternately. The TUTA camera will then send a... -
Page 19: Removing A Sensor From Camera
4. The user then needs to make the sensor work and transmit signal to be captured by the TUTA camera. 5. When the TUTA camera receives the sensor signal, it will emit a BEEP tone and send a notification message SMS: Sensor *** successfully paired. -
Page 20: Chapter 4 Advanced Settings
4.1.1 Pairing a remote control Normally the remote control will be paired in factory. if the remote camera can not work with TUTA camera, user should pair the remote control separately. A camera can pair up to 5 remote controls. -
Page 21: Removing Remote Controls From The Camera
TUTA-B12 GSM REMOTE CAMERA USER MANUAL will be heard upon answering the emergency call. 4.1.3 Removing remote controls from the camera The Master user sends following SMS message in order to: Remove all remote controls from the camera: #111# (25) 4.2 Infrared body detector... -
Page 22: Beep Tone
If the LED indicator is on, it will display in different ways to show the working status. If it turns off, it can make the TUTA camera more easily avoid being found easily. The user sends the following SMS command to set LED indicator’s mode:... -
Page 23: Chapter 5 General Troubleshooting
TUTA-B12 GSM REMOTE CAMERA USER MANUAL Chapter 5 General troubleshooting General Trouble Possible Reason Solution Can’t start camera Another master is already set Recover to factory default (Indicator is working) in the camera. setting. Caller ID presentation or MMS Contact network provider to... -
Page 24: Chapter 6 Main Technical Parameters
TUTA-B12 GSM REMOTE CAMERA USER MANUAL Chapter 6 Main technical parameters Power adaptor Input: 100V～240V/50Hz Output: 5.5V DC Work temperature -10℃～+45℃ Store temperature -20C～+60C Relative humidity 10-90%，without condensation Working band EGSM900,DCS1800 (GSM850,PCS1900 Optional) Communication protocols GSM PHASE 2/2+ (including data operation) -
Page 25: Appendix: Sms Commands List
TUTA-B12 GSM REMOTE CAMERA USER MANUAL Appendix: SMS commands list Category Function Command User Add a master number to the (1) #00#+CountryCodePhoneNumber# camera In the us: #00#AreaCodePhoneNumber# Change the master user’s (2) #14#NewMasterNumber# number Change the password (3) #04#oldpassword#newpassword# Define the... - Page 26 TUTA-B12 GSM REMOTE CAMERA USER MANUAL Category Function Command User Master Reset Reset the camera (24) #08#password# Remote Remove all remote controls Master (25) #111# Family control from the camera Activate infrared body Master (26) #118#1# Family detector (default) Infrared body...
