Page 1: User Guide

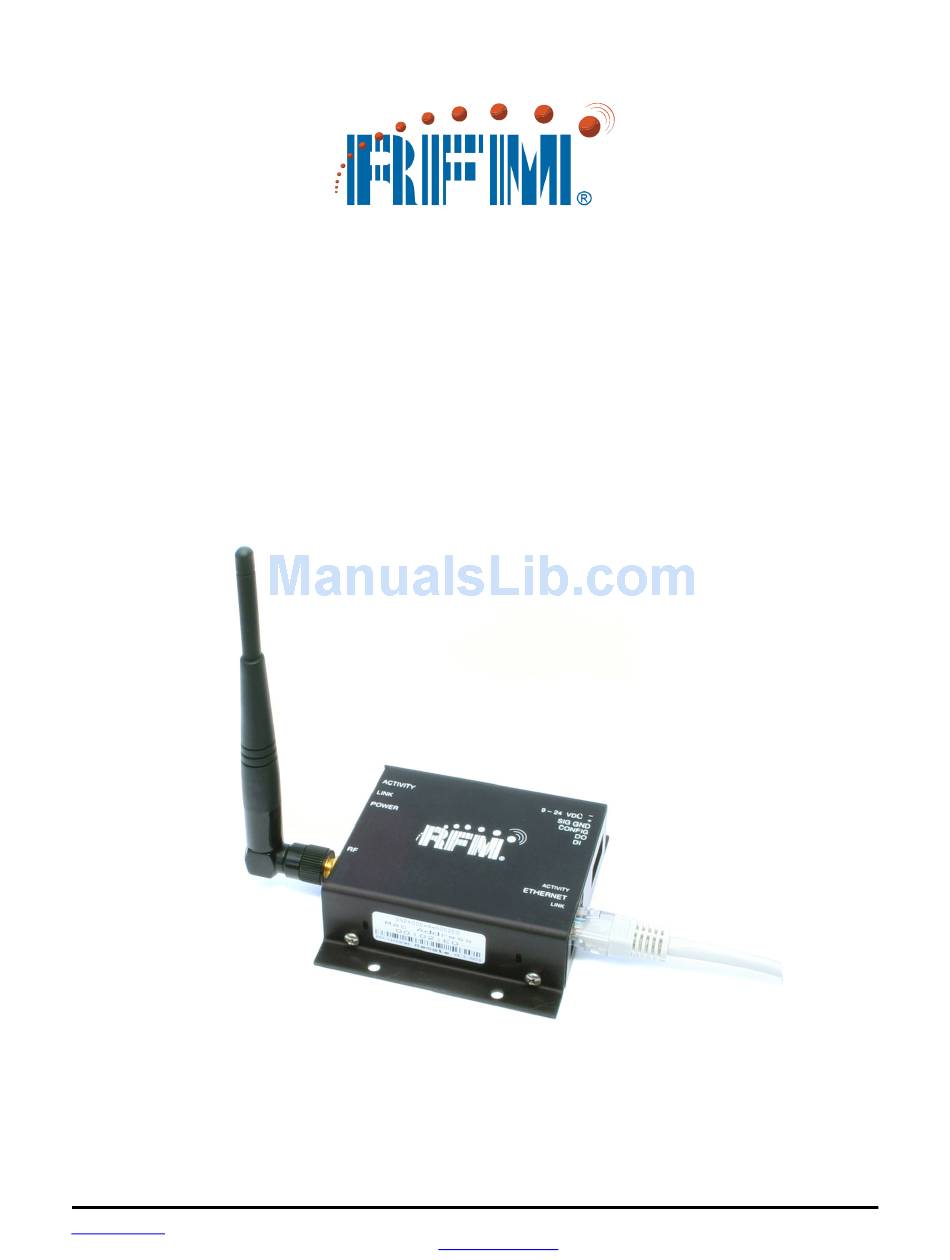

DN-2400E DN-2400EP 2.4 GHz Wireless Ethernet Bridges User Guide www.RFM.com Technical support +1.678.684.2000 Page 1 of 21 © 2011 by RF Monolithics, Inc. E-mail: tech_sup@rfm.com DN-2400E User Guide - 08/05/11... - Page 2 FCC Antenna Gain Restriction: The DN-2400E and DN-2400EP have been designed to operate with any dipole antenna of up to 9 dBi of gain, or any patch of up to 6 dBi gain. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
-
Page 3: Table Of Contents
Table of Contents DN-2400E and DN-2400EP Introduction .................... 4 Point-to-Point Network ........................4 Point-to-Multipoint Network......................5 Operation ............................5 Specifications ............................6 Absolute Maximum Ratings ........................ 6 System Specifications ......................... 6 LED Indicators............................. 6 Installation ............................7 Mounting and Location........................7 Connector and Terminal Block...................... -
Page 4: Dn-2400E And Dn-2400Ep Introduction
The DN-2400E and DN-2400EP provide robust wireless 10 BaseT Ethernet bridge connections between a base and one or more remote units. The DN-2400E is designed to be powered from an external DC power supply. The DN-2400EP is designed to be powered from an external DC power supply or an IEEE 802.3af Mode B Power-over-Ethernet host. -
Page 5: Point-To-Multipoint Network
DN-2400E/EP networks function as a MAC layer bridges, with no IP address filtering. Any Ethernet packet received by a DN-2400E/EP will be transmitted over the air. If the DN-2400E/EP is used on an Ethernet network that includes information that should not be transmitted by a DN-2400E/EP, it should be placed behind an Ethernet switch that can perform the required filtering. -
Page 6: Specifications
RJ-45 Ethernet Port 10 BaseT Serial Configuration Port Baud Rate 115.2 kbps Power Supply Voltage Range, DN-2400E/EP Power over Ethernet Standard, DN-2400EP (only) IEEE 802.3af Mode 2 Power Consumption Nominal Dimensions 3.3 x 3.2 x 1 inches (84.6 x 82.0 x 25.4 mm) -
Page 7: Installation
The DN-2400E/EP case outline drawing is shown in Figure 4.1.1. The supplied antenna is hinged, allow- ing it to be set vertically with the case mounted either horizontally or vertically. The DN-2400E/EP case is designed for indoor use. It must be installed in a weather proof enclosure when used outdoors, such as a NEMA 4X enclosure. -
Page 8: Connector And Terminal Block
Power over Ethernet DC- input on the DN-2400EP. Not used on the DN-2400E. A six-pin terminal block is also provided on the DN-2400E/EP for serial port and DC power connections, as detailed below. The pin numbers read left-to-right as shown by the silkscreen above the connector. -
Page 9: Configuration Options
0 = 1.58 mW (default) 1 = 15.8 mW 2 = 100 mW RF Data Rate - this sets the over-the-air data rate. DN-2400E/EP’s with different RF data rates cannot intercommunicate. The following codes are defined: = 500 kb/s (default) = 200 kb/s = 115.2 kb/s... - Page 10 UserTag - this is a user definable field intended for use as a location description or other identifying tag such as a “friendly name”. www.RFM.com Technical support +1.678.684.2000 Page 10 of 21 © 2011 by RF Monolithics, Inc. E-mail: tech_sup@rfm.com DN-2400E User Guide - 08/05/11...
-
Page 11: Dn-2400Esk And Dn-2400Epsk Starter Kits
6.0 DN-2400ESK and DN-2400EPSK Starter Kits It is highly recommended that a Starter Kit containing two DN-2400E or DN-2400EP units be purchased initially for installing a network. The Starter Kit enables you to set up a point-to-point Ethernet connection very quickly using the units default settings. The Kit also contains all the necessary hardware and soft- ware to make any changes to the default settings required by your application. -
Page 12: Getting Started
“Remote”. These are the default configurations set at the factory. They can be changed as ex- plained below. The DN-2400E units are powered using the included power supplies. The DN-2400EP units can be powered either with the included power supplies or a from hosts that implements IEEE 802.3af Mode B Power over Ethernet. -
Page 13: Ethernet Port Connections
Figure 6.6.1. 2. Connect the configuration module to a PC using a DB9 modem (straight through) cable. 3. Plug the configuration module into the DN-2400E/EP terminal block, and then plug in the wall plug power supply. -
Page 14: Dn-2400E/Ep Configuration Utility
Figure 6.6.1 Note: An additional configuration module with CD, power supply and serial cable can be order from RFM if the configuration module that comes with the Starter Kit is lost or damaged. 7.0 DN-2400E/EP Configuration Utility Create a file folder on the PC and copy the DNWizard.exe utility from the CD supplied with the DN-2400E/EP Starter Kit into the folder. - Page 15 Click on the Connect button in the main window. The Comm Port Settings dialog box shown in Figure 7.0.2 will appear. Click on the OK button to establish a connection with the DN-2400E/EP. Figure 7.0.2 Figure 7.0.3 As soon as the serial connection is established, the Current Settings information on the left side of the main window and the information on all configuration tabs will be populated, as shown in Figure 7.0.3.
- Page 16 Note that all DN-2400E/EP wireless bridges ordered as single units outside of the Starter Kit are shipped configured as Remote units. One DN-2400E/EP in each network must be configured as a Base. All traffic to and from other bridges in the DN-2400E/EP network will flow through the base. Figure 7.0.4 shows a DN-2400E/EP being reconfig- ured from a Remote to a Base.
- Page 17 By Base Table on the Base unit allows only the remote MAC addresses input on the Auth List tab to join with the Base. www.RFM.com Technical support +1.678.684.2000 Page 17 of 21 © 2011 by RF Monolithics, Inc. E-mail: tech_sup@rfm.com DN-2400E User Guide - 08/05/11...
- Page 18 Figure 7.0.6 The read only Status tab shown in Figure 7.0.6 displays information about the DNT2400 radio embedded in the DN-2400E/EP, plus related network information. Figure 7.0.7 www.RFM.com Technical support +1.678.684.2000 Page 18 of 21 © 2011 by RF Monolithics, Inc.
- Page 19 MAC addresses loaded on the Auth List tab shown in Figure 7.0.7 will be allowed to join with the Base. Figure 7.0.8 Figure 7.0.9 The 0x0002E0 MAC address of the DN-2400E/EP in Figure 7.0.8 is shown loaded in the Approved Addr0 field above. The 0xFFFFFF in the rest of the approved address fields indicates no assignment. www.RFM.com Technical support +1.678.684.2000...
-
Page 20: Ordering Information
The part numbers of the products that comprise the DN-2400 Series Ethernet Bridge product line are listed below to facilitate ordering: DN-2400E - 2.4 GHz Wireless Ethernet Bridge, including a 2 dBi Dipole Antenna, Universal Wall Plug Power Supply and Ethernet Cable DN-2400EP - 2.4 GHz Wireless Ethernet Bridge with Power-over-Ethernet option, including a 2 dBi Dipole... -
Page 21: Warranty
ONLY AND SHALL NOT BE APPLICABLE TO ANY OTHER PERSON OR ENTITY INCLUDING, WITHOUT LIMITATION, CUSTOMERS OF BUYERS. Part # M-2400-3004, Rev A www.RFM.com Technical support +1.678.684.2000 Page 21 of 21 © 2011 by RF Monolithics, Inc. E-mail: tech_sup@rfm.com DN-2400E User Guide - 08/05/11...
