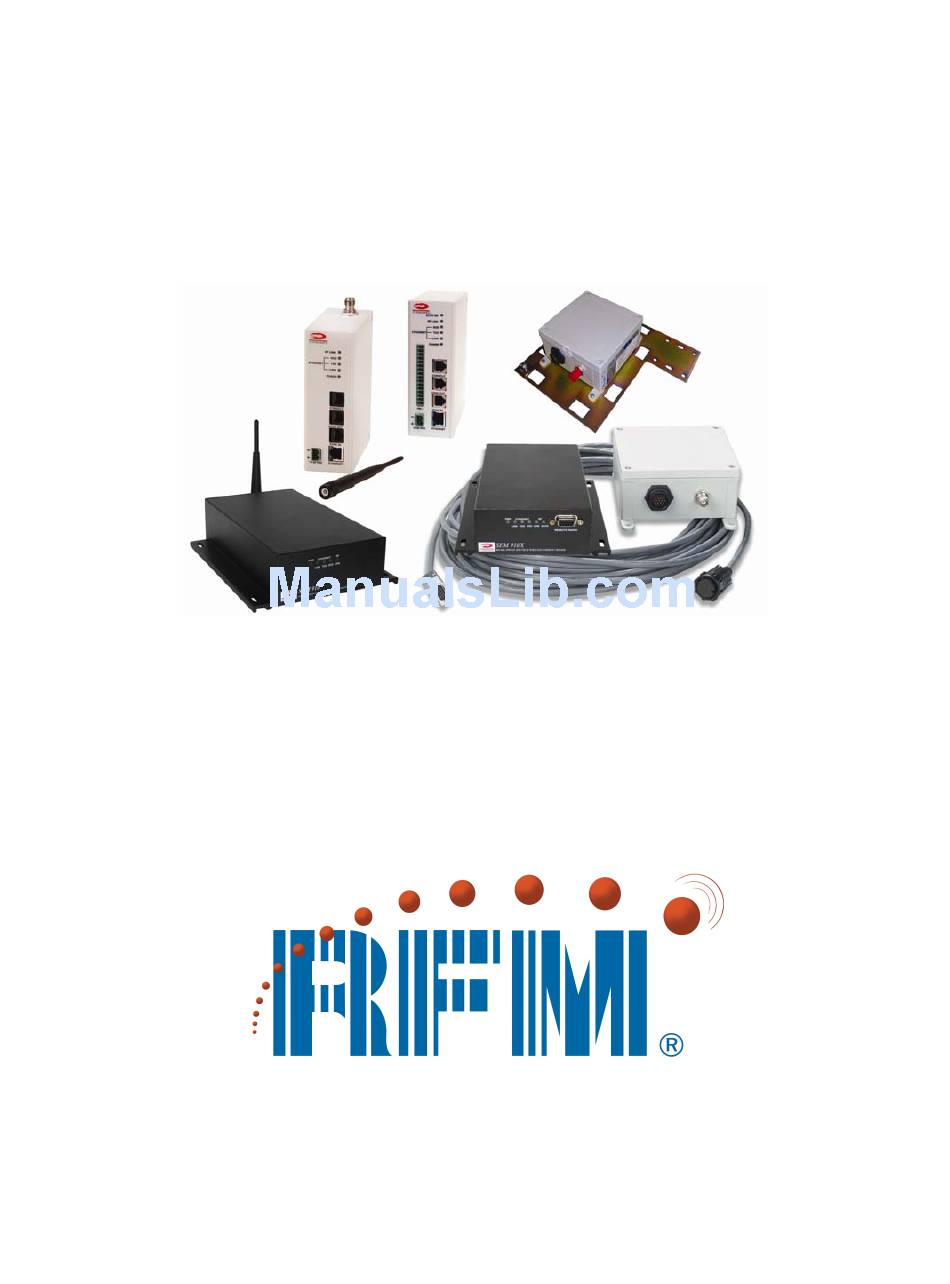

- Page 1 SEM910 /X /D /DX Wireless Ethernet Bridge User’s Guide...
- Page 2 Important Regulatory Information Cirronet Product FCC ID: HSW-910M IC 4492A-910M Note: This unit has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............................1 Getting Started .............................. 2 SEM910, SEM910D ............................3 Connectors ..............................4 Status Indicators............................4 SEM910X/DX ..............................5 Attaching the Remote Radio Connector – SEM910X ................7 Attaching Remote Radio Connector – SEM910DX................... 8 Configuring the SEM ........................... 10 Setting IP Addresses .......................... -
Page 4: Introduction
SEM910 Introduction The SEM910 family of products from Cirronet™ Incorporated provides wireless Ethernet connectivity between networks located more than 5 miles apart. Built around the WIT910 frequency hopping spread spectrum data modem, SEM products provide a 10/100BaseT connection to Ethernet networks. SEM products operate in a point-to-point mode or a point-to- multipoint mode using a star configuration. -
Page 5: Getting Started
IP addresses, configuring one SEM as the master and connecting the antenna, power and Ethernet cable. While the operation of the SEM910/D and SEM910X/DX is the same, the installation and connection is slightly different. Please refer to the appropriate section below for connection and installation of your product. -
Page 6: Sem910, Sem910D
SEM910 SEM910, SEM910D Figures 1, 2 & 3 show the various connectors and LEDs on the SEM910 and SEM910D. Figure 1. SEM910 Front Panel Diagram Figure 2. SEM910 Back Panel Diagram Figure 3. SEM910D Front Panel Diagram © 2000- 2004 Cirronet™ Inc... -
Page 7: Connectors
The 10/100BaseT Ethernet connector is the standard RJ-45 connector located on the front of the SEM910D and the rear of the SEM910. The SEM is set up to use a straight through cable to connect to a PC. If a straight through cable is used to connect the SEM to other devices through a hub, the SEM must be connected to the uplink port on the hub. -
Page 8: Sem910X/Dx
SEM910 SEM910X/DX Figures 4, 5 & 6 show the connectors and LEDs on the SEM910X & SEM910DX radios. Figure 7 illustrates the remote radio assembly. Connection between the SEM910X and SEM910DX enclosures and the remote radio assembly is made through the 15-terminal connector on the front of the radios. - Page 9 SEM910 Figure 6. SEM910DX Front Panel Diagram Figure 7. Remote Radio Assembly © 2000- 2004 Cirronet™ Inc M-910-0003 Rev -...
-
Page 10: Attaching The Remote Radio Connector - Sem910X
SEM910 The remote radio assembly has mounting holes to secure the antenna. The antenna is attached to the remote radio through the included 24-inch RF cable. If the antenna is not to be mounted on the remote radio assembly, connection between the remote radio and the antenna must be made with high-quality , loww-loss RF cable. -
Page 11: Attaching Remote Radio Connector - Sem910Dx
SEM910 Complete the assembly by placing the connector in the slot in one of the shell halves. Install the two retaining screws on both sides of the shell and through the holes on both sides of the connector; place the other shell half over the connector so the connector lies in the shell slot. - Page 12 SEM910 If a pin is accidentally installed in the wrong connector location, simply loosen the screw, remove the pin, re-insert it into the proper location hole and tighten the screw. Use the following color code to insert the pins into the connector:...
-
Page 13: Configuring The Sem
0.0.0.0 to have the slave SEM obtain its IP address from the DHCP server. IP Hunter Utility The SEM910 CD has a device detection and IP setting utility named IP Hunter. This utility will detect all Cirronet Ethernet devices on the local network, even those with no IP address. For those units without an IP address, IP Hunter can set the IP address and then open a browser session with that device to allow for further configuration. - Page 14 SEM910 Open IP Hunter by double-clicking on the file iphunter.exe on the SEM910 CD. The following screen will appear. Click on the Search button to begin the search for Cirronet devices. Only Cirronet Ethernet devices will be displayed as shown below.
- Page 15 Enter the desired IP address and the default netmask will automatically be entered as shown below. A new Host Name may be entered if desired; however, the MAC Address cannot be changed. Click OK and the IP address will be entered in the SEM910 and will be displayed in the IP Hunter window as shown below.
-
Page 16: Html Setup
SEM910 HTML Setup Once an address has been assigned, double-click on the IP number to launch an HTML setup session in a browser window. The login screen will display as shown below. Enter the default Username, “admin” and the default Password, “Cirronet” (case sensitive). - Page 17 This dialog allows the user to change the Hostname, set the Default Route, enter DNS entries or change the Outmax (upload/download ratio for the radio) setting. If the SEM910 is to transmit data to devices not on its subnet, a default router must be specified. To set the default routing address, enter it in the Default Route field.
- Page 18 Enable IP address Control This dialog is used to designate the Allowed IP addresses from which the SEM910 will accept a telnet session request. Simply enter an IP address in the “Allowed IP address” field and click “Add IP address.
-
Page 19: Console Port
SEM910 Access Control Users This dialog allows the modification of logins and the ability to add new users. Note: Click on Save Settings to store the system configuration changes in non-volatile FLASH memory. The user may either click on “Reset” to reboot the processor, click on “Logout” to end the browser session or simply close the browser window. -
Page 20: Filtering
Note: Failure to save and reset will result in the factory defaults being used. Filtering The SEM910 includes provision for filtering of multicast and broadcast packets. In many networks, there is sufficient multicast and/or broadcast packets to slow the overall performance of the SEM. -
Page 21: Sem Operation
SEM products use MAC-layer addresses to learn on which network segment a device is located. A master SEM can connect up to 15 remote slave SEMs. The SEM910 is a single channel device with an over-the-air data rate of 172.8Kbps. The radio modems in the SEMs are factory configured with optimum settings for typical point-to-point applications. -
Page 22: Point-To-Multipoint Mode
SEM910 the master automatically configures the radio in the master as a base radio. Similarly, configuring a SEM as a slave automatically configures the slave radio as a remote radio. When a master SEM is powered on, it becomes active immediately, even if no slave SEMs are detected. -
Page 23: Co-Located Networks
SEM910 If the application has more slave devices, or if it is desirable to increase the throughputs of the slaves at the expense of the master SEM, contact Cirronet technical support for more details. Co-located Networks The radio architecture in the SEM allows multiple networks to be located in the same area without interfering with each other. -
Page 24: Sem Command Set
SEM910 SEM Command Set The SEM supports a series of commands that allow for configuring the Ethernet interface as well as the radio parameters of the on-board WIT910. These commands can be entered during a telnet session or by using the WinSEM24 utility when the prompt is displayed. - Page 25 SEM910 Manipulates the address resolution procedure table. This command is provided primarily as a debugging tool for setting up networks. is the device IP ipaddr address and is the physical Ethernet address of the device eaddr default Resets SEM configuration parameters to factory default settings. This command does not reset the radio parameters.
-
Page 26: Bridge Commands
SEM910 Bridge Commands Command Description bridge help Displays help screen for command access <accesscode> Sets access code to allow slave SEM onto to Master’s network. Slave accesscode must match accesscode of desired Master filter [disable, bcast, Selects filtering operation and level. -
Page 27: Sem Security Commands
SEM910 SEM Security Commands Command Description Displays command help screen access help Enables/disables password requirement for direct console [enable|disable] console communications. ip [help Displays command help screen Sets IP addresses (up to 10) from which telnet add <ipaddr> sessions will be accepted Deletes ipaddr from list of allowed telnet initiators delete <ipaddr>... -
Page 28: Radio Commands
SEM910 Radio Commands Command Description Displays help screen for command slave [ help Disconnects slave SEM with the radio serial number disconnect <id-id-id> entered Displays slaves currently registered with the SEM list] (Master only) Displays help screen for command sync [help... - Page 29 SEM910 The following commands are issued by typing and then the subcommand followed by the radio subcommand parameters if any. Command Description radio help Displays command list banner Displays power on banner for the radio in the SEM defaults Resets the radio parameters to the factory shipped values...
- Page 30 SEM910 maxslaves Sets a limit to the number of slaves SEMS that a master SEM can have registered simultaneously. The default is 15 but the parameter can range from 1 to 15. If more than slave SEMs attempt to connect to the access point, they maxslaves will be denied access.
-
Page 31: Specifications
SEM910 Specifications Model SEM910 SEM910X SEM910D SEM910DX Data Throughput 150Kbps Total over-the-air bandwidth 172.8Kbps Network Interface 10/100BaseT Auto-sensing SEM Network Topologies Point-to-Point and Multipoint RF Output Power +10dBm/+18dBm/+27dBm Software Selectable Receive Sensitivity -100dBm RF Modulation Frequency Hopping Spread Spectrum Up to 36 user selectable hopping patterns... -
Page 32: Troubleshooting
SEM910 Troubleshooting Ethernet Link LED is not on. Check the power LED on the SEM. Check the Ethernet cable, making sure that it is fully connected. Check the gender of the Ethernet cable. The SEM can drive CAT5 cable to a maximum length of 100 meters. -
Page 33: Warranty
SEM910 Warranty Seller warrants solely to Buyer that the goods delivered hereunder shall be free from defects in materials and workmanship, when given normal, proper and intended usage, for twelve (12) months from the date of delivery to Buyer. Seller agrees to repair or replace at its option and without cost to Buyer all defective goods sold hereunder, provided that Buyer has given Seller written notice of such warranty claim within such warranty period.
