ActiveProducts XE06 Owner's Manual

1600 psi electric pressure washer
Hide thumbs
Table of Contents

Advertisement

Quick Links

moDel no.: Xe06
sKu: 039-8592-2
1600
PSI ElEctrIc PrESSurE WaShEr
Owner's Manual
Questions, Problems, missing Parts?
before returning to your retailer, visit our web site or call our customer service at
www.activeproducts.com / 1-866-924-7626
Please KeeP tHe original boX, PaCKaging anD reCeiPt. beFore oPerating
tHis unit, Please reaD tHis manual tHorougHlY anD retain it For Future
reFerenCe. iF You must store Your Pressure WasHer in a PlaCe WHere
tHe temPerature is beloW 5ºC, You must aPPlY WinteriZing ProCeDure to
ProteCt it. Failure to WinteriZe tHe unit maY PermanentlY Damage PumP
anD VoiD tHe WarrantY.
Purchase Date:___________________
Serial #: __________________
06_09/2009_
.1
version xe
rev

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XE06 and is the answer not in the manual?

Questions and answers

Related Manuals for ActiveProducts XE06

Summary of Contents for ActiveProducts XE06

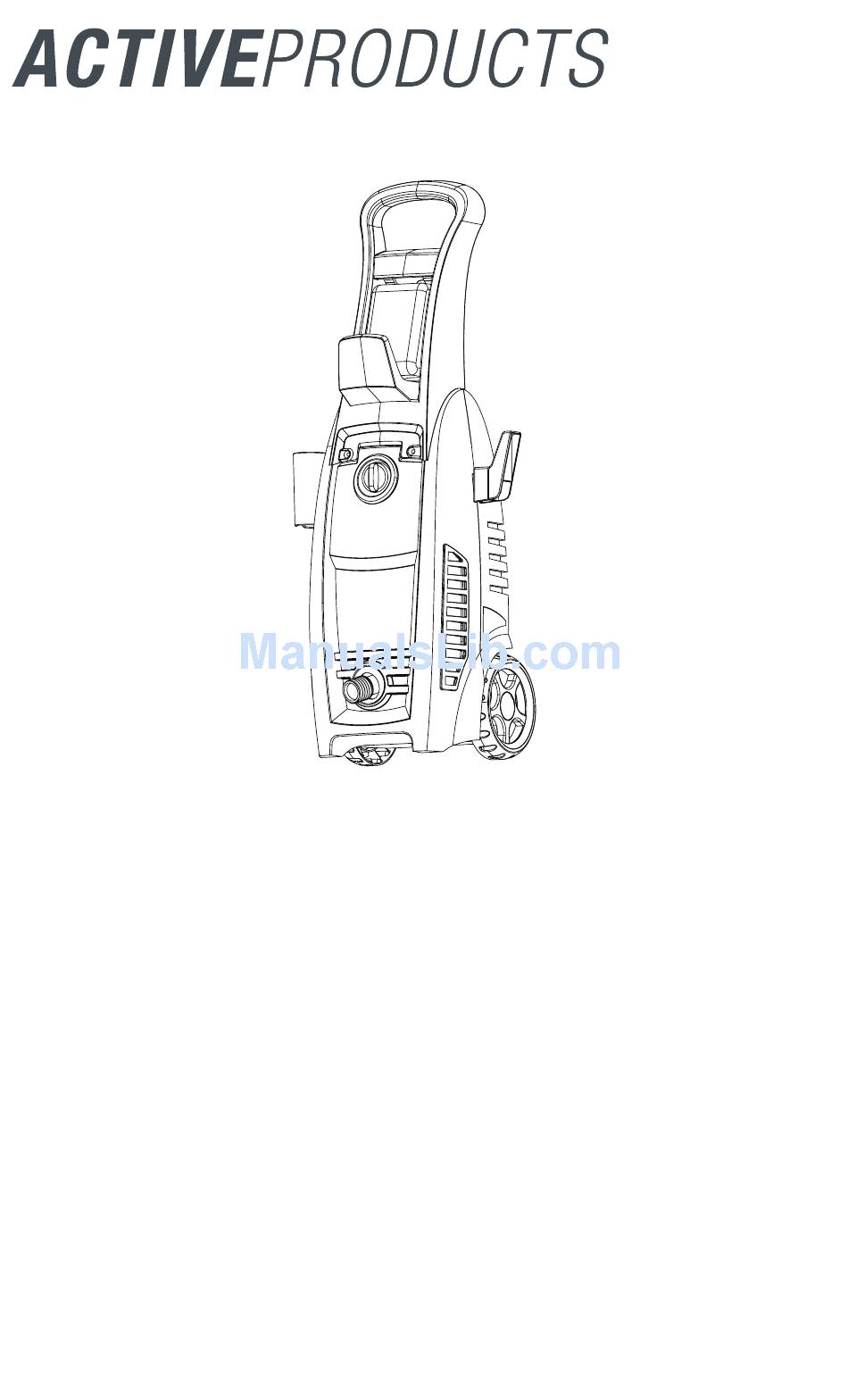

  • Page 1 Xe06 sKu: 039-8592-2 1600 PSI ElEctrIc PrESSurE WaShEr Owner’s Manual Questions, Problems, missing Parts? before returning to your retailer, visit our web site or call our customer service at www.activeproducts.com / 1-866-924-7626 Please KeeP tHe original boX, PaCKaging anD reCeiPt. beFore oPerating tHis unit, Please reaD tHis manual tHorougHlY anD retain it For Future reFerenCe.

  • Page 2: Table Of Contents

    This warranty is non-transferable and only applies to products that were sold in and reside in Canada. If you have any questions or comments, visit our web site at www.activeproducts.com or call our toll free customer service line at 1-866-924-7626.

  • Page 3: Important Precautions - Read First

    IMPORTANT PRECAUTIONS – READ FIRST IMPORTANT PRECAUTIONS – READ FIRST Warnings WARNING - Risk of Injury Do Not Direct Discharge Stream at Persons. When using this product, basic precautions should always be followed: • High-pressure jet can be dangerous if misused. • Read all the instructions before using the product. • The jet must not be directed at persons, animals, electrical devices, or the unit itself. • Water spray must never be directed toward any electric wiring, devices or directly toward the pressure washer machine itself, or fatal electric shock may occur.

  • Page 4: Safety Features And Electrical Power Information

    Part Name Parts Number • Do not use damaged extension cords. Examine extension cord before using and replace Adjustable wand XE06-020-0002 if damaged. Do not abuse extension cord and do not yank on any cord to disconnect. Turbo wand XE03-020-0001 • Keep cord away from heat and sharp edges.

  • Page 5: Assembly And Operating Instructions

    ASSEMBLY AND OPERATING INSTRUCTIONS ASSEMBLY AND OPERATING INSTRUCTIONS Surface Preparation Before starting any cleaning task, it is important to inspect the area for objects that could create a hazard. Remove any objects from the work area that could be tripped over, such as toys or outdoor furniture.

  • Page 6: Using The Accessories

    ASSEMBLY AND OPERATING INSTRUCTIONS ASSEMBLY AND OPERATING INSTRUCTIONS USING THE ACCESSORIES Attach garden hose to water supply and Make sure the ON/OFF switch is on the turn water on. OFF position. Adjustable Spray Nozzle The adjustable spray nozzle can be adjusted from fan to jet. The spray is adjusted from jet to fan spray by turning the nozzle.

  • Page 7: Shutting Down And Cleaning Up

    ASSEMBLY AND OPERATING INSTRUCTIONS ASSEMBLY AND OPERATING INSTRUCTIONS SHUTTING DOWN AND CLEANING UP (If you are not using detergent, go directly to Step 2.) When you have finished using the detergent injection system, fill detergent bottle with clean water. Siphon water at low-pressure for one minute so that all detergent is flushed through system.

  • Page 8: Winterizing And Long-Term Storage

    WINTERIZING AND LONG-TERM STORAGE CLEANING AND MAINTENANCE OPTIMUM WINTERIZING PROCEDURE Connections Connections on pressure washer hoses; gun and spray wand should be cleaned regularly Winterizing your pressure washer will help protect and prolong its life. We strongly and lubricated with non-water soluble grease. recommend you follow the below steps using Pressure Washer Pump Saver (39-8602-0).
  • Page 9 TROUBLESHOOTING TROUBLESHOOTING Disconnect the machine from the power source before making any repairs. Symptom Cause Solution Symptom Cause Solution Output pressure varies high Discharge nozzle is obstructed. Blow out or remove debris Motor will not start. On/Off switch is in the Turn switch to the “ON”...

  • Page 10: Troubleshooting

    Water supply is OFF . Turn ON water supply. Kink in the garden hose. Remove kink in garden hose. IF YOU ENCOUNTER ANY ADDITIONAL DIFFICULTIES NOT LISTED, VISIT OUR WEBSITE AT www.activeproducts.com OR CALL CUSTOMER SERVICE AT 1-866-924-7626 FOR HELP .
