Tattile GigE TAG-2 Reference Manual

Quadri-linear
Hide thumbs Also See for GigE TAG-2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual
TAG-2 CAMERA
quadri-linear
ENG
Reference Manual
© 2005 by TATTILE S.r.l.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GigE TAG-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Tattile GigE TAG-2

Summary of Contents for Tattile GigE TAG-2

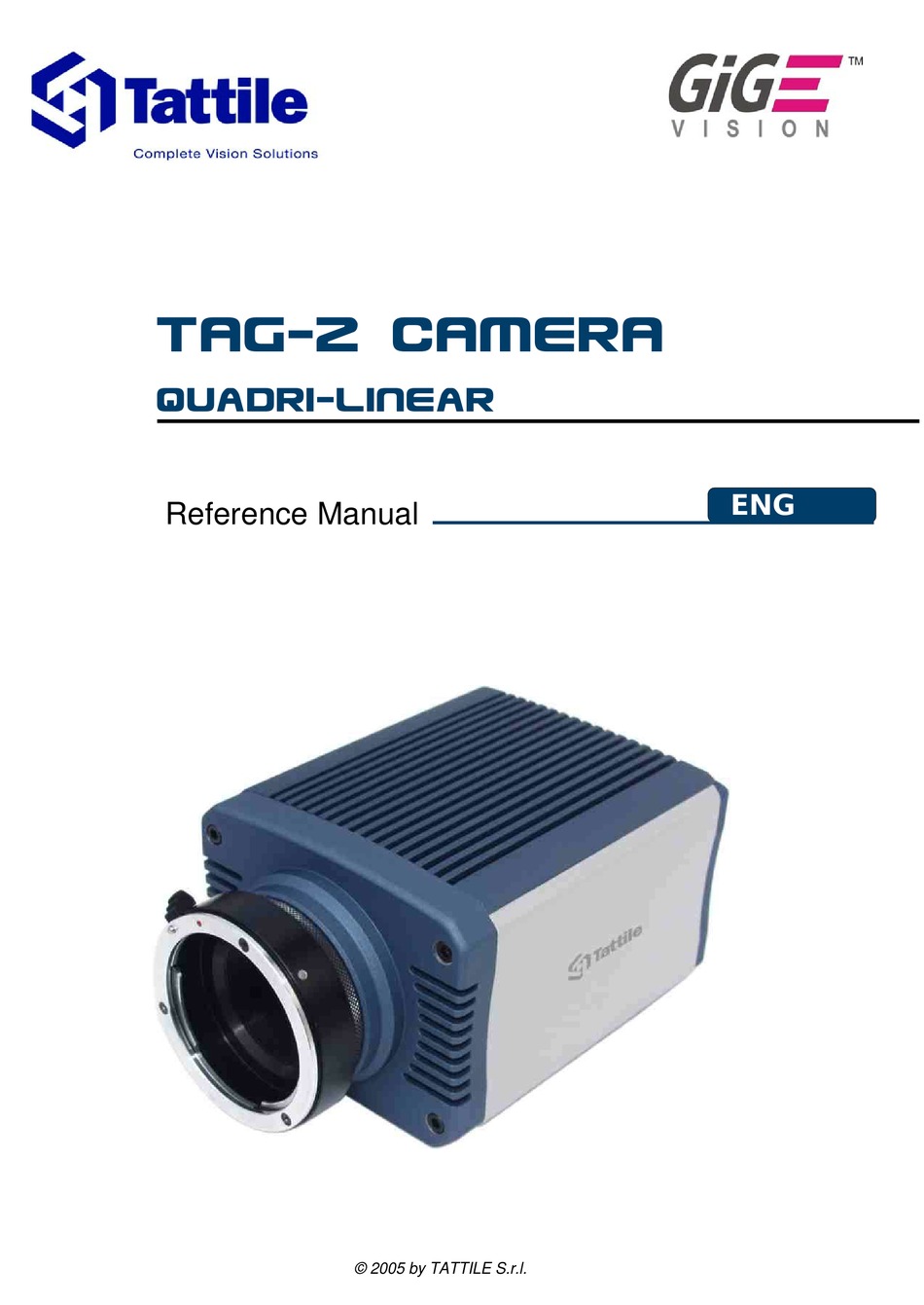

  • Page 1 TAG-2 CAMERA quadri-linear Reference Manual © 2005 by TATTILE S.r.l.
  • Page 2 The Gige® logo is registered mark of the Automated Imaging Association. All Tattile's systems were created to be alive, smart and open products. Therefore, we give you the chance to update features and capabilities during the whole life cycle of the products.The Download area of our web site has been created to allow our Partners to download new releases of Firmware and Software: http://www.tattile.com.

  • Page 3: Table Of Contents

    Index Mechanical Dimensions........................4 Connectors and Indicators.........................5 General Characteristics........................6 CCD General Characteristics......................7 Interface Connection..........................9 Example of Connection........................12 Instructions for a right installation of TATTILE control equipment...........14 Warning!............................15 Revisions............................16...

  • Page 4: Mechanical Dimensions

    TAG-2 CAMERA Mechanical Dimensions Note: To fix use only M4 screws, appling 1,55 Nm force.

  • Page 5: Connectors And Indicators

    TAG-2 CAMERA Connectors and Indicators Rear View...

  • Page 6: General Characteristics

    TAG-2 CAMERA General Characteristics Characteristics Electric Characteristics +24V Power Supply Power Consumption Sensor Linear CCD sensor Digital Inputs 2 optoisolated inputs 24Vdc 20mA Digital Outputs 2 PNP optoisolated outputs 24Vdc 500mA Ethernet Network GigaEthernet 10 bit Processor: Microprocessor Altera NIOS FPGA Technology...

  • Page 7: Ccd General Characteristics

    TAG-2 CAMERA CCD General Characteristics CCD Specifications Parameters Value 3x4134 chroma Total Number of Pixels 1x8292 luma 3x4128 chroma Number of Effective Pixels 1x8276 luma 3x4080 chroma Number of Active Pixels 1x8160 luma Pixel Size 10 µm (H) x 10 µm (V) chroma 5 µm (H) x 5 µm (V) luma...
  • Page 8 TAG-2 CAMERA Picture 1 - Sensor Typical Responsivity...

  • Page 9: Interface Connection

    TAG-2 CAMERA Interface Connection Power Interace connector...
  • Page 10 TAG-2 CAMERA Ethernet Connector...
  • Page 11 TAG-2 CAMERA Ethernet Connection Cables...

  • Page 12: Example Of Connection

    For connection between TAG-2 CAMERA M0 and PC use a cross-over cable. Note: Connection using Switches/Routers A maximum of 4 TAG-2 CAMERA can be connected to a personal computer, by using a network router or an ethernet switch.
  • Page 13 For connection between PC and switch/router and between switch/router and TAG-2 Note: CAMERA use ethernet direct cables. The TAG-2 CAMERA can be connected to a network factory, by using a network router or an ethernet switch. For connection between PC and switch/router and between switch/router and Smart Note: Reader M0 use ethernet direct cables.

  • Page 14: Instructions For A Right Installation Of Tattile Control Equipment

    TATTILE declines all responsibility for anomalous equipment operation, installed with criteria not respecting these instructions. TAG-2 CAMERA cable courses must be kept separate from power cables. • Pay attention to the various connections, especially in respect to the correct •...

  • Page 15: Warning

    TAG-2 CAMERA Warning! The warranty covering TATTILE equipment is invalidated when : 1. The equipment has been opened or tampered with. 2. Faults due to incorrect connection of power or input/output circuits. 3. Faults due to overload or non-compliance with equipment's rated specifications.

  • Page 16: Revisions

    TAG-2 CAMERA Revisions The Revision Index is reported below. The various revisions can contain additional information or corrections of printing errors. Rev. Date Page Description Prepared Checked Approved December 03.00.00 First release Nicola G. G.Gualeni Nicola F. 2005...
