Function Instruction

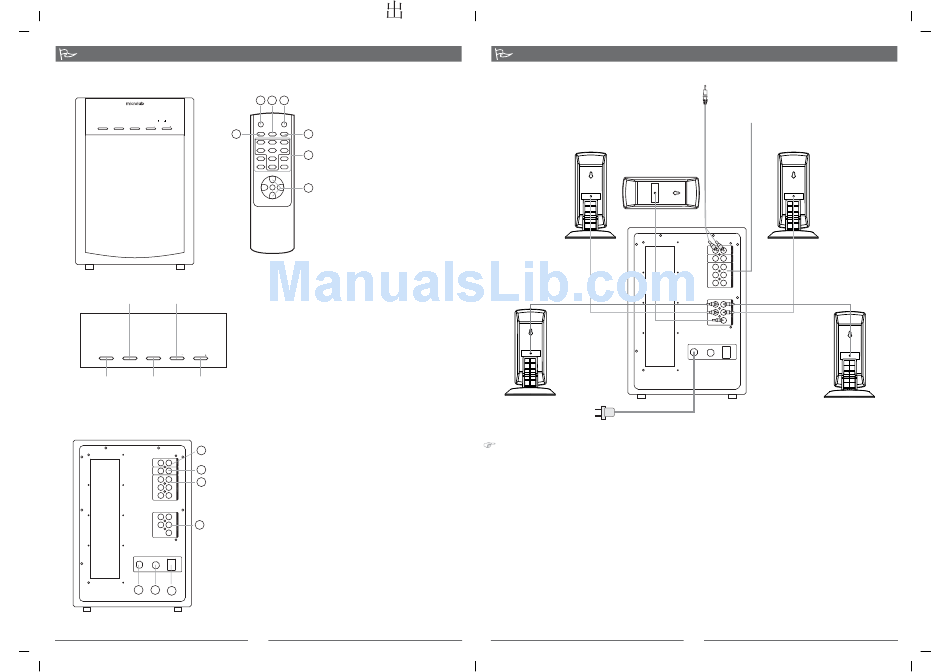

*Front View of the Subwoofer
MULTIMEDIA SPEAKER SYSTEM
STANDBY 2.1 5.1
OUTPUT
STANDBY INPUT-SEL MODE VOLUME VOLUME
Input select
Volume-
STANDBY INPUT-SEL MODE VOLUME VOLUME
Standby
Mode Volume+
*Back View of the Subwoofer
1
L R
2
L R
FL FR 3
CEN SW
SL SR
SR SL
4
FR FL
CEN
FUSE
AC IN
T1.25AL250V ON
OFF
7 6
5
*Front View of
Remote control
2 3 4
1.INPUT-SEL: select Input mode
ST-BY MUTE
2.ST-BY:Standby
INPUT-SEL RESET MODE
1 5
3. Reset: press this key to return to
+ + +
_ _ _
FRONT CENTER REAR the Start situation
6
+ + +
4.Mute: press the key to make the
_ _ _
TREBLE S.W. BASS
system in muting
VOL+
5.MODE: select Out put mode
7
6.Channel volume trimming keys
VOL-
7. VOLUME CONTROL: Adjust the
speaker system's volume to your
desired level
1.CD INPUT: 2RCA input jacks
2.AUX INPUT: 2RCA input jacks
3.5.1CH INPUT: 5.1 channel (6RCA) audio input jacks
4.AUDIO OUTPUT: 5.1 channel (5 RCA) audio output
jacks
5. POWER: Press the switch ON or OFF
6.FUSE
7.POWER CORD
3
System Connection
To stereo audio source
FR
CENTER
SUBWOOFER
SR
*Please note the correct placement of speaker is shown in the above picture.
System Connection:
1. Connect the front left/right, center, surround left/right speaker cables into the appropriate 5.1CH
output jacks on the back of the subwoofer.
2. While connecting to VCD, DVD, etc, please use the audio cables with double RCA ends. Connect
one end of the audio cables into the appropriate 5.1CH INPUT jacks on the back of the subwoofer,
the other end into the appropriate output jacks on the VCD, DVD, etc.
3. While connecting to the stereo audio source, please use the audio cable(3.5mm-2RCA). Connect the
RCA plugs of the audio cable into the CD or AUX audio input jacks on the back of the subwoofer, and
then the other end into the audio output on stereo audio source.
4. Remarks: the jacks and plugs are color-coded. Be sure to attach each color-coded plug to a matching
color coded jack.
5. Check the connection and make sure every cable is correctly connected, then connect power plug to
the right AC outlet. The shape of the plug and power outlet depends on the country of use.
* Statement indicating that the socket-outlet shall be installed near the equipment and shall be
easily accessible.
* The highest environmental temperature suitable for this product is 40 C
