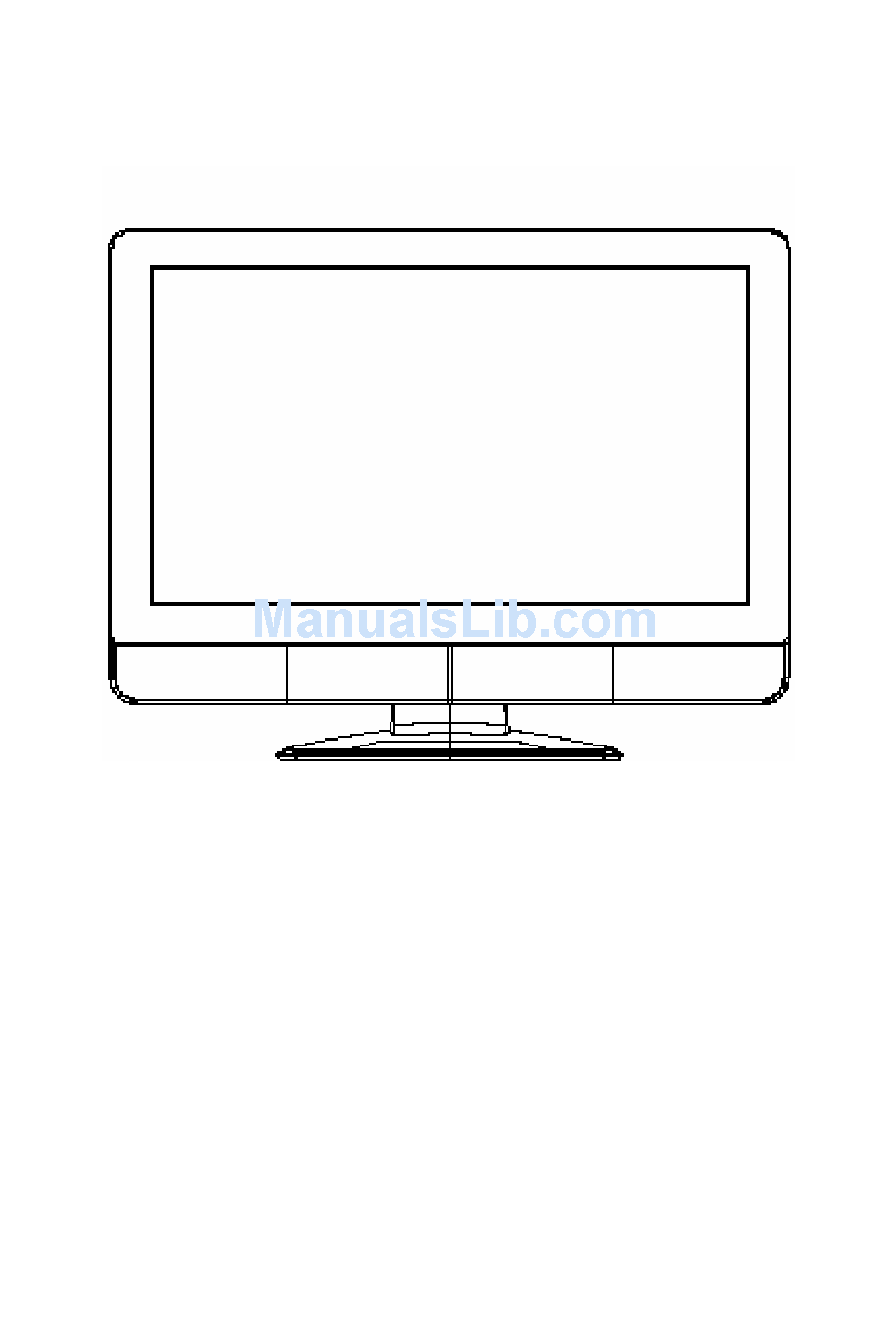

Service Manual

Model #: VIZIO VP505XVT1A_
Panasonic
V, Inc
320A Kalmus Drive Costa Mesa, CA 92626
TEL : +714-668-0588 FAX :+714-668-9099
Top Confidential

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP505XVT1A Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vizio VP505XVT1A Series

Summary of Contents for Vizio VP505XVT1A Series

  • Page 1: Service Manual

    Service Manual Model #: VIZIO VP505XVT1A_ Panasonic V, Inc 320A Kalmus Drive Costa Mesa, CA 92626 TEL : +714-668-0588 FAX :+714-668-9099 Top Confidential...
  • Page 2 Table of Contents CONTENTS PAGE Sections 1. Features 2. Specifications 3. On Screen Display 4. Factory Preset Timings 5. Pin Assignment 6. Main Board I/O Connections 7. Theory of Circuit Operation 8. Waveforms 9. Trouble Shooting 10. Block Diagram 10-1 11.
  • Page 3 VINC Service Manual VIZIO VP505XVT1A_Panasoni COPYRIGHT © 2000 V, INC. ALL RIGHTS RESERVED. IBM and IBM products are registered trademarks of International Business Machines Corporation. Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc. VINC and VINC products are registered trademarks of V, Inc. VESA, EDID, DPMS and DDC are registered trademarks of Video Electronics Standards Association (VESA).

  • Page 4: General Description

    Chapter 2 Specification 2.1 General Description Model No. VIZIO VP505XVT1A Product Name VP505XVT1A Panel Panasonic MD-50F11NJA Display Pixels 1920 (H) x 1080 (V) Active Display Area (mm) 1105.92 (H) x 622.08 (V) Aspect Ratio 16:9 Color Depth 10 bit, 1073.7M...
  • Page 5 PC Inputs 15pins D-sub Video Inputs 1x RF (Combo, F Connector for internal NTSC /ATSC/QAM Tuner) 4x HDMI with HDCP plus Stereo Analog Audio 1x Component YPbPr plus Stereo Audio 1x Composite Video plus Stereo Audio 1x S-Video plus Stereo Audio 1x Analog RGB Audio Input 3 x Stereo RCA Jack (R/L)

  • Page 6: Power Supply

    2.2 PANEL SPEC Item Specification Panel Panasonic 50F11NJA Display Pixel 1920 (H) x 1080 (V) Active Display Area (mm) 1105.92 (H) x 622.08 (V) Color Depth 10 bit, 1073.7M colors Pixel Pitch (mm) 0.576 x 0. 576 100(min) 140(typical) Luminance of Full White (panel spec., cd/m...
  • Page 7 2.4 Mechanical and Packaging Specifications 2.4.1 MECHANICAL SPECIFICATION Gap allowance between bezel & panel surface Gap ≦ 2 mm Tilt angle: 89 ≦ A ≦ 91 Panel disposition tolerance ∣A∣≧ 0 mm ∣B∣≧ 0 mm ∣C∣≧ 0 mm ∣D∣≧ 0 mm CONFIDENTIAL –...
  • Page 8 2.4.2 OUTLINE DIMENSION Physical dimension (Unite: mm) Display Module Display Module + Base Height 773.1 823.4 Width 1233.8 1233.8 Depth 94.2 259.8 Weight 43.5 ±0.5 kg Gross 52.0 ±1.0 kg Material, color Front bezel ABS(94-HB), Black T52013 Rear cover Metal(SGCC), T=0.8mm, Black Base ABS(94-HB), Black T52013 SPK Rear Cover...
  • Page 9 Pallet Load 6 units / pallet Container Load 40’ high container: 96 units (= 6 x 36 pallets) 2.4.4 ACCESSORIES a. 1.8M HDMI Cable x 1 b. 1.8M Power Cord 110V UL/CSA Black x 1 c. VIZIO Universal Remote Control VUR8P x 1 d.

  • Page 10: Confidential – Do Not Copy

    2.4.5 External Control Panel & Indicators <Front> <Side> 2.4.6 LED INDICATOR DISPLAY ON THE FRONT LED indicator Status Remark by disconnecting the power power off cord Becoming dimmer after White Power on lighting up a few seconds Becoming dimmer after Orange Standby/Power Off lighting up a few seconds...
  • Page 11 2.4.7 SPECIFICATION AND EXPLANATION OF USER CONTROL PANEL ON THE SIDE Buttons Name MENU VOL+ VOL- INPUT Standby/power on After AC on by plugging in a power cord and pressing Power button, LED indicator turns to white to indicate power on. To turn off this device, press this button again.

  • Page 12: On Screen Display

    Chapter 3 On Screen Display 3.1 MAIN UNIT BUTTON (1). POWER (2). MENU (3). CH + (4). CH - (5). VOL + (6). VOL - (7). INPUT (TV Source on Screen Display) 3.2 Operation Menu A. PICTURE ADJUST： a. PICTURE MODE (STANDARD/MOVIE/ GAME/SPORTS/CUSTOM) b.

  • Page 13: Features

    B. SCREEN ADJUST： a. WIDE MODE (STANDARD/FULL SCREEN/ CROP/PANORAMIC) b. OVERSCAN (OFF/LOW/MIDDLE/HIGH) C. AUDIO ADJUST： a. VOLUME (0~100) b. BASS (0~100) c. TREBLE (0~100) d. BALANCE (0~100) e. SRS TSHD (OFF/ON) f. SPEAKERS (OFF/ON) D. SPECIAL FEATURES： a. LANGUAGE (ENGLISH/FRANCAIS/ ESPANOL) b.

  • Page 14: Confidential – Do Not Copy

    E. PARENTAL CONTROL： a. PARENTAL LOCK ENABLE (OFF/ON) b. TV RATING c. MOVIE RATING d. BLOCK UNRATED TV (OFF/ON) e. ACCESS CODE EDIT F. ADVANCED VIDEO： a. NR-Temporal (OFF/LOW/MEDIUM/ STRONG) b. NR-MPEG (OFF/LOW/MEDIUM/STRONG) c. FILM MODE (AUTO/VIDEO/FILM) d. CTI (OFF/LOW/STRONG) e.

  • Page 15: File No. Sg-

    B. SCREEN ADJUST： a. WIDE MODE (STANDARD/FULL SCREEN/ CROP/PANORAMIC) b. HORIZONTAL POSITION c. VERTICAL POSITION d. CLOLK e. PHASE f. OVERSCAN (OFF/LOW/MIDDLE/HIGH) C. AUDIO ADJUST： a. VOLUME (0~100) b. BASS (0~100) c. TREBLE (0~100) d. BALANCE (0~100) e. SRS TSHD (OFF/ON) f.
  • Page 16 E. ADVANCED VIDEO： a. NR-TEMPORAL (OFF/LOW/MEDIUM/ STRONG) b. NR-MPEG (OFF/LOW/MEDIUM/STRONG) c. FILM MODE (AUTO/VIDEO/FILM) d. CTI (OFF/LOW/STRONG) e. FLESH TONE (OFF/ON) f. ADAPTIVE LUMA (OFF/ON) HDMI A. PICTURE ADJUST： a. PICTURE MODE (STANDARD/MOVIE/ GAME/SPORTS/CUSTOM) b. BRIGHTNESS (0~100) c. CONTRAST (0~100) d.
  • Page 17 B. SCREEN ADJUST： a. OVERSCAN (OFF/LOW/MIDDLE/HIGH) C. AUDIO ADJUST： VOLUME (0~100) BASS (0~100) c. TREBLE (0~100) BALANCE (0~100) SRS TSHD (OFF/ON) f. SPEAKERS (OFF/ON) D. SPECIAL ADJUST： a. LANGUAGE (ENGLISH/FRANCAIS/ ESPANOL) b. SLEEP TIMER (OFF/30MIN/60MIN/90MIN/ 120MIN) c. MAIN INPUT(TV/AV(S-VIDEO)/AV (COMPOSITE)/COMPONENT/RGB/HD /HDMI2/HDMI3/HDMI4 d.
  • Page 18 E. ADVANCED VIDEO： a. CTI (OFF/LOW/STRONG) b. FLESH TONE (OFF/ON) c. ADAPTIVE LUMA (OFF/ON) RGB MODE A. PICTURE ADJUST： a. BRIGHTNESS (0~100) b. CONTRAST (0~100) c. COLOR (0~100) d. TINT (-32~+32) e. SHARPNESS(0~7) f. COLOR TEMPERATURE (COOL/NORMAL /WARM/CUSTOM) g. ADVANCED VIDEO h.
  • Page 19 C. AUDIO ADJUST： a. VOLUME (0~100) b. BASS (0~100) c. TREBLE (0~100) d. BALANCE (0~100) e. SRS TSHD (OFF/ON) f. SPEAKERS (OFF/ON) D. SPECIAL ADJUST： a. LANGUAGE (ENGLISH/FRANCAIS/ ESPANOL) b. SLEEP TIMER (OFF/30MIN/60MIN/90MIN/ 120MIN) c. MAIN INPUT (TV/AV(S-VIDEO)/AV (COMPOSITE)/COMPONENT/RGB/HD /HDMI2/HDMI3/HDMI4 d.
  • Page 20 A. PICTURE ADJUST：(DTV & ATV) a. PICTURE MODE (STANDARD/MOVIE/ GAME/SPORTS/CUSTOM) b. BRIGHTNESS (0~100) c. CONTRAST (0~100) d. COLOR (0~100) e. TINT (-32~+32) f. SHARPNESS (0~7) g. COLOR TEMPERATURE (COOL/NORMAL /WARM/CUSTOM) h. ADVANCED VIDEO i. RESET PICTURE MODE B. SCREEN ADJUST：(ATV ONLY) WIDE MODE(STANDARD/FULL SCREEN/...
  • Page 21 D. TV TUNER SETUP：(DTV ONLY) a. TUNER MODE(ANTENNA/CABLE) b. AUTO SEARCH c. SKIP CHANNEL d. DTV TUNER SETUP D. TV TUNER SETUP：(ATV ONLY) a. TUNER MODE(ANTENNA/CABLE) b. AUTO SEARCH c. SKIP CHANNEL E. SPECIAL FEATURES：(DTV ONLY) a. LANGUAGE (ENGLISH/FRANCAIS/ ESPANOL) b.
  • Page 22 ESPANOL) b. SLEEP TIMER (OFF/30MIN/60MIN/90MIN/ 120MIN) c. ANALOG CC (OFF/CC1~4) d. MAIN INPUT (TV/AV(S-VIDEO)/AV (COMPOSITE)/COMPONENT/RGB/HD MI1/HDMI2/HDMI3/HDMI4 e. IMAGE CLEANER f. RESET ALL SETTINGS F. PARENTAL CONTROL：(DTV ONLY) a. PARENTAL LOCK ENABLE (ON/OFF) b. DTV PARENTAL CONTROL (CHANNEL BLOCK) c. TV RATING d.
  • Page 23 G. ADVANCED VIDEO：(DTV ONLY) a. FILM MODE (AUTO/VIDEO/FILM) b. CTI (OFF/LOW/STRONG) c. FLESH TONE (OFF/ON) d. ADAPTIVE LUMA (OFF/ON) G. ADVANCED VIDEO：(ATV ONLY) a. NR-TEMPORAL (OFF/LOW/MEDIUM/ STRONG) b. NR-MPEG (OFF/LOW/MEDIUM/ STRONG) c. FILM MODE (AUTO/VIDEO/FILM) d. CTI (OFF/LOW/STRONG) e. FLESH TONE (OFF/ON) f.
  • Page 24 I. DTV CC：(DTV ONLY) a. ANALOG CLOSED CAPTION (OFF/ CC1~4) b. DIGITAL CLOSED CAPTION(OFF/ SERVICE1~6) c. DIGITAL CAPTION STYLE (AS BROADCASTER/CUSTOM) CONFIDENTIAL – DO NOT COPY Page 3-13 File No. SG-0283...
  • Page 25 3.3 PIP TABLE Main\PIP AV/S VGA YPrPb1 HDMI1 HDMI2 HDMI3 HDMI4 AV/S YPrPb1 HDMI1 HDMI2 HDMI3 HDMI4 Remark (1): “ ” – Indicates which inputs are available for PIP and POP modes. CONFIDENTIAL – DO NOT COPY Page 3-14 File No. SG-0283...

  • Page 26: Trouble Shooting

    Chapter 10 Trouble shooting MONITOR DISPLAY NOTHING (ANY MODE) Start LED is lighted Check AC power cord Check Con9 Power supply Check Fuse Open? Panel Power Fail AC Power cord Fail Check CON26 Check MCU Pin 26 LED backlight LED Fail Pin5, 6 key Signal Signals is white?
  • Page 27 Video Processor Is Video Processor Fail normal? Panel Fail AUDIO NO SOUND (ANY MODE) Start Check Audio Input Source Fail Is Audio Normal? Signal Normal? Check U75 Signals U75 Fail Normal Check U83 Signals U83 Fail Normal Speaker Fail CONFIDENTIAL – DO NOT COPY Page 10-2 File No.

  • Page 28: Firmware Upgrade

    FIRMWARE UPGRADE 1. When Input USB disk in USB port, please download new firmware and make sure Power off. 2. Push down MENU button then press POWER button immediately after release it. CONFIDENTIAL – DO NOT COPY Page 10-3 File No. SG-0283...
  • Page 29 3. It will show UPDATING MAIN FIRMWARE state in TV Monitor, when it finish firmware upgrade that will display the below (Please waiting Updating firmware until show “Please turn TV off” ) 4.We can check it firmware version, please push buttons MENU>2>4>8>9 as soon as possible that we can check whether it upgrades success.
  • Page 30 5. Then use remote control to do Factory Reset (Please see the below picture). We push “Yes” when TV finish “Factory Rest” that TV will auto shut off. CONFIDENTIAL – DO NOT COPY Page 10-5 File No. SG-0283...
