User manual Desktop MIXER AMPLIFIER MX-AMP 120E MX-AMP 120E MIXER AMPLIFIER … to make people listen Status 05/2004... - Page 2 MX-AMP 120E ic audio Mixer-Amplifier - Front - MX-AMP 120E MIXER AMPLIFIER Mixer-Amplifier - Rear - POWERINPUT:350WATTS POWERINPUT:350WATTS...
-
Page 3: Table Of Contents
Content ic audio Preperation Device Functions Unpacking 5 - Rear side - Safety Instructions 5 General Informations 5 230V Mains Connection 13 Rack-Mounting 6 100V/ 70V/8 Speaker Output 14 Cooling 6 Connection with One Zone 15 Positioning Mixer Amplifier 6... -
Page 4: Unpacking
Please note the unpacking instructions - Unpacking Safety Informations - Safety Instructions Please note the safety instructions before the - General Informations connecting the MX-AMP 120E - Rack-Mounting General Informations - Cooling Cooling and instructions for the installation - Positioning Mixer Amplifier... - Page 5 Preparation ic audio General Informations Unpacking DO NOT run microphone cables near mains, Please verify if the following parts were delivered: data, telephone or 100V line cables. DO NOT run 100V line cables near data, line cord telephone or other low voltage cables.
-
Page 6: Rack-Mounting
Preparation ic audio Rack-Mounting The housing of the Mixer-Amplifier is a 19 inch rack standard construction. Please check if you have enough space for cooling the amplifier. For the optimum mounting in the 19” rack you should 40°C fix the mixer - amplifier in the rack-frame with 4 screws. -
Page 7: Special Characteristics
Special Characteristics ic audio - Paging Microphone Functions Paging Microphone Functions - Common Function 5 Microphone inputs - Inputs - Outputs Common Function 230V Mains Connection Inputs CD, Tuner, Tape Outputs 100V Speaker Zone Speaker Zone 8ohm - For Monitor speaker... -
Page 8: Device Functions - Front Side

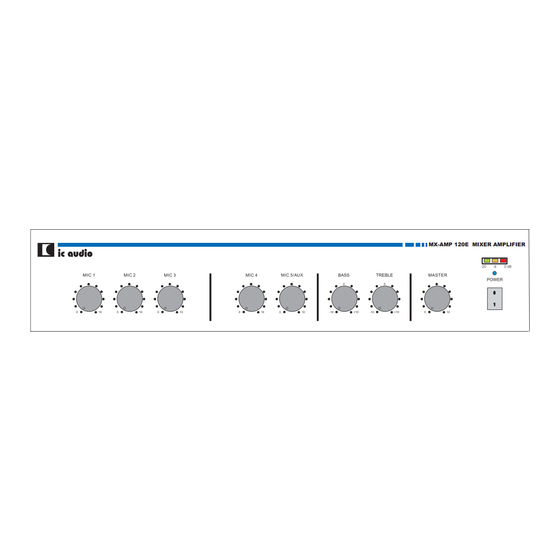

Device Functions - Front side - ic audio ic audio LED - Display Display for the activation ON/OFF - Switch - LED - Display Setting - up the Mixer-Amplifier - ON/OFF - Switch - Microphone Controller Microphone Controller -Switch AUX/MIC... - Page 9 The red LED shines only when running in full conduction. This zone is not advisable for long-term usage. MX-AMP 120E MIXER AMPLIFIER ON/OFF - Switch With this switch you turn on the apparat. Position I = apparat is on...
- Page 10 Microphone Controller Microphone Controller With the Microphone Controller you can controll the volume of the separate microphones. MX-AMP 120E MIXER AMPLIFIER Switch AUX/MIC With the switch you can controll the inputs of the connected signal source. The source can be a CD-Player, Tape or a cassette recorder.
-
Page 11: Controller Master
The bass control lifts or lowers frequencies near to 100Hz at 10dB. The treble-control has the same effect on at frequencies near to 10.000Hz. MX-AMP 120E MIXER AMPLIFIER Master Controller The master control drives the volume of all signals being processed by the amplifier. -
Page 12: Device Functions - Rearside
Device Functions ic audio - Rearside - 230V Mains Connection Selector to adapt the mains connection - 230V Mains Connection 100V/70V/8ohm Speaker Output - 100V Speaker Output Terminal for 100V/8ohm - speakers - Connection with One Zone Connection with One Zone... - Page 13 Device Functions ic audio - Rearside - 230V Mains Connection The amplifier is factory set at 230 V(AC) mains voltage. POWERINPUT:350WATTS POWERINPUT:350WATTS Mains Supply...
- Page 14 Device Functions ic audio - Rear side - 100V Speaker Output 8ohm Speaker Output The amplifier provides two different Loudspeaker This output allows connection of standard low zones. impedance loudspeakers. The minimum load impedance must be 8ohm When two or more...
- Page 15 Device Functions ic audio - Rear side - AUX OUT IN AUX/MIC These standard RCA phono sockets provide a The equipment provides an auxiliary input mixed output suitable for connection to a tape or which may be used for connecting other cassette recorder.
- Page 16 Device Functions ic audio - Rear side - OVERVIEW of all Functions TUNER TAPE RECORDER POWERINPUT:350WATTS POWERINPUT:350WATTS MUSIC / SPEECH...
-
Page 17: Further Information
Further ic audio Information Technical Specifications Containing all technical specifications Block Plugging Diagram Circut construction - Technical Specifications - Block Plugging Diagram Index Content in alphabetical order. - Index... - Page 18 MASTER volume controll TON controls (Bass,Treble) Indicators Power Indicator (LED), output level indicators (3 LEDS) AC power consumption 360 watts Dimensions (H x B x T) Desktop: 88 x 430 x 260 mm Weight MX-AMP 120E: approx. 9.5kg Colour Black...
- Page 19 Further ic audio Information Block Plugging Diagram Block Plugging Diagram...
-
Page 20: Index
Further ic audio Information INDEX Block Plugging Diagram 19 Bass and Treble Controller Cooling 6 Inputs 7 LED-Display 9 Master Controller Microphone Input 15 Mains Connection 13 ON/OFF - Switch 9 Outputs 15 Rack-Mounting 6 Speaker Output 15 Safety Instructions 5... - Page 21 … to make people listen ic audio GmbH Boehringerstraße 14a 68307 Mannheim / Germany Fon:+49(0)621/ 77096-0 Fax:+49(0)621/ 77096-26 www.ic-audio.com Email: info@ic-audio.com...
