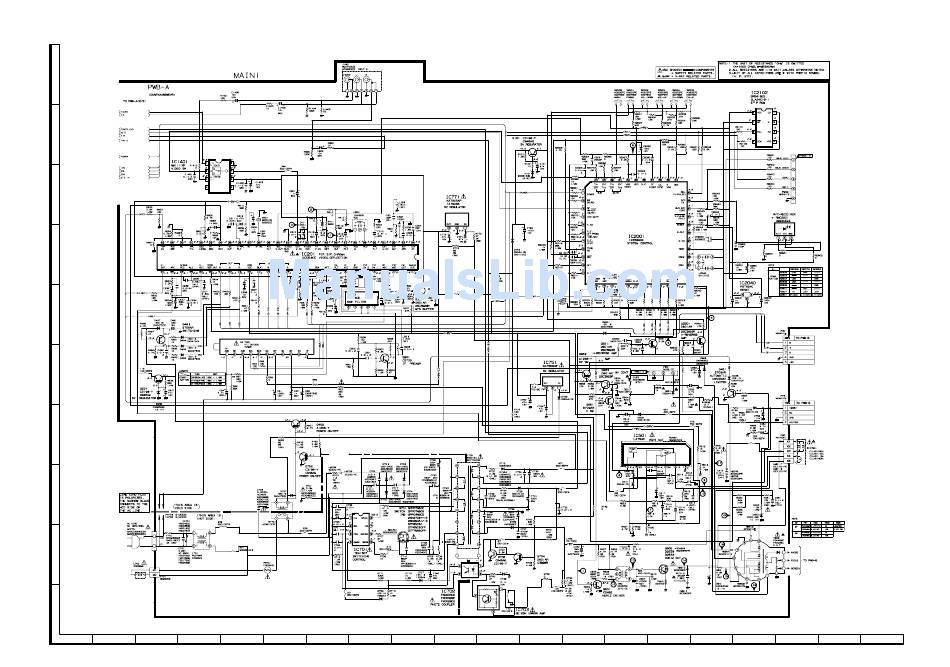

MODEL 25R-S100 SCHEMATIC DIAGRAM: MAIN-1 Unit
J
I
H
G
F
E
D
C
B
A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
6~7
15
16
17
18
19
20
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
6
7
8
