ProSwitch
CORPORATE HEADQUARTERS
5001 American Blvd., W. Suite 605
Bloomington, MN 55437
Phone: 800.441.5319

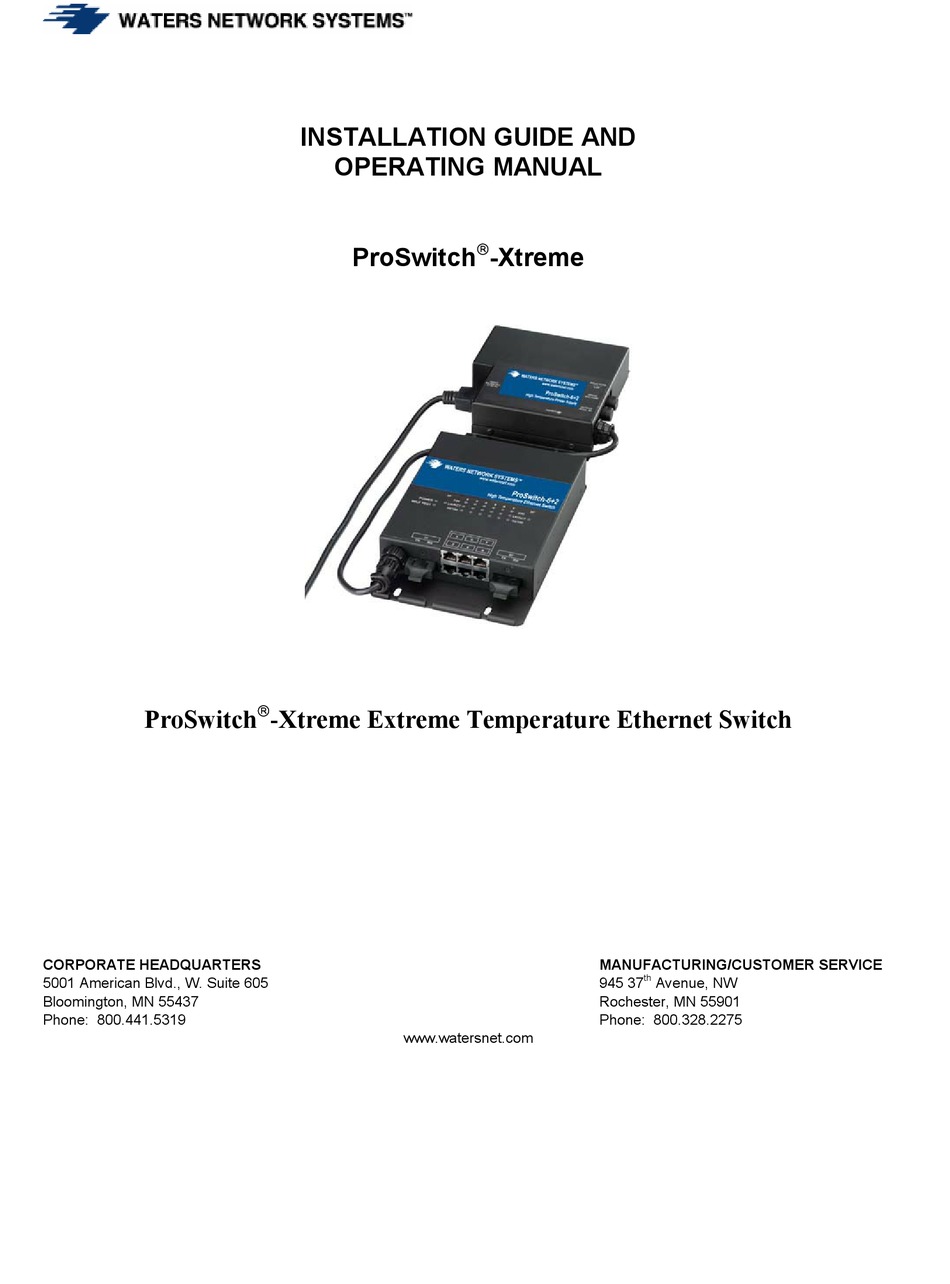

INSTALLATION GUIDE AND
OPERATING MANUAL
ProSwitch
-Xtreme Extreme Temperature Ethernet Switch
www.watersnet.com
-Xtreme
MANUFACTURING/CUSTOMER SERVICE
th
945 37
Rochester, MN 55901
Phone: 800.328.2275
Avenue, NW
Advertisement
Table of Contents
Related Manuals for Waters Network Systems ProSwitch-Xtreme
Summary of Contents for Waters Network Systems ProSwitch-Xtreme
- Page 1 INSTALLATION GUIDE AND OPERATING MANUAL ProSwitch -Xtreme ProSwitch -Xtreme Extreme Temperature Ethernet Switch CORPORATE HEADQUARTERS MANUFACTURING/CUSTOMER SERVICE 5001 American Blvd., W. Suite 605 945 37 Avenue, NW Bloomington, MN 55437 Rochester, MN 55901 Phone: 800.441.5319 Phone: 800.328.2275 www.watersnet.com...
-
Page 2: Table Of Contents
DUAL-SPEED FUNCTIONALITY AND SWITCHING ..............9 AUTO-NEGOTIATION AND SPEED-SENSING ..............9 TROUBLESHOOTING ......................9 BEFORE CALLING FOR ASSISTANCE................10 WHEN CALLING FOR ASSISTANCE ...................10 RETURN MATERIAL AUTHORIZATION (RMA) PROCEDURE ...........10 SHIPPING AND PACKAGING INFORMATION..............10 APPENDIX A: WARRANTY INFORMATION ..................11 WATERS NETWORK SYSTEMS ProSwitch-Xtreme Operating Manual Page 1... -
Page 3: Introduction
The ProSwitch-Xtreme’s chassis houses one main PC board. The front side of the chassis has six RJ45 twisted-pair ports and two 100Mbps full-duplex fiber ports (one on each side of the RJ45 ports). The fiber ports operate in full-duplex mode only to provide higher bandwidth and longer distances on fiber. -
Page 4: Fiber Port, Sc Connectors
The latency (the time the frame spends in the switch before it is sent along or forwarded to its destination) of the ProSwitch-Xtreme varies with the port-speed types, and the length of the frame is a variable, as it is with all store- and-forward switches. -
Page 5: Applications
Example 1. Traffic Control Sites In this example, a ProSwitch-Xtreme serves roadside real time traffic data collection and transmits it to a remote control station over fiber. Since multiple traffic control sites are a long distance apart, they are all connected in series to each other and to the central station. -
Page 6: Specifications
Cooling method: Convection, with case operating as a heat sink. Note: Internal steel plates conduct heat from the electronic elements inside to the ProSwitch-Xtreme steel case, which acts as a heat sink. Internal chip temperatures are only about 10°C above case ambient during... -
Page 7: Installation
Location of Xtreme 10/100Mbps Switch 5.2.1 Tabletop or Shelf Mounting The ProSwitch-Xtreme Ethernet switch can be easily mounted on a tabletop, shelf or any suitable horizontal surface, but has to be securely mounted through appropriate screws. 5.2.2 Wall (or vertical surface) Mounting The ProSwitch-Xtreme switch is quite heavy because of its 18-gauge high-strength steel case enclosure. -
Page 8: Connecting Twisted Pairs
4. Connect the Transmit (TX) port on the ProSwitch-Xtreme fiber port to the Receive (RX) port of the remote device. Begin with the color-coded strand of the cable for this first TX-to-RX connection. Note – the two male square-end SC cable strands may be fastened together to plug as a unit. -
Page 9: Connections To Nics, Supporting Auto-Negotiation, Rj45 Ports
Auto-Negotiation, and the Fast Link Pulse (FLP) coding for the 100BASE-TX signaling system. When connecting a NIC to a ProSwitch-Xtreme, it may be necessary to reload the NIC drivers on the user device if the NIC has been communicating with a protocol other than 100BASE-TX (such as 10BASE-T). When 100Mbps speed is agreed and in use, the 10/100 LED is steady ON. -
Page 10: Operation
When an RJ45 cable connection is made, and each time a LINK is enabled, auto-negotiation takes place. The ProSwitch-Xtreme advertises its capability for 10 or 100 Mbps speed, and the device at the other end of the cable should similarly advertise/respond and both sides will agree to the speed being used. Depending upon the device connected, this will result in agreement to operate at either 10Mbps or 100Mbps speed. -
Page 11: Before Calling For Assistance
All returns for repair must be accompanied by a Return Material Authorization (RMA) number. To obtain an RMA number, call Waters Network Systems Customer Service at 800.328.2275 during business hours from 8:00 am to 5:00 pm (CT) email carolynl@wtrs.com. When calling, please have the following information readily available:... -
Page 12: Appendix A: Warranty Information
Waters Network Systems be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder. Waters Network Systems will in no case cover damages arising out of the product being used in a negligent fashion or manner. For additional Waters’...
