Invacare A1541 Assembly, Installation And Operating Instructions

ProSPIN™X4™Caster Swivel Locks
Assembly, Installation and Operating Instructions
Model No. A1541
NOTE: Check all parts for shipping damage. In case of damage, DO NOT use. Contact
Carrier/Invacare for further instructions.
To ensure the safe and proper installation of the caster locks, these instructions MUST be
followed:
DO NOT use this equipment without first reading and understanding this
instruction sheet and the owner's manual supplied with wheelchair. If you are
unable to understand the warnings, cautions and instructions, contact a healthcare
professional, dealer or technical personnel if applicable, before attempting to install
this equipment - otherwise, injury or damage may occur.
ALWAYS consult with your physician or therapist to determine proper adjustment
and usage.
Invacare products are specifically designed and manufactured for use in conjunction
with Invacare accessories. Accessories designed by other manufacturers have not
been tested by Invacare and are not recommended for use with Invacare products.
ALWAYS engage both front caster swivel locks and both rear wheel locks before
transferring to and from the wheelchair - otherwise injury or damage may occur.
Positioning the Front Casters
NOTE: For this procedure, refer to FIGURE 1.
1. Position both casters to face the front or
rear of the wheelchair to align the front
or rear lock plate hole with the caster
lock assembly.
NOTE: It is recommended that the front casters
be positioned toward the front of the wheelchair
for additional stability when transferring.
For more information regarding Invacare products, parts, and services,
Part No 1134875
SAVE THESE INSTRUCTIONS

Safety Summary

WARNING
please visit www.invacare.com
1
Caster Lock
Assembly
Lock Plate Hole
Caster

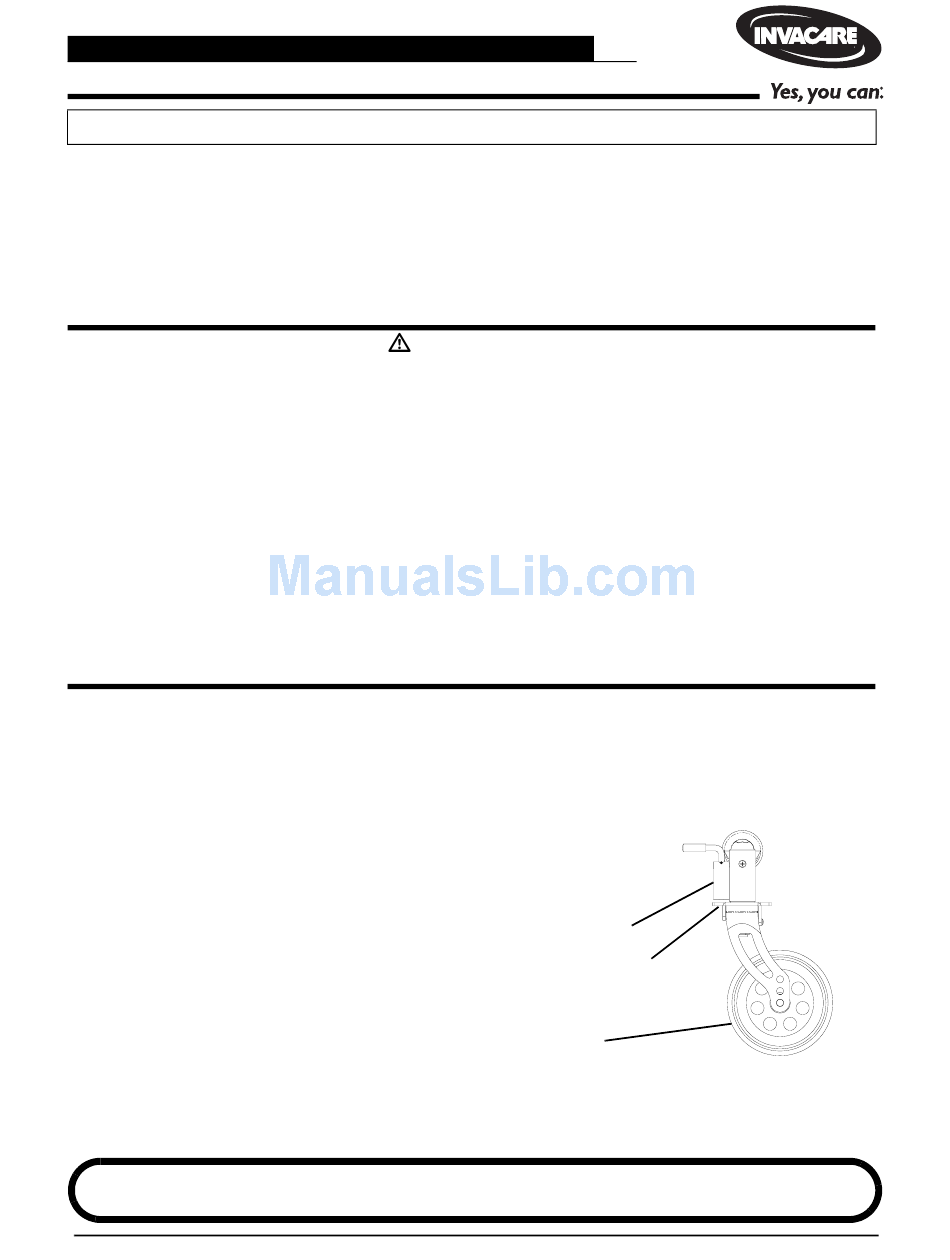

FIGURE 1 Positioning the Front Casters
ProSPIN™X4™Caster Swivel Locks
