User Guide

Back to Contents Page
Using Your Projector: Dell™ 2300MP Projector

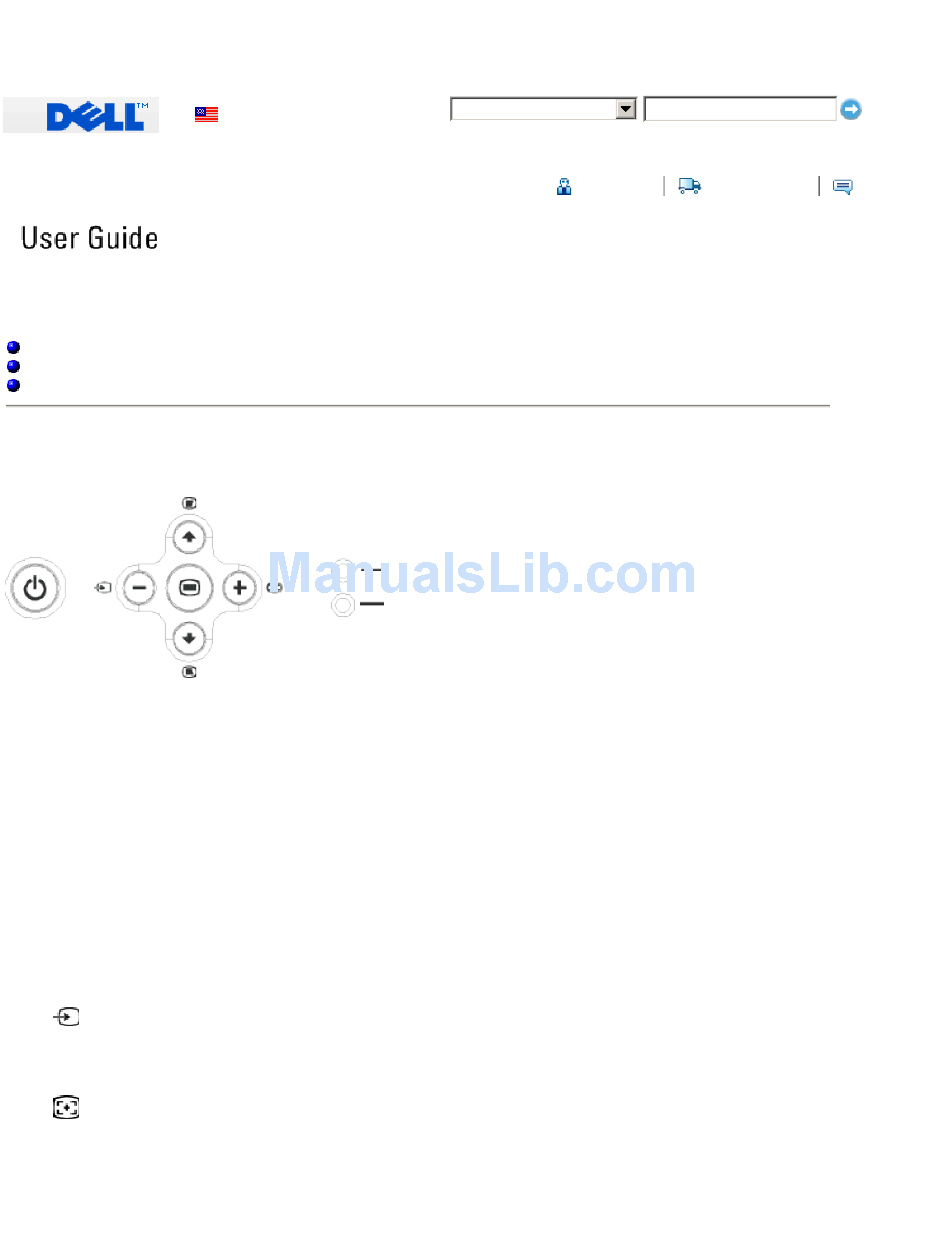

Control Panel

Remote Control
On-Screen Display
Control Panel
Power
See
"Powering On/Off the
Volume
Increase or decrease the speaker volume.
Video Mode
Switch the display mode within PC Mode , Movie Mode , Game Mode, sRGB Mode, User Mode per your
preference.
Source
Press
to step through Analog RGB, Composite, Component-i, S-video, and Analog YPbPr sources when
multiple sources are connected to the projector.
Resync
Press
to synchronize the projector to the input source.
Resync will not operate if the
Menu
Servers, Storage & Networking
Projector."
OSD
(On-Screen Display) is displayed.
