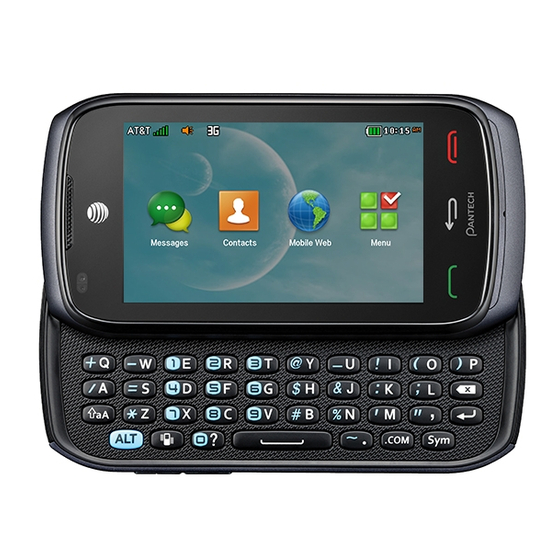

P6070
User Guide for P6070
Thank you for choosing the Pantech P6070. The Pantech
P6070 has many features designed to enhance your mobile
experience. With its unique, stylish design and QWERTY
keypad, you will enjoy the entire P6070 experience.
This User Guide contains important and useful information
that will maximize your familiarity with all that the Pantech
P6070 has to offer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P6070 and is the answer not in the manual?

Questions and answers

Related Manuals for Pantech P6070

Summary of Contents for Pantech P6070

  • Page 1 P6070 User Guide for P6070 Thank you for choosing the Pantech P6070. The Pantech P6070 has many features designed to enhance your mobile experience. With its unique, stylish design and QWERTY keypad, you will enjoy the entire P6070 experience. This User Guide contains important and useful information that will maximize your familiarity with all that the Pantech P6070 has to offer.
  • Page 2 AT&T, the AT&T logo and all other AT&T marks contained herein are trademarks of AT&T Intellectual Property and/or AT&T affiliated companies. All other marks contained herein are the property of their respective owners. Copyright © 2014. Pantech. All Rights Reserved.

  • Page 3: Important Safety Information

    Important Safety Information Specifications Design Touch & QWERTY Slide Displays 260K colors TFT with 3.2” display 400*240 (WQVGA) pixels in resolution Melodies MP3, AAC, AAC+, eAAC+ and WMA Camera Integrated 3M CMOS Camera Resolution up to 2048 x 1536 (3,145,728 pixels) Mpeg4 and H.264 video recording/playing up to 15fps (QVGA size) Self-timer function (Off, 3, 5 or 10 seconds) Picture album and video album...

  • Page 4: Operating Frequency

    Important Safety Information Power Management (Performance) Battery Type Capacity Standby Time Talk Time Standard Lithium-Ion 1,230 mAh Up to 490 hours Up to 6.8 hours (Li-ion) Operating Frequency GSM/GPRS/EDGE 850/900/1800/1900 MHz, UMTS/HSDPA 850/1900/2100 MHz networks in North America, South America, Europe, Africa, and Asia-Pacific where these networks are supported.

  • Page 5: Phone Overview

    Important Safety Information Phone overview Touch mode view Earpiece Proximity Sensor Back Key Send Key Home/End Key Microphone...
  • Page 6 Important Safety Information PWR / Lock Key Volume keys Lock the screen. Adjust the earpiece volume. Launch Multitasking. Charging / Data Jack Headset Jack Speaker Camera Internal Antenna Area Camera Button Take pictures or videos. Voice command Key Activate voice commands.
  • Page 7 Important Safety Information Keys Functions Turn on/off the phone if pressed and held. Lock the touch screen. Adjust the earpiece volume while making a call. Adjust ringtone volume, and change the profiles setting to Vibrate or Silent on standby mode. Mute the ringtone of an incoming call.

  • Page 8: Qwerty Keypad

    Important Safety Information QWERTY Keypad Delete Key Delete a character/ symbol CAPS Key Enter Key Enter capital Move to the letters next row Function Key Symbol Key Enter numbers Enter a special or symbols symbol Vibrate Key Space Key Insert a space Note To use the QWERTY keypad, hold the phone horizontally and slide the screen up.
  • Page 9 Important Safety Information Your phone has a QWERTY keypad which provides a superior typing experience on a small handheld device for easy and comfortable texting. You can use all of the phone functions with the QWERTY keypad. Keys Functions Press to change text entry modes on the text editing screen (first letter caps/all caps/lowercase).

  • Page 10: MEnu Overview

    Important Safety Information Menu Overview Easy Mode Menu Address Book Messages Camera & AT&T Services Multimedia Contacts Conversations AT&T Drive Take a Picture Mode Groups Create New Message Record a Video AT&T Navigator Favorites Templates Music Player AT&T Settings FamilyMap Clear Message Fixed Dial Pictures...
  • Page 11 Important Safety Information Tools Settings Alarm Clock Phone Status Calculator Sounds & Alerts Calendar Bluetooth Converter Display Notepad Readout Mode Pill Reminder Mode change Say a Command Sketch Pad Stop Watch Timer Tip Calculator Voice Memo World Time...
  • Page 12 Important Safety Information Advanced mode menu Address Book AT&T DriveMode AT&T GPS Bluetooth Settings Contacts AT&T Navigator Search Groups AT&T FamilyMap My Info Favorites Settings Fixed Dial Numbers SIM dependent Network dependent...
  • Page 13 Important Safety Information Camera Facebook Messages Mobile Email Yahoo! Mail Conversations AOL Mail Create New Message AIM Mail Templates Windows Live Hotmail Clear Message AT&T Mail Settings Gmail Memory Other Providers...
  • Page 14 Important Safety Information Mobile Web Music Player myAT&T My Stuff Home Now Playing Applications Bookmarks All Music Games Enter Address Playlists Audio History Albums Music Manage Artists Pictures Genres Video Download Status Other Files Settings Memory...
  • Page 15 Important Safety Information Pictures Settings Twitter Tools Images Mode Change Alarm Clock Sketch Pad Sound Profiles Calculator Display Calendar Call Converter Phone Notepad Touch Pill Reminder Keyboard Say a Command Connectivity Sketch Pad Security Stop Watch AT&T Software Timer Update Tip Calculator Reset Voice Memo...
  • Page 16 Important Safety Information Video Camera Video Player...

  • Page 17: Table Of Contents

    Table of contents Important Safety Information .....3 Checking all calls ..........44 Speed dialing ............45 Specifications ............ 3 Using the address book .........45 Phone overview ..........5 Address book settings ........48 Menu Overview ..........10 Service numbers and fixed dialing .... 48 Getting Started ........
  • Page 18 Table of contents 2. Messaging ........103 World Time ............76 Calculator, Tip Calculator and Converter ..76 Entering text ..........103 Stop Watch and Timer ........78 Messaging ............106 Receiving messages ........107 5. Connectivity ........80 Creating and sending text messages ..108 Bluetooth ............80 Creating multimedia messages ....109 Accessing AT&T Services ......82 Message templates ........114...
  • Page 19 Table of contents 7. Appendix ........164 Pill Reminder ..........136 Notepad ............138 Alert message ..........164 Sketch Pad ............138 Troubleshooting checklist ......165 Voice Memo ............140 Safety information ........166 World Time ............140 Safety precautions ........167 Calculator, Tip Calculator and Converter ...141 About battery usage ........169 Stop Watch and Timer .........142 FCC Hearing-Aid Compatibility (HAC)

  • Page 20: Getting Started

    Getting Started SIM card and battery About your SIM card The Micro SIM is a smaller version of the regular SIM cards commonly used and that frequently are referred to merely as SIM cards. When you subscribe to your network operator, you receive a SIM (Subscriber Identity Module) card containing your registration information, PIN code, etc.
  • Page 21 Getting Started Installing/Removing SIM card and battery 1. To remove the battery cover, locate notch at top right corner, pull it towards you as shown to the right. 2. Insert the SIM card into the slot. The gold contacts of the SIM card should face down.
  • Page 22 Getting Started 4. To remove the battery, lift the bottom of the battery up and remove. 5. To remove the SIM card, slide the SIM card in the direction of the arrow as shown. 6. To fit the battery cover, put it on the guide rail and push down ensuring all points around the edge are snapped into place.

  • Page 23: Charging Your Battery

    Getting Started Charging your battery 1. Connect with the Micro USB charger adaptor on the top right side. Make sure you align the connector as shown in the image. If not, it will damage the charging connector on the phone and will not charge. Correct Incorrect 2.

  • Page 24: MEmory Card

    Getting Started Memory card You can use a microSD card as a memory card. It gives you more space to save pictures, videos, music files and more. Inserting and removing a memory card 1. Open the battery cover. 2. Insert the memory card to the line carved as shown right. will be displayed on the screen when a memory card is inserted.

  • Page 25: Screen Lock/Unlock

    Getting Started Screen lock/unlock Locking the screen 1. Press the PWR/Lock key when the touchscreen slider is closed. Note In the lock screen, when the PWR/Lock key is short pressed, the screen should black out. Unlocking the screen Press the PWR/Lock key, then drag the lock icon to the right. You can also unlock the screen by opening the touchscreen slider.

  • Page 26: Essential Display Indications

    Getting Started Essential display indications Signal strength. The greater the number of bars, the stronger the signal. Network Searching Mode A call is in progress. When you are in no service area is displayed. Call forwarding is active Incoming calls set to ring only (Normal) Incoming calls set to Outdoor Incoming calls set to Vibrate Only Incoming calls set to Silent...
  • Page 27 Getting Started Web is active, secured and downloading. Bluetooth is active. Bluetooth hands-free headset is connected. Bluetooth A2DP headset is connected. Bluetooth hands-free + A2DP headset is connected. Data transfer via Bluetooth is in progress. Headset is connected. USB is connected. TTY is active.

  • Page 28: Screen Navigation

    Getting Started Screen navigation The home screen is your starting point for using applications on your phone. You can customize the home screen to display shortcuts for favorite apps, and web addresses. About your home screens Favorite Screen: A customizable screen for favorite contents shortcuts. Max 9 icons can be added.
  • Page 29 Getting Started Adding a home screen item Adding favorite items shortcuts The favorite shortcuts allow you to assign items to the screen. 1. Tap Add. 2. Tap a desired item. 3. Once you have added one or more items to the screen, the shortcuts are displayed to customize the home screen.

  • Page 30: Navigating Through Menus

    Getting Started Deleting a home screen item 1. Tap and hold an item until appears. 2. Tap on the item to delete. Note You can deactivate the edit mode by tapping the other space of the home screen or Repositioning a home screen item Once the items are assigned to the home screen, you can reposition the items for your convenience.

  • Page 31: MIssed Events

    Getting Started Extended Menu Right Left Position indicators Note The position indicators are always displayed for the corresponding menu screen. Missed events When you miss calls, messages, or voice messages, icons will pop up and let you know you have missed events. The icon will be shown at the Missed Events Area.

  • Page 32: Setting The Phone Mode

    Getting Started Setting the phone mode Your phone has two customized modes, Easy and Advanced. The default is set to Advanced mode. The Easy mode provides easy access to the functions used most frequently. In the Easy mode, Address Book, you can view an abbreviated menu: Messages, Camera &...

  • Page 33: Using A Memory Card

    Getting Started Multitask functions To use the multitask function, press and hold the volume up key. You can choose from one of the following functions: Call: Make a voice call while using the handset for other tasks. If Music Player is active, it is paused during the call.
  • Page 34 Getting Started 4. Tap to select a file to copy or move > OK. Memory Card. 5. Tap > 6. Tap to select a folder. Copy Here Move Here. 7. Tap Note Some files may not be moved by using this function. To copy or move a file to the phone Menu Stuff.

  • Page 35: Updating Software

    Getting Started 5. Follow the instructions on your computer screen. Note If you select Music Player, you can add music files from Windows Media Player . When you select Ask on Connection, it will ask you to select Music Player, Mass Storage or Modem every time you connect your device with your computer.

  • Page 36: System Requirements

    Getting Started System requirements Microsoft Windows 2000 or XP family, Windows 7, Vista 32 bit, and Windows 8 At least 300MB of free disk space Interface devices such as USB or Bluetooth for the connection with the phone PC suite features Contact Manager / Message Manager / File Manager...

  • Page 37: Easy MOde

    Easy Mode Calls and Address Book Making, receiving and ending calls Options during a call Checking all calls Speed dialing Using the address book Address book settings Service numbers and fixed dialing P6070 Using your headset...

  • Page 38: Calls And Address Book

    Calls and Address Book Making, receiving and ending calls Making a call 1. Tap Phone. 2. Enter the area code and phone number. 3. Tap Call. Answering a call 1. Drag to the right. Ending a call 1. Press during a call. Once the call is complete, a call summary is displayed.

  • Page 39: Switching Between Two Calls

    Calls and Address Book Making a call during a call 1. Enter the phone number or look it up in Address Book. Call 2. Tap to dial the second call. The first call is automatically put on hold. Switching between two calls 1.

  • Page 40: Options During A Call

    Calls and Address Book Answering a second call 1. Drag to the right. The first call is automatically put on hold. 2. Press to end the second call. The call on hold is automatically reconnected. Note For answering a second call, you should activate Call Waiting. Options during a call Microphone off and on Switching your phone’s microphone off...
  • Page 41 Calls and Address Book Multi-party calls You can talk with more than one person or have a conference call. Making a multi-party call 1. Call the first participant. 2. Call the second participant. The first call is automatically put on hold. 3.

  • Page 42: Having A Private Conversation With One Participant

    Calls and Address Book Having a private conversation with one participant 1. Tap the participant to hold. 2. Tap Members. 3. Tap Note All of the multi-party call participants can now hear each other. Removing one participant from a multi-party call 1.
  • Page 43 Calls and Address Book Searching for a name in the address book Enter the first letters of the name for Name Search. The entries are displayed starting with the first entry matching your input. Finding a name manually in the address book 1.

  • Page 44: Checking All Calls

    Calls and Address Book Checking all calls You can check all call history by tapping Phone. Viewing call history 1. Tap Phone. Recent Calls. 2. You can view all Viewing call time Phone Recent Calls Call Time. 1. Tap > >...

  • Page 45: Speed Dialing

    Calls and Address Book Speed dialing You can dial quickly using speed dialing. Up to 8 phone numbers can be programmed using numbers 2 to 9. Setting speed dial Phone Speed Dial. 1. Tap > 2. Tap an empty entry. 3.

  • Page 46: Deleting A Contact

    Calls and Address Book Searching for a phone number Menu Address Book > Contacts. 1. Tap > 2. Scroll the screen up or down or tap and enter the name to find the contact. 3. Tap the contact to view detailed information. 4.

  • Page 47: Adding A Contact

    Calls and Address Book Adding a contact Menu Address Book Contacts > Add. 1. Tap > > 2. Input contact information by tapping the desired field and sliding open the keyboard to type. 3. Tap Save. Note You can enter phone numbers, email addresses, company name and more. To change phone number type, touch and select from the Number Type list.

  • Page 48: Address Book Settings

    Calls and Address Book Address book settings Managing my info Menu Address Book Settings Info. 1. Tap > > > Setting sync settings Menu Address Book Settings AT&T Address Book. 1. Tap > > > Auto Sync On Auto Sync Off.

  • Page 49: Using Your Headset

    Calls and Address Book Using your headset You can make or receive a call using your headset. When you connect your headset to the port, the button on the headset works as follows. Note You must use a headset designed for this device. It is an optional accessory. Not all headsets will have a button.
  • Page 50 Messaging Entering text Messaging Receiving messages Creating and sending text messages Creating multimedia messages P6070...

  • Page 51: MEssaging

    Messaging Entering text You can enter text with multi-tap, predictive, numeric or symbol entry modes. Useful keys QWERTY Function Display symbols Delete the letter Adding space Tap to change capital mode Tap to change abc Abc ABC Multi-tap (first letter caps / all caps / lower case) b c d For details on using QWERTY keypad, see page 8.

  • Page 52: Standard Mode

    Messaging Standard mode Menu Messages Create New Message Tap to enter text 1. Tap > > > > > Select Standard Mode to change the mode to 2. Select to input text repeatedly. Automatic Correction mode The Automatic Correction mode automatically compares your keystrokes with an internal dictionary to determine the correct word.

  • Page 53: MEssaging

    Messaging Messaging You can send, receive and save the text messages and multimedia messages. Managing memory Up to 300 messages can be stored in the phone memory, additional messages will be saved to the SIM card. When the message box is full, the message full icon will appear. All messages share memory.

  • Page 54: Receiving Messages

    Messaging 5. Tap the recipient field to add one or more recipients and select the contact > OK. 6. Tap Send. Receiving messages Viewing a new message View or Ignore. When you receive a new message, you can select 1. Tap and drag to the right to read a new message or tap and drag the left to ignore a new message.

  • Page 55: Creating And Sending Text Messages

    Messaging Receiving settings for voice mails Menu Messages Options > Settings. 1. Tap > > 2. Tap Voice Mail. > Save. 3. Enter the number of the voice mail center > Note This number may be pre-configured by the service provider upon activation. Creating and sending text messages Sending a new text message Menu...

  • Page 56: Creating Multimedia Messages

    Messaging Creating multimedia messages You can create and send new multimedia messages. Capacity is 600Kb. An error message will alert you once you exceed the capacity. Adding a saved picture to the message Menu Messages Create New Message. 1. Tap >...
  • Page 57 Messaging 4. Focus on the object and tap Slide Preview > Current. To go back to text 5. To preview the current page, tap field > editor, tap Stop. 6. To preview the whole message, tap Slide field > Preview >...
  • Page 58 Messaging Adding a new video to the message Menu Messages Create New Message. 1. Tap > > Or tap Menu > Messages > Options > Create New Message. Or tap when messages exist. Tap to enter text > Enter the message > OK. 2.
  • Page 59 Messaging Slide Preview Whole Message. To go 6. To preview the whole message, tap field > > back to text editor page, tap Stop. 7. Tap the recipient field to add one or more recipients and select the contact > OK. 8.
  • Page 60 Multimedia Camera Photo album Video album P6070...

  • Page 61: MUltimedia

    Multimedia Camera You can take pictures and record movies using the built-in camera. The photos and video clips can be saved and sent via multimedia messages. Self timer Resolution Special effect GEO tagging White balance Storage The number of captured photos / The number of remaining photos Video camera mode Zoom...
  • Page 62 Multimedia In the options menu for camera Icons Name Description 1, 2,3,4,5,6,7,8 (up to 2x zoom) Zoom Note Zoom is not provided with the highest (2048x1536) resolution. Brightness -3, -2, -1, 0, +1, +2, +3 White Balance/ Effect/ Self Timer/ Resolution/ Storage/ GEO Settings Tagging/ Advanced Video Camera...
  • Page 63 Multimedia Zoom in and out 1. Tap } then tap ~ or /. It increases or decreases the zoom ratio. Note In camera mode, the zoom function is not available at the highest (2048x1536) resolution. Increasing or decreasing the brightness 1.

  • Page 64: Recording A Video

    Multimedia After taking pictures Send via Message/Bluetooth Delete Recording a video 1. Tap Menu > Camera & Multimedia > Record a Video. 2. Focus on the object and tap 3. Tap to stop recording. 4. Press to go back to preview mode.
  • Page 65 Multimedia Changing to camera mode Menu Camera & Multimedia Record a Video. 1. Tap > > 2. Tap on Video Camera mode. 3. Focus on an object and tap For details on taking a picture, see page 61. Viewing a recorded video clip Menu Camera &...
  • Page 66 Multimedia After saving recorded video clips Send via Message/Bluetooth Play the video clip Delete While recording a video Operation Receive an incoming call Drag to right Stop recording Pause the recording...

  • Page 67: Photo Album

    Multimedia Photo album You can save photos to your phone or an external memory card and view, send or delete them in the photo album. JPEG format is supported, and other formats are saved in the Picture folder. Note To access Picture, tap Menu Camera &...

  • Page 68: Video Album

    Multimedia Viewing file information Menu Camera & Multimedia Pictures 1. Tap > > 2. Tap of the selected picture. 3. Scroll down and tap Properties. Note You can check properties of the photo such as File Name, File Size, Format, Resolution, and Created.
  • Page 69 Multimedia Using video player controls Pause Play Previous track Next track Fast rewind Tap and hold Fast forward Tap and hold Control volume or press side volume keys Deleting multiple video clips Menu Camera & Multimedia Video Player. 1. Tap >...

  • Page 70: Useful Features

    Useful Features Alarm Clock Calendar Notepad Pill Reminder Sketch Pad Voice Memo World Time P6070 Calculator, Tip Calculator and Converter Stop Watch and Timer...

  • Page 71: Useful Features

    Useful Features Alarm Clock Setting an alarm Menu Tools Alarm Clock. 1. Tap > > Create New. 2. Tap 3. Set the desired options. 4. Tap Save. Note To set the alarm to ring when the phone is turned off, activate the Power Alarm by dragging the bar to On.

  • Page 72: Calendar

    Useful Features Calendar Calendar helps you manage your schedule. You can set a reminder on any given date with this function. Viewing the calendar Menu Tools > Calendar. 1. Tap > Note Monthly view is displayed by default. Creating a new event Menu Tools >...

  • Page 73: Pill Reminder

    Useful Features Pill Reminder Pill Reminder sets your schedule if you need to take a pill, and an alarm pop-up will appear at the time you set. You can select to accept the reminder or have the reminder pop-up again after 15 minutes Creating a new pill reminder Menu...

  • Page 74: Sketch Pad

    Useful Features Editing a pill reminder Menu Tools Pill Reminder. 1. Tap > > 2. Select a pill reminder > Edit. 3. Edit Name, Dosage, Time, Period More Information. 4. Tap Save. Deleting reminders Menu Tools Pill Reminder. 1. Tap >...

  • Page 75: Voice MEmo

    Useful Features Setting a background 1. Tap Menu > Tools > Sketch Pad. Options > Background. 2. Tap > 3. Tap a desired background. Options Import Image. 4. To import an image, tap > > Note The background image will be imported from the picture album and may be cropped when imported. Setting a sketch as wallpaper Menu Tools...

  • Page 76: World Time

    Useful Features World Time Using world time Menu Tools World Time. 1. Tap > > Note When you get out of your network, select a desired city > Tap OK. Add New City 2. To add a new city, tap and tap to select a new city.

  • Page 77: Using The Tip Calculator

    Useful Features Using the tip calculator Menu Tools Calculator. 1. Tap > > 2. Tap to enter values for all variable fields (Bill($), Tip(%), Split) and the corresponding calculation fields (Total($), Tip($), Pay($)) are updated automatically. 3. Tap to use the decimal point. Reset 4.

  • Page 78: Stop Watch And Timer

    Useful Features Stop Watch and Timer Using the stop watch Menu Tools Stop Watch. 1. Tap > > 2. Tap to select Basic, Split or Lap. Start 3. Tap to start. 4. Tap Stop to pause. Continue 5. Tap to resume. 6.
  • Page 79 Connectivity Bluetooth Accessing AT&T Services P6070...

  • Page 80: Connectivity

    Connectivity Bluetooth Bluetooth technology enables free wireless connections between electronic devices within a maximum range of 33 feet (10 meters). Bluetooth connections can be used to send images, business cards, calendar events and notes, or to connect to computers using Bluetooth technology.

  • Page 81: Adding A Device

    Connectivity Adding a device Menu Settings Bluetooth > Search. 1. Tap > > 2. The available devices will display. 3. Tap to select the desired device. Pair 4. Tap to pair the device. 5. Enter password > OK. View Detail 6.

  • Page 82: Accessing At&T Services

    Connectivity Naming the phone Menu Settings Bluetooth Info. 1. Tap > > > Name field to edit the name > OK. 2. Tap the Note The device name is what identifies your phone within Bluetooth network. Accessing AT&T Services Accessing AT&T DriveMode Menu AT&T Services AT&T...
  • Page 83 Connectivity Accessing Mobile Web Menu AT&T Services Mobile Web. 1. Tap > > For details on using the mobile web, see page 149. Accessing Twitter 1. Tap Menu > AT&T Services > Twitter.
  • Page 84 Settings Phone Status Sound Profile Display Readout mode P6070...

  • Page 85: Settings

    Settings Phone Status Viewing phone status Menu Settings Phone Status. 1. Tap > > Sound Profile Setting sound profile Menu Settings Sounds & Alerts. 1. Tap > > 2. Select Normal, Outdoor, Vibrate only, Silent Flight Mode. Note Tap to change Call, Message General settings.

  • Page 86: Setting The Language

    Settings Setting the menu theme Menu Settings > Display. 1. Tap > Menu Theme. 2. Tap Basic White, Soft Gray, or Pure Blue. 3. Select Setting time for backlight 1. Tap Menu > Settings > Display. 2. Tap Backlighting. 3. Tap to set the time of Screen Backlight Keypad Backlight...

  • Page 87: Readout Mode

    Settings Readout mode Readout Mode makes your phone a useful companion when you can’t or don’t have the ability to read the phone screen. When Readout mode is activated, the phone will announce key alert, navigation, and content information verbally. Announce selected items in Menus as user navigates the phone Announce numbers as they are pressed on keypad Read out text message content...

  • Page 88: Advanced MOde

    Advanced Mode Calls and Address Book Making, receiving and ending calls Options during a call Call settings Checking all calls Speed dialing Caller identification Using your headset P6070 Using the address book Address book settings Service numbers and fixed dialing...

  • Page 89: Calls And Address Book

    Calls and Address Book Making, receiving and ending calls Making a call 1. Tap 2. Enter the area code and phone number. 3. Tap Call. Answering a call 1. Drag to the right. Ending a call 1. Press during a call. Once the call is complete, a call summary is displayed.
  • Page 90 Calls and address book Making a call during a call Keypad 1. Tap and enter the phone number. 2. Tap Call. Keypad > Contacts. 1. Tap 2. Select and tap a desired phone number. Switching between two calls 1. Tap to swap calls.
  • Page 91 Calls and address book Replying to a missed call 1. Tap to display the list of missed calls. 2. Select a number to call by scrolling the screen. 3. Tap Answering a second call 1. Drag to the right. The first call is automatically put on hold. 2.

  • Page 92: Options During A Call

    Calls and address book Options during a call Microphone off and on Switching your phone’s microphone off 1. Tap Mute Switching your phone’s microphone back on Mute 1. Tap Speakerphone on and off Turning on speakerphone Speaker 1. Tap Turning off speakerphone Speaker 1.
  • Page 93 Calls and address book Multi-party calls You can talk with more than one person or make a conference call. Making a multi-party call 1. Call the first participant. 2. Call the second participant. The first call is automatically put on hold. 3.

  • Page 94: Call Settings

    Calls and address book Searching for a name in the address book Enter the first letters of the name for name search. The entries are displayed starting with the first entry matching your input. Finding a name manually in the address book 1.

  • Page 95: Deleting Call Logs

    Calls and address book Viewing dialed calls Recent Calls Dialed Calls 1. Tap > > Viewing call rankings 1. Tap > Recent Calls > Call Ranking Deleting call logs Recent Calls > Delete. 1. Tap > 2. Tap or an individual call log to delete. Delete >...

  • Page 96: Speed Dialing

    Calls and address book Speed dialing You can dial quickly using speed dialing. Up to 8 phone numbers can be programmed using numbers 2 to 9. Setting speed dial Contacts Settings Speed Dial. 1. Tap > > 2. Tap an empty entry. 3.

  • Page 97: Using Your Headset

    Calls and address book Using your headset You can make or receive a call using a headset. While using the headset, the button on the headset works as follows. Note You must use a headset designed for this device. It is an optional accessory. Not all headsets will have a button.
  • Page 98 Calls and address book Calling from the contact list 1. Tap Contacts. 2. Scroll the screen up or down to select a person or tap and input the first letter or two of the person’s name. 3. Tap Forwarding contact details 1.
  • Page 99 Calls and address book Making groups Contacts > Groups. 1. Tap > 2. To add new group, tap Add. 3. Input the group name and tap OK. Select > Save. 4. To assign a group ringtone, tap > select a desired ringtone and tap 5.

  • Page 100: Address Book Settings

    Calls and address book Address book settings Setting up AT&T Address Book Contacts Settings AT&T Address Book. 1. Tap > > Note Your contacts are backed up to your AT&T Address Book, and changes you make are automatically saved. Setting SIM management Contacts Settings SIM...

  • Page 101: Service Numbers And Fixed Dialing

    Calls and address book Service numbers and fixed dialing Calling your service numbers You can see the service number to reach the service provider. Contacts [ATT Services]. 1. Tap > Call. 2. Tap a number to access the service > Viewing the fixed dialing list Fixed dialing is a service that limits your access to specific numbers in the address book list recorded on the SIM.
  • Page 102 Messaging Entering text Messaging Receiving messages Creating and sending text messages Creating multimedia messages Message templates Message settings P6070 Email...

  • Page 103: MEssaging

    Messaging Entering text Using the QWERTY keypad Messages Create New Message Open the phone and tap > to use the QWERTY keypad. Changes the text input mode. For details on QWERTY keypad , see page 8 . Standard mode Messages Create New Message Tap to enter text Standard Mode...
  • Page 104 Messaging Number mode You can input numbers in this mode. Messages Create New Message Tap to enter text Number Mode 1. Tap > > > > Select to change the mode to 2. Select to input numbers. Symbols mode You can input symbols. Messages Create New Message Tap to enter text...
  • Page 105 Messaging Standard mode Tap the key labeled with the target letter once for the first letter, tap it twice for the second letter, and so on. Messages Create New Message Tap to enter text Standard Mode 1. Tap > > >...

  • Page 106: MEssaging

    Messaging Symbols mode You can input symbols. Messages Create New Message Tap to enter text Symbols 1. Tap > > > > Select change the mode to 2. Tap a symbol to input it. Messaging You can send, receive and save text messages and multimedia messages. Managing memory Up to 300 messages can be stored in the phone memory and additional messages will be saved to the SIM card.

  • Page 107: Receiving Messages

    Messaging Replying to a message 1. Tap Messages. 2. Select a conversation. 3. Tap Reply. Tap to enter text > Enter the message > OK. 4. Tap 5. Tap the recipient field to add one or more recipients and select the contact > OK. 6.

  • Page 108: Creating And Sending Text Messages

    Messaging Saving an object from a received multimedia message 1. Open a multimedia message. Options Save to internal Save to external. 2. Tap > > My Stuff It will be saved in one of the categories in the folder. For details on Picture album , see page 121 . Loading a URL using push message 1.

  • Page 109: Creating Multimedia Messages

    Messaging Creating multimedia messages You can create and send new multimedia messages. The size limit is 600KB. An error message will alert you once you exceed the capacity. Adding a saved picture to a message Messages Create New Message. 1. Tap >...
  • Page 110 Messaging 4. Focus on the object and tap Slide Preview > Current. To go back to text 5. To preview the current page, tap field > editor, tap Stop. 6. To preview the whole message, tap Slide field > Preview >...
  • Page 111 Messaging Adding a new video to a message Messages Create New Message. 1. Tap > Or tap Messages > Options > Create New Message. Or tap when messages exist. 2. Tap Tap to enter text > Enter the message > OK. Insert Create Video.
  • Page 112 Messaging 6. To preview the whole message, tap Slide field > Preview > Whole Message. To go back to text editor page, tap Stop. 7. Tap the recipient field to add one or more recipients and select the contact > OK. 8.
  • Page 113 Messaging Insert > Files. 3. Tap > 4. Tap to select desired file to insert. 5. To edit the text message, tap the text box. Slide Preview > Current. To go back to text 6. To preview the current page, tap field >...

  • Page 114: MEssage Templates

    Messaging 3. Tap to select desired templates to insert. 4. To edit the text message, tap the text box. 5. Tap the recipient field to add one or more recipients and select the contact > OK. 6. Tap Send. Message templates When you often use the same phrases, you can save the message under message templates.

  • Page 115: MEssage Settings

    Messaging Message settings Message center settings Messages Options > Settings. 1. Tap > Text Message. 2. Tap Center Address. 3. Enter new > Save. 4. Tap Note This number may be pre-configured by the service provider upon activation. MMS profiles for multimedia messages Messages Options >...
  • Page 116 Messaging Receiving settings for multimedia messages Messages Options > Settings. 1. Tap > Multimedia Message Receiving Settings. 2. Tap > Automatic Download or Off. 3. You can set by dragging the bar to 4. Tap Save. Receiving settings for voice mails Messages Options >...

  • Page 117: Email

    Messaging Email You can receive emails through your service provider. (Subscription and data charges may apply.) Receiving an email 1. Tap Menu > Mobile Email. 2. Select a service. 3. Follow the steps to set up your email account.
  • Page 118 Multimedia Camera Picture album Video Camera Video Player Audio album Playing Music Music Player P6070 Music Player Settings Other files Managing memory Applications...

  • Page 119: MUltimedia

    Multimedia Camera You can take pictures using the built-in camera. The photos can be saved to your phone or memory card and can be sent via multimedia messages and Bluetooth. Self timer Resolution Special effect GEO tagging White balance Storage The number of captured photos / The number of remaining photos Video camera mode...

  • Page 120: Zooming In And Out

    Multimedia Icons Name Description Video camera Switch to video camera mode Album View the pictures stored in the device Zooming in and out 1. Tap } then tap ~ or /. It increases or decreases the zoom ratio. Note In camera mode, the zoom function is not available at the highest (2048x1536) resolution. Increasing or decreasing the brightness 1.

  • Page 121: Picture Album

    Multimedia Picture album You can save photos to your phone or an external memory card and view, send or delete them from the Picture album. Note To access the Pictures Menu > Pictures. folder, tap Viewing saved pictures Menu > Pictures. 1.
  • Page 122 Multimedia Sending pictures via multimedia message Menu > Pictures. 1. Tap Send Message. 2. Tap on the desired picture > > Sending pictures via Bluetooth 1. Tap Menu > Pictures. Send Bluetooth. 2. Tap on the desired picture > > Deleting multiple pictures Menu >...

  • Page 123: Video Camera

    Multimedia Video Camera You can record movies using the built-in camera. The video clips can be saved to your phone or memory card and can be sent via multimedia messages and bluetooth. Self timer Resolution Special effect Storage White balance Storage remaining Camera mode Zoom...
  • Page 124 Multimedia Zooming in and out 1. Tap } then tap ~ or /. It increases or decreases the zoom ratio. Increasing or decreasing the brightness 1. Tap $ then tap % or & . It ranges from -3 to +3. Recording a video Menu Video...

  • Page 125: Video Player

    Multimedia Video Player You can view, send, save and delete videos. The supported formats are MPEG4, H.263, 3GP, and H. 264. Playing saved video clips Menu Video Player. 1. Tap > 2. Tap a video clip to play. Sending a video clip via multimedia message Menu Video Player.

  • Page 126: Audio Album

    Multimedia Playing a video clip Menu Video Player. 1. Tap > 2. Scroll and tap to select a file. Rewind Play/Pause Play bar Fast Forward Volume Mute Properties Repeat Audio album You can play, send, delete, move or copy saved sound files to external memory or to the phone.

  • Page 127: Playing MUsic

    Multimedia Moving or copying multiple sound files to external memory Menu My Stuff > Audio. 1. Tap > 2. Select a folder and tap to open. Options Copy or Move. 3. Tap > 4. Tap to mark desired files or tap to mark all files.

  • Page 128: MUsic Player

    Multimedia Adding music from Windows Media Player 1. Connect the USB cable to the device and the computer. Music Player. 2. Select 3. Open Sync Tap in Windows Media Player on your computer. 4. Select the music from the list and drag and drop to your device. Note Windows Media Player 11 and Windows XP are required.
  • Page 129 Multimedia Repeating songs Menu Music Player. 1. Tap > Settings > Repeat. 2. Tap Repeat All Tracks, Repeat Single Track Repeat Off. 3. Tap to select 4. Tap Save. Setting the equalizer Menu Music Player. 1. Tap > 2. Tap Settings >...

  • Page 130: Creating A Playlist

    Multimedia Icons for player Icon Description Adjust the volume Pause and play the audio file Tap and hold : Rewind, Fast Forward Tap: Previous, Next Repeat all Repeat off Repeat Single Track Shuffle On / Off Go to the library Library Play/Stop, Exit Player, Add to Playlist, Settings, Download Status, Properties Options...

  • Page 131: Adding Music To A Playlist

    Multimedia Adding music to a playlist Menu Music Player. 1. Tap > 2. Tap Playlists. Tracks. 3. Select the playlist and tap > 4. Tap to select a category. Select All > Done. 5. Tap to mark desired files or tap Remove Tracks 6.

  • Page 132: Other Files

    Multimedia Deleting music Menu Music Player. 1. Tap > 2. Scroll and tap to select a category. 3. Scroll and tap a file. on a desired file > Delete. Or tap Delete 4. Tap and tap to mark desired files. Delete >...

  • Page 133: Applications

    Multimedia Formatting memory 1. Tap Menu > Stuff. 2. Tap Memory > Tap and select Phone Memory Card. Format > Yes. 3. Tap Note It will erase all data except system files. Applications You can play pre-installed demo apps or download apps. It is easy to download and you can preview them beforehand.
  • Page 134 Useful Features Alarm Clock Calendar Pill Reminder Notepad Sketch Pad Voice Memo World Time Calculator, Tip Calculator and Converter P6070 Stop Watch and Timer...

  • Page 135: Useful Features

    Useful Features Alarm Clock Setting an alarm Menu Tools Alarm Clock. 1. Tap > > 2. Tap Create New. 3. Set the desired options. 4. Tap Save. Note To set the alarm to ring when the phone is turned off, activate the Power Alarm by dragging the bar to On.

  • Page 136: Calendar

    Useful Features Calendar Calendar helps you manage your schedule. You can set a reminder on any given date with this function. Viewing the calendar Menu Tools > Calendar. 1. Tap > Note Monthly view is displayed by default. Creating a new event Menu Tools >...

  • Page 137: Deleting Reminders

    Useful Features Name and Dosage. 3. Input Time > Save. 4. Tap 5. Set a desired time > OK. Period > Begins. 6. Tap 7. Set the beginning time of the dosage on the calendar. 8. Tap Daily, Every 2 days, or Monthly >...

  • Page 138: Notepad

    Useful Features Notepad Using notepad Menu Tools > Notepad. 1. Tap > Create New. 2. Tap 3. Enter the memo and Tap OK. Sketch Pad You can create drawings and set as wallpaper or share via multimedia message or Bluetooth. Creating a sketch Menu Tools...
  • Page 139 Useful Features Setting a background Menu Tools Sketch Pad. 1. Tap > > Options > Background. 2. Tap > 3. Tap a desired background. Options Import Image. 4. To import an image, tap > > Note The background image will be imported from the picture album and may be cropped when imported. Setting a sketch as wallpaper 1.

  • Page 140: Voice MEmo

    Useful Features Voice Memo Recording a voice memo Menu Tools Voice Memo. 1. Tap > > Record. 2. Tap 3. Tap Voice. 4. Tap to stop recording. It will automatically save in Note To access Voice, tap Menu > My Stuff >...

  • Page 141: Calculator, Tip Calculator And Converter

    Useful Features Calculator, Tip Calculator and Converter Using the calculator Menu Tools > Calculator. 1. Tap > 2. Tap the numbers and to calculate. 3. Tap to erase one digit. 4. Tap and hold to reset. 5. Tap to use the decimal point. Using the tip calculator Menu Tools...

  • Page 142: Stop Watch And Timer

    Useful Features Using the converter Menu Tools > Converter. 1. Tap > 2. Tap to select a category. 3. Tap the field to enter a number and scroll left or right to select the unit. Other unit fields are updated automatically. Reset 4.

  • Page 143: Say A Command

    Useful Features Using the timer 1. Tap Menu > Tools > Timer. 2. Tap to input the time. 3. Scroll to set the hour, minutes and seconds and tap Save. Start 4. Tap to start. 5. Tap Pause to stop. Continue 6.
  • Page 144 Useful Features Contact <Name>: Retrieve and display the contact information stored in the address book. Go To <Menu>: Open an application on your phone. Check <Item>: Check the status information of your phone (Status, Voicemail, Messages, Missed Calls, Time, Signal strength, Battery, My Phone Number, and Volume).
  • Page 145 Connectivity Bluetooth Using the Mobile Web Setting the Web’s profile P6070...

  • Page 146: Connectivity

    Connectivity Bluetooth Bluetooth technology enables free wireless connections between electronic devices within a maximum range of 33 feet (10 meters). Bluetooth connections can be used to send images, business cards, calendar events and notes, or to connect to computers using Bluetooth technology.

  • Page 147: Activating Bluetooth

    Connectivity Activating Bluetooth 1. Tap the Bluetooth icon on the center of the screen as shown right. Note You can also activate the Bluetooth function by tapping Menu > Bluetooth > Settings Menu Settings Connectivity Bluetooth Settings > > > >...
  • Page 148 Connectivity Receiving an object Receiving an object starts only when the receipt has been approved. The received file will be saved in your phone’s memory. Setting visibility Menu Bluetooth > Settings. 1. Tap > Menu Settings Connectivity Bluetooth > Settings. Or tap >...

  • Page 149: Using The MObile Web

    Connectivity Using the Mobile Web Accessing the mobile web Menu Mobile Web. 1. Tap > 2. Tap Home. Note It will access your service provider’s homepage. Adding new bookmarks 1. Tap Menu > Mobile Web. 2. Tap Bookmarks. 3. Tap Bookmark.

  • Page 150: Setting Advanced Options

    Connectivity Setting advanced options Menu Mobile Web. 1. Tap > Manage > Options. 2. Tap Rendering Mode, Cache, Cookies, Security Warning, Javascript Image 3. Change the Display. 4. Tap Save. Clearing private data Menu Mobile Web. 1. Tap > Manage Private Data.

  • Page 151: Setting The Web's Profile

    Connectivity Setting the Web’s profile Profile Name, Home URL, Connection Type, Proxy You can set your profile and view Address Proxy Port. Viewing the default profile Menu Mobile Web. 1. Tap > 2. Tap Manage > Profiles. 3. Tap to view the details. Adding a new profile Menu Mobile...

  • Page 152: Deleting A Profile

    Connectivity Deleting a profile Menu Mobile Web. 1. Tap > Manage > Profiles. 2. Tap 3. Tap Delete. 4. Tap to mark a profile to delete. Delete > Yes. 5. Tap...
  • Page 153 Settings Phone Readout mode Ring Tones Display Connectivity Keyboard Touch P6070 Security Reset...

  • Page 154: Settings

    Settings Phone Setting the language Menu Settings > Phone. 1. Tap > 2. Tap Language. Screen text. 3. Tap to select the language for to select the language for Predictive. 4. Tap Note You can select language setting options including English, French, and Spanish. Setting the time &...

  • Page 155: Ring Tones

    Settings Setting readout mode Menu Settings Phone Readout Mode. 1. Tap > > > Read Menu, Real Dialpad, Incoming Call, Message, New Voice Mail, Read 2. Drag the Message Text, and Read Memo Text or Off. bar to 3. Tap Save. Note Make sure to set Sound Profiles Normal...

  • Page 156: Display

    Settings Display Setting the home screen Menu Settings > Display. 1. Tap > Home Screen. 2. Tap 3. Scroll and tap to select a file > Save. Setting the lock screen 1. Tap Menu > Settings > Display. Lock Screen. 2.

  • Page 157: Connectivity

    Settings Setting the font style Menu Settings > Display. 1. Tap > Font Style. 2. Tap 3. Scroll and tap to select a font type > Save. Setting the backlighting 1. Tap Menu > Settings > Display. 2. Tap Backlighting. 3.

  • Page 158: Keyboard

    Settings Keyboard You can set a text input keyboard for messages and notepad. Menu Settings > Keyboard. 1. Tap > 2. Select a desired text input keyboard. Touch Setting the touch feedback Menu Settings > Touch. 1. Tap > 2. Tap Touch Feedback.

  • Page 159: Security

    Settings Security Locking the phone Menu Settings > Security. 1. Tap > Phone Lock or Off. 2. Drag the bar to 3. Enter password. Note The default password is ‘1234’. To change the password, tap Menu > Settings > Security >...

  • Page 160: Changing The Password

    Settings Changing the password 1. Tap Menu > Settings > Security. Change Password. 2. Tap 3. Enter the current phone lock password > OK. 4. Enter the new password > OK. 5. Re-enter the new password > OK. Changing the PIN Menu Settings >...

  • Page 161: Reset

    Settings Reset Resetting the phone Menu Settings > Reset. 1. Tap > Master Reset. 2. Enter password > > 3. Tap Yes. Note It will return configuration settings to default. The default password is ‘1234’. Clearing the phone Menu Settings >...

  • Page 162: Tty

    Settings The teletypewriter (TTY) is a telecommunication device that allows people who are deaf or hard of hearing, or who have speech or language disabilities, to communicate via a telephone. Setting teletypewriter Menu Settings > TTY. 1. Tap > 2. Select Disable, Full, TTY Talk Hear.
  • Page 163 Appendix Alert message Troubleshooting checklist Safety information Safety precautions About battery usage FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices FCC Regulatory Compliance P6070 Warranty...

  • Page 164: Appendix

    Appendix Alert message If you experience any problem while using your mobile phone, please refer to the following checklist. If the problem still persists, contact your dealer or nearest carrier. When the “Insert SIM Card” message appears: Make sure the SIM card is correctly installed. Check to see if the SIM card is working properly. If it does not work, try to clean the contact points of the card with a dry cloth.

  • Page 165: Troubleshooting Checklist

    Appendix When the “No Service” or “Network Search” message appears: If you cannot make/receive a call when you are indoors or underground where the signal strength is poor, move toward a window or go out to an open area. If you still cannot make a connection, contact your service provider.

  • Page 166: Safety Information

    Appendix When you are unable to receive a call Make sure to check the network service. Or check whether your phone is set to “Call forwarding”. If call forwarding is enabled, you must disable the “Call forwarding” function. When you are unable to charge the battery: This may be the result of one of the following cases.

  • Page 167: Safety Precautions

    Appendix Do not use or store your mobile phone in dusty, dirty areas. Do not attempt to disassemble your mobile phone. Do not drop or cause severe impact to your mobile phone. Do not use chemical products, cleaning solvents or detergents to clean your mobile phone.

  • Page 168: Switch Off In Aircraft

    Appendix Switch off in explosive or dangerous areas Always switch your phone off in areas with explosive or dangerous materials (such as fuels, fuel stations or areas containing chemical goods) and obey any instructions or signals. Do not remove your mobile phone’s battery in such areas. Switch off in aircraft Always switch your phone off or select Flight Mode (Tap Menu >...

  • Page 169: About Battery Usage

    Appendix About battery usage Your phone is powered by a Lithium Ion (Li-Ion) battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your phone’s autonomy due to the “battery memory effect” inherent in those technologies.

  • Page 170: Fcc Hearing-Aid Compatibility (Hac) Regulations For Wireless Devices

    Appendix Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection. Use your battery for the specified purpose only. The closer you are to your network’s base station, the longer your phone usage time because less battery power is consumed for the connection.
  • Page 171 Appendix hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label located on the box. The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss.

  • Page 172: Fcc Regulatory Compliance

    Appendix the M3 level rating, the sum of the two values equal M5. This is synonymous for T ratings. This should provide the hearing aid user with “normal usage” while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined as a signal quality that is acceptable for normal operation.
  • Page 173 Appendix Your mobile device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile devices.
  • Page 174 Appendix RF exposure FCC For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 15 mm (0.59 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided.

  • Page 175: Warranty

    Many companies are making look alike accessories and in some cases, promoting that their product is equal to or better than the Pantech product. Be careful. Some of these products may not be compatible to use with your Pantech product and may damage the unit or cause it to malfunction.
  • Page 176 Company by calling the number listed below or to the place of purchase for repair or replacement processing. To locate Pantech Authorized Service Center, call: (800) 962-8622 or email HandsetHelp@ Pantech.com. Please have the following information available when you send the phone in for repair:...

  • Page 177: Other Warranty Program

    Appendix Model # IMEI # (Look for the 15 digit IMEI # behind the battery of the device.) Complete description of the problem Transportation prepaid Other Warranty Program You may have other warranty program with your purchase, such as warranty exchange. If so, please refer to equipment package or the original point of sale.
  • Page 178 Appendix For technical support in the U.S. & Canada, call (800) 962-8622. Or email: HandsetHelp@Pantech.com. Or visit the web site: www.pantechusa.com For all other inquiry, write to: PANTECH WIRELESS, INC. 5607 Glenridge Dr. Suite 500 Atlanta, GA 30342...

Table of Contents
