SAVE THESE INSTRUCTIONS
NOTE: Check all parts for shipping damage before using.
In case of damage, DO NOT use the equipment. Contact
your Dealer/Carrier for further instruction.
SAFETY SUMMARY
The following recommendations are made for the safe
and proper installation and use of the Rectangular Pan
Holder and Pan:
GENERAL WARNING
DO NOT install or use this equipment without first read-
ing and understanding this instruction sheet. If you
are unable to understand the Warnings, Cautions
and Instructions, contact a healthcare professional,
dealer or technical personnel before attempting to
install this equipment - otherwise, injury or damage
may occur.
Before using the commode: Always test to see that
all parts of the commode are secure. Make certain
ALL screws, nuts and/or bolts are tight at all times.
Users with limited physical capabilities should be
supervised or assisted when utilizing the commode.
The applicable commodes listed have a weight
limitation of 300 lbs. (135 kg.). The Extra Wide Com-
mode has a weight limitation of 450 lbs. (202.5 kg.).
INSTALLATION WARNING
After ANY adjustments, repair or service and BEFORE
use, make sure that all attaching hardware is
tightened securely.
INSTALLING RECTANGULAR PAN
HOLDER AND PAN ONTO EXISTING
STANDARD COMMODE PAIL
HANGER (FIGURE 1)
1. Remove original commode lid from commode by
grasping and pulling straight up.
2. Remove existing commode seat by grasping and
pulling straight up.
3. Install the rectangular pan holder onto existing
commode pail hanger framework by placing bracket
of one side over the existing pail hanger.
899 Cleveland St.
Form No. 97-105
INVACARE CORPORATION
Elyria, Oh. 44036-2125
P/N 1069323
4. Slide the remaining bracket up and over the remaining
portion of the existing pail hanger. Open end of pan
holder should face to the rear of the commode.
5. Ensure that it is properly situated onto existing pail
hanger.6. Install NEW rectangular pan onto the NEW
pan holder from the rear of the commode by sliding
the back end of the lipped top of the rectangular pan
onto the NEW pan holder rails and push it forward.
7. To remove pan and pan holder, reverse STEPS 3-6.
Existing Pail
Hanger
Existing Pail
Hanger
Back Rail of Commode

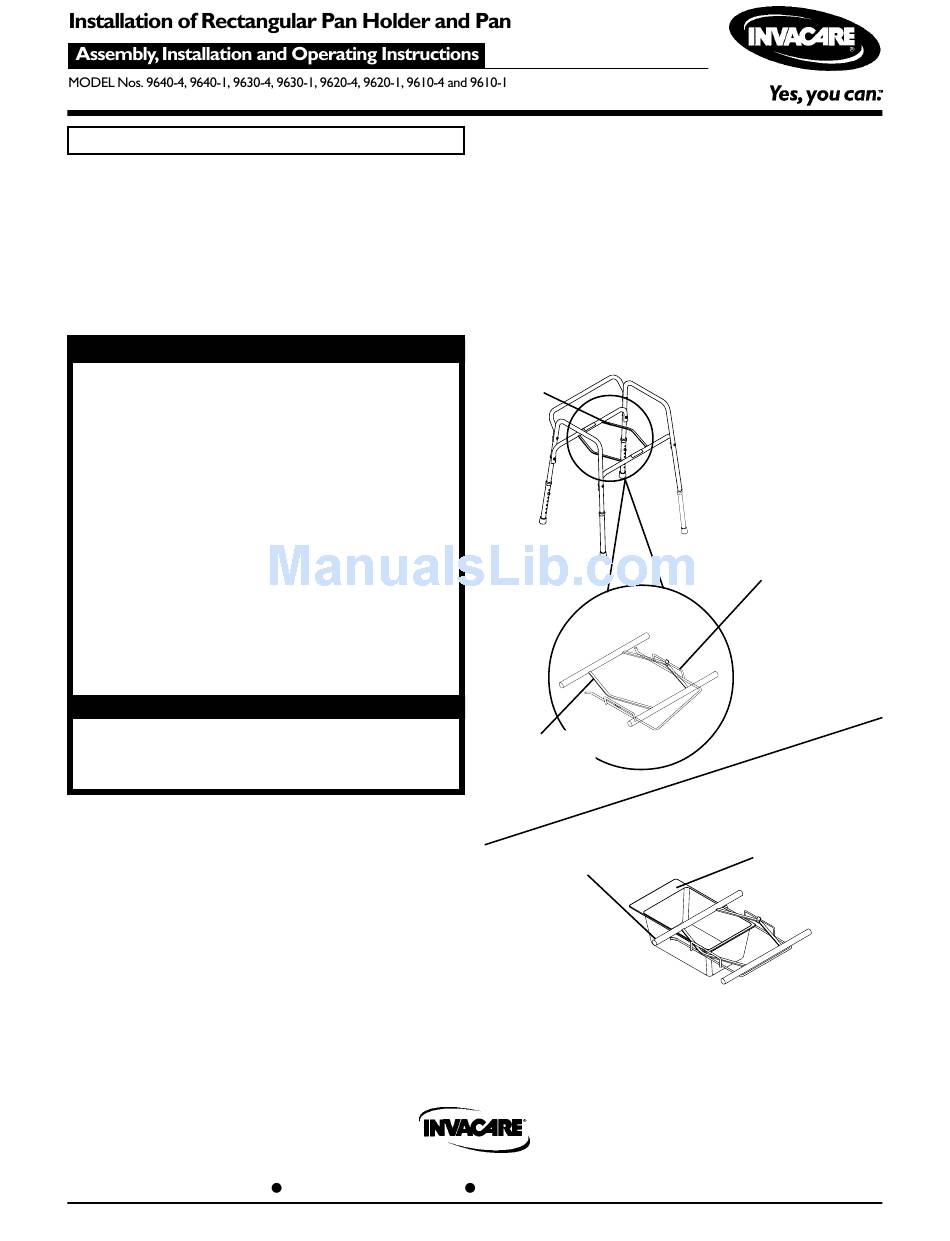

FIGURE 1 - INSTALLING RECTANGULAR PAN
HOLDER AND PAN ONTO EXISTING
STANDARD COMMODE PAIL HANGER
Customer Service - Toll Free (800) 333-6900
Install Pan Holder
Install Pan to
Pan Holder from
Rear of Commode.
Printed in USA
