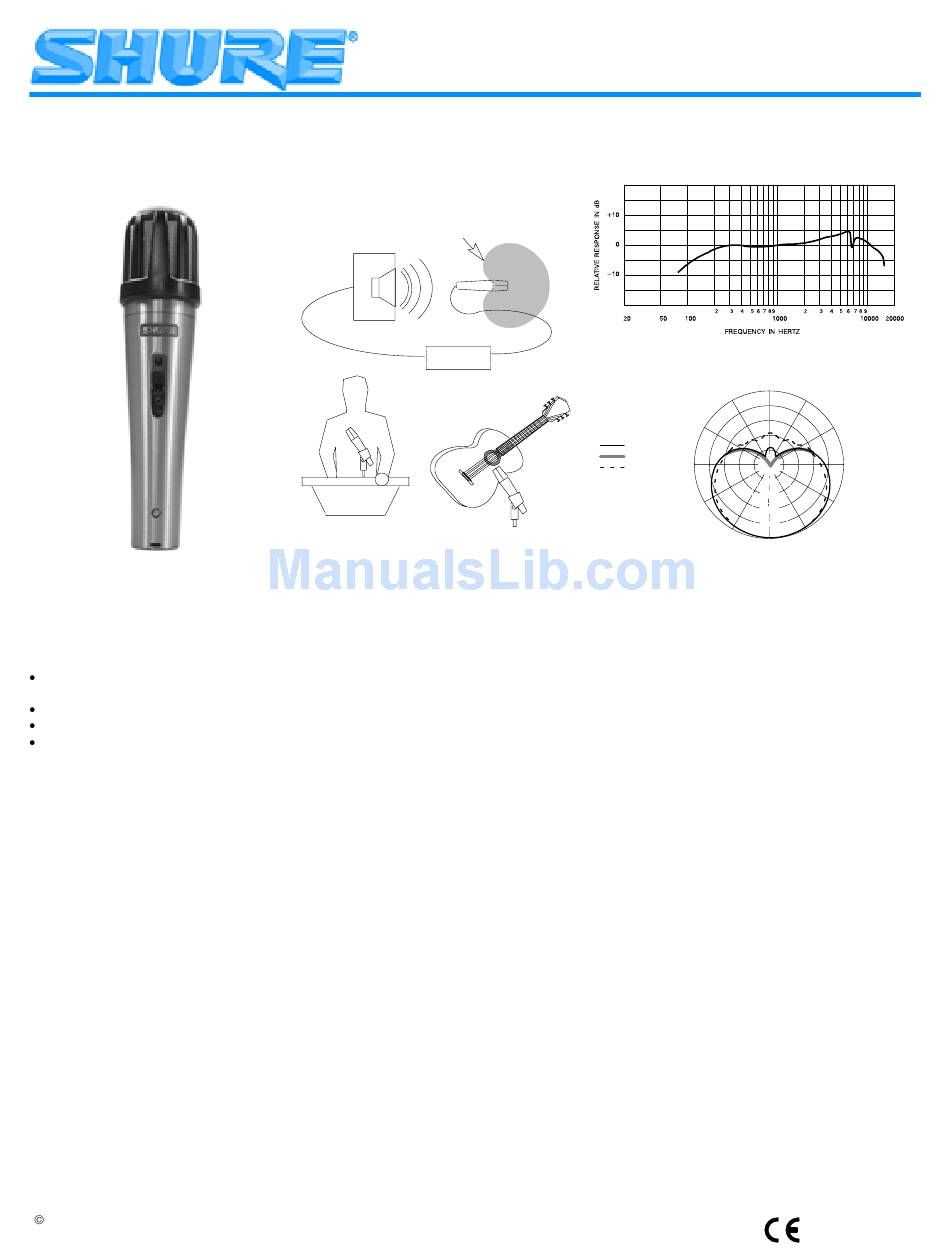

Shure 10A User Manual

DESCRIPTION
The Model 10A microphone can be used in sound reinforcement or re-
cording, to pick up voices or instruments.
Features
Tailored frequency response provides intelligibility and crispness of
sound
Neodymium magnet for high signal-to-noise ratio
Cardioid (unidirectional) pickup pattern suppresses feedback
Locking On/Off switch
BASIC RULES FOR MICROPHONE USE
1. Aim a directional microphone toward the desired sound source (for
instance, musical instrument, talker, singer) and away from undesired
sources (such as loudspeakers or another instrument) (Figure [1]).
2. Locate the microphone as close as practical to the desired sound
source (Figure [2]) for best gain before feedback.
3. Do not pick up the same sound source with more than one micro-
phone. Keep the distance between multiple microphones at least three
times the distance from each source to its intended microphone.
4. Use the fewest microphones possible for the particular application.
5. When extra bass response is desirable, work close to the microphone.
This phenomenon is known as "proximity effect".
6. Locate microphones as far as possible from acoustically reflective
(hard, smooth) surfaces.
7. Add an external windscreen when additional pop protection is needed:
outdoors in windy conditions or for closeup vocal use.
8. To preserve directional characteristics, do not obstruct the microphone
grille.
SPECIFICATIONS
Type
Dynamic
Frequency Response
80 to 12,000 Hz (see Figure [3])
Pickup (Polar) Pattern
Cardioid (unidirectional) (see Figure [4])
2001, Shure Incorporated
27B3093 (AC)
TO REDUCE FEEDBACK,
AIM MIC WITH CARDIOID
POLAR PATTERN
(SHADED) AWAY FROM
LOUDSPEAKERS
[1]
KEEP THE MICROPHONE CLOSE
TO THE DESIRED SOURCE
[2]
Patent No. Des. 407, 407
MICROPHONE PICKUP
PATTERN (CARDIOID)
AMPLIFIER
Impedance (Z)
Low, rated 150 Ω (actual 180 Ω)
Output Level (at 1 kHz)
Open Circuit Voltage: –57.0 dBV/Pa* (0.14 mV)
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2
with respect to pin 3.
Connector
Three-pin professional audio connector (male XLR)
Switch
Built-in locking On/Off switch. To lock switch On, loosen screw, push
lockplate forward, then tighten the screw.
Weight
240 g (8.5 oz.)
Certifications
Conforms to European Union directives, eligible to bear CE marking;
meets European Union EMC Immunity Requirements (EN 50082–1:
1992)
VARIATION
10AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPTIONAL ACCESSORIES
4.57 m (15 ft.) Cable (XLR-
6.1 m (20 ft.) Cable (XLR-
7.6 m (25 ft.) Cable (XLR-XLR)
Windscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REPLACEMENT PARTS
Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Grille Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For additional service or parts information, please contact Shure's
Service department at 1-800-516-2525. Outside the United States, please
contact your authorized Shure Service Center.
